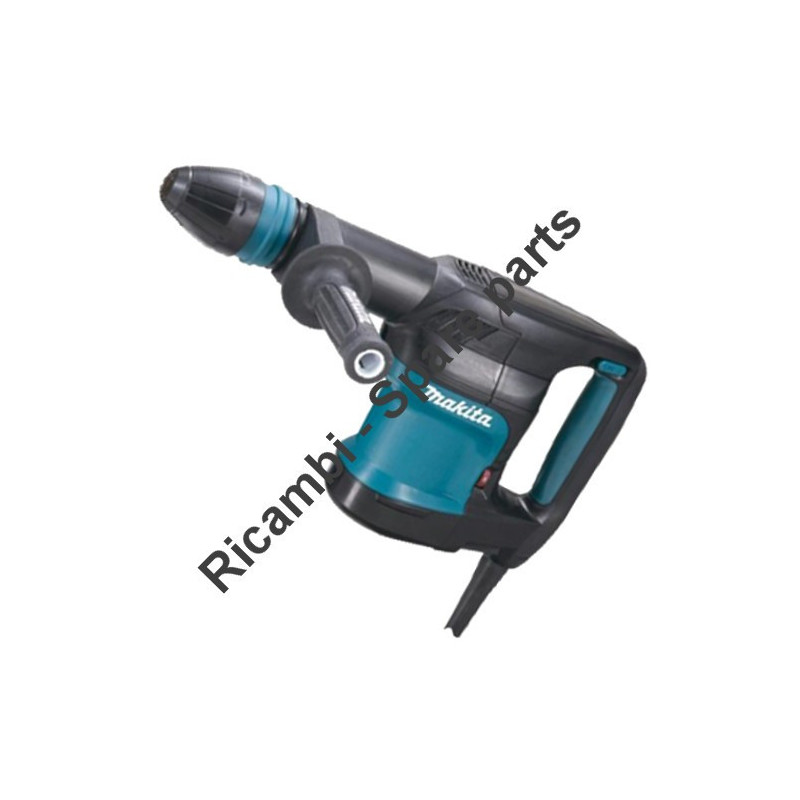

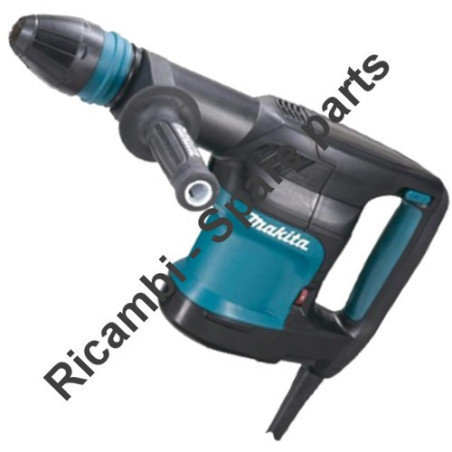

Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C
€62.54
Tax included
Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C.
In the following table, look for the model of the Hammer and the respective parts of the code.
| HM1202C - DEMOLITORE 9,3KG 1450W SDS-MAX | ||
| # | Part Num. | Description |
| 1 | 286250-3 | TOOL HOLDER CAP HR5001C/HM1202 HR5001C |
| 2 | 417577-2 | TIPS HOLDER COVER HM1202C |
| 4 | 231984-3 | RING SPRING 25 HR50001C |
| 5 | 961232-3 | RETAINER RING WR 45 |
| 6 | 267735-8 | WASHER X HR5001C |
| 7 | 323767-6 | PIN X HR5001C |
| 8 | 324185-1 | CHUCK RING HM1202C |
| 9 | 232180-6 | LEAF SPRING 41 HR5001C |
| 10 | 233218-0 | COMPRESSION SPRING HR5001C |
| 11 | 324131-4 | STEEL BALL GUIDE HM1202C |
| 12 | 233909-3 | ING SPRING 34 HM1202C |
| 13 | 267760-9 | FLAT WASHER 37 HM1202C |
| 14 | 416934-1 | CHANGE RING X HM1202C |
| 15 | 231989-3 | RING SPRING 46 HM1202C |
| 16 | 416938-3 | HOUSING COVER HM1202C |
| 17 | 265439-6 | SCREW M8X150 X HM1100C |
| 18 | 417003-1 | SIDE HANDLE X HM1202C |
| 19 | 252640-2 | HANDLEGRIP KNOB M8 |
| 20 | 951166-8 | SPRING PIN 5/24 |
| 21 | 417002-3 | SIDE HANDLE CAM HM1202C |
| 22 | 318505-9 | SIDE HANDLE BASE 82A X HM1203C |
| 23 | 318506-7 | SIDE HANDLE BASE 82B X HM1203C |
| 24 | 417002-3 | HANDLE RING HM1202C |
| 25 | 213670-8 | O-RING 58 HM1202C |
| 26 | 310087-7 | BARREL HM1202C |
| 27 | 216041-8 | STEEL BALL 5.6 |
| 28 | 922451-6 | BOLT M8X30 |
| 29 | 213720-9 | O-RING 67 |
| 30 | 213508-7 | O-RING 38 HM0810 |
| 31 | 262095-3 | RUBBER RING 43 HM1202C |
| 32 | 324109-7 | TOOL HOLDER X HM1202C |
| 33 | 322908-1 | ROLLER 8 X HM1100C |
| 34 | 213431-6 | O-RING 23 HR5001C |
| 35 | 213394-6 | RUBBER RING X HR5001C |
| 36 | 324132-2 | IMPACT BOLT HM1202C |
| 37 | 323909-2 | IMPACT BOLT GUIDE HM1202C |
| 38 | 421691-8 | RUBBER RING 21 HM1202C |
| 39 | 323875-3 | COLLARED SLEEVE 24 HM1202C |
| 40 | 417600-3 | GUIDE RING HM1202C |
| 41 | 344998-4 | FLAT WASHER 49 HM1202C |
| 42 | 331608-2 | CYLINDER LINER 44 HM1202C |
| 43 | 416928-6 | SLIDE SLEEVE 49 HM1202C |
| 44 | 257224-1 | RING 49 HM1202C |
| 45 | 213508-7 | O-RING 38 HM0810 |
| 46 | 233246-5 | COMPRESSION SPRING 50 HM1202C |
| 47 | 416935-9 | CRANK CAP HM1202C |
| 48 | 213806-9 | O-RING 90 XHR2510 |
| 49 | 323910-7 | STRIKER HM1202C |
| 50 | 213485-3 | RING 34 HM1202C |
| 51 | 213485-3 | RING 34 HM1202C |
| 52 | 213523-1 | RING 36 HM1202C |
| 53 | 257693-6 | PIN 9 HR5001C |
| 54 | 416929-4 | PISTON HM1202C |
| 55 | 416930-9 | CONROD HM1202C |
| 56 | 323877-9 | CRANKSHAFT HM1202C |
| 57 | 211327-5 | BALL BEARING HM1202C |
| 58 | 212113-7 | NEEDLE BEARING 1212 |
| 59 | 318102-1 | CRANK HOUSING HM1202C |
| 60 | 416940-6 | CONTGROLLER COVER HM1202C |
| 61 | 415692-6 | STOPPER HM1100 |
| 62 | 421507-7 | HANDLE X HM1100C |
| 63 | 922361-7 | SCREW M6X40 X HM1303 |
| 64 | 922353-6 | SCREW M6 X30 X HM1202C |
| 65 | 922353-6 | SCREW M6 X30 X HM1202C |
| 66 | 416932-5 | RUBBER PIN 5 HM1202C |
| 67 | 416931-7 | SWITCH LEVER X HM1202C |
| 68 | 211238-4 | BALL BEARING 6202LLU |
| 69 | 213273-8 | OIL SEAL 17 X HM1202C |
| 70 | 516803-7 | ARMATURE HM1202C |
| 71 | 681642-5 | WASHER X LS1013 |
| 72 | 211088-7 | BALL BEARING 6000 9527PB-9528PB |
| 73 | 416936-7 | BAFFLE PLATE HM1202C |
| 74 | 266095-5 | SCREW 5 X 55 HR5001C |
| 75 | 526093-4 | STATOR - FIELD 220 X HM1202C |
| 76 | 158581-9 | MOTOR HOUSING HM1202C |
| 78 | 263002-9 | RUBBER PIN 4 |
| 80 | 651481-7 | SWITCH X HM1100C |
| 81 | 631273-0 | CONTROLLER X HR5001C |
| 82 | 181048-2 | CARBON BRUSHE SET CB-155 (CB-161) |
| 83 | 643650-4 | CARBON BRUSH HOLDER CAP |
| 84 | 922364-1 | SCREW M6X40 |
| 85 | 417715-6 | FIX ROD |
| 86 | 687053-2 | STRAIN RELIEF |
| 87 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 88 | 416937-5 | REAR COVER X HM1202C |
| 89 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 90 | 682560-0 | CORD GUARD 10 HM1202C / 9079S |
| 91 | 213508-7 | O-RING 38 HM0810 |
| 92 | 213508-7 | O-RING 38 HM0810 |
| 93 | 417576-4 | SLEEVE 39 FOR HM1202C |
| 94 | 654020-2 | TERMINAL RING 94 |
| 95 | 421914-4 | CONTROLLER PROTECTOR HM1202C |
| 96 | 241908-1 | FAN 80 X 9049 |
| 97 | 267809-5 | WAVE WASHER 19 FOR HM1202 |
| 999 | 193391-7 | SERVICE KIT HM1202C |
| 1000 | 181490-7 | GREASE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
