FIAC AB500/981 Spare Parts
€214.33
Tax included
FIAC Spare Parts for Air Compressor AB500/981
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Air Compressor AB500/981.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Air Compressor AB500/981
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Air Compressor AB500/981.

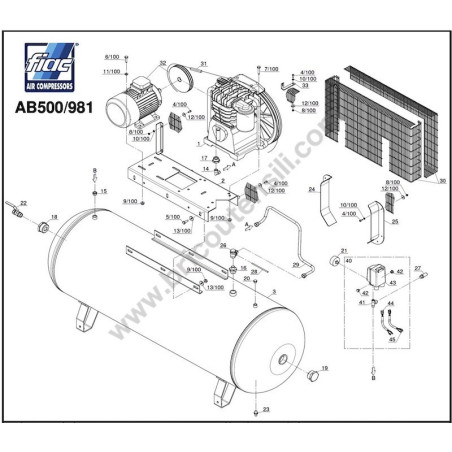

In the following table, look for the type of the air compressor and the respective parts of the code .
| FIAC AIR COMPRESSOR AB500/981 Pag.1 |
||
| # | Part Num. | Description |
| 1 | 3020980000 | Pump unit AB981 |
| 1A | 1123020166 | Pump unit AB998 |
| 1B | 3030350000 | Modification Kit for Pump Unit from AB 981 to AB 998 |
| 2 | 5010460008 | Base |
| 3 | 5159190008 | Tank |
| 4 | x | Screw |
| 5 | x | Screw |
| 6 | x | Screw |
| 7 | x | Screw |
| 8 | x | Nut |
| 9 | x | Nut |
| 10 | x | Washer |
| 11 | x | Washer |
| 12 | x | Washer |
| 13 | x | Washer |
| 14 | 7080160000 | Joint |
| 15 | 7085020000 | Joint |
| 16 | 7085030000 | Joint |
| 17 | 7085110000 | Joint |
| 18 | 7085390000 | Joint |
| 19 | 7090050000 | Plug |
| 20 | 7090080000 | Plug |
| 21 | 7110060000 | Pressure gauge |
| 22 | 7130600000 | Universal Tap |
| 23 | 7130160000 | Discharge tap |
| 24 | 7153090000 | Conveyor |
| 25 | 7153100000 | Conveyor |
| 26 | 7190150000 | Non return valve |
| 27 | 7192090000 | Safety valve |
| 28 | 7230010000 | Rilsan hose |
| 29 | 7235650000 | Infeed hose |
| 30 | 4170200000 | Belt guard kit |
| 31 | 7370140000 | Belt |
| 32 | 4150900000 | Motor/pulley kit |
| 33 | 7458840000 | Belt guard Support Staffa paracinghia |
| 40 | 4051970000 | Press. Switch kit |
| 41 | 7082690000 | Joint |
| 42 | 7090070000 | Plug |
| 43 | 7250500000 | Pressure switch |
| 44 | 7328690000 | Pres.switch/Motor c Cavo Pressostato / Motore |
| 45 | 7328700000 | Infeed cable |
| 100 | 4080460000 | Screw kit |
| PUMP UNIT AB 901 - AB 981 Pag.2 |
||
| # | Part Num. | Description |
| 1 | 7079610000 | Gasket |
| 2 | 7199130000 | Valve |
| 3 | 7199140000 | Valve |
| 4 | 7458910000 | Clamp |
| 5 | 7011460000 | Screw |
| 6 | 7070140000 | Gasket |
| 7 | 7079600000 | Gasket |
| 8 | 7012090000 | Screw |
| 9 | 5131020008 | Reduction |
| 10 | 7079710000 | Gasket |
| 11 | 4080220000 | Low pressure piston rings |
| 12 | 7220250000 | Low pressure piston |
| 13 | 7040140000 | Ring |
| 14 | 7050200000 | Piston pin |
| 15 | 4080030000 | High pressure piston rings |
| 16 | 7220240000 | High pressure piston |
| 17 | 7011040000 | Screw |
| 18 | 7050190000 | Piston pin |
| 19 | 7085110000 | Joint |
| 19A | 7080160000 | Joint |
| 20 | 7060530000 | Bushing |
| 21 | 4190390008 | Con rod Kit |
| 22 | 5060760008 | Cylinder |
| 23 | 7011160000 | Screw |
| 24 | 7079410000 | Gasket |
| 25 | 5070270008 | Carter |
| 26 | 7153050000 | Conveyor |
| 27 | 7091120000 | Plug |
| 28 | 7011090000 | Screw |
| 29 | 5082090008 | Support |
| 30 | 7070290000 | Gasket |
| 31 | 7060160000 | Bearing |
| 32 | 7180060000 | Oil level sight glass |
| 33 | 7090090000 | Plug |
| 34 | 7022040000 | Selflocking nut |
| 35 | 5041260008 | Crankshaft |
| 36 | 7051520000 | Key |
| 37 | 7060150000 | Bearing |
| 38 | 7071130000 | Mim ring |
| 39 | 5082050008 | Support |
| 40 | 7201050000 | Flywheel |
| 40A | 7201240000 | Flywheel |
| 41 | 7030270000 | Washer |
| 42 | 7031010000 | Toothed washer |
| 43 | 7011100000 | Screw |
| 44 | 7230750000 | Cooler ----> 1124080806 ex 1127230025 ex 7230750000 |
| 45 | 7024150000 | Nut |
| 46 | 7031030000 | Washer |
| 47 | 7210270000 | Filter Holder Assy ----> 425010000 |
| 48 | 7210280000 | Filtering element |
| 49 | 7210260000 | Filter |
| 50 | 7210290000 | Sleeve |
| 51 | 7015160000 | Tension rod |
| 52 | 5130070008 | Manifold |
| 53 | 7010050000 | Screw |
| 54 | 7458460000 | Stop plate |
| 55 | 7070260000 | OR ring |
| 56 | 5030590008 | Head |
| 57 | 7010060000 | Screw |
| 58 | 7084600000 | Joint |
| 59 | 7230020000 | Rilsan hose |
| 60 | 7192350000 | Safety valve |
| 61 | 7079250000 | Gasket |
| 62 | 5130090008 | Refrigerator |
| 63 | 7010220000 | Screw |
| 64 | 7458420000 | Stop plate |
| 100 | 7459550000 | Valve plate group |
| 101 | 4291160000 | Low pressure piston group |
| 102 | 4291170000 | High pressure piston group |
| 103 | 4250100000 | Filter group |
| 104 | 4251150000 | Refrigerator group |
| 105 | 4082600000 | Set of gasket |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
