FIAC Cosmos WATT 1500 Air Compressor Spare Parts
FIAC authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS WATT 1500 1207052000 - SN.320110459.

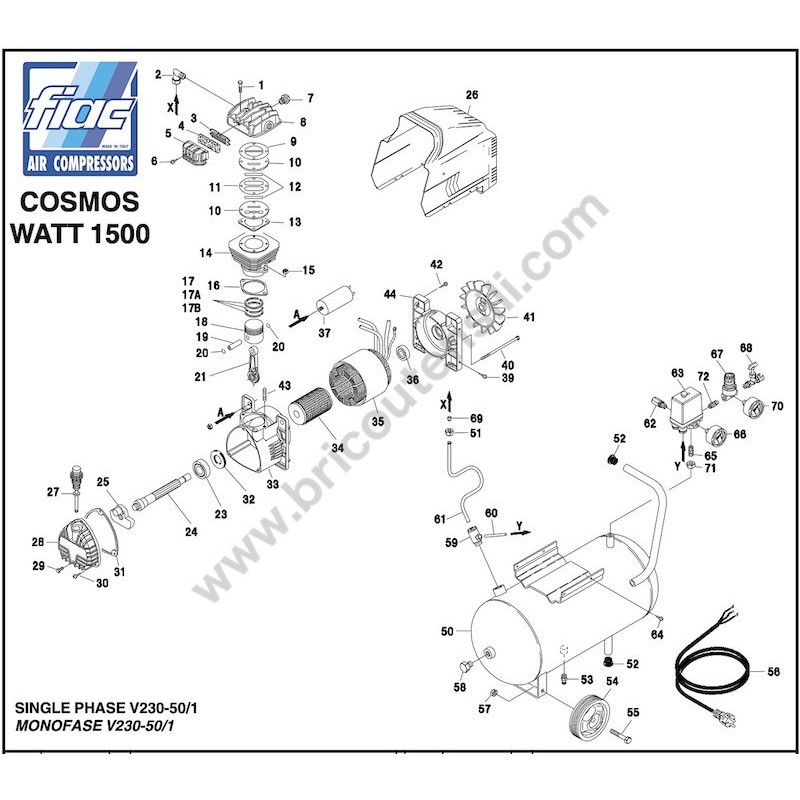

In the following table , look for the type of the air compressor and the respective parts of the code .
| FIAC COSMOS WATT 1500 1207052000 - SN.320110459 Parts | ||
| SINGLE PHASE V230-50/1 | ||
| # | Part Num. | Description |
| 1 | 7011220000 | Screw |
| 2 | 9100010120 | Joint |
| 3 | 7458340000 | Plate |
| 4 | 9100010210 | Filtering element |
| 5 | 7210430000 | Intatake filter |
| 6 | 7012100000 | Screw |
| 7 | 9100010190 | START valve |
| 8 | 9100010260 | Head |
| 9 | 9100010310 | Gasket |
| 10 | 9100010240 | Valve plate |
| 11 | 9100010080 | Gasket |
| 12 | 9100010370 | Valve |
| 13 | 9100020140 | Gasket |
| 14 | 9100020030 | Cylinder |
| 15 | 7020070000 | Nut |
| 16 | 9100020160 | Gasket |
| 17 | 9100020090 | Piston ring |
| 17A | 9100020100 | Piston ring |
| 17B | 9100020110 | Piston ring |
| 18 | 9100020120 | Piston |
| 19 | 9100020080 | Piston pin |
| 20 | 9100010580 | Seeger |
| 21 | 9100020070 | Con rod |
| 23 | 7060060000 | Bearing |
| 24 | 9100020040 | Cranckshaft |
| 25 | 9100020050 | Counter weight |
| 26 | 9100030090 | Plastic schroud |
| 27 | 9100010170 | Oil dipstick |
| 28 | 7650020000 | Carter cover |
| 29 | 7012160000 | Screw |
| 30 | 7012100000 | Screw |
| 31 | 9100010100 | Gasket |
| 32 | 9100010430 | Oil seal |
| 33 | 9100020010 | Cranckcase |
| 34 | 9100020130 | Rotor |
| 35 | 9100020060 | Motor |
| 36 | 7060010000 | Bearing |
| 37 | 7310590000 | Capacitor |
| 39 | 7012290000 | Screw |
| 40 | 9100010060 | Tension rod |
| 41 | 9100010200 | Fan |
| 42 | 7013060000 | Screw |
| 43 | 9100010050 | Stud bolt |
| 44 | 9100020020 | Cover |
| 50 | 5157310008 | Tank |
| 51 | 7024250000 | Nut |
| 52 | 7360020000 | Rubber |
| 53 | 7130160000 | Discharge tap |
| 54 | 7260160000 | Wheel |
| 55 | 7018290000 | Screw |
| 56 | 7329070000 | Infeed cable |
| 57 | 7020080000 | Nut |
| 58 | 7090030000 | Plug |
| 59 | 7190180000 | Non return valve |
| 60 | 7230010000 | Rilsan hose |
| 61 | 7231660000 | Infeed hose |
| 62 | 7192020000 | Safety valve |
| 63 | 7250740000 | Pressure switch |
| 64 | 7012290000 | Screw |
| 65 | 7081140000 | Joint |
| 66 | 7110300000 | Pressure guage |
| 67 | 7100640000 | Pressure reducer |
| 68 | 7130010000 | Tap |
| 69 | 7041170000 | Olive |
| 70 | 7110240000 | Pressure guage |
| 71 | 7023040000 | Blocking nut |
| 72 | 7081090000 | Joint |
| 501 | 9100020000 | Pump UNIT GM193 |
