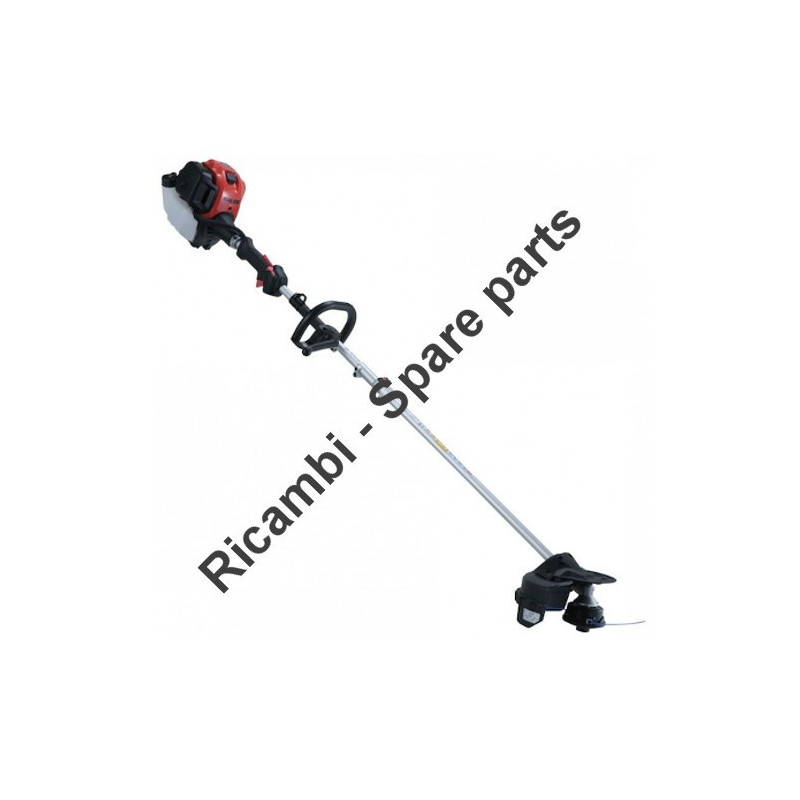

Dolmar Spare Parts for Brusch Cutter CS246.4C
€7.94
Tax included
Dolmar Spare Parts for Brusch Cutter CS246.4C
We have the original Spares for Brush Cutter Dolmar CS246.4C - POLIV. 25,4cm³ 4T, the diagram, parts list and tool repair that help you need to get your tools running like new againFix Your Brush Cutter Dolmar CS246.4C. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Brusch Cutter CS246.4C
Fix Your Brush Cutter Dolmar CS246.4C - POLIV. 25,4cm³ 4T. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| Brushcutter Dolmar CS246.4C - POLIV. 25,4cm³ 4T - Pag.1 | ||
| # | Part Num. | Description |
| 2 | 451601-1 | SPACER EBH252L |
| 3 | 141238-9 | SHAFT B CPL EX2650LH CS246.4C |
| 4 | 195143-2 | HOOK EBH252L |
| 5 | 911233-1 | HEAD SCREW M5X20 3600H |
| 6 | 141008-6 | ROD B CPL EX2650LH CS246.4C |
| 7 | 266034-5 | SCREW CT 4X16 |
| 8 | 452840-6 | COVER FOR UNLOCKING KNOB UX360D |
| 9 | 452839-1 | BLOCK KEY UX360D EX2650L |
| 10 | 265596-0 | SCREW M6X40 UX360D- EX2650LH |
| 11 | 318750-6 | JOINT 24 UX360D EX2650LH |
| 12 | 922211-6 | SCREW 5 X 12 X AN250HC |
| 13 | 922342-1 | SCREW M6X25 EX2650LH |
| 14 | 931302-2 | NUT M6 HR4000C |
| 15 | 272268-0 | LEVER 94 UC360D- EX2650LH |
| 16 | 253332-6 | FLAT WASHER 6 |
| 17 | 213105-9 | GASKET 11 43 / 65SB / HP201N |
| 18 | 252159-1 | HEXAGON NUT XM6 X 5621RDW |
| 19 | 961014-3 | RING E-8 RING |
| 20 | 961052-5 | RING CHECK S12 |
| Brushcutter Dolmar CS246.4C - POLIV. 25,4cm³ 4T - Pag.2 | ||
| 38 | 125776-9 | CONTROL LEVER EX2650LH |
| 39 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 40 | 451595-0 | SWITCH COVER MS335.4C |
| 41 | 451594-2 | SWITCH LEVER MS335.4C |
| 42 | 232251-9 | SPRING PLATE EBH341U |
| 43 | 188832-6 | HOUSING CONTROL LEVER EX2650LH |
| 44 | 346248-3 | CLAMP 24 EX2650LH |
| 45 | 922218-2 | SCREW M5X14 EBH341U |
| 46 | 451593-4 | BLOCK LEVER MS335.4C |
| 47 | 233541-3 | SPRING TUBE 7 EBH341U |
| 48 | 168571-4 | CABLE EX2650LH |
| 49 | 233540-5 | SPRING TORSION 11 EBH341U |
| 50 | 451592-6 | THROTTLE LEVER MS335.4C P04 |
| 51 | 638714-7 | WIRE EX2650LH |
| 52 | 638713-9 | WIRE EX2650LH |
| 53 | 452071-7 | SHEATH EX2650LH |
| 54 | 266326-2 | SCREW 4X18 X MT601 |
| Brushcutter Dolmar CS246.4C - POLIV. 25,4cm³ 4T - Pag.3 | ||
| 60 | 123499-3 | AIR FILTER CASE EX2650LH |
| 61 | 265791-2 | SCREW M4 X EH7500S |
| 62 | 443171-4 | AIR FILTER EX2650LH |
| 63 | 443169-1 | AIR FILTER EX2650LH |
| 64 | 266618-9 | SCREW M5X60 EX2650LH |
| 65 | 123501-2 | FILTER PLATE |
| 66 | 162346-3 | SEPARATOR EX2650LH |
| 67 | 213540-1 | RING 15 EBH341U |
| 68 | 424316-3 | CHECK VALVE EBH341U |
| 69 | 422099-9 | BREATHER TUBE EX2650LH |
| 70 | 325665-0 | FITTING EX2650LH |
| 71 | 442153-3 | CARBURETTOR GASKET EX2650 |
| 72 | 266787-6 | SCREW M5X18 EX2650LH |
| 73 | 451825-9 | CLAMP EX2650LH |
| 74 | 451729-5 | INSULATING PLATE EX2650LH |
| 75 | 213547-7 | RING 12 EX2650LH |
| 76 | 422109-2 | EBREATHER TUBE X2650LH |
| 77 | 345918-1 | CLAMP EBH341U CS246.4C |
| 78 | 318745-9 | COVER HEAD CIL EX2650LH |
| 79 | 922222-1 | SCREW M5X16 |
| 80 | 453860-3 | CYLINDER HEAD EX2650LH |
| 81 | 162304-9 | GASKET HEAD CIL EX2650LH |
| 82 | 424302-4 | CANDLE HOOD EH7500S |
| 83 | 324891-8 | SPRING HOOD CANDLE EBH341 |
| 84 | 168534-0 | SPARK PLUG NGKCMR4A EBH341U |
| 85 | 125554-7 | BALANCER EBH341U |
| 86 | 256200-2 | PIN 5 FOR 2704 |
| 87 | 256865-0 | ROD 2,5 EBH252L |
| 88 | 424200-2 | SPACER EBH341U |
| 89 | 451735-0 | EXTRACTION CARCASS EX2650LH |
| 90 | 922228-9 | SCREW M5X18 EBH341U |
| 91 | 450569-8 | SPACER EBH252L |
| 92 | 961052-5 | RING CHECK S12 |
| 93 | 210111-5 | BEARING 6201LLU EBH252L |
| 94 | 962151-6 | R32 RING |
| 95 | 165704-2 | CLUTCH DRUM EX2650LH |
| 96 | 266457-7 | SCREW M6X25 EBH252L |
| 97 | 267817-6 | WASHER 8 EBH252L |
| 98 | 126135-0 | CLUTCH CPL EX2650LH |
| 99 | 161332-1 | CLUTCH ARM X MH-246.4DF |
| 100 | 231881-3 | TENSION SPRING 7 EX2650LH |
| 101 | 267812-6 | WASHER 6 EBH252L |
| 102 | 264039-9 | FLANGED NUT EX2650LH |
| 103 | 318569-3 | FLYER EX2650LH |
| 104 | 444021-6 | GROMMET EX2650LH |
| 105 | 266602-4 | SCREW M4X20 EX2650LH |
| 106 | 452049-0 | SPACER EX2650LH |
| 107 | 168559-4 | IGNITION COIL EX2650LH |
| 108 | 268238-5 | PIN 5 EBH341U |
| 109 | 125552-1 | CAM GEAR EBH341U |
| 110 | 313169-4 | BALANCER CAM EBH341U |
| 112 | 268239-3 | PIN 4 EBH341U |
| 113 | 162274-2 | CAM GEAR COVER GASKET ER2650LH EBH341 |
| 114 | 318443-5 | SIDE COVER EBH341U |
| 115 | 922222-1 | SCREW M5X16 |
| 116 | 135478-9 | CYLINDER EX2650LH |
| 117 | 922222-1 | SCREW M5X16 |
| 118 | 424201-0 | CONTROL VALVE EBH341U |
| 119 | 346331-6 | MUFFLER GASKET EX2650LH |
| 120 | 168554-4 | MUFFLER EX2650LH |
| 121 | 266440-4 | SCREW M5X40 EBH341U |
| 122 | 168483-1 | STARTER REEL EBH252L |
| 123 | 451731-8 | PROTECTION EX2650LH |
| 124 | 922218-2 | SCREW M5X14 EBH341U |
| 125 | 638707-4 | WIRE EX2650LH |
| 126 | 638708-2 | GROUND WIRE EX2650LH |
| 128 | 922218-2 | SCREW M5X14 EBH341U |
| 129 | 453569-7 | CYLINDER COVER CS246.4C |
| 130 | 922218-2 | SCREW M5X14 EBH341U |
| 131 | 424082-2 | UPPER SPACER DBC260U |
| 132 | 922211-6 | SCREW 5 X 12 X AN250HC |
| 133 | 922226-3 | SCREW M 5 X 18 X 4341FCT |
| 134 | 318249-1 | SEMI UPPER CASE X DBC260U |
| 135 | 318250-6 | SEMI LOWER CASE X DBC260U |
| 136 | 424083-0 | LOWER SPACER X DBC260U |
| 137 | 325668-4 | SPRING BLOCK EBH252L VALVE |
| 138 | 234108-0 | COMPRESSION SPRING 9 EBH252L |
| 140 | 326366-3 | DISCHARGE VALVE EBH252L |
| 143 | 326367-1 | SUCTION VALVE EBH252L |
| 144 | 257298-2 | PISTON RING TOP (34) EX2650LH |
| 145 | 257299-0 | PISTON RING SECOND (34) EX2650LH |
| 146 | 257300-1 | LOWER PISTON RING EX2650LH |
| 147 | 318441-9 | PISTON EBH252L |
| 148 | 254040-2 | KEY 3 EBH341U |
| 149 | 123774-7 | CRANKSHAFT |
| 150 | 213769-9 | OIL SEAL 10 |
| 151 | 267400-9 | WASHER 23 |
| 152 | 213089-1 | SEAL 12 EBH252L |
| 153 | 257781-9 | PISTON PIN EBH252L |
| 154 | 233976-8-4 | RING PIN EBH252L (4pcs) |
| 155 | 162345-5 | GASKET OIL CUP EX2650L |
| 156 | 346083-9 | PLATE EBH341U |
| 157 | 318910-0 | CHECK PLATE EX2650LH |
| 158 | 922112-8 | SCREW M4X10 BPT350 |
| 159 | 318588-9 | OIL CUP EX2650LH |
| 160 | 922222-1 | SCREW M5X16 |
| 161 | 424344-8 | DAMPER EBH2650LH |
| 162 | 346305-7 | GASKET EX2650LH |
| 163 | 266611-3 | SCREW M6X8 EX2650LH |
| 164 | 213548-5 | RING 20 EX2650LH |
| 165 | 325665-0 | FITTING EX2650LH |
| 166 | 282020-8 | CLAMP EBH341U |
| 167 | 325666-8 | FITTING EBH341U |
| 168 | 424301-6 | OIL TUBE EX2650LH |
| 169 | 452047-4 | OIL TANK CAP BHX2501 |
| 170 | 424343-0 | GASKET X BHX2501 |
| 171 | 452048-2 | OIL FITTING EX2650LH |
| 172 | 922218-2 | SCREW M5X14 EBH341U |
| 173 | 125728-0 | TANK CAP CPL EX2650LH |
| 175 | 168755-4 | FUEL TUBE EX2650LH |
| 176 | 282020-8 | CLAMP EBH341U |
| 177 | 163518-3 | FUEL FILTER EX2650LH |
| 178 | 451736-8 | FUEL TANK EX2650LH |
| 179 | 424080-6 | GROMMET X DBC260U |
| 180 | 424081-4 | GROMMET X DBC260U |
| 181 | 451737-6 | TANK PROTECTION EX2650LH |
| 182 | 922218-2 | SCREW M5X14 EBH341U |
| 183 | 195308-6 | RECOIL STARTER CPL EX2650LH |
| 184 | 424319-7 | STARTER KNOB EBH252L |
| 185 | 424359-5 | RUBBER RING EX2650LH |
| 187 | 266585-8 | SCREW 5X12 EBH252L |
| 188 | 325923-4 | OSBILLATOR EBH252L |
| 189 | 451938-6 | FLANGE EBH252L |
| 190 | 451937-8 | STARTER SPRING EBH252L |
| 191 | 232258-5 | STARTER SPRING EBH252L |
| 192 | 444023-2 | STARTER ROPE EX2650LH |
| 193 | 451733-4 | STARTER CASE EX2650LH |
| 194 | 922223-9 | SCREW M5X16 EBH341U EX2650LH |
| 215 | 810455-9 | COLLAR PLATE EBH341U |
| 217 | 941152-7 | FLAT WASHER 6 |
| 223 | 266427-6 | SCREW 4X12 MT923 |
| 224 | 452219-1 | AIR LEVER PLATE EX2650LH |
| 231 | 452220-6 | AIR LEVER EX2650LH |
| 232 | 266007-8 | SCREW M3 X10 HP2030 |
| 233 | 352020-3 | SEPARATOR EX2650LH |
| 234 | 453865-3 | SEPARATOR BOX EX2650LH |
| 235 | 453862-9 | OIL CUP EX2650LH |
| Brushcutter Dolmar CS246.4C - POLIV. 25,4cm³ 4T - Pag.4 | ||
| 197 | 168762-7 | CARBURATOR EX2650LH CS246.4C |
| 198 | 325922-6 | CARBURETOR SCREW EBH341U |
| 199 | 413140-9 | WASHER EBH341U |
| 200 | 266581-6 | SCREW M3X8 EBH341U |
| 201 | 257964-1 | STILL RING E3 EBH341U |
| 202 | 213538-8 | RING 2 EBH341U |
| 203 | 325985-2 | JET EX2650LH |
| 204 | 234183-6 | SPRING 65-9 EBH341U |
| 205 | 442155-9 | PUMP GASKET EBH341U |
| 206 | 168575-6 | PUMP DIAPHRAGM EBH341U |
| 207 | 141737-1 | PUMP BODY EX2650LH CS246.4C |
| 208 | 352010-6 | FILTER EBH252L |
| 209 | 442154-1 | DIAPHRAGM GASKET EBH341U |
| 210 | 168620-7 | DIAPHRAGM FOR BHX2501 |
| 211 | 140438-8 | BODY EBH341U |
| 212 | 424314-7 | PRIMING PUMP EBH341 |
| 213 | 346270-0 | PUMP COVER EBH341U |
| 214 | 266582-4 | SCREW 3X24 EBH341U |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
