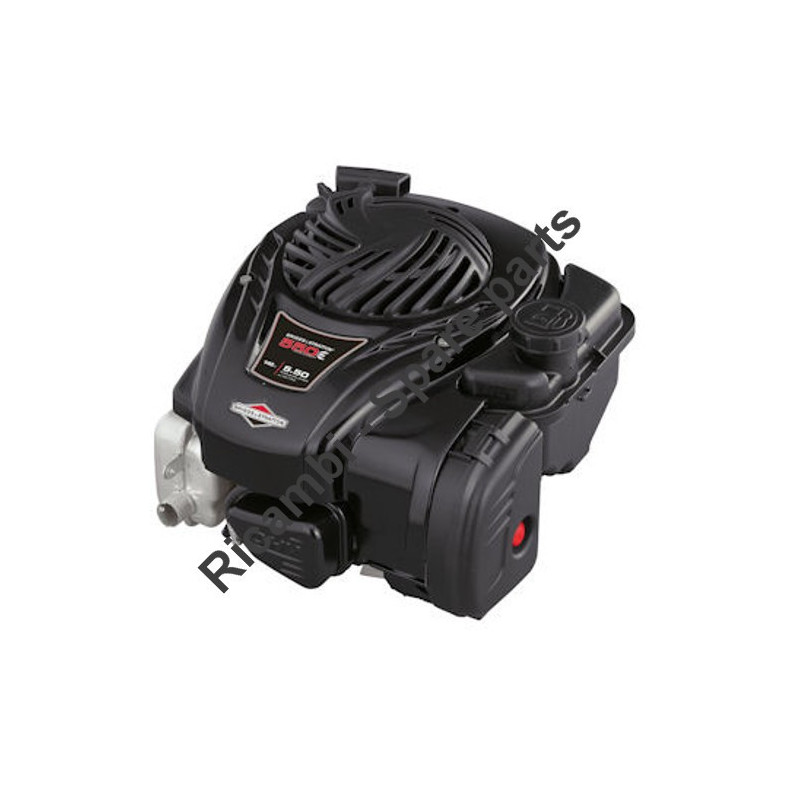

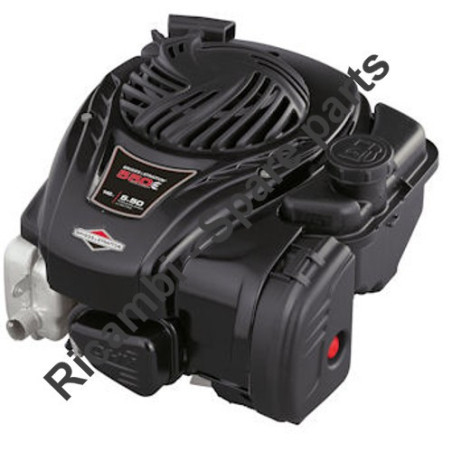

Briggs & Stratton Spare Parts for Engine Series 550 OHV-Shaft 22x60
€71.92
Tax included
Briggs & Stratton Spare Parts for Engine Series 550 OHV-Shaft 22x60
550E Series™ Cod. 09P702-0142-H1 Displacement 140 ccThe 550E Series™ engine is compact, lightweight and simple to operate - with reduced vibration, quieter operation and enhanced handling.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Briggs & Stratton Spare Parts for Engine Series 550 OHV-Shaft 22x60
550E Series™ Cod. 09P702-0142-H1 Displacement 140 cc
The Best Value Choice.
The 550E Series™ engine is compact, lightweight and simple to operate - with reduced vibration, quieter operation and enhanced handling.
In the following table, look for the model of the Engine and the respective parts of the code.
| Air Cleaner, Cylinder Head Pag.1 | ||
| # | Part Num. | Description |
| 5 | 595351 | Head-Cylinder |
| 7 | 799586 | Gasket-Cylinder Head |
| 11 | 590522 | TUBE, Breather |
| 13 | 590512 | Screw - (Cylinder Head) |
| 33 | 590531 | Valve-Exhaust |
| 34 | 590530 | Valve-Intake |
| 35 | 590532 | Spring-Valve - (Intake) |
| 36 | 590532 | Spring-Valve - (Exhaust) |
| 40 | 590528 | Retainer-Valve |
| 45 | 590514 | Tappet-Valve |
| 155 | 590529 | Plate-Cylinder |
| 163 | 799580 | Head Gasket-Air Cleaner |
| 192 | 590535 | Adjuster-Rocker Arm |
| 238 | 590533 | Cap-Valve |
| 318 | 793480 | SCREW - (Mounting Bracket) |
| 356A | 592711 | Wire-Stop |
| 445 | 593260 | FILTER, A/C Cartridge |
| 528 | 793006 | Hose-Primer - (Cut To Required Length) |
| 535 | 799579 | Filter-Air Cleaner Foam |
| 535A | 595191 | FILTER, Air Cleaner Foam |
| 623 | 799581 | Seal-O Ring - (Carburetor Spacer) |
| 868 | 590534 | Seal-Valve - (Intake) |
| 875D | 593227 | Base-Air Cleaner |
| 914 | 591103 | Screw - (Rocker Cover) |
| 968A | 593228 | Cover-Air Cleaner |
| 971 | 590552 | SCREW - (Air Cleaner Base to Carburetor/Throttle Body) |
| 976 | 594281 | Primer-Carburetor |
| 1022 | 591255 | Gasket-Rocker Cover |
| 1023 | 595349 | Cover-Rocker |
| 1026 | 590515 | Rod-Push |
| 1029 | 590526 | Arm-Rocker |
| 1029A | 590527 | Arm-Rocker |
| Armature, Controls, Electrical System, Governor Spring, Ignition, Spark Plug Pag.2 | ||
| 188 | 793480 | SCREW - (Control Bracket) |
| 202 | 590517 | Link-Mechanical Governor |
| 209 | 590541 | Spring-Governor - Used Before Code Date 16071100 |
| 209 | 596608 | Spring-Governor - Used After Code Date 16071000 |
| 222 | 590560 | Bracket-Control |
| 222A | 596458 | Bracket-Control - Used After Code Date 17010100 |
| 222A | 590561 | Bracket-Control - Used Before Code Date 17010200 |
| 222B | 596465 | Bracket-Control |
| 227 | 590520 | Lever-Governor Control |
| 236 | 591292 | Link-Lockout |
| 265 | 690798 | Clamp-Casing |
| 265A | 691024 | CLAMP, Casing |
| 267 | 692577 | Screw - (Casing Clamp) |
| 268 | 691025 | CASING, Control Wire -(Cut To Required Length) |
| 269 | 691026 | WIRE, Control - (Cut To Required Length) |
| 270 | 691027 | NUT - (Control Wire Casing) |
| 271 | 691028 | Lever-Control |
| 333 | 593872 | Armature-Magneto |
| 334 | 691061 | SCREW - (Magneto Armature) |
| 337 | 692720 | Plug-Spark -(EMS) |
| 356 | 692390 | Wire-Stop |
| 356A | 592711 | Wire-Stop |
| 383 | 19576S | WRENCH, Spark Plug |
| 505 | 793515 | NUT - (Governor Control Lever) |
| 562 | 793514 | Bolt -(Governor Control Lever) |
| 621 | 692310 | Switch-Stop |
| 635 | 692076 | BOOT, Spark Plug |
| 745 | 691146 | Screw - (Brake) |
| 745A | 690859 | Screw - (Brake) |
| 843 | 593215 | Sleeve-Lever |
| 922 | 692135 | Spring-Brake |
| 923 | 691487 | Brake |
| Blower Housing, Rewind Starter Pag.3 | ||
| 58 | 591108 | Rope-Starter |
| 60 | 691915 | GRIP, Starter Rope |
| 60A | 281434S | Grip-Starter Rope |
| 60B | 799716 | Grip-Starter Rope |
| 304 | 593961 | Housing-Blower |
| 304A | 593962 | Housing-Blower |
| 304D | 596457 | Housing-Blower |
| 305 | 590586 | Screw -(Blower Housing) |
| 455 | 590545 | Cup-Flywheel - Used Before Code Date 14082500 |
| 455A | 593960 | Cup-Flywheel - (To Be Used With Reference 608) -Used After Code Date 14082400 |
| 608 | 593959 | Starter-Rewind - (To Be Used With Reference 455A) (Not To Be Used With Reference 455) -Used After Code Date 14082400 |
| 770D | 595355 | Kit-Rewind/Blower Housing |
| 857 | 591113 | Trim-Blower Housing Cover |
| 857A | 591114 | Trim-Blower Housing Cover |
| 930 | 590585 | Guard-Rewind - Used Before Code Date 15041300 |
| Camshaft, Crankshaft, Cylinder, Gasket Set, Piston/Rings/Connecting Rod, Sump, Pag.4 | ||
| 1 | 590519 | Cylinder Assembly |
| 3 | 299819S | SEAL, Oil - (Magneto Side) |
| 4 | 590569 | Sump-Engine |
| 7 | 799586 | Gasket-Cylinder Head |
| 12 | 799587 | Gasket-Crankcase |
| 16 | 590537 | Crankshaft |
| 20 | 391483S | Seal-Oil - (PTO Side) |
| 22 | 692551 | Screw - (Crankcase Cover/Sump) |
| 22A | 590763 | Screw - (Crankcase Cover/Sump) |
| 24 | 222698S | KEY, Flywheel |
| 25 | 590521 | Piston Assembly - (Standard) |
| 26 | 590523 | Ring Set - (Standard) |
| 27 | 691588 | Lock-Piston Pin |
| 28 | 699659 | Pin-Piston -(Standard) |
| 29 | 590518 | Rod-Connecting |
| 32 | 691664 | Screw - (Connecting Rod) |
| 43 | 697799 | Slinger-Governor/Oil - Used Before Code Date 16071100 |
| 43 | 594560 | Slinger-Governor/Oil - Used After Code Date 16071000 |
| 46 | 592968 | Camshaft |
| 163 | 799580 | Gasket-Air Cleaner |
| 227 | 590520 | Lever-Governor Control |
| 358 | 595350 | Gasket Set-Engine |
| 404 | 690272 | WASHER - (Governor Crank) |
| 505 | 793515 | NUT - (Governor Control Lever) |
| 522 | 590580 | Plug-Dipstick/Fill |
| 523 | 796503 | Dipstick |
| 524 | 691876 | Seal-O Ring |
| 562 | 793514 | Bolt - (Governor Control Lever) |
| 598 | 593291 | Shim-End Play - (Crankshaft or Camshaft Bearing) |
| 615 | 690340 | RETAINER, Governor Shaft |
| 616 | 590516 | CRANK, Governor |
| 623 | 799581 | Seal-O Ring - (Carburetor Spacer) |
| 718 | 690959 | PIN, Locating - (Crankcase Cover/Sump) |
| 741 | 796210 | Gear-Timing - (Plastic) |
| 842 | 691031 | SEAL, O-Ring - (Dipstick Tube) |
| 847 | 590572 | Dipstick/Tube Assembly |
| 868 | 590534 | Seal-Valve - (Intake) |
| 1022 | 591255 | Gasket-Rocker Cover |
| 1036 | - | Label-Emissions - (Available From A Briggs & Stratton Authorized Dealer) |
| 126 | 697124 | REED, Breather |
| 1264 | 793453 | SCREW -(Breather Reed) |
| 1319 | 794467 | LABEL, Warning |
| 1319A | 797669 | LABEL, Warning |
| Carburetor Pag.5 | ||
| 104 | 590558 | Pin-Float Hinge |
| 105 | 594581 | Valve-Float Needle |
| 117 | 592798 | Jet-Main - (Standard) - Used After Code Date 13102300 |
| 117 | 592799 | Jet-Main - (Standard) - Used Before Code Date 13102400 |
| 118 | 594283 | Jet-Main - (High Altitude) |
| 121 | 590589 | Kit-Carburetor Overhaul - Used Before Code Date 15030900 |
| 121 | 594636 | KIT, Carburetor Overhaul - Used After Code Date 15030800 |
| 122 | 590549 | Spacer-Carburetor |
| 125A | 593247 | Carburetor |
| 133 | 591120 | Float-Carburetor |
| 137 | 593235 | Gasket-Float Bowl - (Pack of 5) - Used Before Code Date 15030900 |
| 137 | 594633 | Gasket-Float Bowl -(Pack of 5) -Used After Code Date 15030800 |
| 163 | 799580 | Gasket-Air Cleaner |
| 216 | 590547 | Link-Choke |
| 217 | 590740 | Spring-Choke Return |
| 493 | 593330 | Bracket-Mounting -(Carburetor) |
| 617 | 270344S | Seal-O Ring -(Intake Manifold) |
| 623 | 799581 | Seal-O Ring -(Carburetor Spacer) |
| 724 | 697478 | Retainer-Seal |
| 951 | 591104 | Lever-Choke |
| 975 | 591492 | Bowl-Float - Used Before Code Date 15030900 |
| 975 | 594632 | Bowl-Float - Used After Code Date 15030800 |
| 1127 | 590554 | Screw - (Float Bowl to Carburetor Body) |
| 1238 | 590562 | SCREW - (Carburetor Spacer) |
| Exhaust System, Fuel Supply Pag.6 | ||
| 187 | 791766 | LINE, Fuel -(Cut To Required Length) |
| 300B | 590565 | Muffler |
| 300C | 592362 | Muffler -Used Before Code Date 16012800 |
| 300G | 595516 | Muffler -Used After Code Date 16012700 |
| 601 | 791850 | CLAMP, Hose |
| 613 | 590562 | SCREW -(Muffler) |
| 676A | 799187 | Deflector-Muffler |
| 832 | 590566 | Guard-Muffler |
| 832B | 592709 | Guard-Muffler |
| 836 | 690661 | SCREW -(Muffler Guard) |
| 836A | 793500 | Screw -(Muffler Guard) |
| 957 | 799585 | Cap-Fuel Tank -(Black) -Used Before Code Date 16100300 |
| 957A | - | Cap-Fuel Tank -(Order Replacement Fuel Tank Cap Reference Number 957) |
| 957B | 692046 | Cap-Fuel Tank |
| 972A | 591947 | Tank-Fuel |
| 994 | 690813 | Arrestor-Spark |
| Flywheel Pag.7 | ||
| 23 | 590544 | Flywheel |
| 23A | 592005 | Flywheel |
| 37 | 594729 | Guard-Flywheel |
| 78 | 793480 | SCREW -(Flywheel Guard) |
| 332 | 690662 | Nut -(Flywheel) |
| 363 | 19619 | PULLER, Flywheel |
| 455 | 590545 | Cup-Flywheel -Used Before Code Date 14082500 |
| 455A | 593960 | Cup-Flywheel -(To Be Used With Reference 608) -Used After Code Date 14082400 |
| 668 | 590546 | Spacer -(Flywheel) |
| 850 | 100106 | SEALANT, Liquid |
| 1005 | 592050 | Fan-Flywheel |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s B&S websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to B&S brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
