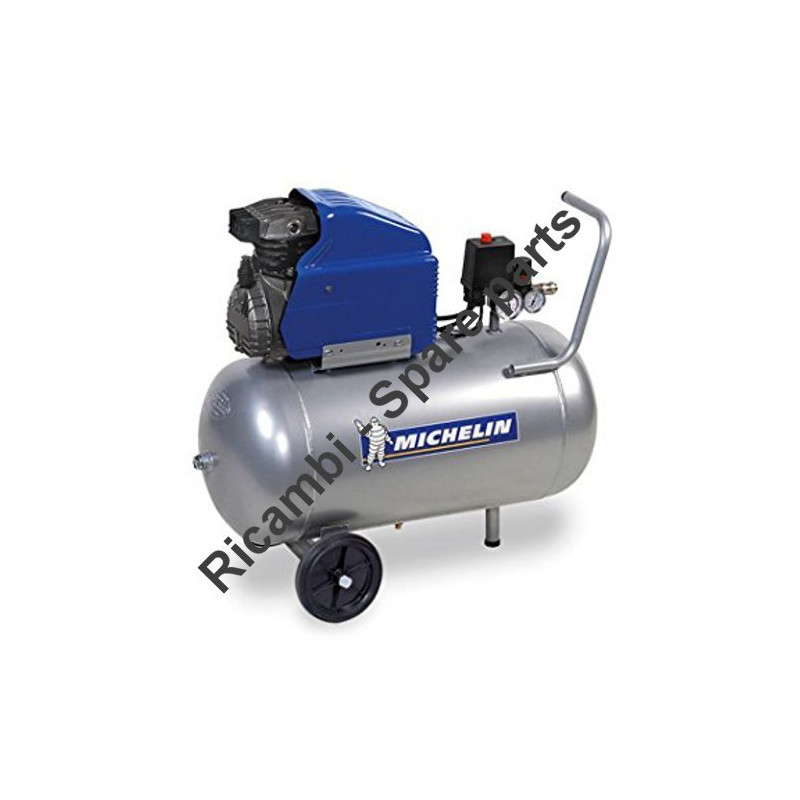

Michelin Parts for Piston Air Compressor MB50 - GM145
We have the original Spares MICHELIN for Compressor MB50 - GM145 Valid from 11/27/2015 (REV-00) the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Compressor MB50 - GM145. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the type of the air compressor and the respective parts of the code.
| Compressor MICHELIN MB50 - GM145 Valid from 11/27/2015 (REV-00) | ||
| # | Part Num. | Description |
| 1 | 7011220000 | Screw M6x40 |
| 1A | 9700010186 | washer D6 |
| 2 | 7084040000 | Joint |
| 3 | 7458340000 | Plate |
| 4 | 7210010000 | Filtering element |
| 5 | 7210430000 | Intatake filter Cover |
| 6 | 7012100000 | Screw ST4.2x19 |
| 7 | 7196010000 | START valve 1.5bar |
| 8 | 9101410070 | Head |
| 9 | 9101410080 | Gasket |
| 10 | 9100010240 | Valve plate |
| 11 | 9100010080 | Gasket 0.2mm |
| 12 | 9100010370 | Valve |
| 13 | 9101410090 | Gasket 0.5mm |
| 14 | 9101410060 | Cylinder Ф42 |
| 15 | 7020070000 | Nut M8 |
| 16 | 9100590060 | Gasket 1.5mm |
| 17 | 4080010000 | Piston ring Ф42 |
| 18 | 9100580050 | Piston Ф42 |
| 19 | 9100580090 | Piston pin Ф12x34 |
| 20 | 7041010000 | Internal snapring D12 Seeger D12 |
| 21 | 5050150008 | Con rod |
| 22 | 7640060000 | Rear Cover |
| 23 | 7060200000 | Ball Bearing 6204 |
| 25 | 9101410050 | Counter weight |
| 26 | 9100010900 | Plastic shroud |
| 27 | 7181150000 | Oil dipstick |
| 28 | 9101410020 | Carter cover |
| 29 | 7012160000 | Screw M6x12 |
| 30 | 9700010187 | Screw M5x14 |
| 31 | 9700000016 | O-ring |
| 32 | 9100270150 | Oil seal d20xD47x7 |
| 33 | 9700001865 | Cranckcase |
| 34 | 9700002512 | Rotor |
| 35 | 9700002515 | Stator 230V/50Hz |
| 36 | 7060010000 | Bearing 6203-2RS/2RZ |
| 37 | 7310320000 | Capacitor |
| 38 | 9700010188 | Nut M8 |
| 38A | 9700010184 | Washer D8 |
| 40 | 9700001900 | Tension rod M6x110 |
| 41 | 9100010200 | Fan |
| 42 | 1129702031 | Screw ST4.2x9.5 |
| 42A | 9700010183 | Washer D4 |
| 43 | 9100010050 | Stud bolt M8x36 |
| 50 | 1129704223 | Tank 50L |
| 51 | 9100010750 | Plug 1/2”G |
| 52A | 7360040000 | Rubber D25 |
| 53 | 9700000324 | Discharge tap 3/8”R |
| 54 | 9700010077 | Wheel D150 |
| 55 | 9700010192 | Screw D20× M10 |
| 56 | 7020080000 | Nut M10 |
| 57 | 7030040000 | washer D10 |
| 58 | 7012290000 | Screw ST5x20 |
| 59 | 1129701301 | Infeed cable |
| 60 | 7190180000 | Non returne valve |
| 61 | 7230010000 | Rilsan hose D6 |
| 62 | 9700000327 | Nut 3/8”G |
| 63 | 9700000343 | Infeed hose D10 |
| 64 | 9700000325 | Nut M16 |
| 65 | 7041070000 | Ogive |
| 66 | 9700000303 | Safety valve 9bar |
| 67 | 9700000388 | Pressure switch 10ba Pressostato 10bar CE |
| 68 | 9700000330 | Joint |
| 69 | 7100750000 | Pressure reducer |
| 71 | 9700000276 | Quick coupler |
| 72 | 7110450000 | Pressure gauge D40 |
| 72A | 7085210000 | Joint |
| 77 | 9100930130 | Rubber Handle |
| 100 | 4094470000 | Filter kit |
| 101 | 7459480000 | Valve plate kit |
| 102 | 4082390000 | Seal kit |
| 103 | 4190330000 | Conrod-Piston kit |
| 104 | 9700002030 | Infeed hose kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
