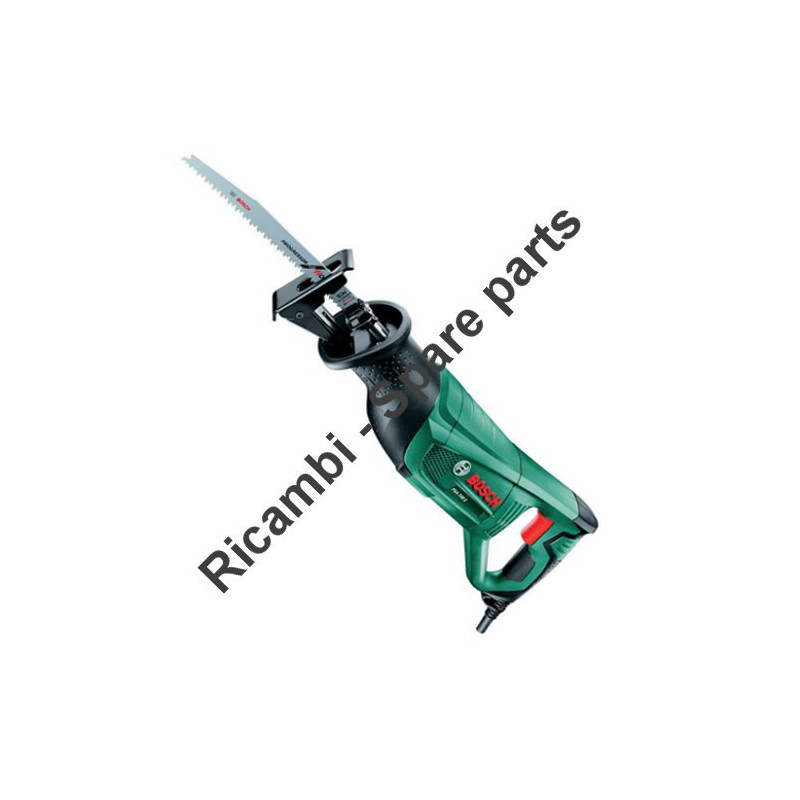

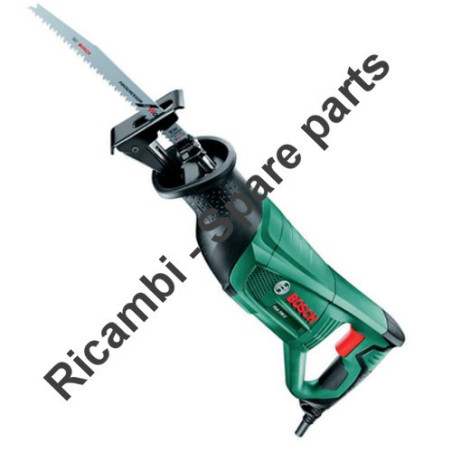

| Reciprocating Saw PSA 700 E/3 603 CA7 000 | ||
| # | Part Num. | Description |
| 1 | 1619PA3959 | Housing |
| 2 | 1619PA3960 | Field 230V |
| 3 | 1619PA3961 | Armature 230V |
| 4 | 1619PA3962 | Switch |
| 5 | 1619PA3963 | Power supply cord EU 230V |
| 7 | 2610956868 | Cable Clip |
| 8 | 1619PA3967 | Nameplate |
| 9 | 1619PA3971 | Bosch Label BOSCH |
| 12 | 1619PA1318 | Suppression Capacitor |
| 13 | 1619PA3973 | groove ball bearing |
| 14 | 1619PA3974 | groove ball bearing |
| 16 | 1619PA3975 | Brush Holder |
| 19 | 1619PA3976 | Tapping Screw |
| 20 | 1619PA3977 | Manufacturer's nameplate PSA 700 E |
| 22 | 2610956894 | Thread-Forming Screw |
| 23 | 1619P04820 | Spring Washer |
| 24 | 1619PA3978 | Gear Cover |
| 25 | 1619PA3979 | Felt Seal |
| 26 | 2610956896 | Bushing |
| 27 | 1619PA3980 | Sealing Plate |
| 28 | 2610956899 | Self-Cutting Screw |
| 29 | 1619PA4168 | Blade Holder |
| 30 | 1619P04839 | Pin |
| 32 | 1619PA3983 | Bearing Holder |
| 33 | 1619PA3984 | Sealing Plate |
| 34 | 1619PA3985 | Washer |
| 35 | 1619PA3986 | Bushing |
| 36 | 1619PA3987 | Rubber Ring |
| 37 | 1619P04823 | Needle-Roller Bearing |
| 39 | 1619PA3989 | Gear Cover |
| 41 | 1619PA3990 | groove ball bearing |
| 43 | 1619PA3992 | Thread-Forming Screw |
| 45 | 1619PA3994 | Cover |
| 46 | 1619PA3995 | Insulating Sleeve |
| 47 | 1619PA3996 | Sealing Plate |
| 48 | 1619P04827 | Thread-Forming Screw |
| 49 | 2610956898 | Supporting foot |
| 50 | 1619P04828 | Clamp |
| 51 | 2610956900 | Cover |
| 52 | 1619PA9518 | groove ball bearing |
| 53 | 1619PA3997 | Connecting Cable |
| 54 | 1619PA3998 | Connecting Cable |
| 56 | 2610956864 | Tapping Screw |
| 57 | 2610956865 | Tapping Screw |
| 59 | 2610956870 | Terminal Block |
| 60 | 2610956869 | Screw |
| 61 | 1619PA4000 | Connecting Cable |
| 62 | 1619PA4001 | Connecting Cable |
| 65 | 1619PA4002 | Tapping Screw |
| 66 | 1619PA4003 | Blade terminal |
| 67 | 1619PA4004 | Air-Deflector Ring |
| 69 | 1619PA4005 | Tapping Screw |
| 72 | 1619PA1319 | Cord guard |
| 73 | 1619PA1331 | Hex Socket Head Cap Screw |
| 76 | 1619PA4007 | Clip |
| 77 | 1619PA4008 | Washer |
| 810 | 1619PA4010 | Carbon-Brush Set |
| 831 | 1619PA4011 | Spindle Assembly |
| 838 | 1619PA4012 | Bevel Gear |
| 858 | 1619PA4013 | Set Of Handles |
| 875 | 1619PA4014 | Plate |
