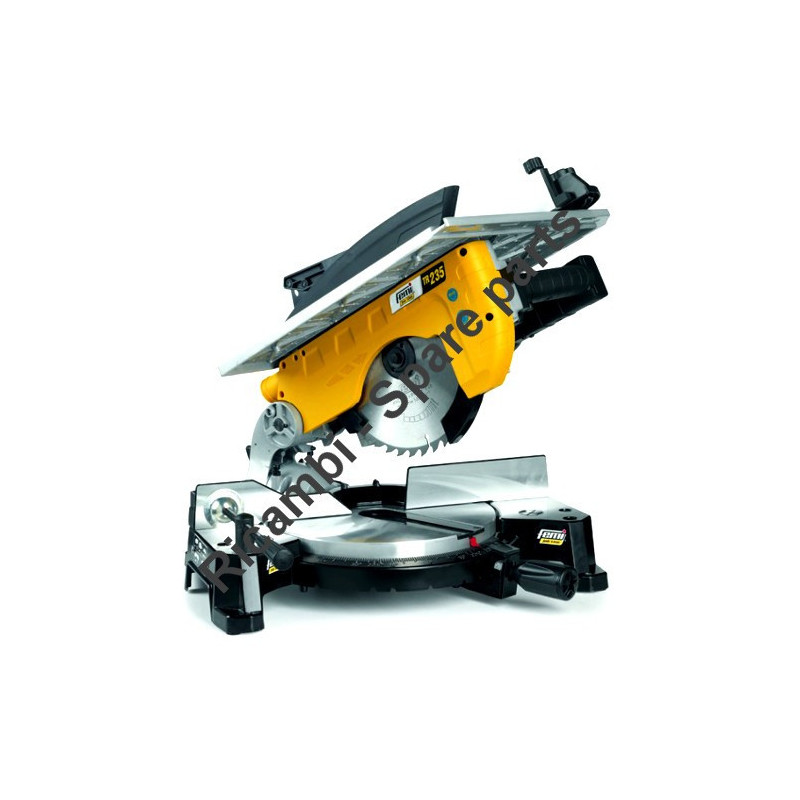

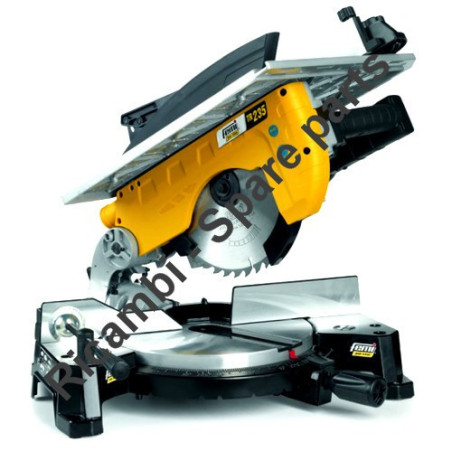

Femi Spare Parts for Wood Mitre Saw TR235-8426129
€14.34
Tax included
Femi Spare Parts for Wood Mitre Saw TR235-8426129
FEMI Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw TR235 - 8426129.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Wood Mitre Saw TR235-8426129
FEMI Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw TR235 - 8426129.
In the following table, look for the model of Miter Saw and the respective parts of the code.
| Miter Saw TR235-8426129 | ||
| # | Part Num. | Description |
| 2 | TR235-002 | MOTOR COVER CAP |
| 3 | TR235-003 | BRUSH HOLDER |
| 4 | TR235-004 | CARBON BRUSH SET |
| 7 | TR235-007 | MOTOR HOUSING |
| 8 | TR235-008 | 240V FIELD ASS'Y |
| 10 | TR235-010 | WINDING INSULATION |
| 11 | TR235-011 | BEARING |
| 12 | TR235-012 | ARMATURE ASSY |
| 18 | TR235-018 | KNOB |
| 19 | TR235-019 | SAW FRAME |
| 20 | TR235-020 | CABLE STOPPER |
| 22 | TR235-022 | ROD |
| 23 | TR235-023 | O-RING |
| 24 | TR235-024 | PIN |
| 25 | TR235-025 | ROD |
| 26 | TR235-026 | RIVING KNIFE |
| 30 | TR235-030 | BEARING CAGE HK910 |
| 32 | TR235-032 | GEAR WHEEL |
| 34 | TR235-034 | SHAFT |
| 36 | TR235-036 | BALL BEARING |
| 37 | TR235-037 | BEARING SEAT |
| 39 | TR235-039 | PLATE |
| 40 | TR235-040 | HANDWHEEL |
| 42 | TR235-042 | LEVER |
| 44 | TR235-044 | HANGER |
| 46 | TR235-046 | SPRING |
| 49 | TR235-049 | RELEASE BUTTON |
| 50 | TR235-050 | FRONT MOBILE PROTECTION |
| 51 | TR235-051 | FRONT LEVER |
| 52 | TR235-052 | LOWER LEVER |
| 53 | TR235-053 | ROD |
| 54 | TR235-054 | REAR LEVER |
| 56 | TR235-056 | REAR MOBILE PROTECTION |
| 57 | TR235-057 | WAVY RING |
| 58 | TR235-058 | INNER BLADE FLANGE |
| 60 | TR235-060 | OUTER BLADE FLANGE |
| 62 | TR235-062 | BLADE SCREW |
| 63 | TR235-063 | FRAME COVER |
| 65 | TR235-065 | BUSHING |
| 67 | TR235-067 | ELECTRIC BOX COVER |
| 68 | TR235-068 | PIN ROD |
| 69 | TR235-069 | ELECTRIC CABLE |
| 70 | TR235-070 | CABLE PROTECTION |
| 72 | TR235-072 | ANTI-JAMMING FILTER |
| 74 | TR235-074 | ELECTRIC BOX |
| 75 | TR235-075 | KNOB |
| 80 | TR235-080 | SUPPORT |
| 81 | TR235-081 | REAR ROD |
| 82 | TR235-082 | FRONT ROD |
| 84 | TR235-084 | WOOD PUSHER SUPPORT |
| 85 | TR235-085 | WOOD PUSHER |
| 86 | TR235-086 | GRADUATE PLATE |
| 87 | TR235-087 | UPPER WORK TABLE |
| 91 | TR235-091 | LOWER TABLE PROTECTION |
| 93 | TR235-093 | TABLE PROTECTOR |
| 94 | TR235-094 | ROD |
| 96 | TR235-096 | TABLE PROTECTOR |
| 99 | TR235-099 | INDEX |
| 100 | TR235-100 | GONIOMETER GUIDE |
| 101 | TR235-101 | TABLE PLATE |
| 102 | TR235-102 | LOCKING KNOB |
| 103 | TR235-103 | ADJUSTING KNOB |
| 105 | TR235-105 | GUIDE |
| 107 | TR235-107 | COVER CAP |
| 108 | TR235-108 | LOWER HANDLE |
| 109 | TR235-109 | CONDENSATOR |
| 111 | TR235-111 | TERMIC PROTECTION |
| 112 | TR235-112 | START SWITCH |
| 113 | TR235-113 | LOWER PROTECTION |
| 114 | TR235-114 | MAIN SWITCH |
| 117 | TR235-117 | JOINT KNOB WITH CAP |
| 118 | TR235-118 | (included into TR235-117) |
| 125 | TR235-125 | SHAFT |
| 126 | TR235-126 | JOINT SPRING |
| 128 | TR235-128 | JOINT |
| 130 | TR235-130 | SHAFT |
| 131 | TR235-131 | JOINT PLATE |
| 132 | TR235-132 | SUPPORT RING |
| 133 | TR235-133 | JOINT INDEX |
| 134 | TR235-134 | SUPPORT |
| 135 | TR235-135 | JOINT SHAFT |
| 137 | TR235-137 | REAR EXTENSION |
| 141 | TR235-141 | REAR SUPPORT |
| 142 | TR235-142 | SWIVEL SUPPORT COVER |
| 143 | TR235-143 | ADDITIONAL LOWER PROTECTION |
| 145 | TR235-145 | SWIVEL SUPPORT |
| 146 | TR235-146 | SUPPORT INDEX |
| 147 | TR235-147 | SUPPORT PROTECTION NET |
| 149 | TR235-149 | RIP FENCE |
| 150 | TR235-150 | BASE EXTENSION |
| 152 | TR235-152 | SAW BASE |
| 154 | TR235-154 | SPHERE |
| 155 | TR235-155 | SPRING |
| 160 | TR235-160 | RELEASE BUTTON |
| 161 | TR235-161 | RELEASE LEVER |
| 162 | TR235-162 | BRACKET |
| 163 | TR235-163 | PLATE |
| 166 | TR235-166 | PAD SUPPORT |
| 167 | TR235-167 | O-RING |
| 168 | TR235-168 | SPHERE |
| 169 | TR235-169 | LOCKING HANDLE |
| 170 | TR235-170 | HANDLE CAP |
| 171 | TR235-171 | ELECTRONIC CARD |
| 500 | TR235-500 | COMPLETE MOTOR |
| 501 | TR235-501 | COMPLETE GONIOMETER |
| 502 | TR235-502 | COMPLETE VICE |
| 503 | TR235-503 | COMPLETE UPPER PROTECTION |
| 504 | TR235-504 | DISC GUARD COMPLETE SET |
| 505 | F36-082 | CONF N°1 LAMA A DISCO D.250x30x2.8 Z 40 |
| 506 | F36-081 | CONF N°1 LAMA A DISCO D.250x30x2.8 Z 24 |
| 507 | F35-061 | CONF N°1 LAMA A DISCO D.250x30x2.8 Z 60 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi TR235 - 8426129
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
