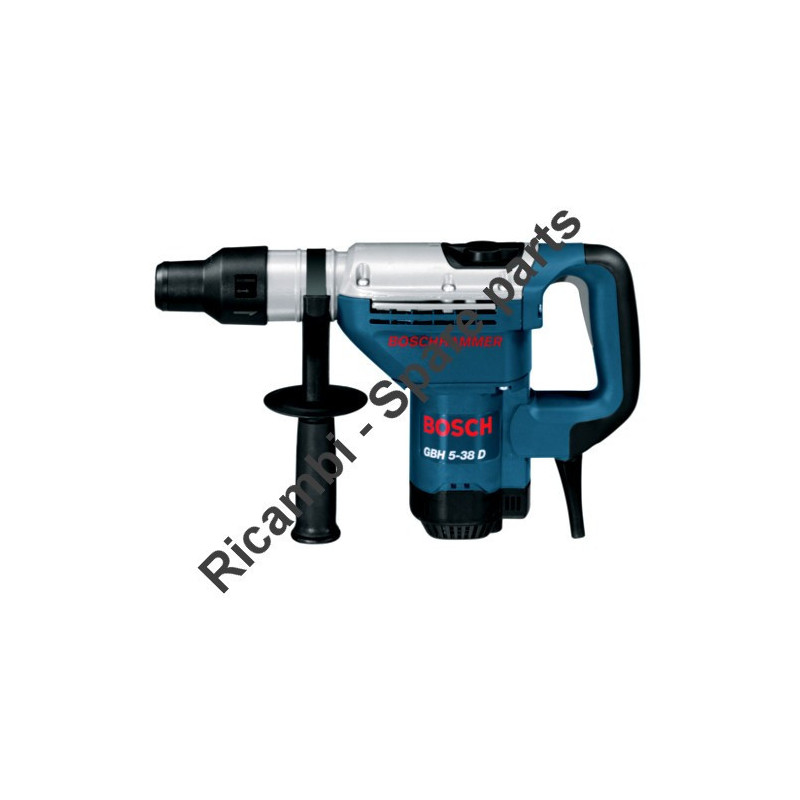

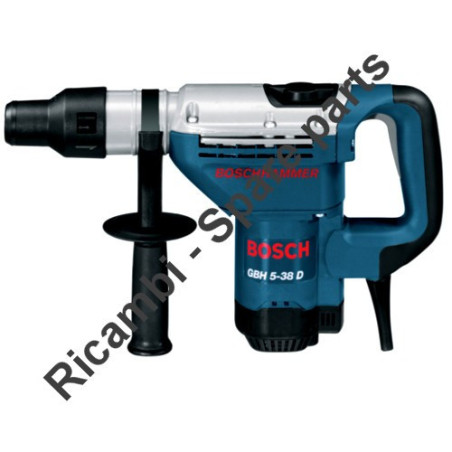

Bosch Spare Parts for Hammer GBH 5-38 D
€3.99
Tax included
Bosch Spare Parts for Hammer GBH 5-38 D
Bosch original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for SDS-max Rotary Hammer GBH 5-38 D - 0611240003.Fix Your Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Parts Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Hammer GBH 5-38 D
Fix Your SDS-max Rotary Hammer GBH 5-38 D - 0611240003. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Hammer and the respective parts of the code.
| SDS-max Rotary Hammer Bosch GBH 5-38 D - 0 611 240 003 | ||
| # | Part Num. | Description |
| 2 | 1614220122 | Field 230V |
| 4 | 1617200109 | Switch |
| 6 | 1610703053 | Grommet Ø9,7-Ø12x89 MM |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1611110C18 | Manufacturer's nameplate GBH 5-38 D |
| 12 | 1607328052 | Suppression Filter |
| 13 | 1610900026 | groove ball bearing 8x24x8 |
| 14 | 1610905028 | groove ball bearing 12x32x10 |
| 15 | 1616610085 | Fan |
| 21 | 1610508038 | Protective Cap |
| 22 | 1610591025 | Protection Sleeve |
| 25 | 1612300034 | Stopping Device |
| 27 | 1600591032 | Air-Deflector Ring |
| 28 | 1614621000 | Compression Spring |
| 30 | 1610505002 | Supporting Disc |
| 31 | 1610251006 | Supporting Disc |
| 34 | 1610516013 | Flange |
| 38 | 1615190098 | Covering hood BLUE |
| 42 | 1614336041 | Brush Holder |
| 43 | 1615500303 | Fan Cover |
| 44 | 1614617003 | Compression Spring |
| 47 | 1610300064 | Gear Sleeve |
| 48 | 1616334012 | Clutch Sleeve |
| 51 | 1616333041 | Crown Gear |
| 53 | 1610290068 | Support Disc |
| 57 | 1618710074 | Striker |
| 69 | 1610099004 | Retaining Bracket |
| 72 | 1616317064 | Eccentric Cog Wheel |
| 74 | 1611921001 | Guide Plate |
| 75 | 1615132078 | Handle BLUE |
| 79 | 1613435015 | Torx Oval-Head Screw M5x12-TORX,T25 SILVER |
| 81 | 1615132079 | Handle Cover |
| 84 | 1612025060 | Auxiliary Handle M8 BLACK |
| 85 | 1618040074 | index turning toolholder |
| 86 | 1613490002 | T-Head Bolt M8x40 MM |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 94 | 1610102056 | Friction Washer |
| 95 | 1610210173 | O-Ring 32,0x1,5 MM |
| 97 | 1610031005 | Locking Washer |
| 99 | 1610102059 | Support Disc |
| 102 | 1610102057 | Shim 0,3 MM |
| 102 | 1610102058 | Shim 0,2 MM |
| 104 | 1610210160 | O-Ring 52,0x2,0 MM |
| 111 | 1610290064 | Bushing |
| 112 | 1613300008 | Hex Nut DIN 936-M8x1-8 |
| 113 | 1613435009 | Tapping Screw ST-4,8x57,5-TORX,T20 |
| 116 | 1610311017 | Inner Ring |
| 117 | 1610913029 | Needle-Roller Assembly |
| 121 | 1610328019 | Bushing |
| 124 | 1610115001 | Collar Sleeve |
| 126 | 2603490022 | Torx Oval-Head Screw 4x16 |
| 138 | 1611015053 | Sealing Frame |
| 141 | 1610290066 | Rotary shaft lip seal |
| 142 | 1610290069 | Rotary shaft lip seal |
| 143 | 1614601021 | Retaining ring DIN 7993-28x2 |
| 145 | 1610119012 | Spring retaining ring |
| 154 | 2916660023 | Spring retaining ring DIN 472 52x2MM |
| 160 | 1610210161 | Damping Ring |
| 162 | 1610210163 | O-Ring 22,0x3,5 MM |
| 163 | 1610290065 | Seal ring |
| 165 | 1610210079 | O-Ring 22,0x4,0 MM |
| 167 | 1610283033 | Rotary shaft lip seal |
| 171 | 1613435016 | Torx Oval-Head Screw M5x20-TORX,T25 SILVER |
| 172 | 1613435013 | Torx Oval-Head Screw M6x30-TORX,T30 SILVER |
| 174 | 1613435012 | Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9x13-C-Z |
| 176 | 1613435012 | Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER |
| 177 | 1603435051 | Tapping Screw ST3,9x32 SILVER |
| 178 | 1604412069 | Connecting Cable |
| 661 | 1615430010 | Grease Tube 30 ML |
| 801 | 1615102154 | Motor Housing BLUE |
| 803 | 1614011083 | Armature 230V |
| 805 | 1617000723 | Power supply cord |
| 806 | 3604477009 | End Splice |
| 808 | 1601106035 | Nameplate 26x42 MM |
| 811 | 1617014138 | Carbon-Brush Set |
| 811 | 1607000493 | Carbon-Brush Set 10 x 1 617 014 138 |
| 817 | 1614652004 | Spiral Spring |
| 818 | 2910011088 | Socket head cap screw DIN 84-AM3,5x12-5.8 |
| 821 | 1617000842 | Bushing |
| 835 | 1617000841 | Hammer Pipe |
| 840 | 1617000840 | Impact Mechanism Housing |
| 841 | 1617000460 | Striker Pin |
| 849 | 1617000839 | Control Fork |
| 854 | 1617000461 | Stop Disc |
| 856 | 1617000843 | Hammer Piston |
| 860 | 1617000A37 | Spur Wheel Clutch |
| 873 | 1617000860 | Housing Cover |
| 884 | 1612025055 | Auxiliary Handle Ø62 MM BLACK |
| 886 | 1617000459 | Auxiliary Handle M8 BLACK |
| 895 | 1615430019 | Oil Reservoir 1000 ML |
| 897 | 1617000A16 | Wear and Tear Part Set |
| 898 | 1615437511 | Oil Reservoir 50 ML |
