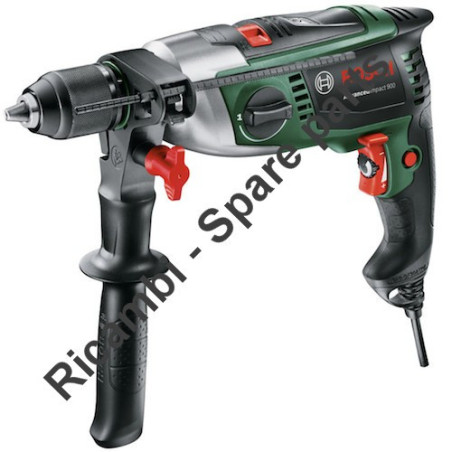

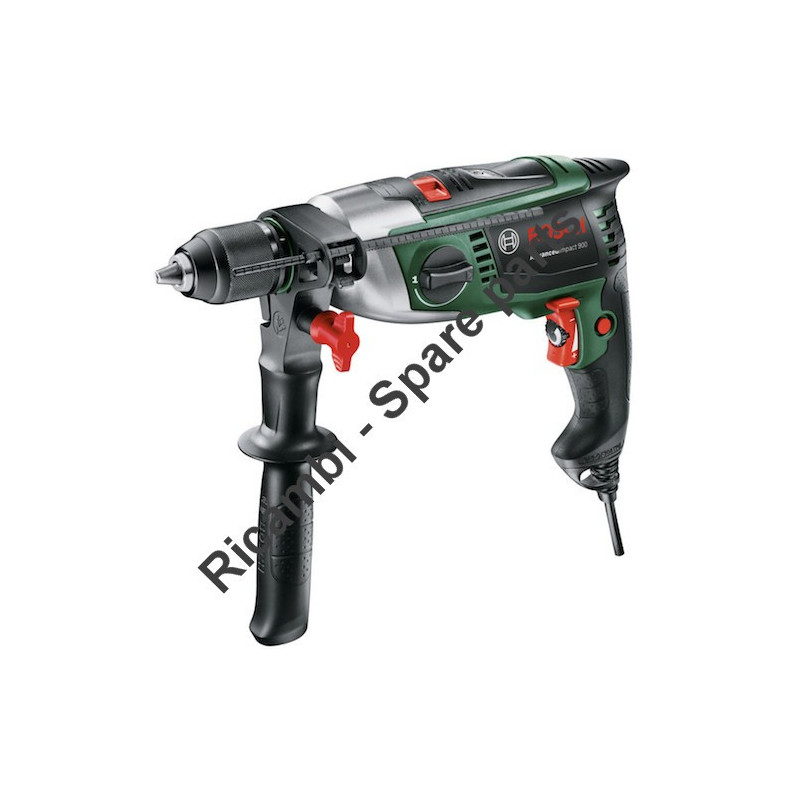

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

€1.56
Tax included

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

Bosch genuine spare parts for replacing or repairing Percussion Drill AdvancedImpact 900 3603A74000.

AdvancedImpact 900 3603A74000
ITEM CODE: 1600100632
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

Bosch genuine spare parts for replacing or repairing Percussion Drill AdvancedImpact 900 3603A74000.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
AdvancedImpact 900 3603A74000

Percussion Drill AdvancedImpact 900/3 603 A74 000
# Part Num. Descriuption
1 16051082CD Housing Section GREEN
2 2609007822 Field 230V
3 2609007821 Armature 230V
4 160720032Z Switch
6 2609006376 Grommet Ø6,4-Ø7,2x76 MM
9 160111C0JA Manufacturer's nameplate AdvancedImpact 900
9 160111C28J Manufacturer's nameplate AdvancedImpact 9000
16 1600A00B68 Brush Holder
20 2910611002 Tapping Screw DIN 7981-ST2,2x9,5-C-H
21 2603490022 Screw 4x16
24 1600A0092N Cover Panel
26 1600A009B0 Plastic Insert
28 16055002A9 Cover
29 2603490022 Screw 4x16
30 2606135130 Drilling Spindle
31 1600A00F24 Keyless Chuck
32 1900905163 groove ball bearing 17x35x10
33 2916650008 Spring retaining ring DIN 471 17x1 MM
35 2600100695 Shim 0,5 MM
36 2606317084 Cylindrical Gear
37 2606317085 Cylindrical Gear
38 1600A00RX5 Catch Disk
39 2604616013 Compression Spring
42 2600000021 Shim washer 1,0 MM
42 2600000030 Shim washer 1,35 MM
42 2600000031 Shim washer 1,7 MM
43 1903230009 Ball DIN 5401-5 G28
43 1903230010 Ball DIN 5401-5,5MM-III-ST
43 2603230007 Ball 5,25 MM
46 160312304U Carrier
47 2602210043 Eccentric
48 1600100632 Shim 0,2 MM THICK
49 2609007376 Roller Body
52 2600914010 Needle-Roller Bearing Ø6 MM
54 1600A0092D Rotary Knob
62 2600590006 Ratchet Cap
63 2609004109 Torsion Spring
64 3600210014 O-Ring 14,0x1,3 MM
65 2609002961 Fork Lever
66 2600101671 Retaining Washer
67 2602300032 Flat Key
68 1600A00997 Roller Body
69 1600A0092G Changeover Lever
70 2601990044 Guiding Plate
71 2600590006 Ratchet Cap
73 160111C0TV Reference Plate
75 1600A0092H Change-Over Switch
82 1600A00941 Retainer
654 160202508L Auxiliary Handle
655 2609005615 Depth-Gauge
805 1607000388 Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
808 160111A516 Nameplate
810 1607014184 Carbon-Brush Set
845 2606309940 Transmission
860 1600A0092E Bearing Bracket
890 2607001305 Fastening parts kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
