Bosch Spare Parts for Rotary Hammer GBH 7-45 DE
search
  • Bosch Spare Parts for Rotary Hammer GBH 7-45 DE
  • Bosch Spare Parts for Rotary Hammer GBH 7-45 DE - Diagram
  • Bosch Spare Parts for Rotary Hammer GBH 7-45 DE - Diagram - 1

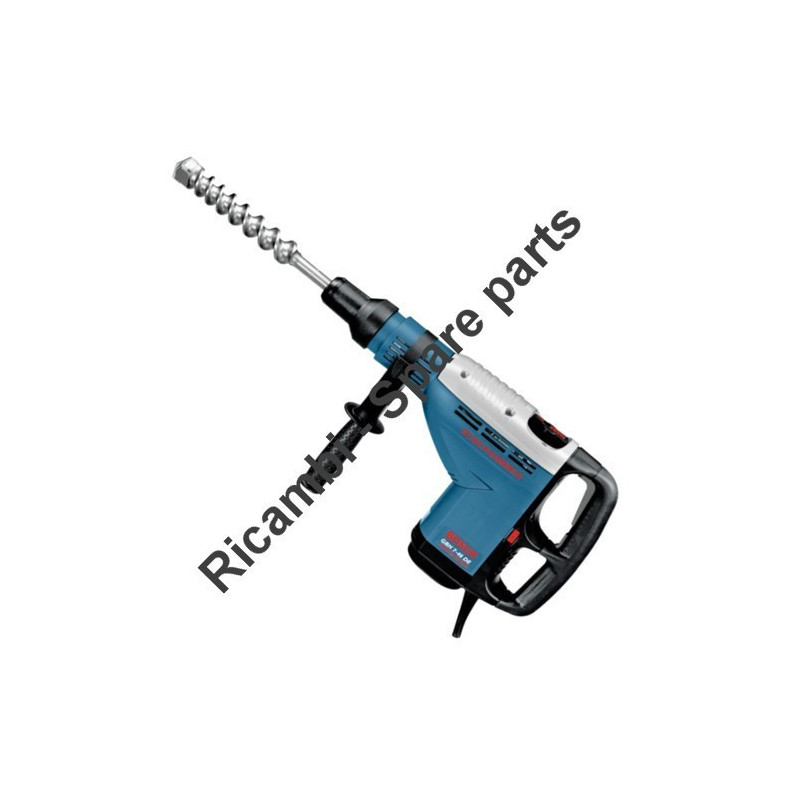

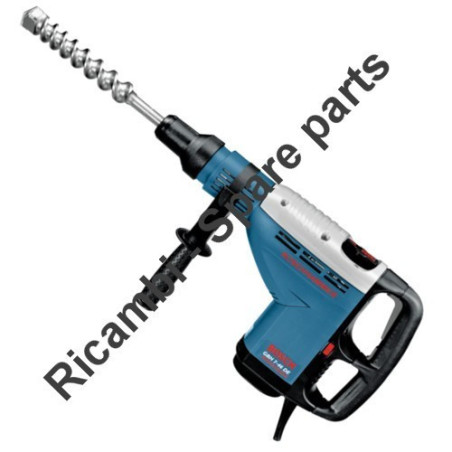

Bosch Spare Parts for Rotary Hammer GBH 7-45 DE

€2.24
Tax included

Bosch Spare Parts for Rotary Hammer GBH 7-45 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH7-45 DE - 0611235803.

Bosch GBH 7 45 DE - 0611214703
CODICE ARTICOLO: 1601302018
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Bosch Spare Parts for Rotary Hammer GBH 7-45 DE

Bosch original spare parts at best prices for to replace broken parts for to fix Rotary Hammer GBH7-45 DE - 0611235803.

Open PDF diagram in this page to chceck parts you need.
Bosch GBH 7 45 DE - 0611214703

GBH 7-45 DE - 0611235803
# Part Num. Description
1 1615108078 Motor Housing BLUE
2 1614220124 Field 220-240V
4 1617200048 Switch
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 1611110F01 Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610910089 Needle-Roller Bearing
20 1618597072 Toolholder
21 1610508035 Protective Cap
22 1610591021 Protection Sleeve
23 1610520001 Stop Sleeve
24 1610500021 Headed Bush
25 1612300027 Stopping Device
26 1610290025 Indexing Disk
27 1610591023 Air-Deflector Ring
28 1614621004 Compression Spring
31 1610290049 Damping Ring
35 1615806156 Hammer Pipe
37 1610102047 Support Disc
38 1615190079 Covering hood
39 1615190108 Covering hood
42 1614336026 Brush Holder
43 1615500305 Fan Cover
44 1614621005 Compression Spring
45 1610591022 Sealing plate
47 1619990149 Spacer Ring
48 1619990151 Clutch Sleeve
51 1616333035 Crown Gear Z=45
52 1614601056 Retaining ring
53 1610231000 Guide Bushing
54 1610190033 Spacer Tube
58 1616317056 Cylindrical Gear Z=17
59 1615805067 Bearing Pedestal
72 1616317067 Eccentric Cog Wheel
75 1615132102 Handle BLACK
76 1612026083 Shift-Lever Knob BLACK
77 1614610010 Compression Spring
80 1617233042 Speed governor 220-240V
94 1610290052 Support Disc
95 1613120018 Driving Pin
98 1610101015 Shim ring 1,0 MM THICK
101 1610102049 Shim 0,45 MM THICK
102 1610102048 Shim 0,3 MM THICK
104 1610190027 Stop Disc
111 1610290046 Bushing
112 1613300007 Hex Nut
113 1613412001 Tapping Screw B 4,8x68 MM
116 1610913029 Needle-Roller Assembly
117 1610913011 Needle-Roller Assembly Ø10 MM
119 1610910081 Needle-Roller Bearing
121 1610328016 Bushing
125 1613435011 Torx Oval-Head Screw 4,8x19
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
127 1610300060 Bushing
129 1610300067 Bushing
138 1611015047 Sealing Frame
139 1612380010 Sealing Plate
141 1610290028 Rotary shaft lip seal
142 1610290050 Rotary shaft lip seal
143 1614601021 Retaining ring DIN 7993-28x2
144 1610103021 Supporting Disc
151 1610210148 O-Ring 60,0x2,0 MM
152 1614601029 Retaining ring
153 1614601028 Retaining ring
154 1610119011 Spring retaining ring
156 2916650003 Spring retaining ring DIN 471-12x1-FSt
157 1610210142 O-Ring 31,0x1,5 MM
158 1610210139 O-Ring 30,0x2,5 MM
159 1610210141 O-Ring 27,0x2,5 MM
160 1610210140 O-Ring 46,0x7,0 MM
161 1610210145 O-Ring 18,0x8,0 MM
162 1610210109 O-Ring 26,0x4,0 MM
163 1610210144 O-Ring 22,0x3,0 MM
164 1903230013 Ball DIN 5401-Ø7MM-III-ST
167 1610290051 Rotary shaft lip seal
168 1610210149 O-Ring 46,0x5,0 MM
171 1613414021 Microencapsulated Screw
172 1613435008 Screw and washer assembly
173 1613433001 Screw and washer assembly 6,3x32
174 1613435010 Torx Oval-Head Screw 5,5x25
175 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
803 1614010213 Armature 220-240V
805 1617000723 Power supply cord
808 160111A3H3 Nameplate
810 1617014135 Carbon-Brush Set
818 2910011088 Socket head cap screw DIN 84- AM3,5x12-5.8
821 1617000824 Bushing
840 1617000825 Impact Mechanism Housing
841 1617000474 Striker Pin
849 1617000826 Control Fork
856 1617000873 Hammer Piston
860 1617000828 Spur Wheel Clutch Z=13/47
866 1617000406 Roller Set
872 1617000874 Eccentric Cog Wheel
873 1617000830 Housing Cover
896 1617000407 Wear and Tear Part Set
897 1617000408 Wear and Tear Part Set
898 1617000409 Wear and Tear Part Set
84 160202507H Auxiliary Handle
85 1618040071 Support clamp
87 1617000834 Clamping Band Ø77 MM, M8
129/1 1610910085 Needle-Roller Bearing
661 1615430010 Grease Tube 30 ML
884 1612025051 Auxiliary Handle Ø77 MM, M8
