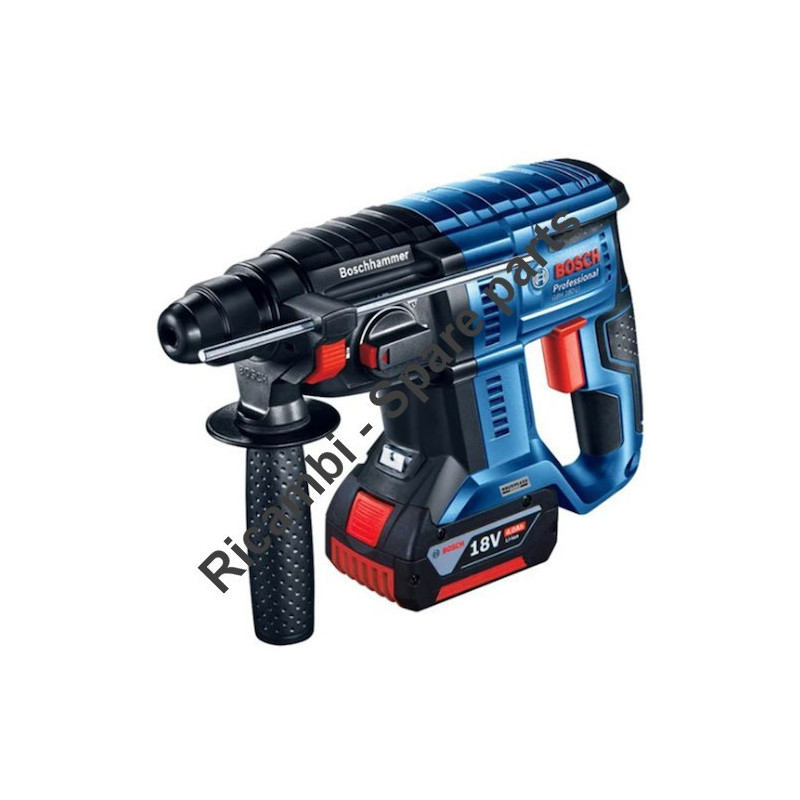

Bosch Spare Parts for Cordless Hammer Drill GBH 18V-21
€36.10
Tax included
Bosch Spare Parts for Cordless Hammer Drill GBH 18V-21
Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-21 - 3611J11100.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Cordless Hammer Drill GBH 18V-21
Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-21 - 3611J11100.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Bosch Cordless Hammer Drill GBH 18V-21 - 3611J11100 | ||
| # | Part Num. | Description |
| 1 | 1619P15614 | Motor Housing |
| 2 | 1619P15329 | Stator |
| 3 | 1619P15328 | Rotor |
| 4 | 1600A020T1 | Electronic Module |
| 5 | 2604690055 | Compression Spring |
| 6 | 1619P13744 | Lens |
| 16 | 2603490022 | Screw 4x16 |
| 17 | 1610290108 | O-Ring |
| 19 | 1610210184 | O-Ring 22,0x2,5 MM |
| 20 | 1612026151 | Clamp Handle BLACK |
| 20/2 | 1614690009 | Driver Pin |
| 20/3 | 1612026035 | Switch Button RED |
| 20/4 | 1610210046 | O-Ring 10,5x2,7 MM |
| 20/5 | 1614611006 | Compression Spring |
| 22 | 1616328053 | Gear Sleeve |
| 26 | 1618700083 | Hammer Piston |
| 27 | 1618710085 | Striker |
| 28 | 1613124084 | Striker Pin |
| 29 | 1613100034 | Piston Pin |
| 31 | 1619P09816 | Retaining ring |
| 32 | 1610508051 | Rubber Bushing |
| 33 | 1615820103 | Switching Element |
| 34 | 1619P00829 | Retaining ring |
| 36 | 1610551008 | Holding Plate |
| 37 | 1610100016 | Guide Disc |
| 38 | 1616317084 | Cylindrical Gear |
| 39 | 1614601055 | Retaining ring |
| 40 | 1613100032 | Straight Pin |
| 41 | 1610102072 | Ratchet Disc |
| 44 | 1610102092 | Friction Washer |
| 45 | 1611016003 | Holding Plate |
| 46 | 1614630003 | Compression Spring |
| 47 | 1610202031 | Plain bearing |
| 49 | 1615820104 | Switching Element |
| 51 | 1610021004 | Shift Plate |
| 52 | 1610021006 | Shift Plate |
| 53 | 1610021005 | Shift Plate |
| 54 | 1613023005 | Guide Rod |
| 55 | 1610508052 | Protective Cap |
| 60 | 1614601077 | Spring retaining ring |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 65 | 1610210244 | O-Ring 13,0x3,0 MM |
| 67 | 1619P16119 | groove ball bearing |
| 68 | 1600100037 | Plain Washer |
| 69 | 1619P13747 | Change-Over Switch |
| 71 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 72 | 1619P09645 | Torx Oval-Head Screw |
| 75 | 1614643025 | Compression Spring |
| 76 | 1614643023 | Compression Spring |
| 77 | 1610283048 | Shaft Seal |
| 211 | 1619P09815 | Hammer Pipe |
| 807 | 1619P15676 | Intermediate housing |
| 808 | 1619P16107 | Label |
| 818 | 1619P15677 | Intermediate Flange |
| 821 | 1619P09617 | Hammer Pipe |
| 824 | 16170006BC | Jack Shaft |
| 843 | 1619P15678 | Gear Housing |
| 856 | 16170006D3 | Protection Sleeve |
| 651 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 653 | 2607336815 | Battery Pack BBS MR 18V, 4,0Ah, 47 S |
| 654 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 691/895 | 1619P14336 | Latch |
| 822 | 160202508X | Auxiliary Handle |
| 822/120 | 160202507H | Auxiliary Handle |
| 822/124 | 1611316021 | Clamping Band Ø50 MM |
| 822/125 | 1613490002 | T-Head Bolt M8x40 MM |
| 822/802 | 1617000475 | Support clamp |
| 892 | 1615430020 | Grease Tube 225 ML |
| 893 | 1615430001 | Grease Tube 225 ML |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 18V-21 - 3611J11100
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
