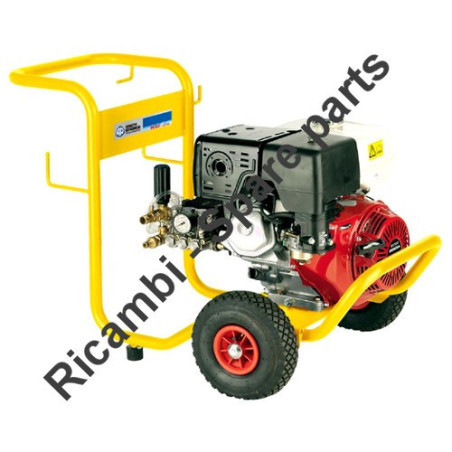

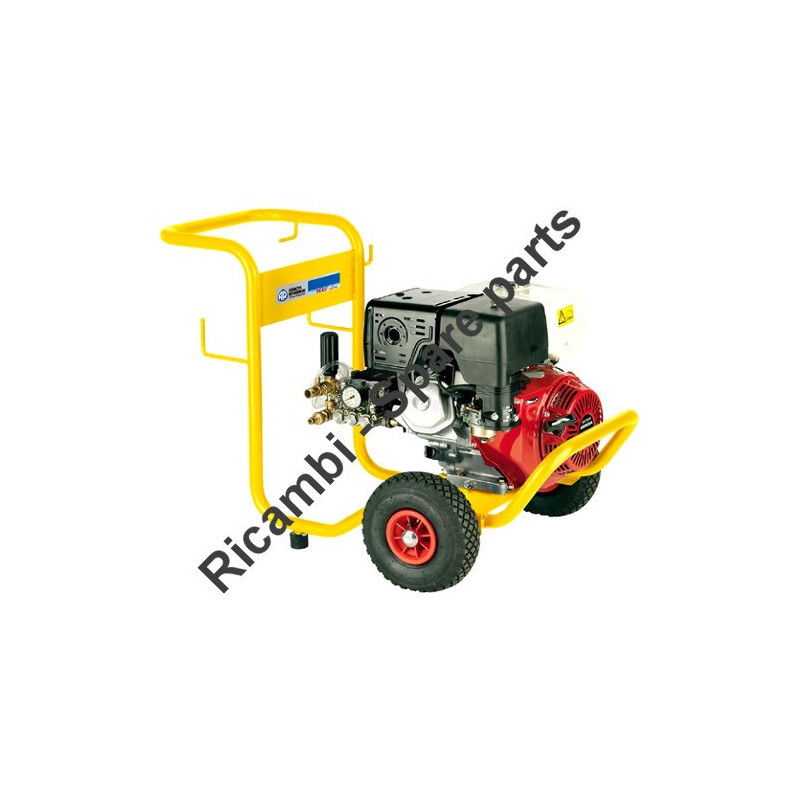

AR Farmer's Division Parts for Pressure 840 H4S Line
€30.47
Tax included
AR Farmer's Division Parts for Pressure 840 H4S Line
Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 840 H4S Line - 22195.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AR Farmer's Division Parts for Pressure 840 H4S Line
Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models 840 H4S Line - 22195.
In the following tables, look for the spare part and its respective code.
| Casing 840 H4S - 22195 Pag.1 |
||
| # | Part Num. | Description |
| 1 | 2281640 | Handle |
| 2 | 2281630 | Frame |
| 3 | 2281700 | Knob |
| 4 | 2281690 | Antivibration |
| 5 | 380561 | Wheel |
| 6 | 50016 | Cork |
| 7 | 320620 | Washer |
| 8 | 200230 | Screw |
| 9 | 2240110 | Nut |
| 10 | 4554 | Engine |
| 11 | 1262790 | Tube Cleaner |
| 12 | 1341030 | Filter |
| 13 | 1269115 | Pre-Assembly Tube |
| 14 | 2180150 | Tube Cleaner |
| 15 | 961900 | Screw |
| Pump 840 H4S - 22195 Pag.2 |
||
| 1 | 960160 | O-Ring |
| 2 | 960850 | Cork |
| 3 | 889052 | Valve Complete |
| 4 | 1382740 | Watertight |
| 5 | 880581 | Cork |
| 6 | 820510 | O-Ring |
| 11 | 960110 | Ring |
| 12 | 1382740 | Watertight |
| 13 | 1380090 | Piston Guide |
| 14 | 961240 | O-Ring |
| 15 | 880330 | Watertight |
| 16 | 1383130 | Ring |
| 17 | 850370 | Screw |
| 18 | 1380050 | Support |
| 19 | 640030 | O-Ring |
| 20 | 2280340 | Bearing |
| 21 | 1382770 | Body Pump |
| 22 | 880130 | Cork |
| 23 | 962010 | Nut |
| 24 | 962000 | Washer |
| 25 | 1380940 | Piston |
| 26 | 1380950 | Disk |
| 27 | 600180 | O-Ring |
| 28 | 1380920 | Piston |
| 29 | 1380060 | Plug |
| 30 | 1383020 | Piston Rod |
| 31 | 1080401 | Ring |
| 32 | 1381850 | Washer |
| 34 | 1780510 | O-Ring |
| 35 | 1789010 | Cover |
| 36 | 1343510 | Screw |
| 37 | 2280130 | Shaft |
| 38 | 820440 | Screw |
| 39 | 621170 | Ring |
| 40 | 1380120 | Thickness 0.10 Mm |
| 40 | 1380130 | Thickness 0.20 Mm |
| 40 | 1380530 | Thickness 0.25 Mm |
| 40 | 1382810 | Thickness 0.05 Mm |
| 41 | 2281510 | Flange |
| 42 | 740290 | O-Ring |
| 43 | 1980740 | Cork |
| 46 | 1980740 | Cork |
| 47 | 180101 | O-Ring |
| 49 | 2281590 | Head |
| 50 | 820150 | Screw |
| 71 | 180030 | Screw |
| 77 | 1383150 | Bearing |
| 78 | 2289235 | Pre-Assembly Head |
| 86 | 1260250 | Level Indicator |
| 87 | 1260430 | Ring |
| 88 | 1780690 | Disk |
| 89 | 1140450 | O-Ring |
| 91 | 1381580 | Manometer |
| 92 | 1380220 | O-Ring |
| 94 | 50129 | Valve |
| 95 | 20699 | Pump Pre-Assembly |
| A | 1828 | Valve Kit |
| B | 2757 | Piston Kit |
| C | 1856 | Oil Seals Kit |
| E | 1857 | Water Seal Kit |
| G | 1829 | Kit Support Rings |
| Valve 840 H4S - 22195 Pag.3 |
||
| 1 | 1560580 | Cork |
| 2 | 540290 | Screw |
| 3 | 1660210 | Nut |
| 4 | 1560400 | Knob |
| 5 | 1080070 | Plug |
| 6 | 1560420 | Screw |
| 7 | 1560410 | Guide |
| 8 | 1560440 | Disk |
| 9 | 1560350 | Spring |
| 10 | 1080610 | Disk |
| 11 | 1080660 | Plug |
| 12 | 1080540 | Piston |
| 13 | 391000 | O-Ring |
| 14 | 1080640 | Ring |
| 15 | 1560150 | O-Ring |
| 16 | 1560100 | Shutter |
| 17 | 1560140 | Spring |
| 18 | 180101 | O-Ring |
| 19 | 1540272 | Screw |
| 21 | 1560010 | Valve Body |
| 22 | 1080550 | Ring |
| 23 | 480480 | O-Ring |
| 24 | 1560280 | Washer |
| 25 | 1560320 | Piston |
| 26 | 880270 | O-Ring |
| 27 | 1560051 | Junction |
| 28 | 390080 | O-Ring |
| 29 | 1560510 | Nut |
| 30 | 1560530 | Junction |
| 31 | 1560520 | Spring |
| 32 | 1250280 | Ball |
| 33 | 480480 | O-Ring |
| 34 | 1560490 | Hose |
| 40 | 1540020 | Collector |
| 41 | 1540120 | Washer |
| 42 | 1540090 | Junction |
| 43 | 1560290 | Washer |
| 44 | 480440 | O-Ring |
| 50 | 1560880 | Junction |
| 51 | 40393 | Junction |
| 52 | 1340260 | Filter |
| 53 | 22454 | Valve Complete |
| F | 2611 | Seal Kit |
| Accessories 840 H4S - 22195 Pag.4 |
||
| 1 | 3082 | Nozzle |
| 2 | 40541 | Spear + Head Without Nozzle |
| 3 | 40650 | Spear + Head |
| 4 | 41322 | Gun |
| 5 | 1540110 | Washer |
| 6 | 3119 | High Pressure Tube |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
