Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE
search
  • Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE
  • Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE

Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE

€2.60
Tax included

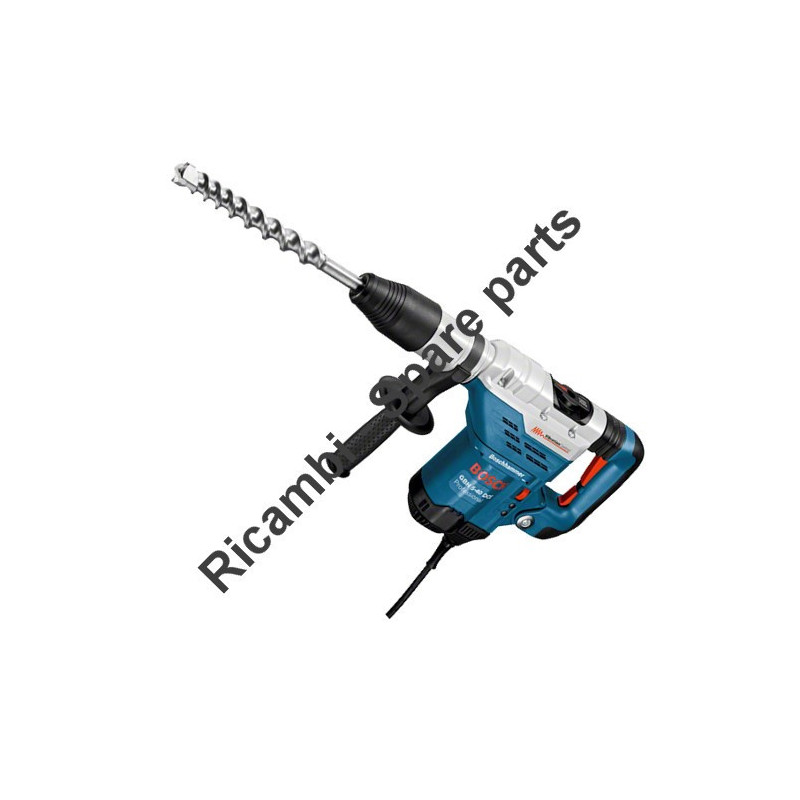

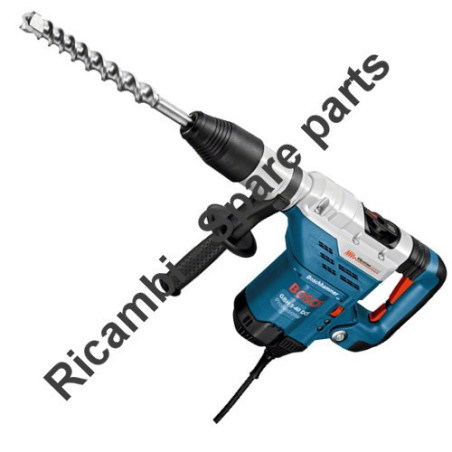

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5/40DCE

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer GBH 5/40 DCE - 0611216703.

Bosch GBH 5/40 DCE 0611216703
ITEM CODE: 1601106032
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5/40DCE

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer GBH 5/40 DCE - 0611216703.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 5/40 DCE 0611216703

GBH 5/40 DCE/0 611 216 703
# Part Num. Description
1 1615102142 Motor Housing BLUE
2 1604220343 Field 220-230V
4 1617200048 Switch
* 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8
6 1610703053 Grommet Ø9,7-Ø12x89 MM
6 3600703011 Grommet Ø9,2-Ø12x120 MM
7 1601302018 Fastening Clamp
9 1611110708 Manufacturer's nameplate
13 1610900025 Deep-Groove Ball Bearing 7x22x7
14 1610905007 Deep-Groove Ball Bearing 12x32x10
15 1616610071 Fan
17 1610222008 Retaining snap ring
18 1610222008 Retaining snap ring
19 1615806090 Guide Tube
20 1618597060 Toolholder
21 1610508017 Protective Cap
22 1610591009 Protection Sleeve
23 1610520001 Stop Sleeve
25 1612300027 Stopping Device
26 1610290025 Indexing Disk
27 1610222008 Retaining snap ring
28 1614621000 Compression Spring
29 1614616008 Compression Spring
30 1610250007 Ball Race
32 1610202016 Cylinder Sleeve
34 1610102622 Supporting Disc 1,5 MM THICK
35 1615806089 Hammer Pipe
37 1617000291 Retaining Bracket BLACK
38 1615190026 Covering hood BLACK
39 1610290024 Clutch Ring
46 1611015036 Sealing Frame
47 1610591012 Cover
51 1616333023 Crown Gear Z=37
53 1610190023 Stop Disc
54 1610101014 Stop Disc
57 1618710053 Striker
72 1616337003 Eccentric Cog Wheel Z=35
75 1615132045 Handle BLACK
80 1617233026 Speed governor 220-240V
81 1612026043 Switch-Pawl GRAY
81 1612026030 Switch-Pawl BLACK
82 1615510000 Light Conductor
84 1612025060 Auxiliary Handle M8 BLACK
85 1618040055 index turning toolholder Ø70 MM
86 1613490001 T-Head Bolt M8x80 MM
87 1611316008 Clamping Band Ø70 MM
89 1613480010 Wing Screw M6x30 MM
90 1613300006 Hex Nut M6
91 1611030010 Clamping Plate
94 1610119007 Spring retaining ring
95 2916120023 Sealing disk 14,4-6201 ZJV NILOS
96 2916660024 Spring retaining ring 55x2MM, DIN 472
97 2916190284 Shim ring DIN 988-45x55
98 1610101622 Friction Washer 0,5 MM THICK
99 1611329011 Holding Plate
99/99 1610190030 Holding Plate
99/154 1610222010 Retaining snap ring
101 1610210094 O-Ring 20,0x3,0 MM
102 1610210095 O-Ring 55,0x2,0 MM
103 1610210100 O-Ring 27,0x1,5 MM
104 1610210093 O-Ring 17,0x8,0 MM
105 1610210096 O-Ring 21,0x3,5 MM
107 1610210116 O-Ring 14,0x2,0 MM
108 1900210103 O-Ring 8,0x1,5 MM
109 1610283028 Rotary shaft lip seal DIN 3760-BS, Ø40x55x7 MM
110 1610116003 Spring retaining ring
111 1610210081 O-Ring 10,0x1,0 MM
112 1610210090 Clamping Ring
113 1610328013 Thrust ring
116 1610116004 Spring retaining ring
117 1610119008 Spring retaining ring
118 1610913009 Needle-Roller Assembly
119 1610913011 Needle-Roller Assembly Ø10 MM
121 1610905014 Deep-Groove Ball Bearing
122 1610913029 Needle-Roller Assembly
124 1610101008 Thrust Bearing Disc 1,0 MM THICK
125 2912401036 Tapping Screw DIN7981-ST4,8x25-C-Z
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
127 2912311166 Oval-Head Screw DIN 7985-M5x30-8.8
128 2910211037 Tapping Screw DIN 7971-BZ4,8x32
129 2912401037 Tapping Screw DIN 7981-ST4,8x32C-Z
130 1601110265 Sticker
131 1611110709 Manufacturer's nameplate
132 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8
136 2910211236 Tapping Screw DIN 7971-ST4,8x25-C
139 1610005002 Felt Disc Ø39x15 MM
142 1610101015 Shim ring 1,0 MM THICK
148 1610102627 Shim 0,2 MM THICK
148 1610102633 Shim 0,3 MM THICK
149 1612388021 Adapting Piece
661 1615430010 Grease Tube 30 ML
750 2605438261 Carrying Case
800 1617000945 Clamp Handle BLACK
803 1614010180 Armature 220-240V
805 1617000723 Power supply cord
808 1601106032 Nameplate 26x52 MM
824 1617000271 Cylindrical Roller
833 1617000949 Control Fork
837 1617000291 Retaining Bracket BLACK
840 1617000811 Impact Mechanism Housing - OUT OF STOCK
842 1614336009 Brush Holder
842/020 1614336043 Brush Guide
842/040 1617014122 Carbon-Brush Set
842/050 1613212004 Rubber Buffer
842/080 2912401005 Tapping Screw DIN7981-ST2,9x9,5C-Z
843 1615808072 Bearing cover BLUE
845 1617000962 Gear Housing
848 1617000415 Clutch Sleeve
856 1617000999 Hammer Piston - ENQUIRE
860 1617000818 Spur Wheel Clutch
879 1613001008 Depth-Gauge SW 6x330 MM
884 1612025035 Auxiliary Handle Ø70 MM
897 1617000272 Wear and Tear Part Set
898 1617000273 Wear and Tear Part Set
