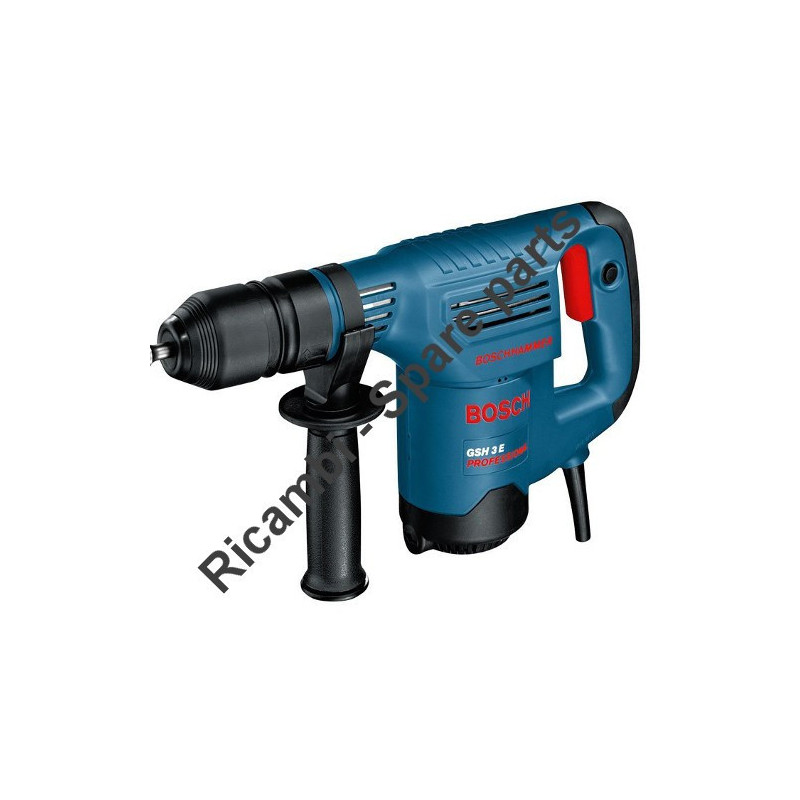

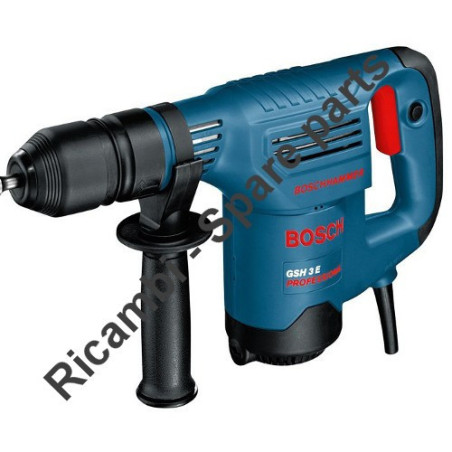

Bosch Spare Parts for Demolition Hammer SDS-Plus GSH 3 E
€5.94
Tax included
Bosch Spare Parts for Demolition Hammer SDS-Plus GSH 3 E
We are Dealers of BOSCH original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill Chisel 650 W SDS-Plus GSH 3 E - 0611320737.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Demolition Hammer SDS-Plus GSH 3 E
We are Dealers of BOSCH original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill Chisel 650 W SDS-Plus GSH 3 E - 0611320737.
In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
| Hammer Drill Chisel 650 W SDS-Plus GSH 3 E/0 611 320 737 | ||
| # | Part Num. | Description |
| 2 | 1619P08342 | Field |
| 4 | 1607200524 | Switch |
| 5 | 1604460032 | Power supply cord AUS 2,65m 2 x 1,0mm PVC |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6x76 MM |
| 7 | 2601035001 | Cable Clip |
| 9 | 1611110X85 | Manufacturer's nameplate |
| 13 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 14 | 1610905036 | Deep-Groove Ball Bearing 10x26x8 |
| 15 | 1616610088 | Fan |
| 17 | 1615132075 | Flap Grip |
| 21 | 1615806178 | Hammer Pipe |
| 23 | 1614601044 | Retaining ring |
| 24 | 1610190051 | Supporting Disc |
| 25 | 1610190052 | Supporting Disc |
| 26 | 1618700082 | Hammer Piston |
| 27 | 1618710084 | Striker |
| 28 | 1613124079 | Striker Pin |
| 32 | 1613100030 | Needle Roller |
| 33 | 1615808091 | Gear Cover |
| 34 | 2916080910 | Locking Washer DIN 6799-7-FSt |
| 35 | 1600502023 | Intermediate Ring |
| 36 | 1616409022 | Collar |
| 37 | 1613123004 | Eccentric Shaft |
| 40 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 41 | 3604618008 | Compression Spring |
| 43 | 1610390043 | Screw Bushing |
| 44 | 2916560010 | Spring retaining ring DIN 471-30x2,0-FST |
| 47 | 1610250010 | Inner Ring |
| 48 | 1611329020 | Fixing Plate |
| 53 | 1610422018 | Thrust Ring |
| 54 | 1610508039 | Protective Cap L=13 MM |
| 55 | 1610190040 | Holding Plate |
| 56 | 1610499057 | Protection Sleeve |
| 58 | 1614615004 | Compression Spring |
| 59 | 1610522014 | Slide Sleeve |
| 60 | 1610202023 | Plain bearing |
| 61 | 1610210156 | O-Ring 39,0x3,0 MM |
| 62 | 1610210105 | O-Ring 18,0x3,5 MM |
| 66 | 1610210181 | O-Ring 21,0x2,0 MM |
| 67 | 1614601032 | Retaining ring |
| 68 | 1610205011 | Felt Washer |
| 69 | 1610283031 | Rotary shaft lip seal |
| 70 | 1610283037 | Rotary shaft lip seal |
| 72 | 1610210182 | O-Ring 30,0x5,0 MM |
| 73 | 1610210183 | O-Ring 18,64x3,53 MM |
| 74 | 1611014002 | Sealing Frame |
| 75 | 1610210159 | O-Ring 18,0x3,5 MM |
| 76 | 1610100015 | Supporting Disc |
| 77 | 1610190050 | Magnetic Stand |
| 78 | 1600290058 | Magnet |
| 79 | 1614618002 | Compression Spring |
| 80 | 1614621000 | Compression Spring |
| 83 | 1614601036 | Spring retaining ring |
| 86 | 2603490023 | Torx Oval-Head Screw 4x20 |
| 87 | 1610209006 | Thrust ring |
| 88 | 1613414016 | Hex Socket Head Cap Screw |
| 89 | 1613414017 | Hex Socket Head Cap Screw |
| 90 | 2910131154 | Hex Socket Head Cap Screw DIN 7984-M5x12-8.8 |
| 91 | 2912401008 | Tapping Screw DIN 7983-ST-2,9x19 |
| 92 | 2910211005 | Tapping Screw DIN 7971-ST2,9x9,5-F |
| 101 | 1614449012 | Connecting Cable L=360 MM WHITE |
| 102 | 1614431028 | Connecting Cable L=220 MM WHITE |
| 103 | 1614437017 | Connecting Cable L=180 MM BLUE |
| 104 | 1614437018 | Connecting Cable |
| 105 | 1614431029 | Suppression Filter |
| 108 | 1611091006 | Terminal 2-POLE |
| 120 | 1612025060 | Auxiliary Handle M8 BLACK |
| 121 | 1618040081 | index turning toolholder |
| 122 | 1613450017 | Hex Screw M 8x40 MM |
| 123 | 1611316018 | Clamping Band Ø 63 MM |
| 124 | 2915051180 | Hex Nut ISO-4035-M8-05 |
| 661 | 1615430010 | Grease Tube 30 ML |
| 801 | 1615108103 | Insulating Housing |
| 803 | 1614010238 | Armature With Fan 230V |
| 807 | 1614449017 | Connecting Cable |
| 808 | 1601106035 | Nameplate 26x42 MM |
| 810 | 1617014137 | Carbon-Brush Set |
| 815 | 1614652003 | Spiral Spring |
| 816 | 1617000392 | Brush Holder |
| 818 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 819 | 1615806181 | Gear Housing |
| 820 | 1615104044 | Housing Section |
| 820/45 | 1615104039 | Cover |
| 821/01 | 1615806182 | Hammer Pipe |
| 821/02 | 1615806183 | Hammer Pipe |
| 822 | 1612025059 | Auxiliary Handle |
| 830 | 1612210119 | Eccentric |
| 849 | 1618598238 | Tool Holding Fixture |
| 852 | 1615500310 | Brush-Cover |
| 860 | 1610422019 | Plain bearing |
| 894 | 2603435015 | Recessed-Head Screw DIN 7981-ST3,5x9,5-F |
| 895 | 1615430019 | Oil Reservoir 1000 ML |
| 897 | 1617000595 | Wear and Tear Part Set |
| 898 | 1615437509 | Oil Reservoir 50 ML |
