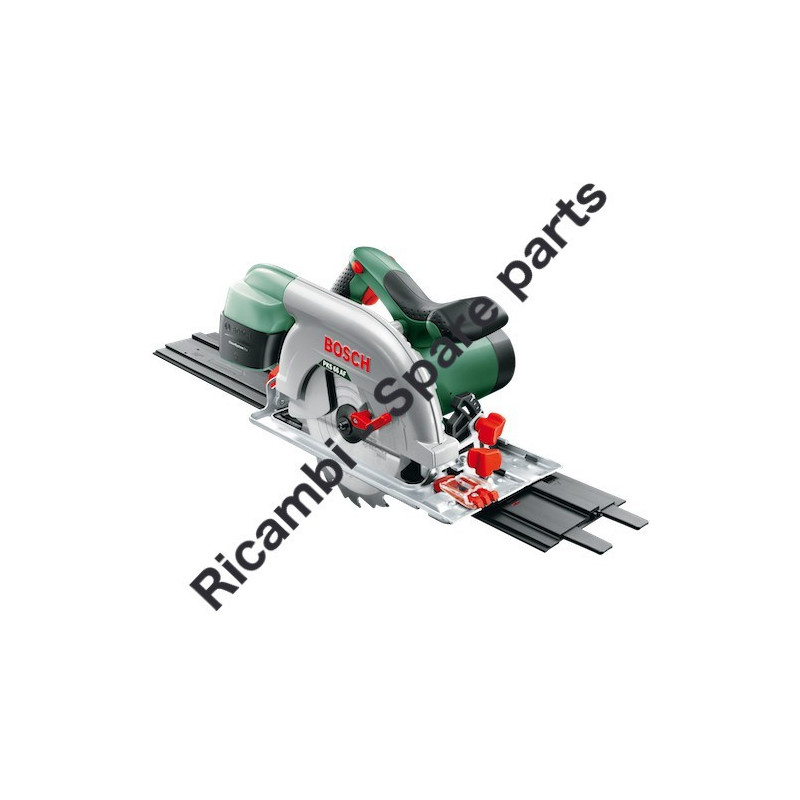

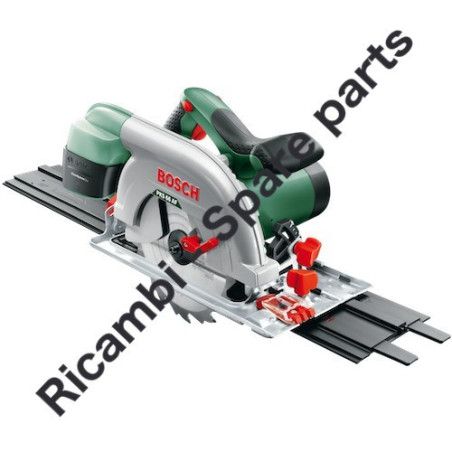

Bosch Spare Parts for Circular Saw PKS 66AF
€2.90
Tax included
Bosch Spare Parts for Circular Saw PKS 66AF
Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66AF - 3603E02000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Circular Saw PKS 66AF
Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66AF - 3603E02000.In the following table, look for the model of the Circular Saw and the respective parts of the code.
| Circular Saw PKS 66AF - 3603E02000 | ||
| # | Part Num. | Description |
| 1 | 1609203Y19 | Screw |
| 2 | 1609203Y20 | Conical Spring Washer |
| 4 | 1609203Y22 | Clamping-Flange |
| 5 | 1609203Y76 | Screw |
| 6 | 1609203Y23 | Lever |
| 7 | 1609203Y24 | Pivoting Blade Guard |
| 8 | 1600A000J4 | Extension Spring |
| 9 | 1609203Y26 | Flange Bushing |
| 10 | 1609203Y27 | Tapping Screw |
| 11 | 1609203Y28 | End cap |
| 16 | 1609203Y29 | Motor Housing |
| 17 | 1609203Y30 | Screw |
| 18 | 1609203Y31 | Field 230V |
| 19 | 1609203Y32 | Plain Washer |
| 20 | 1609203Y33 | Spring Washer |
| 21 | 1609203Y34 | Screw 08.12.08 |
| 23 | 1609203Y35 | Extension Spring |
| 24 | 1609203Y36 | Spring Washer |
| 29 | 1609203Y37 | Baffle |
| 34 | 1609203Y38 | Lever |
| 35 | 1609203Y39 | Rod |
| 36 | 1609203Y40 | Plain Washer |
| 37 | 1609203Y41 | Screw |
| 39 | 1609203Y42 | Spring Pin |
| 42 | 1609203Y43 | Screw |
| 43 | 1609203Y44 | Bolt |
| 45 | 1609203Y45 | Locking Ring |
| 46 | 1609203Y46 | Gear |
| 49 | 1609203Y47 | Gear Shaft |
| 50 | 1609203Y48 | Flat Key |
| 53 | 1609203Y49 | Retaining ring |
| 54 | 1609203Y50 | Protective Cover |
| 55 | 1609203X86 | Vacuum Adapter |
| 58 | 1607200234 | Switch |
| 60 | 1609203Y53 | Cable Clip |
| 61 | 1609203Y54 | Grommet |
| 62 | 1609203Y55 | Power supply cord |
| 64 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 65 | 1609203Y77 | Bolt |
| 66 | 1609203Y57 | Angle Support |
| 68 | 1609203Y58 | Plain Washer |
| 69 | 1609203Y59 | Wing Nut |
| 70 | 1609203Y78 | Screw |
| 71 | 1609203Y60 | Hex Nut |
| 73 | 1609203Y61 | Wing Screw |
| 74 | 1609203Y79 | Screw |
| 79 | 1609203Y63 | Screw |
| 82 | 1601118R79 | Nameplate |
| 83 | 1601118R69 | Manufacturer's nameplate PKS 66 A |
| 83 | 1601118R70 | Manufacturer's nameplate PKS 66 AF |
| 815 | 1609203Y64 | Carbon-Brush Set |
| 827 | 1609203Y65 | Armature 230V |
| 830 | 1609203Y66 | Stopping Device |
| 838 | 1609203Y67 | Gear Housing |
| 840 | 1609203Y68 | Stopper |
| 852 | 1609203Y69 | Bearing Flange |
| 856 | 1609203Y70 | Set Of Handles |
| 857 | 1609203Y71 | Suppression Capacitor |
| 876 | 1609203Y73 | Guide Piece |
| 878 | 1609203Y74 | Base Plate |
| 884 | 1609203Y75 | Connecting Cable |
