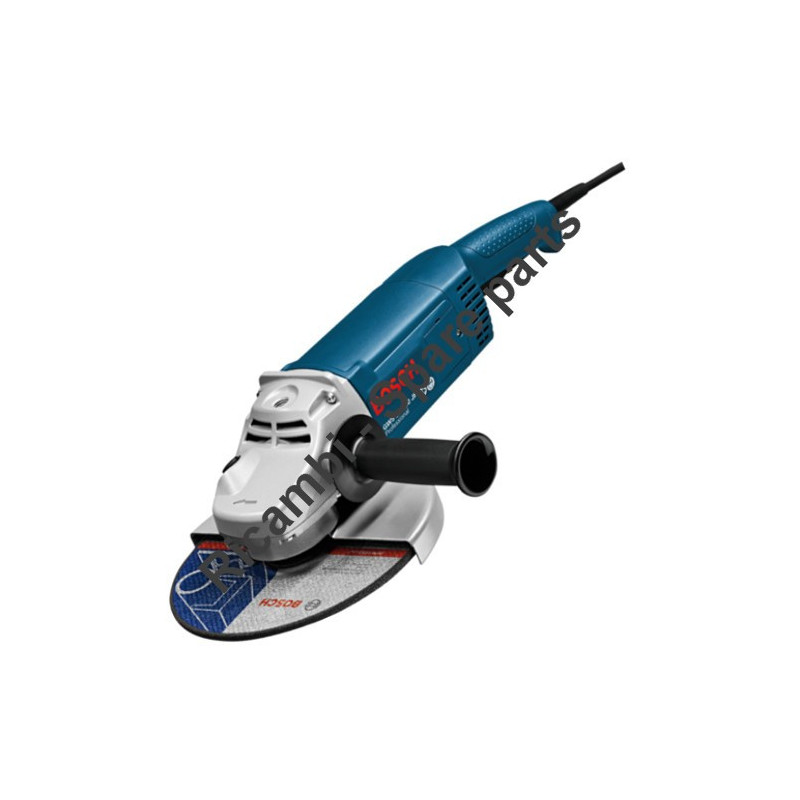

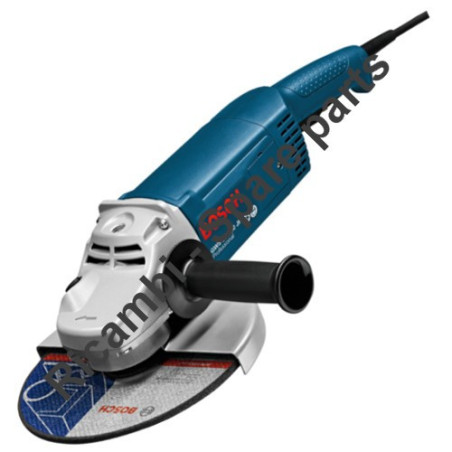

Bosch Spare Parts for Angle Grinder GWS 22-230 JH
€2.09
Tax included
Bosch Spare Parts for Angle Grinder GWS 22-230 JH
Bosch genuine replacement parts for to replace broken parts for to fix Angle Grinder GWS 22-230 JH - 3601H82200.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Angle Grinder GWS 22-230 JH
Bosch genuine replacement parts for to replace broken parts for to fix Angle Grinder GWS 22-230 JH - 3601H82200.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GWS 22-230 JH/3 601 H82 200 | ||
| # | Part Num. | Description |
| 1 | 1605108275 | Motor Housing |
| 2 | 1604220445 | Field 230V |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0x100 MM |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1601118D11 | Manufacturer's nameplate |
| 23 | 1605500206 | Sealing cap BLUE |
| 24 | 1605132149 | Handle BLUE |
| 25 | 1603523113 | Grinding Spindle M14, SW17 |
| 28 | 1600210033 | O-Ring 79,0x1,78 MM |
| 29 | 1600210045 | O-Ring 8,0x1,0 MM |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591028 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal 18,7 MM |
| 34 | 1600190020 | Shim 0,15 MM THICK |
| 34 | 1600190021 | Shim 0,3 MM THICK |
| 34 | 1600190022 | Shim 0,1 MM THICK |
| 34 | 1600190037 | Shim 0,2 MM THICK |
| 34 | 1600190038 | Shim 0,25 MM THICK |
| 34 | 1600190039 | Shim 0,35 MM THICK |
| 34 | 1600190040 | Shim 0,4 MM THICK |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal ring BLACK |
| 38 | 1600206020 | Rubber Ring 7 MM WIDE |
| 39 | 1600206030 | Rubber Ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 54 | 1604503015 | Wirewound Resistor |
| 60 | 1603435023 | Thread-forming tap. Screw TT M5x18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8x38-C-Z-ST |
| 62 | 1603435060 | Tapping Screw 4,8x55 |
| 63 | 1603410014 | Pan head screw M4x10 MM |
| 64 | 1603435042 | Self-Cutting Screw St3,9x12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9x16-F |
| 68 | 1601006011 | Sealing Plate |
| 651 | 1605510407 | Protective Cover Ø230 MM |
| 803 | 1604011296 | Armature 230V |
| 804 | 1607000479 | On-Off Switch |
| 805 | 1607000227 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 808 | 1601106032 | Nameplate 26x52 MM |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607000480 | Carbon-Brush Set 10 x 1 607 014 171 |
| 813 | 1600905011 | Deep-Groove Ball Bearing 8x22x7 |
| 814 | 1600905028 | Deep-Groove Ball Bearing |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000C03 | Gear Housing |
| 822 | 1607000C22 | Bearing Flange Ø230 MM |
| 822/22/48 | 1600119010 | Spring retaining ring |
| 822/22/50 | 1600905026 | Deep-Groove Ball Bearing 17x40x12 |
| 826 | 1619P02776 | Bevel Gear Set |
| 835 | 1606610142 | Fan |
| 840 | 1607000354 | Push-Button |
| 846 | 1607000342 | Retaining Washer |
| 851 | 2600910001 | Needle bearing Ø14 MM |
| 882 | 1619P06597 | Stopper |
| 890 | 1600210039 | O-Ring 20,35x1,78 MM |
| 891 | 1602025022 | Auxiliary Handle M14 BLACK |
| 891/1 | 1602025051 | Auxiliary Handle M14 BLACK |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 893 | 2605703014 | Clamping-Flange Ø22,3xØ42 MM |
| 894 | 1603345043 | Round Nut M14 |
| 896 | 1603340027 | Fast Locking Flange M14, SDS-CLIC |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 22-230 JH - 3601H82200
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
