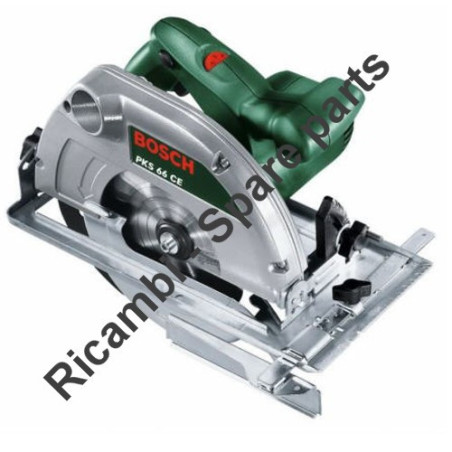

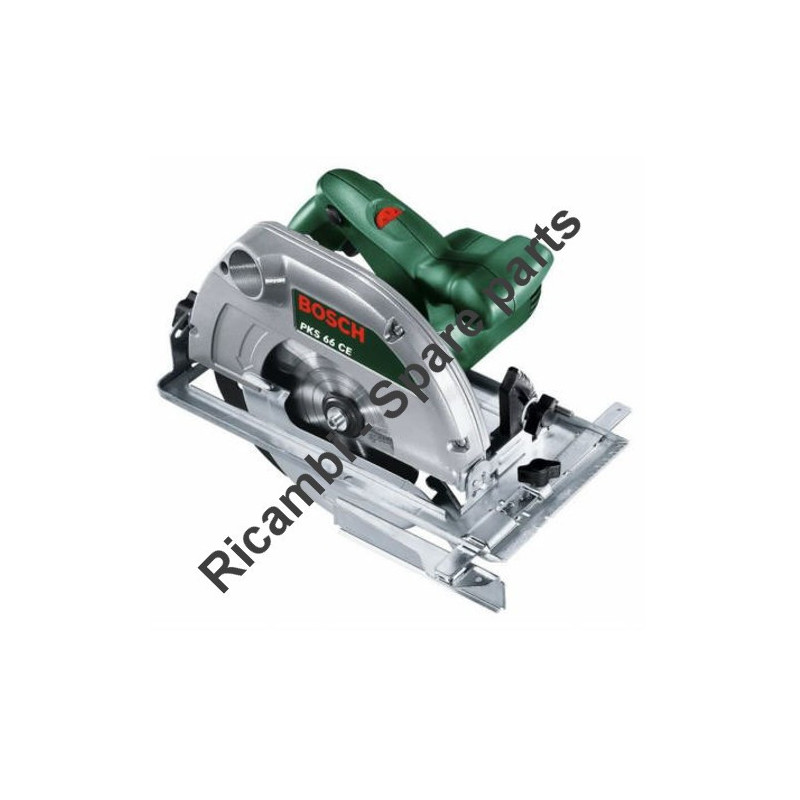

Bosch Spare Parts for Circular Saw PK 66 CE
€7.30
Tax included
Bosch Spare Parts for Circular Saw PK 66 CE
Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66 CE - 0603234703.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Circular Saw PK 66 CE
Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66 CE - 0603234703.In the following table, look for the model of the Circular Saw and the respective parts of the code.
| Circular Saw PKS 66 CE/0 603 234 703 | ||
| # | Part num. | Description |
| 2 | 1604220357 | Field 220-240V |
| 3/50 | 3606610002 | Fan |
| 6 | 1600703024 | Grommet Ø8,8-Ø9,0x70 MM |
| 7 | 2601035001 | Cable Clip |
| 9 | 1601110483 | Manufacturer's nameplate |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 14 | 1610905009 | Deep-Groove Ball Bearing 9x26x8 |
| 16 | 1604336024 | Brush Holder |
| 21 | 1601110638 | Manufacturer's nameplate |
| 22 | 2912401019 | Tapping Screw DIN7981-ST3,9x16-C-Z |
| 24 | 1605510157 | Protective Cover |
| 25 | 1608640086 | Circular Saw Blade |
| 26 | 1605808065 | Bearing Flange |
| 27 | 1600221003 | Intermediate Ring |
| 28 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 29 | 3600591001 | Air-Deflector Ring |
| 31 | 1605500156 | Sealing cap BLACK |
| 32 | 1600502011 | Intermediate Ring |
| 33 | 2917780150 | Slotted Spring Pin 6x22 DIN7346 |
| 34 | 1607233030 | Speed governor 220-240V |
| 35 | 1605500153 | Handle Cover GREEN |
| 36 | 2603435042 | Thread-forming tap. Screw |
| 39 | 1605703107 | Conical Spring Washer |
| 40 | 1605703091 | Clamping-Flange Ø 12x30 MM |
| 41 | 2914491409 | Thread-forming tap. Screw DIN 7500-M 4x12 |
| 43 | 2916650020 | Spring retaining ring DIN 471-40x1,75-FST |
| 44 | 1603414007 | Hex Socket Head Cap Screw M6x14 MM |
| 45 | 1606320081 | Cylindrical Gear Z=41 |
| 47 | 1604649001 | Extension Spring |
| 48 | 1600910019 | Nozzle Socket |
| 50 | 1600309011 | Guide Bushing |
| 51 | 1608000105 | Base Plate 170x382 MM |
| 52 | 1600305001 | Rubber Buffer |
| 53 | 1600309012 | Spacer Bushing |
| 54 | 1600025013 | Riving Knife |
| 55 | 1603339005 | Wing Nut M6 |
| 56 | 1600309013 | Spacer Bushing Ø33xØ6,2xØ14,7 MM |
| 57 | 1603434005 | Pan head screw M6x170 MM |
| 58 | 1601329015 | Adjusting Plate |
| 62 | 1608040112 | Thrust Member |
| 63 | 1603480022 | Wing Screw |
| 64 | 1603434006 | Round-Head Bolt M6x35 MM |
| 66 | 1907950006 | Offset Screwdriver DIN 911-SW5 BLACK |
| 67 | 1604503014 | Suppressor Box |
| 68 | 1600300092 | Intermediate Ring |
| 69 | 1600290016 | Rotary shaft lip seal |
| 70 | 1604477005 | Blade terminal |
| 73 | 1608190009 | Miter Square |
| 74 | 1603435022 | Thread-forming tap. Screw TT M5x30 MM |
| 77 | 2910271120 | Pan head screw DIN 923-M4x10-5.8 |
| 80 | 1600210035 | O-Ring 46,0x1,1 MM |
| 84 | 1601110656 | Reference Plate |
| 650 | 2608005036 | Parallel-Guide |
| 800 | 1607014129 | Carbon-Brush Set |
| 801 | 2604652008 | Spiral Spring |
| 804 | 1607000231 | On-Off Switch |
| 810 | 1607000923 | Parts Set GREEN |
| 810 | 1607000925 | Handle Cover BLUE |
| 830 | 1604010339 | Armature 220-240V |
| 835 | 1607000228 | Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F |
| 837 | 1605510172 | Pivoting Blade Guard |
| 840 | 1605703093 | Clamping-Flange |
| 846 | 1607000225 | Parts Set Ø 12 MM, M6 |
| 859 | 1607000197 | Parts Set |
| 872 | 1607000222 | Parts Set |
| 878 | 1607000205 | Parts Set |
| 888 | 1601106032 | Nameplate 26x52 MM |
| 899 | 1605430003 | Grease Tube 225 ML |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PKS 66 CE - 0603234703
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
New
