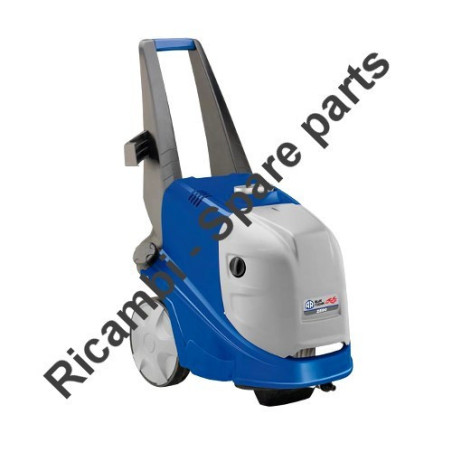

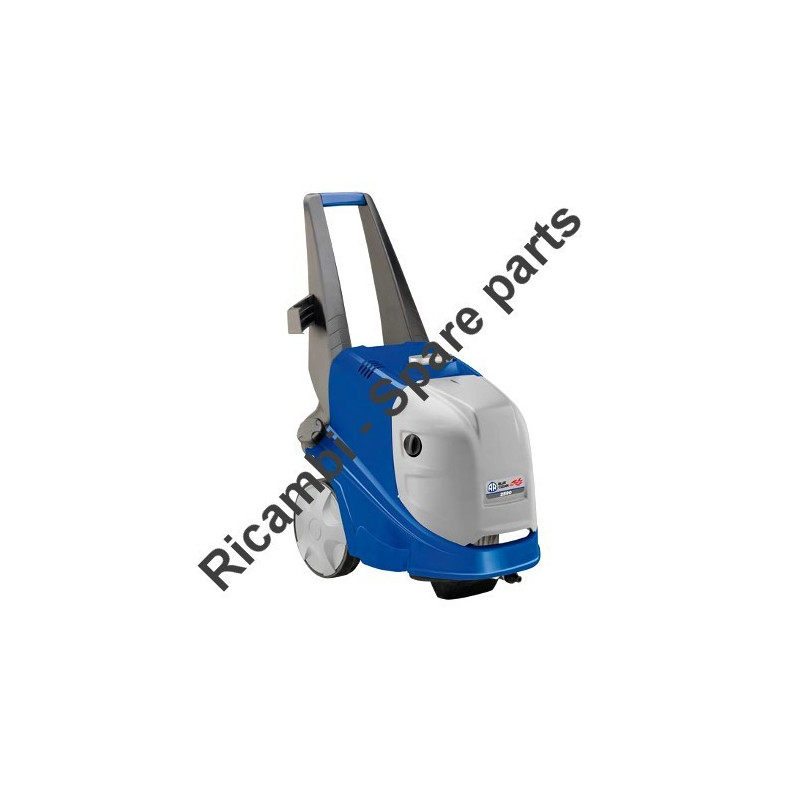

Annovi & Reverberi Parts for Pressure Washer AR2590
€23.24
Tax included
Annovi & Reverberi Parts for Pressure Washer AR2590
Annovi & Reverberi genuine spare parts or replacement parts for to repair Pressure Washer Blue Clean AR2590 - 24424.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi & Reverberi Parts for Pressure Washer AR2590
Annovi & Reverberi genuine spare parts or replacement parts for to repair Pressure Washer Blue Clean AR2590 - 24424.
In the following tables, look for the spare part and its respective code.
| Pressure Washer Blue Clean AR2590 - 24424 | ||
| Pressure Washer AR 2590 Casing Pag.1 |
||
| # | Part Num. | Description |
| 1 | 3520091 | Casing |
| 2 | 3522810 | Foot |
| 3 | 3520260 | Fairlead |
| 4 | 3520230 | Wheel |
| 5 | 3520240 | Washer |
| 6 | 3520254 | Protection |
| 7 | 3520170 | Tank |
| 8 | 3520180 | Stopper |
| 9 | 3520070 | Knob |
| 10 | 3520081 | Blue Casing |
| 11 | 3520060 | Handle |
| 12 | 3520870 | Cable |
| Pump 2590 Pag.2 |
||
| 1 | 1340260 | Filter |
| 2 | 2900450 | Pump Fitting |
| 3 | 2101000 | Screw |
| 4 | 550350 | O-Ring |
| 5 | 2122 | Head + OR |
| 6 | 850850 | Screw |
| 7 | 2109050 | Valve |
| 8 | 2200141 | Water seal |
| 9 | 2020041 | Ring |
| 10 | 1683500 | Oil Seal |
| 11 | 2100030 | Piston Guide |
| 12 | 2561120 | Spring |
| 13 | 2100130 | Piston |
| 14 | 2020140 | Ring |
| 15 | 850840 | O-Ring 62,x2 |
| 16 | 2021570 | Bearing |
| 17 | 2029721 | Pre-Assembly Box TSS |
| 18 | 2021960 | Fork |
| 19 | 1260760 | Screw |
| 20 | 880840 | O-Ring |
| 21 | 394280 | O-Ring |
| 22 | 2560480 | Bushing |
| 23 | 3520050 | Pressure Switch |
| 24 | 1465850 | Junction |
| 25 | 2329283 | Pre-Assembly Fitting |
| 26 | 42711 | Pre-Assembly Pump |
| A | 2574 | Kit Valves |
| B | 2508 | Piston Kit |
| D | 2575 | Kit Held |
| Engine 2590 Pag.3 |
||
| 1 | 2102170 | Disk |
| 2 | 2109270 | Pre-Assembly Body Pump |
| 3 | 2100980 | Screw |
| 4 | 2101390 | Stopper |
| 5 | 1340350 | Oil Seal |
| 6 | 2020850 | Washer |
| 7 | 1680250 | Fan |
| 8 | 1682640 | Condenser |
| 9 | 390201 | O-Ring |
| 10 | 3020050 | Box |
| 11 | 1260490 | Washer |
| 12 | 2020570 | Screw |
| 13 | 44530 | Engine |
| 14 | 1262400 | Washer |
| Boiler 2590 Pag.4 |
||
| 1 | 3520630 | Resistance |
| 2 | 3520620 | Plug |
| 3 | 3520610 | Band |
| 4 | 3520600 | Disk |
| 5 | 3520590 | Disk |
| 6 | 3520330 | Cover |
| 7 | 3520790 | Valve |
| 8 | 3520800 | Fan - Substituited by Kit 3520800 |
| 9 | 3520320 | Box - Substituited by Kit 3520800 |
| 10 | 3520810 | Motor - Substituited by Kit 3520800 |
| 11 | 3520310 | Cover |
| 12 | 3521300 | Boiler |
| 13 | 3520860 | Transformer |
| 14 | 3520770 | Cable |
| 15 | 3520650 | Gasket |
| 16 | 3520660 | Element |
| 17 | 3520670 | Support |
| 18 | 3520680 | Nozzle |
| 19 | 3520690 | Flange |
| 20 | 3520710 | Plate |
| 21 | 3520700 | Electrode |
| 22 | 3520820 | Cover |
| Circuit Cartburante 2590 Pag.5 |
||
| 1 | 3522760 | Pump |
| 2 | 3520730 | Hose |
| 3 | 3520740 | Band |
| 4 | 3520750 | Tube |
| 5 | 3520760 | Filter |
| 6 | 3520750 | Tube |
| Circuit Water 2590 Pag.6 |
||
| 1 | 3521470 | Tube |
| 2 | 3520490 | Fork |
| 3 | 3520420 | Fitting |
| 4 | 3520430 | Piston |
| 5 | 3520440 | Spring |
| 6 | 3520450 | Bushing |
| 7 | 3520460 | O-Ring |
| 8 | 3520510 | Fork |
| 9 | 3520480 | Stopper |
| 10 | 3520500 | O-Ring |
| 11 | 3520540 | Ring |
| 12 | 3520240 | Washer |
| 13 | 3520410 | O-Ring |
| 14 | 3520530 | Fitting |
| 15 | 3520370 | Fitting |
| 16 | 3520360 | Fitting |
| 17 | 3520930 | Thermostat |
| 18 | 3520470 | O-Ring |
| Circuit Electric 2590 Pag.7 |
||
| 1 | 3520270 | Knob |
| 2 | 3520280 | Thickness |
| 3 | 3520300 | Element |
| 4 | 3520290 | O-Ring |
| 5 | 3520340 | O-Ring |
| 6 | 3520350 | Fuse Holder |
| 7 | 3520850 | Switch |
| 8 | 3520840 | Card |
| Accessories 2590 Pag.8 |
||
|
1
|
41047 | Gun |
|
2
|
50690 | Lance |
|
3
|
3729
|
Nozzle |
|
4
|
40320
|
Tank |
|
5
|
High Pressure Hose | |
