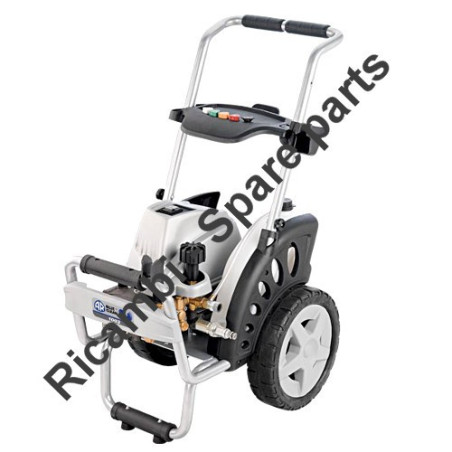

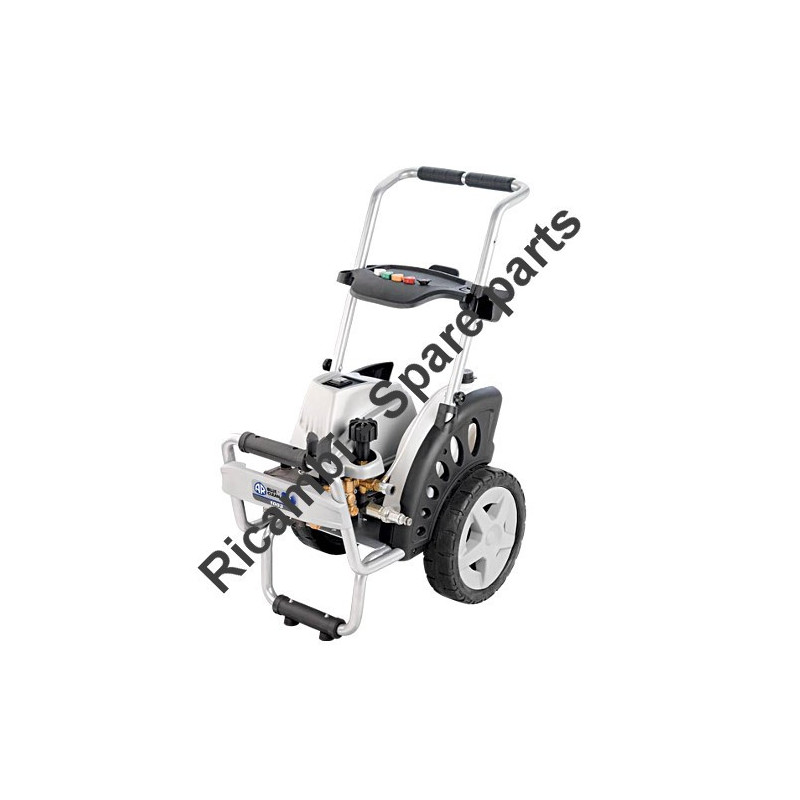

Annovi & Reverberi Parts for Pressure Washer AR1003
Annovi & Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Blue Clean AR1003 - 25231.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi Reverberi Parts for Pressure Washer AR1003
Annovi Reverberi original spare parts to replace worn components or repair damaged parts of the Pressure Washer Blue Clean AR1003 - 25231.
In the following tables, look for the spare part and its respective code.
| Pressure Washer AR Blue Clean AR1003 - 25231 Parts List | ||
| Casing 1003 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 3600140 | Wheel |
| 2 | 3600180 | Washer |
| 3 | 3600010 | Protection |
| 4 | 3600020 | Protection |
| 5 | 2000110 | Screw |
| 6 | 3600040 | Protection |
| 7 | 3600190 | Antivibration |
| 8 | 3600121 | Frame |
| 9 | 380240 | Nut |
| 10 | 3600200 | Protection |
| 11 | 2060200 | Screw |
| 12 | 2100300 | Screw |
| 13 | 3600321 | Protection |
| 14 | 2360760 | Knob |
| 15 | 2360340 | Colonnetta |
| 16 | 3082130 | Kit For Water |
| 17 | 50019 | Knob |
| 18 | 50037 | Screw |
| 19 | 1060120 | Nut |
| 20 | 2021780 | Screw |
| 21 | 3600031 | Protection |
| 22 | 3600291 | Sump |
| 23 | 850250 | Screw |
| 24 | 3600410 | Pipe Cleaner |
| 25 | 42113 | Pre-Assembly Cap |
| 26 | 3600250 | Tank |
| 27 | 2000230 | Filter |
| 28 | 3600070 | Holds Accessories |
| 29 | 2360360 | Screw |
| 30 | 2500330 | Pipe Cleaner |
| 31 | 2060200 | Screw |
| 32 | 3600060 | Holds Accessories |
| 33 | 2100300 | Screw |
| 34 | 3580090 | Knob |
| 35 | 3600130 | Frame |
| 36 | 3580180 | Knob |
| 37 | 3600050 | Holds Accessories |
| Pump 1003 Pag.2 | ||
| 1 | 3200110 | Stopper |
| 2 | 1200690 | O-Ring |
| 3 | 2769050 | Complete Valve |
| 4 | 800410 | Screw |
| 5 | 1381550 | Washer |
| 6 | 3200020 | Head |
| 7 | 180101 | O-Ring |
| 8 | 820361 | Stopper |
| 9 | 740290 | O-Ring |
| 10 | 1980740 | Stopper |
| 11 | 1780140 | Ring |
| 12 | 1780720 | Tenuta Water |
| 13 | 3200130 | Piston Guide |
| 14 | 3200142 | Gasket |
| 15 | 3200260 | Ring |
| 16 | 770590 | O-Ring |
| 17 | 3200120 | Piston Guide |
| 18 | 3200010 | Pump Housing |
| 19 | 1780490 | Bearing |
| 20 | 1260790 | Ring |
| 21 | 1780550 | Ring |
| 22 | 395081 | O-Ring |
| 23 | 3200090 | Disk |
| 24 | 3200080 | Level Indicator |
| 25 | 3200070 | Support |
| 26 | 1200430 | Screw |
| 27 | 880130 | Stopper |
| 28 | 1260110 | Nut |
| 29 | 1260100 | Washer |
| 30 | 1260210 | Piston |
| 31 | 1260091 | Disk |
| 32 | 1260460 | Oil Seal |
| 33 | 480480 | O-Ring |
| 34 | 3200060 | Piston |
| 35 | 3200040 | Piston Rod |
| 36 | 1780050 | Plug |
| 37 | 2760280 | O-Ring |
| 38 | 3200030 | Cover |
| 39 | 820510 | O-Ring |
| 40 | 880581 | Stopper |
| 41 | 3200220 | Screw |
| 42 | 3200300 | Tree |
| 43 | 3200230 | Tongue |
| 44 | 1321190 | Bearing |
| 45 | 1260750 | Ring |
| 46 | 3209200 | Pre-Assembly Head |
| 47 | 23384 | Pre-Assembly Pump |
| 48 | 3200430 | Stopper |
| 49 | 40786 | Manometer |
| A | 2186 | Kit Valves |
| B | 42467 | Piston Kit |
| C | 42468 | Kit Oil Seals |
| E | 42469 | Kit Kept Water |
| F | 42470 | Gasket Kit |
| G | 2745 | Kit Support Rings |
| Valve 1003 Pag.3 | ||
| 1 | 392840 | Screw |
| 2 | 1980300 | Nut |
| 3 | 2500540 | Insert |
| 4 | 2500550 | Cotter Pin |
| 5 | 1980220 | Disk |
| 6 | 1271070 | Spring |
| 7 | 1080041 | Piston |
| 8 | 1080070 | Plug |
| 9 | 1080401 | Ring |
| 10 | 1080250 | O-Ring |
| 11 | 1980210 | Piston Guide |
| 12 | 740290 | O-Ring |
| 13 | 800560 | O-Ring |
| 14 | 880830 | O-Ring |
| 15 | 1271170 | Ring |
| 16 | 1080192 | O-Ring |
| 17 | 1120681 | O-Ring |
| 18 | 1271160 | Piston |
| 19 | 2460420 | Office |
| 20 | 1080250 | O-Ring |
| 21 | 1540272 | Screw |
| 22 | 390080 | O-Ring |
| 23 | 1540660 | Valve Body |
| 24 | 1140450 | O-Ring |
| 25 | 1981190 | Screw |
| 26 | 2260420 | Screw |
| 27 | 1540630 | O-Ring |
| 28 | 1540280 | Collector |
| 29 | 480440 | O-Ring |
| 30 | 1560900 | Junction |
| 31 | 880270 | O-Ring |
| 32 | 1460430 | O-Ring |
| 33 | 1540170 | Shutter |
| 34 | 1080091 | Spring |
| 35 | 394280 | O-Ring |
| 36 | 1540300 | Nut |
| 37 | 1540570 | Junction |
| 38 | 1123960 | Junction |
| 39 | 1560520 | Spring |
| 40 | 1250280 | Sphere |
| 41 | 480480 | O-Ring |
| 42 | 1560490 | Hose |
| 43 | 1981320 | Spring |
| 44 | 660191 | O-Ring |
| 45 | 1540881 | Piston |
| 46 | 880840 | O-Ring |
| 47 | 1540870 | Stopper |
| 48 | 1260820 | O-Ring |
| 49 | 2022201 | Fork |
| 50 | 2029753 | Pre-Assembly Box TSS |
| 51 | 42990 | Kit TSS |
| 52 | 25434 | Complete Valve |
| F | 42451 | Gasket Kit |
| Engine 1003 Pag.4 | ||
| 1 | 1381980 | Headphones |
| 2 | 1682270 | Switch |
| 3 | 51182 | Condenser |
| 4 | 1261560 | Screw |
| 5 | 1080190 | O-Ring |
| 6 | 1760450 | Cable |
| 7 | 1382380 | Gland |
| 8 | 1701070 | Box |
| 9 | 1700590 | Nut |
| 10 | 880270 | O-Ring |
| 11 | 2021480 | Fairlead |
| 12 | 1269100 | Clamp |
| 13 | 1940410 | O-Ring |
| 14 | 1470130 | Screw |
| 15 | 1700080 | Plate |
| 16 | 50068 | Gasket |
| 17 | 44510 | Engine |
| 18 | 1381940 | Frame |
| 19 | 1261551 | Screw |
| Accessories 1003 Pag.5 | ||
| 1 | 40925 | GunItem DELETEDReplaced by the following codes:Gun 40925 + Lance adapter 3082750+ High Pressure Hose 3780492 |
| 2 | 3600650 | Lance |
| 3 | 3600350 | Nozzle (0 °) |
| 4 | 3600360 | Nozzle (15 °) |
| 5 | 3600370 | Nozzle (25 °) |
| 6 | 3600380 | Nozzle (40 °) |
| 7 | 3600400 | Nozzle (Low Pressure) |
| 8 | 1271960 | High Pressure Hose |
| 9 | 2000770 | O-Ring |
| 9 | 2000770 | O-Ring |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi AR1003 - 25231
5 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N AR:
- AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
