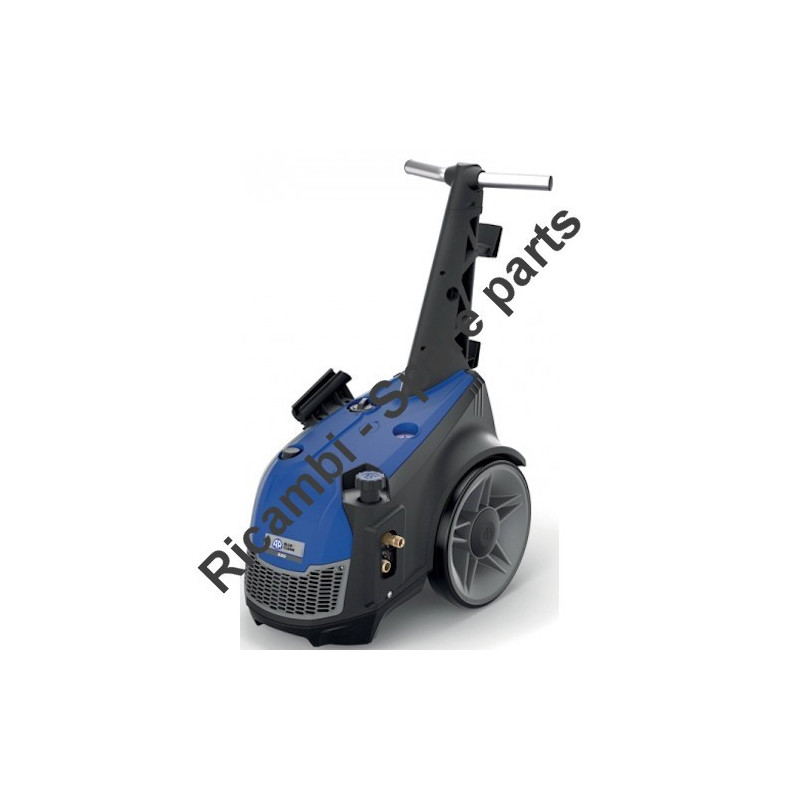

Annovi & Reverberi Parts for Pressure Washer 930 TSS - 14261
€12.62
Tax included
Annovi & Reverberi Parts for Pressure Washer 930 TSS - 14261
Annovi & Reverberi genuine replacement parts for to replace broken parts for to fix Pressure Washer AR Blue Clean 930 TSS - (230 V - 50 Hz) - 14261.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi & Reverberi Parts for Pressure Washer 930 TSS - 14261
Annovi & Reverberi genuine replacement parts for to replace broken parts for to fix Pressure Washer AR Blue Clean 930 TSS - (230 V - 50 Hz) - 14261.
In the following tables, look for the spare part and its respective code.
| AR BC 930 TSS - (230 V - 50 Hz) - 14261 Casing Pag.1 |
||
| # | Part Num. | Description |
| 1 | 3560510 | Knob |
| 2 | 3560530 | Plug |
| 3 | 3560400 | Casing |
| 4 | 3560500 | Plug |
| 5 | 3560470 | Handle |
| 6 | 3560480 | Support |
| 7 | 2100300 | Screw |
| 8 | 3560490 | Support |
| 9 | 3560300 | Handle |
| 10 | 2500130 | Rubber foot |
| 11 | 3569004 | Knob |
| 12 | 390440 | Nut |
| 13 | 3569000 | Knob |
| 14 | 3560650 | Cover |
| 15 | 3560750 | Accessories carrier |
| 16 | 3560520 | Support |
| 17 | 540290 | Screw |
| 18 | 380240 | Nut |
| 19 | 3560730 | Plug |
| 20 | 3560290 | Handle |
| 21 | 1341030 | Filter |
| 22 | 1266650 | Pipe |
| 23 | 3560280 | Casing |
| 24 | 3560410 | Guard |
| 25 | 2440290 | Screw |
| 26 | 3560640 | Casing |
| 27 | 4240590 | Screw |
| 28 | 3560360 | Support |
| 29 | 3560340 | Support |
| 30 | 180030 | Screw |
| 31 | 3560390 | Accessories carrier |
| 32 | 3560600 | Cable gland |
| 33 | 3560380 | Guard |
| 34 | 3560270 | Base |
| 35 | 3560330 | Cover |
| 36 | 380620 | Washer |
| 37 | 3560320 | Wheel |
| 38 | 2360780 | Vibration damper |
| 39 | 3560350 | Axle |
| 40 | 3780650 | Screw |
| 41 | 3560740 | Plug |
| AR BC 930 TSS - (230 V - 50 Hz) - 14261 - Pump Pag.2 | ||
| 1 | 3200110 | Plug |
| 2 | 1200690 | O-ring |
| 3 | 2769050 | Complete valve |
| 4 | 800410 | Screw |
| 5 | 1381550 | Washer |
| 6 | 3200020 | Head |
| 7 | 180101 | O-ring |
| 8 | 820361 | Plug |
| 9 | 740290 | O-ring |
| 10 | 1980740 | Plug |
| 11 | 1780140 | Ring |
| 12 | 1780720 | Water seal |
| 13 | 3200130 | Piston guide |
| 14 | 3200142 | Gasket |
| 15 | 3200260 | Ring |
| 16 | 770590 | O-ring |
| 17 | 3200120 | Piston guide |
| 18 | 3200010 | Pump body |
| 19 | 1780490 | Bearing |
| 20 | 1260790 | Ring |
| 21 | 1780550 | Ring |
| 22 | 395081 | O-ring |
| 23 | 3209615 | Oil level assembly |
| 24 | 43793 | Pressure gauge |
| 25 | 3200070 | Support |
| 26 | 1200430 | Screw |
| 27 | 1980740 | Plug |
| 28 | 1260110 | Nut |
| 29 | 1260100 | Washer |
| 30 | 1260210 | Piston |
| 31 | 1260091 | Plate |
| 32 | 1260460 | Oil seal |
| 33 | 480480 | O-ring |
| 34 | 3200060 | Piston |
| 35 | 3200040 | Connecting-rod |
| 36 | 1780050 | Pin |
| 37 | 2760280 | O-ring |
| 38 | 3200030 | Cover |
| 39 | 820510 | O-ring |
| 40 | 880581 | Plug |
| 41 | 3200220 | Screw |
| 42 | 3200300 | Shaft |
| 43 | 3200230 | Key |
| 44 | 1321190 | Bearing |
| 45 | 1260750 | Ring |
| 46 | 42948 | Head assembly |
| 47 | 23384 | Pump assembly |
| 48 | 3200430 | Plug |
| 49 | 3560800 | Pipe |
| 50 | 740290 | O-ring |
| A | 2186 | Valve kit |
| B | 42467 | Piston kit |
| C | 42468 | Oil seal kit |
| E | 42469 | Water seal kit |
| F | 42470 | Gasket kit |
| G | 2745 | Support ring kit |
| AR BC 930 TSS - (230 V - 50 Hz) - 14261 - Valve Pag.3 | ||
| 1 | 392840 | Screw |
| 2 | 1980300 | Nut |
| 3 | 2500540 | Insert |
| 4 | 2500550 | Split pin |
| 5 | 1980220 | Plate |
| 6 | 1271070 | Spring |
| 7 | 1080041 | Piston |
| 8 | 1080070 | Pin |
| 9 | 1080401 | Ring |
| 10 | 1080250 | O-ring |
| 11 | 1980210 | Piston guide |
| 12 | 740290 | O-ring |
| 13 | 800560 | O-ring |
| 14 | 880830 | O-ring |
| 15 | 1271170 | Ring |
| 16 | 1080192 | O-ring |
| 17 | 1120681 | O-ring |
| 18 | 1271160 | Piston |
| 19 | 2460420 | Seat |
| 20 | 1080250 | O-ring |
| 21 | 1540272 | Screw |
| 22 | 390080 | O-ring |
| 23 | 1540660 | Valve body |
| 24 | 1140450 | O-ring |
| 25 | 1981190 | Screw |
| 26 | 2260420 | Screw |
| 27 | 1540630 | O-ring |
| 28 | 1540280 | Suction fitting |
| 29 | 480440 | O-ring |
| 30 | 3560830 | Fitting |
| 31 | 880270 | O-ring |
| 32 | 1460430 | O-ring |
| 33 | 1540170 | Shutter |
| 34 | 1080091 | Spring |
| 35 | 394280 | O-ring |
| 36 | 1540300 | Nut |
| 37 | 1540290 | Fitting |
| 38 | 3560840 | Fitting |
| 39 | 1560520 | Spring |
| 40 | 1250280 | Ball |
| 41 | 480480 | O-ring |
| 42 | 1560490 | Hose tail |
| 43 | 1981320 | Spring |
| 44 | 660191 | O-ring |
| 45 | 1540881 | Piston |
| 46 | 880840 | O-ring |
| 47 | 1540870 | Plug |
| 48 | 1260820 | O-ring |
| 49 | 2022201 | Fork |
| 50 | 2029801 | TSS box assembly |
| 51 | 42990 | TSS kit |
| 52 | 1549051 | Complete valve |
| F | 42451 | Gasket kit |
| AR BC 930 TSS - (230 V - 50 Hz) - 14261 - Motor Pag.4 | ||
| 1 | 3960740 | Box |
| 2 | 2560720 | Screw |
| 3 | 51182 | Capacitor |
| 4 | 2021480 | Gland |
| 5 | 2900420 | Switch |
| 6 | 2000210 | Screw |
| 7 | 3960650 | O-ring |
| 8 | 1269100 | Clamp |
| 9 | 3780630 | Cable |
| 10 | 3960630 | Gasket |
| 11 | 3960730 | Plate |
| 12 | 3960980 | Screw |
| 13 | 1700100 | Gasket |
| 14 | 45077 | Motor |
| 15 | 3960640 | Cable gland |
| AR BC 930 TSS - (230 V - 50 Hz) - 14261 Standard Accessories Pag.5 |
||
| 1 | 43794 | Gun |
| 2 | 41929 | Lance |
| 3 | 2000570 | O-ring |
| 4 | 3960970 | High pressure hose |
| 5 | 391000 | O-ring |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
