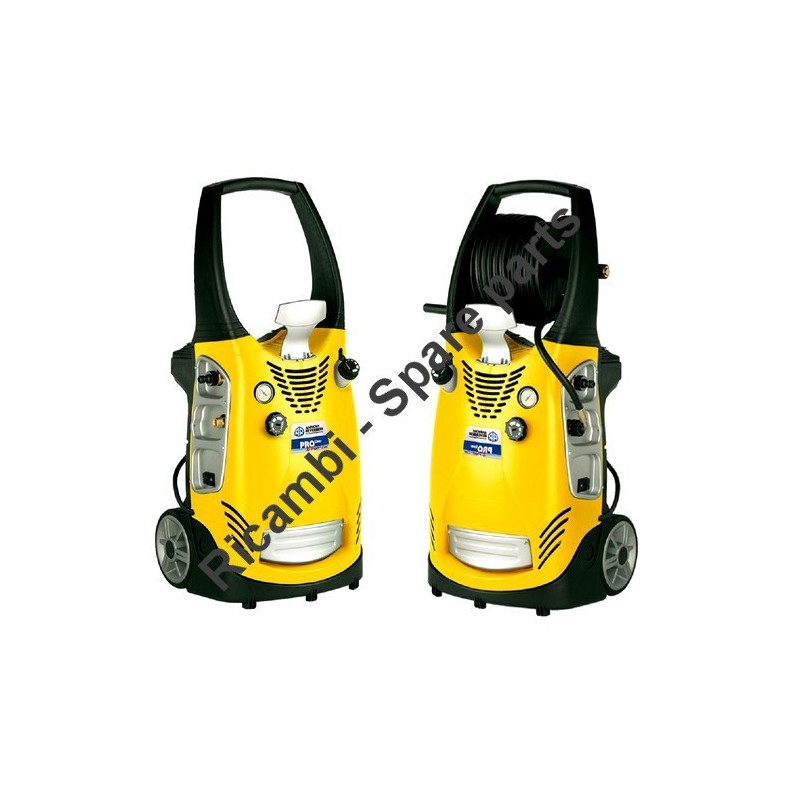

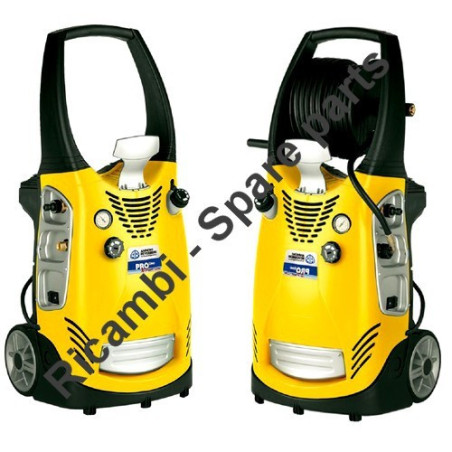

ARSG PROLINER RS 15.15 RLW Spare Parts
€22.01
Tax included
ARSG PROLINER RS 15.15 RLW Spare Parts
Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models RS 15.15 TSS RLW - 22674 .
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
ARSG PROLINER RS 15.15 RLW Spare Parts
Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models RS 15.15 TSS RLW - 22674 .
In the following tables, look for the spare part and its respective code.
| Casing RS 15.15 TSS RLW - 22674 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 2500371 | Yellow Casing |
| 3 | 2500310 | Knob |
| 4 | 2500050 | Hook |
| 5 | 2500380 | Bowl |
| 6 | 1680880 | Washer |
| 7 | 2500320 | Wheel |
| 9 | 2500410 | Plate |
| 10 | 850370 | Screw |
| 11 | 2100300 | Screw |
| 12 | 2600100 | Cable Clamp |
| 13 | 2100300 | Screw |
| 15 | 2500130 | Grommet |
| 16 | 880280 | Screw |
| 17 | 2180300 | Washer |
| 18 | 2500120 | Axle |
| 19 | 2500110 | Tank |
| 20 | 2500010 | Base |
| 21 | 42113 | Pre-Assembly Plug |
| 22 | 1261560 | Screw |
| 23 | 2500440 | Protection |
| 24 | 2000110 | Screw |
| 25 | 3232 | Manometer |
| 26 | 2500330 | Tube Cleaner |
| 27 | 2500330 | Tube Cleaner |
| 28 | 2000230 | Filter |
| 29 | 2509000 | Pre-Assembly Base |
| Pump RS 15.15 TSS RLW - 22674 Pag.2 | ||
| 1 | 1980300 | Nut |
| 2 | 1980470 | Screw |
| 3 | 2760700 | Insert |
| 4 | 1980220 | Disk |
| 5 | 2760410 | Spring |
| 6 | 2760400 | Piston |
| 7 | 2260100 | O-Ring |
| 8 | 660190 | O-Ring |
| 9 | 2760210 | Ring |
| 10 | 2760570 | Guide |
| 11 | 1200690 | O-Ring |
| 12 | 394280 | O-Ring |
| 13 | 2260070 | Shutter |
| 14 | 2760090 | Venue |
| 15 | 770140 | O-Ring |
| 16 | 1982520 | Hose |
| 17 | 480480 | O-Ring |
| 18 | 1250280 | Ball |
| 19 | 1560520 | Spring |
| 20 | 2760230 | Junction |
| 21 | 2760270 | O-Ring |
| 22 | 1470210 | O-Ring |
| 23 | 2760120 | Insert |
| 24 | 2760200 | Spring |
| 25 | 2760130 | Shutter |
| 26 | 1460430 | O-Ring |
| 27 | 801080 | Screw |
| 28 | 1381550 | Washer |
| 29 | 2760500 | Head |
| 33 | 2760260 | Cork |
| 34 | 2760180 | Cork |
| 35 | 2769050 | Complete Valve |
| 36 | 1780140 | Ring |
| 37 | 1260220 | Watertight |
| 39 | 1320351 | Piston Guide |
| 40 | 1260420 | O-Ring |
| 41 | 1260450 | Watertight |
| 42 | 480440 | O-Ring |
| 43 | 2760600 | Spacer |
| 44 | 2460170 | Oil Seal |
| 45 | 2760460 | Pump Housing |
| 46 | 1266740 | Oil Seal |
| 47 | 1260790 | Ring |
| 48 | 1780550 | Ring |
| 49 | 1780490 | Bearing |
| 51 | 2760450 | Piston |
| 52 | 1780050 | Plug |
| 53 | 1780040 | Piston Rod |
| 54 | 2760280 | O-Ring |
| 55 | 802190 | Screw |
| 56 | 2760110 | Cover |
| 57 | 2760550 | Shaft |
| 58 | 1321190 | Bearing |
| 59 | 1321080 | Ring |
| 60 | 1260750 | Ring |
| 61 | 650250 | Tab |
| 62 | 2769208 | Pre-Assembly Head |
| 63 | 1080190 | O-Ring |
| 64 | 1981320 | Spring |
| 65 | 660190 | O-Ring |
| 66 | 1540881 | Piston |
| 67 | 880840 | O-Ring |
| 68 | 1540870 | Cork |
| 69 | 1260820 | O-Ring |
| 70 | 2022201 | Fork |
| 71 | 2029758 | Pre-Assembly Box TSS |
| 72 | 1981190 | Screw |
| 73 | 2760560 | Cork |
| 74 | 1340260 | Filter |
| 75 | 2500490 | Junction |
| 76 | 480440 | O-Ring |
| 77 | 1122260 | Junction |
| 78 | 2500210 | Knob |
| 79 | 740290 | O-Ring |
| 80 | 1980740 | Cork |
| 81 | 40393 | Junction |
| 82 | 2500550 | Cotter Pin |
| 83 | 22229 | Pre-Installing Pump |
| 84 | 42458 | Kit TSS |
| A | 2186 | Valve Kit |
| B | 42154 | Piston Kit |
| C | 42194 | Oil Seals Kit |
| E | 42155 | Kit Held Water |
| G | 2745 | Kit Support Rings |
| F | 2190 | Seal Kit |
| Motor RS 15.15 TSS RLW - 22674 Pag.3 | ||
| 1 | 50068 | Gasket |
| 2 | 1700080 | Plate |
| 3 | 1940410 | O-Ring |
| 4 | 1700740 | Mini-Contactor |
| 5 | 1261570 | Screw |
| 6 | 1460460 | Screw |
| 7 | 2320280 | Switch |
| 8 | 2180650 | Cable |
| 9 | 1261560 | Screw |
| 10 | 1080190 | O-Ring |
| 11 | 1700930 | Cover |
| 12 | 1700590 | Nut |
| 13 | 880270 | O-Ring |
| 14 | 1382380 | Cable Clamp |
| 15 | 1700640 | Cable |
| 16 | 44079 | Engine |
| RLW RS 15.15 TSS RLW - 22674 Pag.4 | ||
| 1 | 40644 | Pre Mounting Hose Reel |
| 2 | 40377 | Hose Pre-Assembly |
| 3 | 2360360 | Screw |
| 4 | 2360150 | Lever |
| 5 | 2100300 | Screw |
| 6 | 2500060 | Stirrup |
| 7 | 2500360 | Pin |
| 8 | 1681280 | Screw |
| 9 | 2360230 | Disk |
| 10 | 380420 | Ring |
| 11 | 2500460 | High Pressure Tube |
| 12 | 2360210 | Pin |
| 13 | 390080 | O-Ring |
| 14 | 2360220 | Junction |
| 15 | 2360320 | Ring |
| 16 | 2500070 | Stirrup |
| 17 | 820510 | O-Ring |
| 18 | 2360310 | Junction |
| 19 | 2360250 | High Pressure Tube |
| 20 | 2500020 | Handle |
| Accessories 15.15 TSS RLW - 22674 Pag.5 | ||
| 1 | 41046 | Gun |
| 2 | 40115 | Lance + Nozle |
