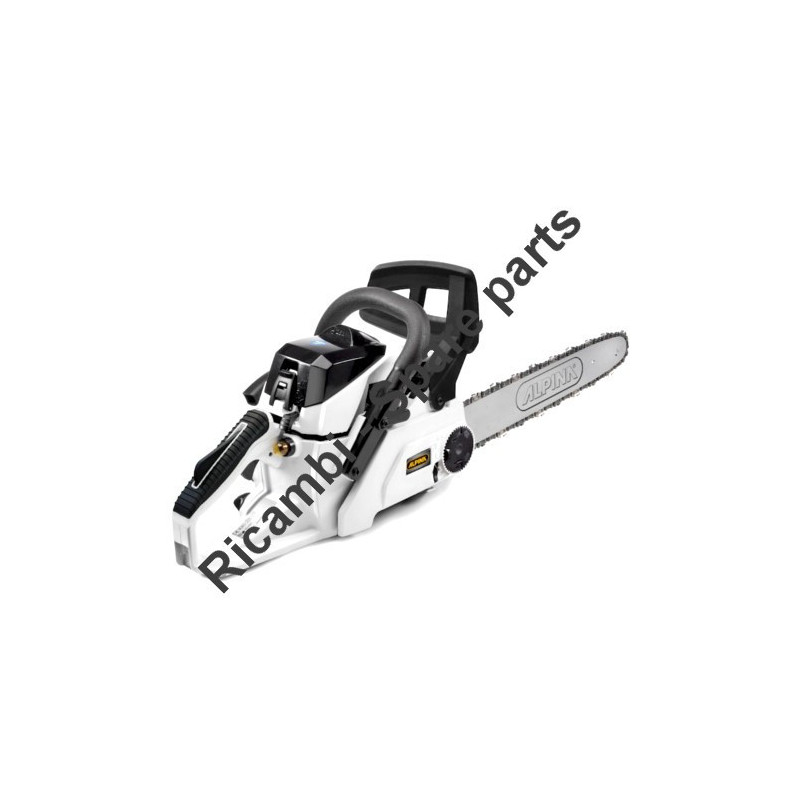

Alpina Spare Parts for Chain Saw C 41
€1.56
Tax included
Alpina Spare Parts for Chain Saw C 41
We supply original ALPINA spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chain Saw C41/204016000-11-2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Chain Saw C 41
We supply original ALPINA spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chain Saw C41/204016000-11-2017.
In the following table, look for the model of the Chain Saw and the respective parts of the code.
| Chain Saw C41/204016000-11-2017 Engine Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118800267/0 | Cylinder Assy |
| 2 | 2432040 | Nut |
| 3 | 112581500/0 | Grower |
| 4 | 2312090 | Flat washer |
| 5 | 123878022/0 | Screw |
| 6 | 118800243/0 | Cover Plate |
| 7 | 118550582/0 | Muffler |
| 8 | 118550583/0 | Muffler Gasket |
| 9 | 118550584/0 | Screw |
| 10 | 2135030 | Screw |
| 12 | 118550585/0 | Intake Manifold Gasket |
| 13 | 118550586/0 | Intake Manifold |
| 14 | 118550587/0 | Carburettor Gasket |
| 15 | 118550588/0 | Cylinder Base Gasket |
| 16 | 118800182/0 | Piston Ring |
| 17 | 118800244/0 | Piston Pin |
| 18 | 118550590/0 | Washer, Piston Pin |
| 19 | 118805102/0 | Piston Assembly |
| 20 | 118800246/0 | Bearing |
| 21 | 118550591/0 | Needle Bearing |
| 22 | 118800247/0 | Crankshaft |
| 23 | 123072005/0 | Flywheel Key |
| 24 | 118800248/0 | Crank Case |
| 25 | 3112030 | Ball Bearing |
| 26 | 118800249/0 | Crankcase Gasket |
| 27 | 118800250/0 | Crank Case |
| 29 | 118550592/0 | Seal Ring |
| 30 | 2135050 | Screw |
| 31 | 118550593/0 | Screw |
| 34 | 118550596/0 | Spike |
| 35 | 2135180 | Screw |
| 36 | 118550597/0 | Chain Guard |
| 37 | 118800251/0 | Screw |
| 38 | 118550598/0 | Bar Plate |
| 39 | 123878020/0 | Screw |
| 40 | 118550599/0 | Seal Ring |
| 41 | 118803925/0 | Electronic Ignition Coil + Digital Flywheel |
| 42 | 123878021/0 | Screw |
| 43 | 2321050 | Washer |
| 44 | 118550601/0 | Earth Cable |
| 45 | 123120004/0 | Nut |
| 46 | 118550602/0 | Flywheel ASS'Y- FOR ANALOG IGNITION COIL |
| 51 | 118550603/0 | Clutch Ass.Y |
| 55 | 118800252/0 | Sprocket Washer |
| 56 | 118801063/0 | Clutch Drum Assy |
| 57 | 118550605/0 | Needle Bearing |
| 58 | 118801064/0 | Worm |
| 59 | 118800253/0 | Oil Pump Cap |
| 60 | 118550607/0 | Oil Pump Assy |
| 61 | 118800254/0 | Tube |
| 62 | 118550608/0 | Worm Screw Washer |
| 63 | 118800255/0 | Pickup Oil |
| 65 | 118800256/0 | Connection |
| 66 | 118550609/0 | Oil Filter Ass.Y |
| 67 | 118802952/0 | Oil Nozzle |
| 70 | 8724091 | Diaphragm Gasket Set |
| 71 | 118800210/0 | Carburetor |
| 72 | 118800211/0 | Intake Manifold |
| 73 | 118800212/0 | Screw |
| 74 | 118800203/0 | Primer |
| 75 | 118800204/0 | Pipe |
| 76 | 3657050 | Spark Plug Spring |
| 77 | 3748880 | Spark plug cap |
| 99 | 1421605-01A | Bar 16” (40 cm) 3/8” .050” (1.3 mm) UA Alpina |
| Chain Saw C 41/204016000-11-2017 Housing Pag.2 |
||
| 1 | 118800764/0 | Clutch Ho. W/Br. Assy White |
| 2 | 123878017/0 | Screw |
| 3 | 123044213/0 | Bushing |
| 4 | 123044214/0 | Bushing |
| 5 | 118800765/0 | Hand Guard |
| 6 | 118800748/0 | Balance Weigth |
| 7 | 123430572/0 | Spring |
| 8 | 118800747/0 | Spring |
| 9 | 123657007/0 | Washer |
| 10 | 112154320/0 | Nut |
| 11 | 323670001/0 | Plate |
| 12 | 118800745/0 | Front Guard Spring |
| 13 | 118800257/0 | Bar Plate |
| 14 | 123753001/0 | Pin |
| 15 | 383315051/0 | Chain Brake Lever |
| 17 | 123753000/0 | Needle |
| 18 | 323315067/0 | Lever |
| 19 | 118800746/0 | Brake Spring |
| 20 | 118800185/0 | Brake Band |
| 21 | 123878023/0 | Screw |
| 22 | 323109525/0 | Brake Spring Cover |
| 24 | 118800186/0 | Nut |
| 25 | 118800767/0 | Filter Cover |
| 26 | 118800756/0 | Knob |
| 27 | 118800188/0 | Air Filter |
| 28 | 118800766/0 | Filter Cover White |
| 30 | 118800740/0 | Pin |
| 31 | 118800768/0 | Knob |
| 32 | 118800749/0 | Cap |
| 34 | 118800189/0 | Screw |
| 35 | 118800742/0 | Grommet |
| 36 | 118800264/0 | Grommet Air-Lever |
| 37 | 118800755/0 | Choke Knob |
| 38 | 118800758/0 | Air Conveyor |
| 39 | 118800757/0 | Starter Assy White |
| 42 | 118800754/0 | Starter Cup |
| 43 | 118800753/0 | Starter Spring |
| 44 | 118801178/0 | Wire |
| 45 | 118800760/1 | Starter Pulley Assy |
| 47 | 118800741/0 | Starter Spring |
| 48 | 118800759/0 | Starter Handle |
| 50 | 123878024/0 | Screw |
| 51 | 123878025/0 | Screw |
| 52 | 118800743/0 | Dust Cover |
| 53 | 118800266/0 | Shock Absorber |
| 54 | 123878022/0 | Screw |
| 55 | 118800194/0 | Shock Absorber |
| 56 | 118800195/0 | Cap |
| 57 | 118800196/0 | Spring |
| 58 | 118800197/0 | Handle |
| 59 | 323208402/0 | Plate |
| 60 | 118800198/0 | Breather Valve Ass.Y |
| 64 | 118800744/0 | Grommet |
| 65 | 112728124/0 | Screw |
| 66 | 118800255/0 | Pickup Oil |
| 67 | 118800214/0 | Fuel Filter |
| 68 | 118801067/0 | Screw |
| 69 | 118801065/0 | Chain Tightener Block |
| 70 | 118801066/0 | Tension Gear |
| 72 | 118800199/0 | Fuel Filter |
| 73 | 118800751/0 | Crankase White |
| 74 | 118800201/0 | Spring |
| 75 | 118800761/0 | Fuel Cap Assy |
| 79 | 118800762/0 | Oil Tank Cap |
| 82 | 123510098/0 | Elastic Pin |
| 83 | 118800205/0 | Safety Lever |
| 84 | 118800206/0 | Spring |
| 85 | 118800207/0 | Throttle Lever |
| 86 | 118800750/0 | Spring |
| 87 | 118800763/0 | Handle Cover |
| 89 | 118800213/0 | Stop Wire |
| 90 | 118800202/0 | Switch |
| 96 | 118800752/0 | Crankcase |
| 98 | 118801746/0 | CHAIN 16inch |
| 99 | 123900369/0 | BAR 16" - new code 123900100/0 |
