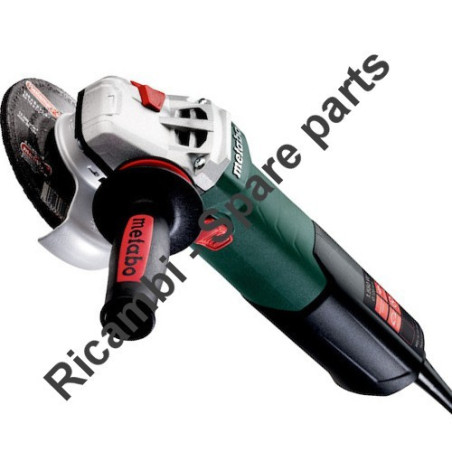

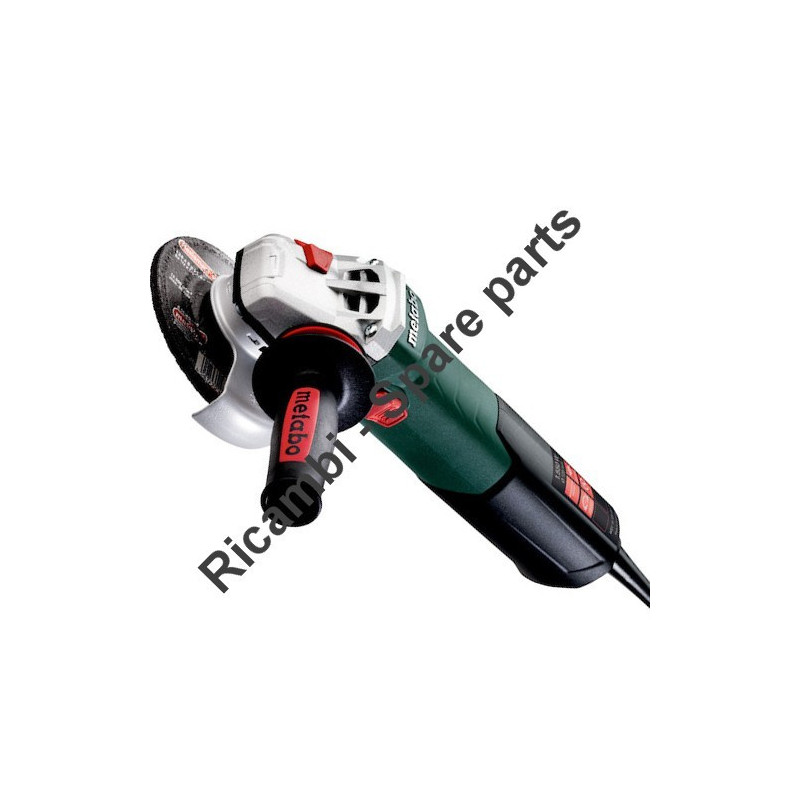

Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000
€79.19
Tax included
Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000
We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WEV 15-150 Quick EU 1500w 125mm 00472000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000
We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WEV 15-150 Quick EU 1500w 125mm 00472000.In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| METABO 00472000 WEV 15-150 QUICK EU 1500w 125mm Angle Grinder 230V |
||
| # | Part Num. | Description |
| 1 | 31001099 | Armature compl., 230V |
| 2 | 31101218 | Field coil w.field coil,230 V |
| 3 | 34341012 | Switch 2-pole |
| 4 | 34410097 | CABLE SLEEVE HS 8345 |
| 5 | 34449957 | Cable w.CEE plug |
| 6 | 34336249 | CABLE CLAMP PBE 701/2 |
| 7 | 31501352 | Motor housing 2 part |
| 8 | 33915118 | Baffle |
| 9 | 33915120 | Baffle |
| 10 | 34308289 | Electronic unit,230V 50/60Hz |
| 11 | 14311517 | Ball bearing,6x19x6 |
| 12 | 34409787 | Rubber bushing |
| 13 | 33913306 | Washer,8,05x17x0,4 |
| 14 | 14311518 | Ball bearing,8x22x7 |
| 15 | 33900639 | WASHER W 7-115 |
| 16 | 34110094 | HEX NUT EW 6114 S |
| 17 | 34343307 | Switch rod |
| 18 | 34343303 | Cap |
| 19 | 34343310 | End cap |
| 20 | 34343710 | Switch slide |
| 21 | 34103116 | Clamping flange |
| 23 | 33920451 | Wheel guard,D150 |
| 24 | 31400097 | HANDLE ANTI-V SML |
| 26 | 34202249 | Spring clip |
| 28 | 14112143 | Fill. head screw(DIN 7985) |
| 30 | 33901197 | Gasket |
| 31 | 14112164 | SCREW W 2530 |
| 32 | 14111698 | Self-tap. fill. h. screw |
| 33 | 14111706 | F/H S/T SCREW 4.2x22 |
| 34 | 33806028 | Rating plate |
| 36 | 39999999 | Part not needed |
| 40 | 34160442 | Spindle M14 |
| 41 | 31605535 | QUICK NUT -SMALL (NEW) |
| 42 | 14115112 | WASHER 10.2x14.8x0.2 |
| 43 | 14115230 | Washer 10,2 X 14,8x 0,1 |
| 44 | 14115392 | WASHER 10.2x14.8x0.5 |
| 50 | 34343328 | Flange compl. |
| 51 | 34110246 | Nut |
| 52 | 31605498 | Bevel gear w.pinion |
| 53 | 31605508 | Friction washer set compl. |
| 54 | 31605510 | Gear housing compl. |
| 55 | 31605426 | Safety clutch w.pinion |
| 56 | 31606542 | Brush holder compl. (newer model) |
| 56 | 31605705 | Brush holder compl. (older model) |
| 57 | 31605485 | Fan w. dust guard |
| 58 | 31606717 | Carbon brush set cut-off |
| 59 | 31606604 | Clamping lever compl. |
| 61 | 14115665 | Retaining ring |
| 62 | 14319365 | O RING |
| 63 | 34200339 | Pressure spring |
| 64 | 34343313 | Push button |
| 65 | 34151564 | Bolt |
| 70 | 34343306 | Tacho disc |
| 71 | 34343309 | Pivoting switch |
| 72 | 33900780 | Washer |
| 75 | 14319249 | O-RING 6345/2 el |
| 92 | 14319564 | O-RING |
| 880 | 34413092 | Grease 100G |
| 885 | 34413056 | GREASE SF 011 |
| 1001 | 33850578 | Diagram |
| 1005 | 31606732 | CABLE WITH SLEEVE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo WEV 15-150 Quick 00472000
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
