- Online only

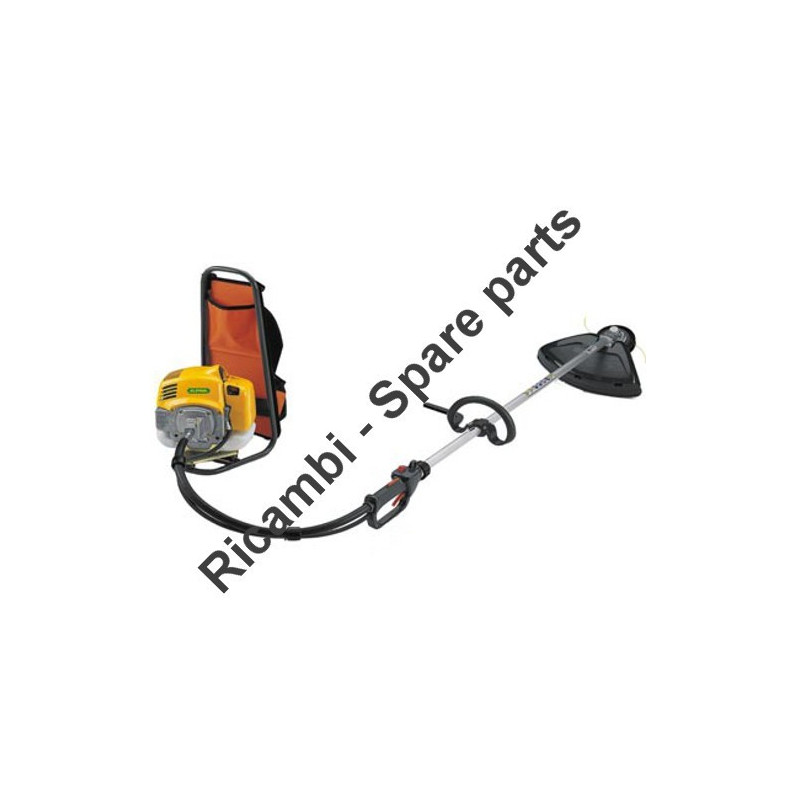

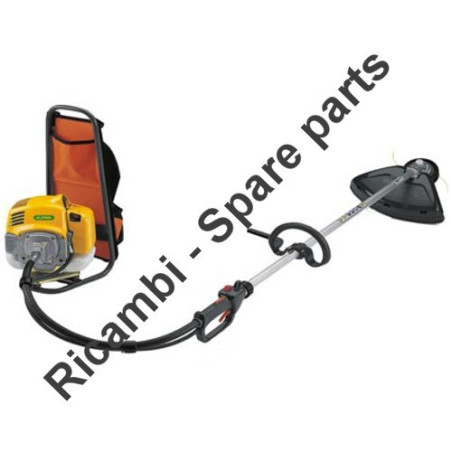

Alpina Spare Parts for Brushcutter STAR 55 F PROFI (2005) 185522000
€1.41
Tax included
Alpina Spare Parts for Brushcutter STAR 55 F PROFI (2005) 185522000
We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 55 F PROFI (2005) 185522000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Brushcutter STAR 55 F PROFI (2005) 185522000
We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 55 F PROFI (2005) 185522000.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| ALPINA STAR 55 F PROFI (2005) 185522000 pag.1 | ||
| # | Part Num. | Description |
| 1 | 2135040 | Screw |
| 2 | 4540940 | Transmission Support |
| 3 | 2461030 | Square Nut |
| 4 | 2132500 | Screw |
| 5 | 2312120 | Washer |
| 5 | 3211420 | Faston (Flex) |
| 6 | 2350040 | Washer |
| 7 | 2653213 | Screw |
| 8 | 3654220 | Clutch Spring |
| 9 | 3L3660500/1 | Clutch Shoe (1Pc) |
| 10 | 3615020 | External Guide Plate |
| 10 | 3615030 | Internal Guide-Plate |
| 11 | 2135060 | Screw |
| 12 | 2321150 | Washer |
| 13 | 3211670/1 | Electronic Coil |
| 14 | 3211080 | Coil Cable |
| 15 | 3782470 | Cables protection |
| 16 | 3657450 | Coil Wire Support Band |
| 17 | 3211415 | Earth Cable |
| 18 | 3L8252510/1 | Flywheel assembly |
| 19 | 2412100 | Nut |
| 20 | 2135130 | Screw |
| 23 | 3121120 | Seal ring |
| 24 | 3745130 | Cable grommet |
| 25 | 8540930 | Engine crankcase |
| 26 | 3151050 | Flywheel Key |
| 27 | 3114190 | Needle Bearing |
| 28 | 8251440 | Crankshaft |
| 29 | 3112040 | Ball bearing |
| 30 | 3724120 | Engine Crankcase Gasket |
| 31 | 2432040 | Nut |
| 32 | 2123100 | Screw |
| 33 | 3654050 | Spring |
| 34 | 3749570 | Starter Pawl |
| 35 | 8540950 | Starter Cup assy |
| 37 | 2135030 | Screw |
| 38 | 4563880 | cylinder cover Yellow |
| 39 | 4122170 | Muffler |
| 40 | 3724380 | Muffler gasket |
| 41 | 3744850 | Spark Plug Cap |
| 42 | 3657530 | Spark Plug wire terminal |
| 43 | 3210024 | Spark Plug |
| 44 | 2135060 | Screw |
| 45 | 3724130 | Cylinder gasket |
| 46 | 3123110 | Piston Ring Ø 45 |
| 47 | 3158080 | Piston pin |
| 48 | 3356020 | Circlip |
| 49 | 8540960 | Piston assembly Ø 45 |
| 50 | 3L8540970/1 | Cylinder + Piston Ø 45 assembly (Incl.49) |
| 51 | 2135040 | Screw |
| 52 | 4253290 | Fuel Filter |
| 53 | 8745542 | Grommet |
| 54 | 8741370 | Tank Cao Assy |
| 55 | 4252620 | Tank assembly |
| 57 | 2135030 | Screw |
| 58 | 2321150 | Washer |
| 59 | 2461030 | Nut |
| 60 | 4121957 | Engine Support Flange |
| 61 | 2382230 | Spacer |
| 62 | 2330060 | Washer |
| 63 | 2412180 | Nut |
| 64 | 8724380 | Gaskets Set |
| 67 | 2135180 | Screw |
| 68 | 3750537 | Cover Spacer |
| 69 | 2135040 | Screw |
| ALPINA STAR 55 F PROFI (2005) 185522000 pag.2 | ||
| 1 | 3724390/1 | Cylinder Manifold Gasket |
| 2 | 3750500 | Intake manifold |
| 3 | 2670290 | Nut |
| 4 | 2135130 | Screw |
| 5 | 3724400 | Carburetor Manifold Gasket |
| 6 | 3785070 | Thermal Spacer |
| 7 | 4353290 | Carburetor |
| 8 | 3L8750510/1 | Air Filter Support Gray |
| 9 | 2312090 | Washer |
| 10 | 2135250 | Screw |
| 11 | 3781640 | Air filter |
| 12 | 4563900 | Air Filter Cover Yellow |
| 13 | 2123100 | Screw |
| 14 | 3613420 | Washer |
| 15 | 4562440 | Starter Pulley |
| 16 | 3724200 | Starter Spring Disc |
| 17 | 4611480 | Starter Spring |
| 18 | 8563890 | Starter Carter |
| 19 | 2135040 | Screw |
| 20 | 3784010 | Starter rope |
| 21 | 3750067 | Starter handle |
| 23 | 4252700 | Starter assembly |
| 24 | 3744870 | Primer |
| 25 | 4353150 | Carburettor Diaphragm-Seal Kit |
| 26 | 4353160 | Repair Kit |
| 27 | 4353300 | Floating Valve Assembly mm 10.5 |
| ALPINA STAR 55 F PROFI (2005) 185522000 pag.3 | ||
| 1 | 4252360 | Backpack set |
| 2 | 8122080 | Backpack Frame Assembly |
| 3 | 4612280 | Engine Support Plate |
| 4 | 3112170 | Ball bearing |
| 5 | 4612020 | Bearing Flange |
| 6 | 2112260 | Screw |
| 7 | 2312090 | Washer |
| 8 | 2432040 | Nut |
| 9 | 3654360 | Spring |
| 10 | 2132110 | Screw |
| 11 | 2312130 | Washer |
| 12 | 2432030 | Nut |
| 13 | 4252430 | Elastic Cord |
| ALPINA STAR 55 F PROFI (2005) 185522000 pag.4 | ||
| 1 | 3L8562620/1 | Rear Handle Assembly |
| 2 | 2123030 | Screw |
| 3 | 2123100 | Screw |
| 4 | 3743475 | Safety Lever |
| 5 | 3654300 | Spring |
| 7 | 3743465 | Throttle lever |
| 8 | 1L3654270/1 | Spring |
| 9 | 3612710 | Stop Sheet |
| 10 | 2123070 | Screw |
| 11 | 3749270 | Knob |
| 12 | 3750290 | Reduction |
| 13 | 123066009/0 | Throttle Cable |
| 14 | 3782680 | Cables busching |
| 15 | 8211390 | Stop wires |
| 16 | 8563600 | Front Handle Assembly |
| 17 | 2135050 | Screw |
| 18 | 2312090 | Washer |
| 19 | 2412030 | Nut |
| 23 | 3614980 | plate |
| 24 | 2135160 | Screw |
| 25 | 4252390 | Transmission Tube Assembly |
| 26 | 8630150 | Transmission Shaft Assembly |
| 27 | 3L4121861/1 | Clutch drum assembly |
| 28 | 8540910 | Assembly Transmission support |
| 29 | 3112170 | Ball bearing |
| 30 | 3353080 | Seeger ring |
| 31 | 3642420 | Pin |
| 32 | 3654170 | Spring |
| 33 | 3351050 | Locking Pin |
| 34 | 3642430 | Hub |
| 35 | 3L4122110/1 | Flexible shaft |
| 36 | 1L4253990/1 | Flexible Shaft J |
| 37 | 3749310 | Cable clamp |
| 38 | 3750270 | Handle joint Ring |
| 39 | 3643220 | Threaded sleeve X Flex Ø28 |
| 40 | 3721540 | Ring Or |
| 41 | 3314040 | Centering Plug |
| 42 | 3L8563570/1 | Safety guard assembly |
| 43 | 2135030 | Screw |
| 44 | 3615000 | Thread cutter sheet |
| 45 | 2312150 | Washer |
| 46 | 2432040 | Nut |
| 47 | 2312150 | Washer |
| 48 | 2135060 | Screw |
| 53 | 3642290 | Flex Coupling coupling Ø28 |
| ALPINA STAR 55 F PROFI (2005) 185522000 pag.5 | ||
| 1 | 3L4252790/1 | Head Assembly Ø28 Mm - SUBSTITUITED BY TECH636124+636131 |
| 7 | 2135050 | Screw |
| 8 | 2653090 | Screw |
| 9 | 2653460 | Screw |
| 15 | 3121170 | Sealing ring |
| 16 | 1L3641700/1 | Use 3641700/1 |
| 17 | 3641640 | Upper ring |
| 18 | 3612640 | Lower ring |
| 19 | 4560610 | Fixed Cup |
| 22 | 4611880 | Disc 4 Tips |
| 31 | 4353240/1 | 2 Wire Head |
| 41 | 4353000 | 2 Wire Head |
| 45 | 3614950 | plate |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
