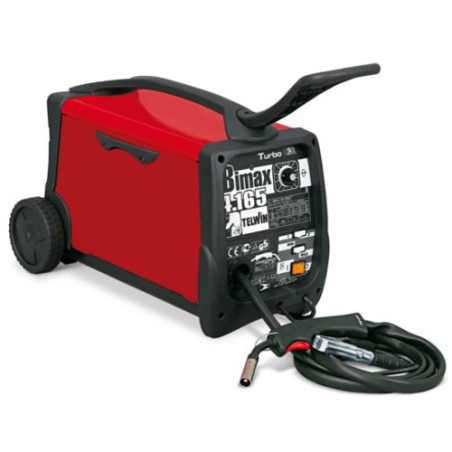

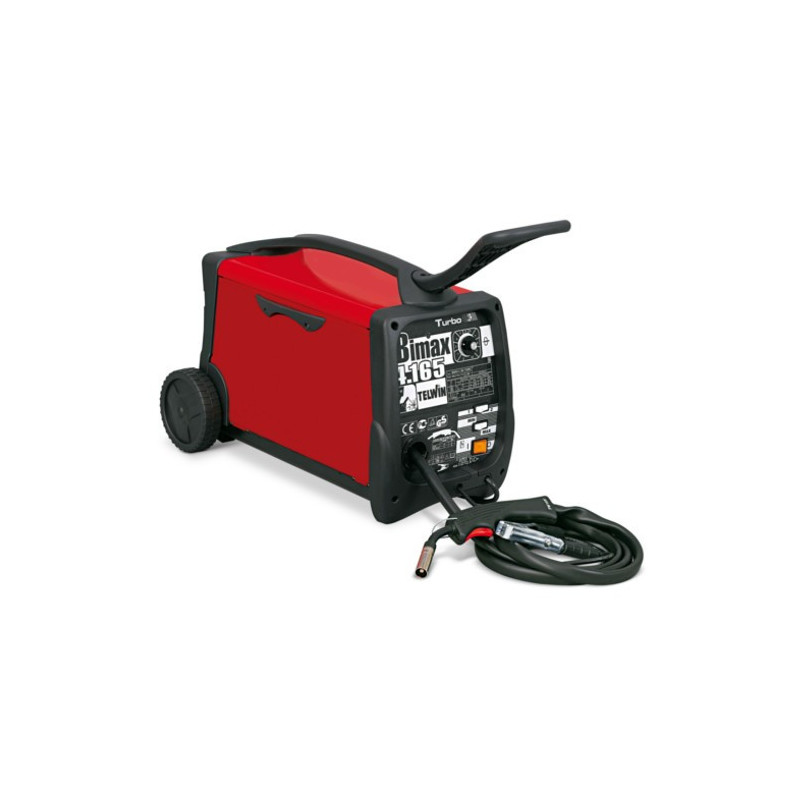

Welding Machine Telwin BIMAX 4.165 TURBO

Welding Machine Telwin BIMAX 4.165 TURBO

BIMAX 4.165 TURBO 230V code 821015
FLUX (no gas) and MIG-MAG (gas) welding machine. With thermostatic protection. Complete with FLUX welding accessories.
Telwin welding machine, model Bimax 4,165 Turbo, for the Mig - Mag and Flux, with capacity of welding of any kind with minimum section 0.6 mm and up to 1.2 mm.
Welder input current of 230 V, the minimum and maximum amperage of 30 and 145 A, voltage 31 V.Facile to carry thanks to pesso reduced 23 kg, and for the small size: 730 x 370 x 475 mm.
Bundled with torch for welding TW 160 with two meters of cable (cod. 742402)
A spool of cored wire from 0.2 kg with section 0.9 mm cable with clamp, hammer excoriation dual use with wire brush and simple mask for welders.
With the ability to expand the machine with the appropriate kit for gas, you can make appunte welding with filler gas, CO2, Argon or Argon-Co2 mix.

- Technical data
- Mains voltage (V50-60Hz) 230-1ph
- Field current adjustment (A) 30-145
- Maximum Current (A) 115 to 15%
- Circuit Voltage max (V) 31
- Power consumption (kW) from 1.4 to 3.7
- Fuse (A) 16
- Diameter steel welding wire (mm) 0.6-0.8
- Diameter steel welding wire (mm) 0.8
- Aluminum welding wire diameter (mm) 1.8 to 1
- Diameter wire welding animated (mm) 0.8-1.2
- Adjusting positions (No.) 4
- Product Dimension (mm) 730x370x475
- Weight (kg) 23
