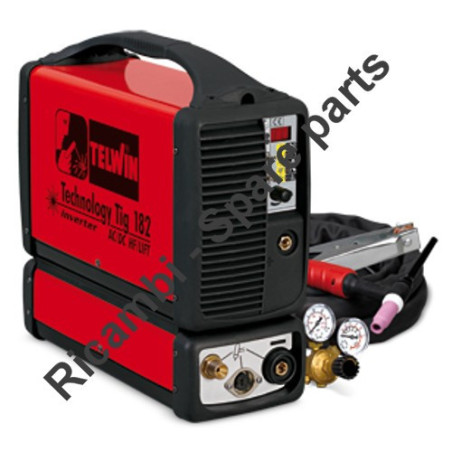

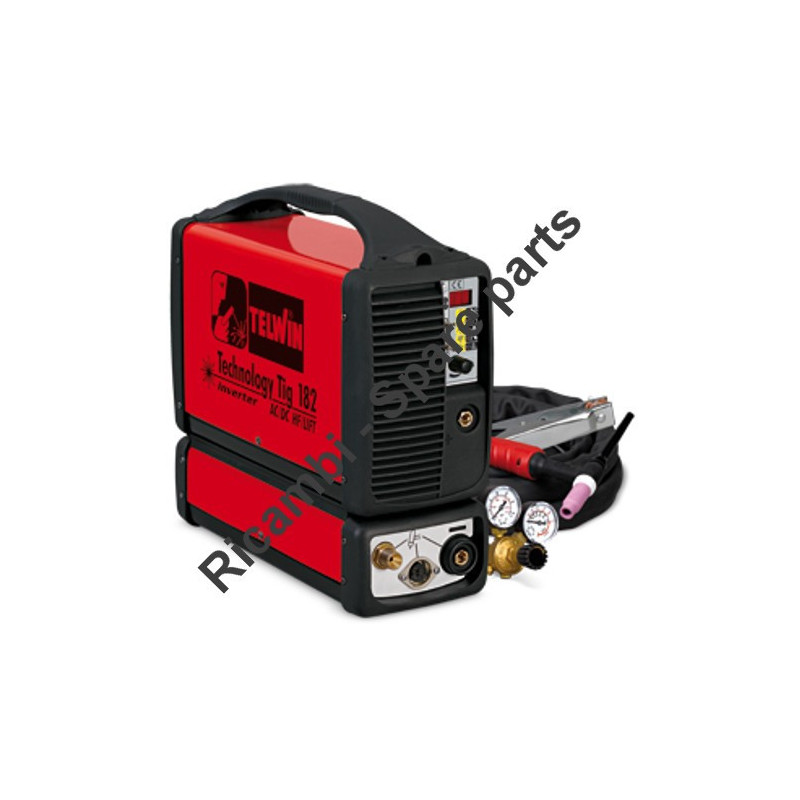

Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 182 AC/DC-HF
€12.94
Tax included
Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 182 AC/DC-HF
We have the original Spares TELWIN inverter TECHNOLOGY TIG 182 AC/DC-HF - 852030 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 182 AC/DC-HF
We have the original Spares TELWIN inverter TECHNOLOGY TIG 182 AC/DC-HF - 852030 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your TECHNOLOGY TIG 182 AC/DC-HF. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of the drill and the respective parts of the code.
| TECHNOLOGY TIG 182 AC/DC-HF/LIFT 230V-852030 Pag.1 | ||
| # | Description | Part NUm. |
| 1 | RESISTANCE | 112048 |
| 2 | SINGLE-PHASE RECTIFIER | 112357 |
| 3 | MOSFET | 112633 |
| 4 | CAPACITOR | 113122 |
| 5 | RELAIS | 113493 |
| 6 | IGBT | 113603 |
| 7 | DIODE | 116146 |
| 9 | RELAIS | 116320 |
| 10 | DIODE | 116442 |
| 14 | DIODE | 116643 |
| 15 | IGBT | 116644 |
| 16 | VOLTAGE SUPPRESSOR | 116733 |
| 17 | SOCKET CABLE | 120514 |
| 18 | SWITCH | 122381 |
| 21 | THERMOSTAT | 121300 |
| 22 | ELECTROVALVE | 122035 |
| 23 | CONTROL CABLE/C.A.D. | 124105 |
| 24 | RESISTANCE CABLE | 124106 |
| 25 | MAINS CABLE 3G1.5 2.30 M | 132356 |
| 26 | FAN | 152019 |
| 27 | FILTER INDUCTANCE | 164741 |
| 28 | INDUCTANCE | 169506 |
| 30 | BACK PANEL | 322694 |
| 31 | HANDLE | 322695 |
| 32 | HF BASE FRONT PANEL | 322731 |
| 33 | HF BASE BACK PANEL | 322732 |
| 34 | FRONT PANEL | 322826 |
| 35 | SOCKET DX 25 | 712000 |
| 36 | HF BOARD KIT | 980021 |
| 37 | ENCODER KNOB KIT | 980520 |
| 38 | BOTTOM KIT | 980584 |
| 39 | BOTTOM KIT | 980585 |
| 40 | HF TRANSFORMER KIT | 980586 |
| 41 | COVER KIT | 980587 |
| 42 | COVER KIT | 980588 |
| 43 | PT/EV/HF CARD KIT | 980606 |
| 44 | CONTROL BOARD KIT | 980607 |
| 45 | VOLTAGE STABILIZING BOARD KIT | 980608 |
| 47 | FLYBACK TRANSFORMER | 169595 |
| 48 | POWER TRANSFORMER KIT | 980611 |
| 49 | POWER BOARD KIT | 980612 |
| 50 | FRONT PANEL + MODULE SET | 980613 |
| 51 | KIT IGBT + DIODE | 980614 |
| 53 | GAS PIPE CONNECTOR KIT | 990120 |
| 54 | CABLE 16 MMQ 3 M | 123443 |
| 55 | ARGON GAS BOTTLE IT ADAPTOR | 432036 |
| 56 | PLUG DX 25 | 712039 |
| 57 | TOLEDO 300 WORK CLAMP | 712231 |
| 58 | GAS REGULATOR 2 GAUGES | 722119 |
| 59 | ST17 TIG TORCH 4 M 180 A | 742423 |
| TIG TORCH TECHNOLOGY TIG 182 AC/DC-HF/LIFT 230V+AC Pag.2 | ||
| 1 | KIT 10 CERAMIC NOZZLES NR.6 | 802245 |
| 1 | KIT 10 CERAMIC NOZZLES NR.4 | 802244 |
| 1 | KIT 10 CERAMIC NOZZLES NR.7 | 802246 |
| 2 | INSULATOR | 722248 |
| 4 | KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM | 802232 |
| 4 | KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM | 802220 |
| 4 | KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM | 802222 |
| 5 | KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM | 802241 |
| 5 | KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM | 802239 |
| 5 | KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM | 802240 |
| 6 | SHORT CAP | 722192 |
| 7 | LONG CAP | 722193 |
| 8 | CONNECTION KIT 25 | 981442 |
| 12 | 3P PLUG | 722999 |
| 14 | PUSHBOTTON CONTACT | 452089 |
| 16 | OR RING | 722061 |
| 17 | PUSHBOTTON | 742042 |
| 18 | TORCH BODY | 722204 |
| 19 | KIT 3 ELECTRODE DIFFUSERS D.1,6 MM | 802250 |
| 19 | KIT 3 ELECTRODE DIFFUSERS D.1 MM | 802249 |
| 19 | KIT 3 ELECTRODE DIFFUSERS D.2,4 MM | 802251 |
| 21 | 3/8" CONNECTION KIT TIG TORCH | 990263 |
| TIG WELDING KIT TECHNOLOGY TIG 182 AC/DC-HF/LIFT Pag.3 | ||
| 0 | CABLE 16 MMQ 3 M | 123443 |
| 1 | CABLE 16 MMQ 3 M - 25 | 123437 |
| 2 | ARGON GAS BOTTLE IT ADAPTOR | 432036 |
| 3 | PLUG DX 25 | 712039 |
| 4 | TOLEDO 300 WORK CLAMP | 712231 |
| 5 | GAS REGULATOR 2 GAUGES | 722119 |
| 6 | ST17 TIG TORCH 4 M 180 A | 742423 |
| 7 | KIT GAS TUBE + CONNECTION + HOSE RINGS | 990701 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TECHNOLOGY TIG 182 AC/DC 852030
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN:
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
