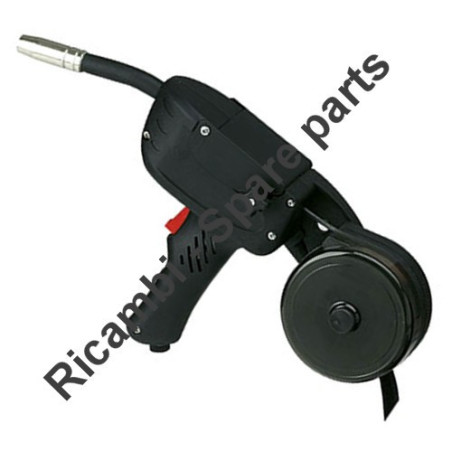

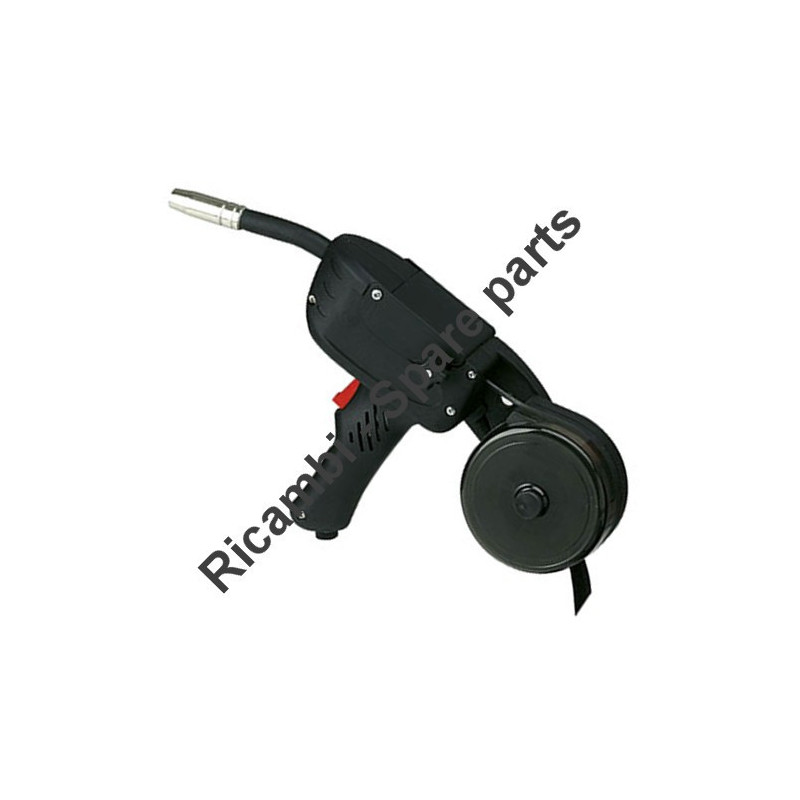

Telwin Spare Parts for Torch Spool Gun M6
€55.55
Tax included
Telwin Spare Parts for Torch Spool Gun M6
Telwin Genuine spare parts or replacement parts for to repair Torch Spool Gun M6 - 802407.The SPOOL GUN torch is mainly used for welding aluminium when there is a long distance between the power source and the welding piece.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Spare Parts for Torch Spool Gun M6
Telwin Genuine spare parts or replacement parts for to repair Torch Spool Gun M6 - 802407.The SPOOL GUN torch is mainly used for welding aluminium when there is a long distance between the power source and the welding piece. Aluminium wire is particularly fragile and ductile and, for distances of over 3 metres, smooth running inside the wire hose can be difficult. The SPOOL GUN, with both wire feed and wire reel on the torch easily solves the problem of smooth wire feed; it can also be used for welding with steel and flux cored wire. Available in the 6 metre version.
Open PDF Diagram, check your spare part number position and then select it in the following table.
| Torch Spool Gun M6 - 802407 | ||
| # | Part Num. | Description |
| 1 | 722423 | CONICAL NOZZLE |
| 2 | 722705 | CONTACT TIP D. 1 MM FE |
| 2 | 722556 | CONTACT TIP D. 0,8 MM AL/FLUX |
| 2 | 722552 | CONTACT TIP D. 1 MM AL/FLUX |
| 2 | 722416 | CONTACT TIP D. 0,8 MM FE |
| 2 | 722415 | CONTACT TIP D. 0,6 MM FE |
| 3 | 990662 | SPOOL GUN M6 LANCE KIT |
| 4 | 742191 | FEED ROLL D. 0,6-0,8 MM FE |
| 4 | 742193 | FEED ROLL D. 0,8-1 MM AL |
| 5 | 322551 | SPOOL GUN ROLL COVER |
| 6 | 990097 | GAS HOSE KIT |
| 7 | 153014 | WIRE FEEDER MOTOR |
| 9 | 322552 | SPOOL GUN WIRE FEEDER PROTECTION |
| 10 | 742195 | CLUTCH SPOOL GUN |
| 11 | 322553 | BUSH |
| 12 | 742196 | CLUTCH RING NUT |
| 13 | 322554 | COVER |
| 14 | 722677 | PUSHBUTTON |
| 15 | 113828 | POTENTIOMETER |
| 16 | 742174 | TORCH SPRING |
| 17 | 742197 | SPOOL GUN CONNECTION |
| 18 | 722007 | RING NUT |
| 19 | 722441 | TORCH ASSY |
| 20 | 722013 | LINER NUT |
| 21 | 990028 | 14 CONTACTS CONNECTOR KIT |
| 22 | 312350 | WIRE FEED KNOB |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
