Tanaka Spare Parts for Brushcutter TBC-290

Hitachi-HIKOKI Tanaka authorized service center

and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TBC-290.S.D.

In the following table, look for the model of the Brush Cutter and the respective parts of the code.

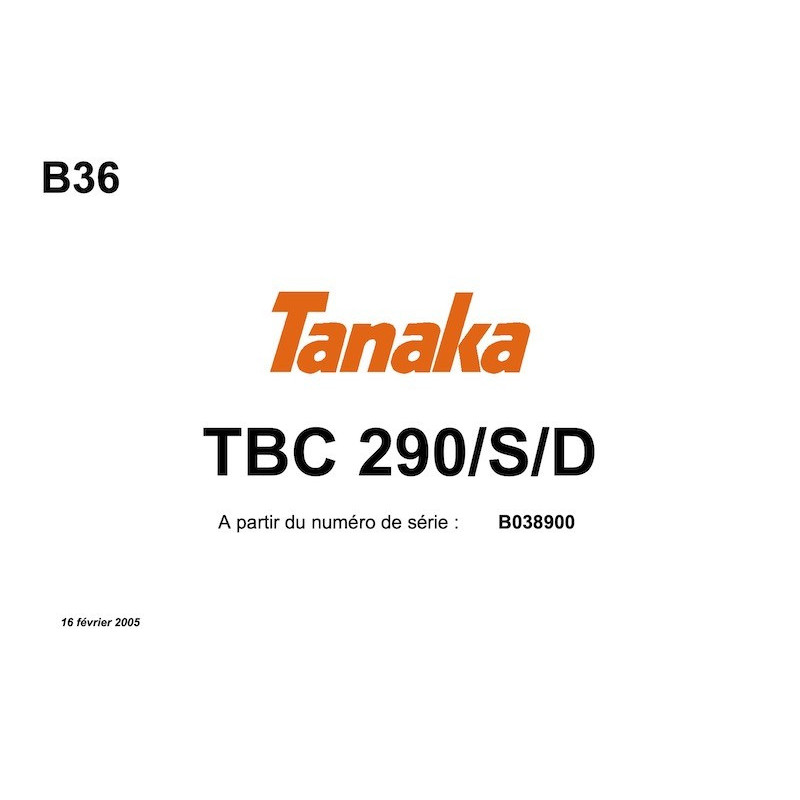

TANAKA TBC-290.S.D
CYLINDER/PISTON/CRANK SHAFT Pag.1
#	Part Num.	Description
001	RCJ6Y	SPARK PLUG RCJ6Y
002	6685484	CYLINDER SET
003	6684903	HEX HOLE BOLT 5X16S
004	6685746	CYLINDER GASKET
005	6686130	PISTON RING
006	6685896	PISTON SET
007	6686016	PISTON PIN
008	6685078	CIR CLIP
011	6686212	CRANK SHAFT COMP.
012	6695592	NEEDLE BEARING
013	6684899	WOOD-RUFF KEY
030	6684682	BOLT
030	6684599	HEX.HOLE BOLT 4X18WS
033	250-07020-20	INSULATOR TUBE, 110L
043	6687665	IGNITION COIL ASSY (OBSOLETE) (OBSOLETE)
050	6687665	IGNITION COIL ASSY (OBSOLETE) (OBSOLETE)
055	6687888	CORD
056	6684602	RUBBER CAP
057	6687972	REED WIRE ASSY
060	6684600	WASHER
CRANK CASE Pag.2
014	6686580	CRANKCASE ASSY
015	6684607	OIL SEAL REPLACES
016	6684608	BEARING
017	6686721	CRANK CASE GASKETB
018	6689177	GEAR SHAFT SHIM 0.10
018	6689178	SHIM
018	6684604	GEAR SHAFT SHIM 0.20
018	6684605	SHIM
024	6687374	MAGNETO ROTOR COMP
025	6684612	HEX NUT
027	6695184	WASHER
032	6684903	HEX HOLE BOLT 5X16S
054	6689645	CUTTER WASHER B
055	6693394	STARTER ASSY
056	6693299	PAWL
057	6693345	STARTER PAWL SPRING
ENGINE-1 Pag.3
080	6689895	INLET MANIFOLD GASKET
081	6689972	INSULATOR SET
082	6695515	HEX HOLE BOLT 5X25WS
085	6684616	GASKET
086	6691278	CHOKE PLATE 1.0
088	6690120	CLEANER BODY COMP.
089	6690365	CLEANER SPONGE
090	6690421	CLEANER COVER ASS'Y
091	6698730	COVER FIXING BOLT COMP
094	6694913	SCREW
095	6684662	S.WASHER 5
096	6684864	SMALL WASHER 5
098	6690499	CARBURETTOR
098	6690500	CARBURETOR SET WYJ392
099	6691239	CHOKE CONTROL LEVER
100	6691587	TANK COMP
109	6692244	COLLAR
109	6684623	COLLAR
110	6688156	FUEL PIPE GROMMET
111	6684880	FUEL PIPE 3X5X85
112	6684620	FILTER
113	6684619	CLIP
114	6688169	FUEL PIPE ASSY
116	6695386	SCREW
116	6695506	HEX HOLE BOLT
117	6685049	TANK CAP ASSY
118	6695112	TAPPING SCREW
119	6685070	WASHER 4
120	6694793	STAND
200	6684625	TANK CAP CHAIN
ENGINE-2 Pag.4
035	6688616	CLUTCH SHOE [ F085280]
036	6697798	CLUTCH SPRING [F085280]
037	6687946	SPECIAL WASHER M6
038	6684645	CLUTCH PLATE A 0.5 [F085280]
039	6684648	BEND WASHER.
040	6689627	CLUTCH STEP BOLT
042	6684664	STOP RING
043	6687019	FANCASE COMP
045	6684637	SCREW
046	6695512	HEX.HOLE BOLT 5X15SW
047	6691838	ANTI VIBE RUBBER
048	6685275	TAPPING SCREW 5X14
052	6689656	PIPE HOLDER
053	6684709	HEX.HOLE BOLT 5X25/S
054	6697445	HEX BOLT 4X12
058	6688597	CLUTCH SHAFT COMP.
062	993-53032-002	STOP RING R-32 INNER
063	6686667	BEARING CASE
064	6695553	BEARING
065	6692803	MUFFLER PROTECTOR
066	6687468	SPARK PLUG CAP
071	6688057	PRIMARY CORD GROMMET
072	6692732	GASKET
073	6687260	HEAT SHIELD
074	6692489	MUFFLER SET
075	6684638	HEX HOLE BOLT 6X55
076	6695193	WASHER M6
077	6692887	SPECIAL GASKET
078	6692669	TAIL PIPE SET
079	6695325	SCREW 4X8/S
RECOIL STARTER Pag.5
000	6692969	STARTER ASSY
002	6693227	STARTER HANDLE
003	6693135	ROPE GUIDE
004	6693035	STARTER BODY
005	6693111	SPRING SUPERSEDES
006	6693157	ROPE 3 5X890
007	6693057	STARTER SUPERSEDES
008	6693419	ROPE REEL WASHER
009	6693632	SCREW
010	6695502	HEX HOLE BOLT 4X18PS
RECOIL STARTER 1 Pag.6
000	6692992	RECOIL STARTER ASS'Y
001	6693240	STARTER HANDLE
002	6693038	RECOIL STARTER BODY
003	783-07085-20	RECOIL ROPE
004	6693138	RECOIL SPRING
005	6693252	SPRING PLATE
006	6693101	SPRING CASE ASSY
007	6689170	STARTER BUSH (OBSOLETE) (OBSOLETE)
008	6693075	STARTER PULLEY
009	6687947	SPECIAL WASHER 5.2X15
010	6685275	TAPPING SCREW 5X14
011	6684612	HEX NUT
012	6684599	HEX.HOLE BOLT 4X18WS
015	806-07027-20	STARTER BASE
016	6685153	TAPPING SCREW
020	6693408	STARTER PULLEY ASSY
061	6693098	PULLEY
CARBURETOR (SERIAL NO.-B031100) Pag.7
002	6684879	PUMP BODY COMP
003	6684687	PRIMING PUMP COMP
004	6684688	DIAPHRAGM COVER
005	6684689	PRIMING BODY
006	6690827	METERING DIAPHRAGM COMP
007	6684691	DIAPHRAGM GASKET
008	6684693	PUMP DIAPHRAGM
009	6691457	PUMP GASKET
010	6684696	STOP RING
011	6684874	THRUST WASHER
012	6684697	SWIVEL
013	6690947	THROTTLE VALVE
014	6684870	THROTTLE SET SCREW
015	6684873	CABLE ADJUSTER STAY
016	6684872	NUT
017	6684871	CABLE ADJUSTER
018	6684875	CLEANER PACKING
019	6684699	SET SCREW
020	460-25242-20	HIGH ADJUST SCREW
021	6692048	HIGH/LOW ADJUST SPRING
022	549-25137-20	WASHER (OBSOLETE)
023	550-25137-20	O-RING (OBSOLETE)
201	6684700	INLET SCREEN
CARBURETOR (SERIAL NO.B031101-) Pag.8
001	6684870	THROTTLE SET SCREW
004	6684873	CABLE ADJUSTER STAY
005	6684697	SWIVEL
007	6684696	STOP RING
010	6684695	O-RING
011	6691849	USE 599.2000W.43
012	6691457	PUMP GASKET
013	6684693	PUMP DIAPHRAGM
016	6684700	INLET SCREEN
017	6684879	PUMP BODY COMP
018	6684691	DIAPHRAGM GASKET
019	6690827	METERING DIAPHRAGM COMP
020	6684688	DIAPHRAGM COVER
021	6684699	SET SCREW
022	6684871	CABLE ADJUSTER
023	6684872	NUT
024	6684875	CLEANER PACKING
025	6684687	PRIMING PUMP COMP
026	6684689	PRIMING BODY
041	6684874	THRUST WASHER
OPERATION PIPE 290/S Pag.9
001	6689478	DRIVE SHAFT
002	6689407	DRIVE SHAFT PIPE COMP
003	6689518	BUSHING ASSY
004	6684792	NUT
005	6691049	LOOP HANDLE,
006	6691231	BARRIER
008	6684838	BOLT 6X43/P(BLACK)
010	6695255	SCREW
011	6689681	BRAKE SHAFT WASHER
012	6691098	AV COVER
016	6689275	LIFTING METAL ASSY
025	6693748	THROTTLE LEVER ASSY
050	6684839	SHOULDER BELT ASS'Y, SINGLE
051	6691036	HANDLE
083	6693978	T/CABLE/SWITCH ASSY
084	6694022	THROTTLE WIRE
085	6687459	STOP SWITCH
086	6687526	PROTECTION TUBE 7X175
098	6684721	THROTTLE LEVER
100	6684722	RETURN SPRING
103	6684724	BLIND PLUG
110	6684803	BOLT
111	6684727	CONTAL NUT 5
112	6684725	SCREW
125	6684804	THROTTLE LEVER
OPERATION PIPE 290D Pag.10
001	6689478	DRIVE SHAFT
002	6689407	DRIVE SHAFT PIPE COMP
003	6689518	BUSHING ASSY
042	6689274	LIFTING METAL
043	6689258	BRACKET
044	6695501	HEX. HOLE BOLT 5X30.P
046	6689100	NUT
063	6684708	HANDLE GRIP
064	6684709	HEX.HOLE BOLT 5X25/S
066	6684710	HANDLE BRACKET A
067	6684711	HANDLE BRACKET B
068	6691187	AV RUBBER
069	6684713	HANDLE BRACKET C
071	6697451	HEX SCREW 6X25
072	6689283	USE 336.33411.82 (OBSOLETE) (OBSOLETE)
074	6690707	USE 460.33111.20
075	6684716	LEFT HANDLE (OBSOLETE) (OBSOLETE) (OBSOLETE)
084	6687546	PROTECTION TUBE 7X865L
091	TB00079652000	HARNESS D3X HDOUBLE
092	6691075	RIGHT HANDLE SK
095	6693765	HANDLE ASSY
098	6684721	THROTTLE LEVER
100	6684722	RETURN SPRING
101	6684723	TRIGGER
103	6684724	BLIND PLUG
106	6684725	SCREW
107	6684726	SCREW
108	6684727	CONTAL NUT 5
110	6687460	STOP SWITCH
120	6694023	THROTTLE WIRE
125	6693979	THROTTLE CABLE
GEAR CASE/GUARD Pag.11
001	6688771	GEAR CASE ASSY
001	6688696	GEAR CASE ASSY (OBSOLETE) (OBSOLETE)
002	6684709	HEX.HOLE BOLT 5X25/S
004	6695294	STOP RING
005	6695315	OUTER STOP RING
006	6695526	BALL BEARING
007	6695524	BEARING
009	6688771	GEAR CASE ASSY
011	6684667	HEX.HOLE BOLT 5X12S
012	6689109	OILING BOLT
013	6684734	BEARING
015	6688946	GEAR SHAFT
015	6688924	GEAR SHAFT
016	6695554	BEARING
017	6695295	STOP RING
018	6689032	CUTTER HOLDER
019	6689055	CUTTER HOLDER
022	6689073	FIXING NUT M1OX1.25
023	6689160	GEAR CASE WASHER
026	6697451	HEX SCREW 6X25
028	6690294	COVER BRACKET
029	6690242	SAFETY COVER
030	6684748	COVER BRACKET
031	6690372	SHROUD
032	6693386	BLADE
034	6695334	SCREW
035	6688875	GEAR/PINION SET,SPARE
036	6684965	HEX NUT
045	6689168	SPLIT PIN SET
TOOLS/OPTIONAL PARTS Pag.12
001	6684813	HEX.WRENCH 4
002	6684764	COMBI BOX SPANNER
003	6693520	HEX. WRENCH 3
005	615-37224-20	CUTTER COVER , Y254260
011	6684763	WINDING PROTECTOR
030	6684765	PROTECTIVE GLASSES
