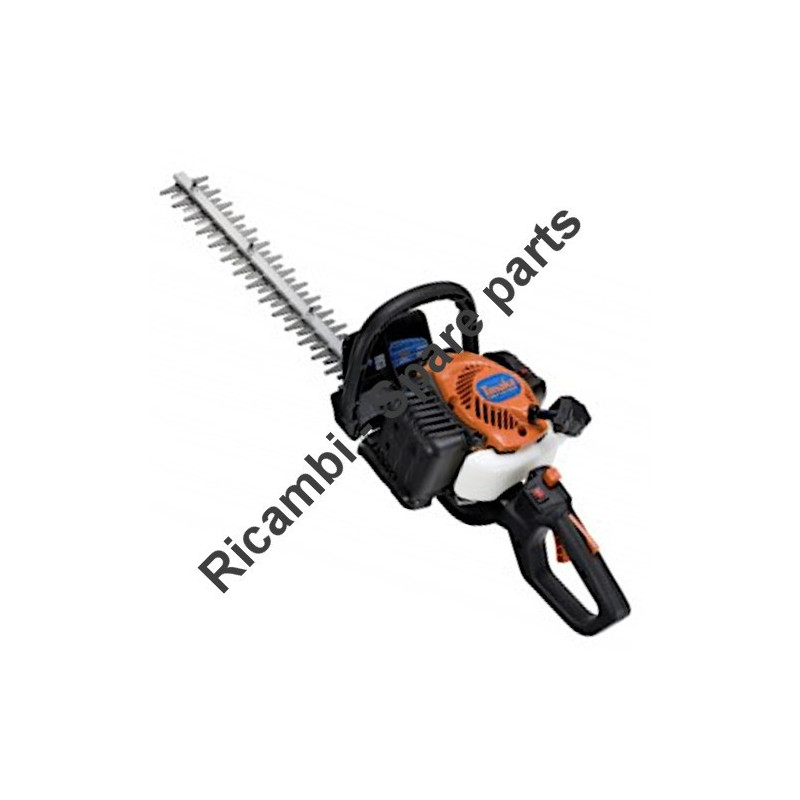

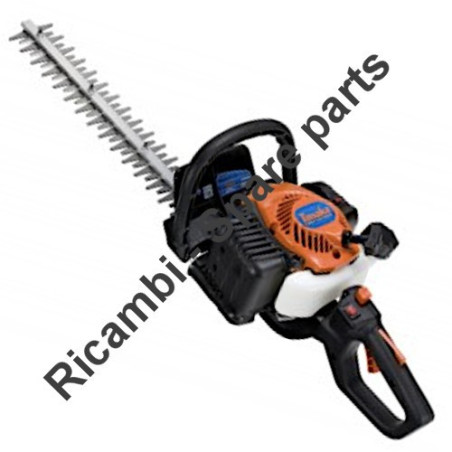

Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
€1.04
Tax included
Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Edge Trimmer TCH 22EAP2.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Edge Trimmer TCH 22EAP2.
In the following table, look for the model of the Edge Trimmer and the respective parts of the code.
|
Engine Hedge Trimmer Tanaka TCH 22EAP2 Pag.1
|
||
| # | Part Num. | Description |
| 1 | 6698730 | COVER FIXING BOLT COMP. |
| 2 | 6698609 | CLEANER COVER |
| 3 | 6690365 | CLEANER SPONGE |
| 4 | 6698608 | CHOKE VALVE |
| 5A | 312440 | MACHINE SCREW (W/WASHERS) M5X65 (BLACK) |
| 6 | 6698606 | CLEANER BODY |
| 7 | 6698607 | CHOKE HANDLE |
| 8 | 309470 | TAPPING SCREW (W/FLANGE) D4X12 (BLACK) |
| 9 | 6699087 | THROTTLE ADJUST SCREW (TAS) |
| 10 | 6699088 | SET SCREW (B) |
| 11 | 6699100 | SET SCREW (D) |
| 12 | 6699098 | SYRINGE |
| 13 | 6699097 | PRIMER BASE |
| 14 | 6699096 | PUMP GASKET |
| 15 | 6699095 | PUMP DIAPHRAGM |
| 16 | 6699080 | STRAINER |
| 17 | 6699103 | GUIDE PIN ROLLER |
| 18 | 6699099 | SYRINGE RETAINER |
| 19 | 6699101 | SET SCREW (E) |
| 20 | 6699104 | BALL PLUG RETAINER |
| 21 | 6699105 | ADJUSTING SCREW (MAIN MIXTURE) |
| 22 | 6699083 | METERING LEVER SPRING |
| 23 | 6699082 | PIN |
| 24 | 6699091 | METERING DIAPHRAGM |
| 25 | 6699093 | METERING COVER |
| 26 | 6699094 | SET SCREW (C) |
| 27 | 6699089 | POST |
| 28 | 6699086 | ROTOR COVER |
| 29 | 6699090 | RETAINING RING (E-TYPE) FOR D2.5 SHAFT |
| 30 | 6699102 | O-RING |
| 31 | 6699081 | INLET NEEDLE VALVE |
| 32 | 6699085 | SET SCREW (A) |
| 33 | 6699084 | METERING LEVER |
| 34 | 6699092 | METERING GASKET |
| 36 | 949567 | LOCK NUT M6 |
| 37 | 6698387 | CARBURETOR INSULATOR |
| 38A | 6600456 | INTAKE PAKING (A) |
| 39 | 6698700 | GLASS WASHER |
| 40 | 6698816 | CARBURETOR PACKING |
| 41 | 6698844 | SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 |
| 42 | 6698388 | HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 |
| 43 | 6699060 | CORD |
| 44 | 6698879 | SEAL LOCK HEX. SOCKET HD. BOLT M4X12 |
| 45 | 6698871 | CYLINDER COVER |
| 46 | 6699180 | METAL OF PLUG CAP (60) (B) |
| 47 | 6698548 | PLUG CAP |
| 48 | 6699175 | CORD INSULATION TUBE L60 |
| 49A | 6600890 | IGNITION COIL |
| 50B | 6699316 | SPARK PLUG ASS'Y BMR7A |
| 51 | 6698597 | CYLINDER |
| 52 | 6696534 | COVER PACKING |
| 53 | 6696535 | INTAKE COVER (A) |
| 54 | 6696835 | SEAL LOCK SCREW M4X10 |
| 55 | 6698617 | HEAT PROTECTION PANEL |
| 56 | 6698733 | MUFFLER |
| 57 | 949432 | BOLT WASHER M6 |
| 58 | 6696819 | HEX. SOCKET HD. BOLT M6X55 |
| 59 | 6696536 | INTAKE COVER (B) |
| 60 | 6696944 | PISTON PIN |
| 61 | 6696531 | PISTON |
| 62 | 6698386 | HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 |
| 63 | 6696530 | CYLINDER PACKING |
| 64 | 6696532 | PISTON RING |
| 65 | 6684590 | CIR CLIP |
| 66 | 6696879 | FLYWHEEL NUT M7 |
| 67 | 6696880 | BOLT WASHER D7 |
| 68 | 6698603 | STARTER PAWL |
| 69 | 6685335 | STARTER PAWL SPRING |
| 70 | 6698601 | MAGNETO ROTOR |
| 71 | 6685336 | RETAINING RING D4 |
| 72 | 6698872 | CRANK CASE (B) ASS'Y |
| 73 | 6684607 | OIL SEAL TB 12227 |
| 74 | 6684608 | BALL BEARING 6001 C3 |
| 75 | 6696946 | SHIM T0.2 |
| 76 | 6696945 | SHIM T0.3 |
| 77 | 6699043 | CRANK SHAFT |
| 78 | 6698729 | CRANK CASE (A) ASS'Y |
| 79 | 6696539 | CRANK CASE PACKING |
| 80 | 6696947 | KNOCK PIN 4X12 |
| 81 | 6699173 | CLUTCH ASS'Y (B) |
| 82 | 6699040 | CLUTCH DRUM |
| 83 | 6698740 | BALL BEARING 6002ZC3 |
| 84 | 939544 | RETAINING RING FOR D15 SHAFT |
| 85 | 6688643 | GREASE NIPPLE COMP. |
| 86 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| 87 | 6698876 | MUFFLER PROTECTOR |
| 88 | 887021 | SCREW (W/WASHERS) M5X16 (BLACK) |
| 89 | 6695495 | HEX. HOLE BOLT 6X18/S |
| 90 | 6698988 | HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 |
| 91 | 6699047 | FIXATION PLATE (A) |
| 92 | 6699048 | FIXATION PLATE (B) |
| 93 | 6699052 | TAIL PIPE (A) |
| 94 | 6699037 | EXHAUST COVER |
| 96 | 6698878 | TAPPING SCREW D4.5X16 |
| 97 | 6685189 | PLATE |
| 98 | 6693227 | STARTER HANDLE |
| 99 | 6693168 | ROPE |
| 100 | 6698988 | HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 |
| 101A | 6684675 | RECOIL SPRING |
| 102A | 6600995 | STARTER PULLEY |
| 103 | 6685183 | DAMPER SPRING |
| 104A | 6600996 | CAM PLATE |
| 105 | 6684679 | SET SCREW |
| 106 | 6698622 | RECOIL STARTER ASS'Y |
| 107 | 6698624 | AIR DEFLECTOR |
| 108 | 6698402 | FUEL TANK CAP ASS'Y |
| 109 | 6698732 | TANK CAP CHAIN |
| 110 | 6698931 | FUEL GROMMET |
| 111 | 6698873 | FUEL PIPE |
| 111 | 6699183 | FUEL PIPE |
| 112A | 6601399 | FUEL PIPE |
| 113A | 6697846 | RETURN GROMMET |
| 114 | 6696949 | CLIP |
| 115 | 6698874 | PUMP FILTER |
| 116 | 6698615 | CUSHION RUBBER |
| 117 | 6698613 | TANK |
| 117 | 6698612 | TANK (A) |
| 119 | 6600883 | SCREW (B) |
| 120 | 6600884 | SCREW (C) |
| 121 | 6600889 | PRIMER PUMP |
| 122 | 6600876 | PUMP BODY |
| 123 | 6600879 | PUMP PACKING |
| 124 | 6600880 | PUMP DIAPHRAGM |
| 125 | 6684700 | INLET SCREEN |
| 126 | 6600877 | PUMP COVER |
| 127 | 6600887 | HIGH SPEED NEEDLE |
| 128 | 6600885 | METERING LEVER SPRING |
| 129 | 6685219 | HINGE PIN |
| 130 | 6600881 | METERING DIAPHRAGM |
| 131 | 6685222 | DIAPHRAGM COVER-METERING |
| 132 | 6684697 | SWIVEL |
| 133 | 6600878 | THROTTLE VALVE |
| 134 | 6684696 | STOP RING |
| 135 | 6600886 | WASHER |
| 136 | 6685215 | NEEDLE VALVE |
| 137 | 6600882 | SCREW (A) |
| 138 | 6600888 | METERING LEVER |
| 139 | 6685220 | DIAPHRAGM PACKING-METERING |
| 140 | 6600875 | CARBURETOR ASS'Y WYGA-1 |
| 142 | 6699079 | FRONT HANDLE |
| 143 | 6698885 | SEAL LOCK HEX. SOCKET HD. BOLT M5X40 |
| 144 | 6698884 | SPRING WASHER M5 |
| 145 | 6698749 | BRAKE AXIS WASHER |
| 146 | 6698880 | HANDLE A |
| 148 | 6696348 | SPRING (A) |
| 149 | 6699055 | LOCK LEVER |
| 150 | 6699053 | THROTTLE LEVER |
| 151 | 6696344 | TRIGGER LOCKOUT |
| 152 | 6696345 | THROTTLE LEVER SPRING |
| 153A | 6601275 | STOP SWITCH |
| 154 | 6699051 | HANDLE B |
| 155 | 305812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 156 | 6698627 | THROTTLE WIRE |
| 157 | 6698738 | PROTECTION TUBE |
| 158 | 6699058 | STOP SWITCH CORD |
| 159 | 6699059 | STOP SWITCH CORD (B) |
| 160 | 6699049 | FIXATION PLATE (B) |
| 161 | 305491 | NYLON NUT M5 |
| 162 | 6684864 | SMALL WASHER 5 |
| 163 | 6699045 | SPACER |
| 164 | 6699110 | HEX. SOCKET HD. BOLT (W/BUTTON) M5X25 |
| 165 | 6699108 | U-NUT M5 |
| 166 | 6699112 | WASHER (B) |
| 167 | 6699111 | WASHER M7 |
| 168 | 6699109 | SHOULDER BUTTON BOLT M5X25 |
| 169B | 6600455 | BLADE ASS'Y (500MM) |
| 170 | 6698731 | BLADE CASE (A) |
| 171 | 6699041 | HANDLE BRACKET |
| 172 | 6696359 | CLIP |
| 173 | 6685407 | BOLT WASHER D5 |
| 174 | 6699044 | SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 |
| 175 | 6699057 | GEAR CASE (A) |
| 176 | 6699035 | GUIDE PLATE (C) |
| 177 | 6699038 | GEAR 2 (EA) |
| 178 | 6699034 | GUIDE PLATE (A) |
| 179 | 6699046 | FELT PACKING (A) |
| 180 | 6699042 | GEAR CASE PACKING |
| 181 | 6699050 | GEAR CASE COVER |
| 182 | 6699176 | HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 |
| 184 | 6600009 | BLADE GUIDE |
| 185 | 6600010 | HEDGE TRIMMER BLADE (A) |
| 186 | 6600011 | HEDGE TRIMMER BLADE (B) |
| 187 | 6600359 | BLADE LINER |
| 188 | 6600417 | SUPPORT PLATE |
| 201 | 6698405 | CARBURETOR PACKING |
| 202 | 6600891 | CARBURETOR HEAT PANEL ASS'Y |
| 203 | 6600997 | STARTER PULLEY ASS'Y |
| 205 | 6601364 | IGNITION COIL ASS'Y |
| 206 | 6601361 | CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) |
| 207 | 6601419 | TANK |
| 208 | 6600358 | FUEL GROMMET |
| STANDARD ACCESSORIES Pag.2 | ||
| 501 | 6698756 | BOX WRENCH 10/19MM |
| OPTIONAL ACCESSORIES Pag.3 | ||
| 601 | 971042 | GREASE FOR IMPACT WRENCH (100G) |
