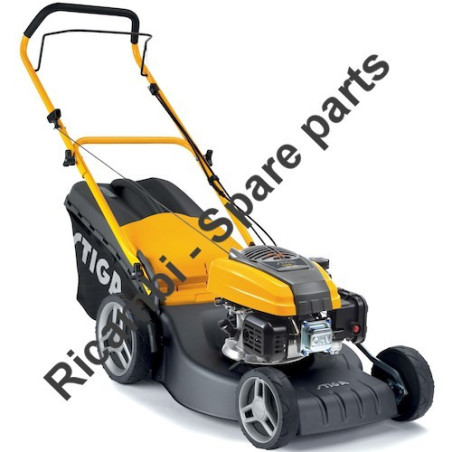

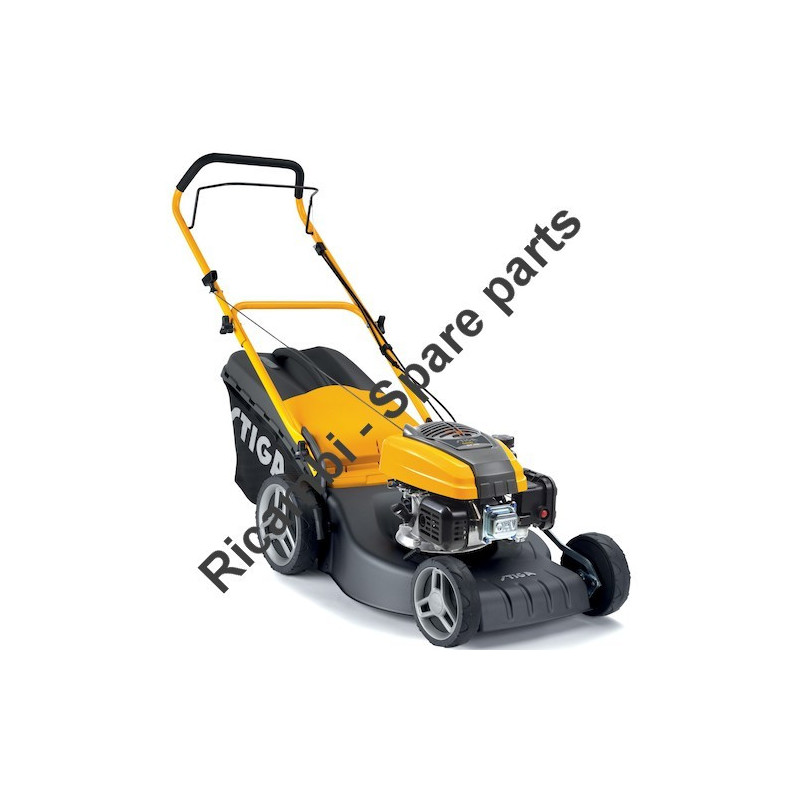

STIGA Spare Parts for Lawn Mower COMBI 48 (2017)
€145.08
Tax included
STIGA Spare Parts for Lawn Mower COMBI 48 (2017)
STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower COMBI 48 (2017) 295485048/S16.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
STIGA Spare Parts for Lawn Mower COMBI 48 (2017)
STIGA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower COMBI 48 (2017) 295485048/S16.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| STIGA COMBI 48 (2017) 295485048/S16 | ||
| Deck Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381004729/0 | STEEL DECK CR48 [GREY] |
| 2 | 322108301/1 | PLASTIC FRONT BAFFLE |
| 3 | 112728699/0 | SELF-TAPPING SCREW K60 x 22 |
| 4 | 322108302/0 | PLASTIC REAR BAFFLE |
| 5 | 112728699/0 | SELF-TAPPING SCREW K60 x 22 |
| 6 | 322545213/0 | FIXING PLATE |
| 7 | 381005179/0 | LEFT HANDLE BRACKET |
| 8 | 112727801/0 | SCREW TCB TORX M6 x 20 |
| 9 | 381005177/0 | RIGHT HANDLE BRACKET |
| 10 | 322060242/0 | BELT PROTECTION GUARD CR48 |
| 11 | 322140239/0 | MULCHING PLUG [CRUISER 48] |
| 12 | 112728530/0 | SELF-TAP SCREW 4.8 x 25 |
| 13 | 114367494/2 | EMBLEM DECAL STIGA 3D 93 x 19mm |
| Height Adjusting Pag.2 | ||
| 1 | 381302821/0 | Front Wheel Axle To S / N 20BA2WBH054315 |
| 1 | 381302821/1 | Front Wheel Axle From S / N 20BA2WBH054316 |
| 2 | 322545142/0 | AXLE PLATE |
| 3 | 112728698/0 | SELF-TAPPING SCREW K50 x 20 |
| 4 | 112521350/0 | WASHER M8 8.4 x 16 x 1.6 |
| 5 | 112155000/0 | LOW SELF-LOCKING NUT M8 |
| 6 | 112000930/0 | Benzing Ring From 04-September-2021 |
| 6 | 112436051/0 | PIN PLATE D=8 To 03-January-2021 |
| 7 | 322869673/0 | HEIGHT ADJUST TIE BAR To S / N 20BA2WBH070094 |
| 7 | 322869673/1 | HEIGHT ADJUST TIE BAR From S / N 20BA2WBH070583 |
| 8 | 122519820/0 | Pin |
| 9 | 122446193/0 | Spring |
| 10 | 322600247/0 | INNER WHEEL COVER D=180 As Optional |
| 11 | 112728698/0 | SELF-TAPPING SCREW K50 x 20 |
| 12 | 322545152/0 | AXLE BRACKET |
| 13 | 381302815/0 | Rear Wheel Axle To S / N 20BA2WBH091975 |
| 13 | 381302815/1 | Rear Wheel Axle From S / N 20BA2WBH091976 |
| 14 | 122534131/0 | Pin |
| 15 | 381003357/0 | Height Adjustment Lever for others brand models To S / N 20BA2WBH076280 |
| 15 | 381003357/1 | Height Adjustment Lever with Standard Black Knob From S / N 20BA2WBH076281 |
| 15 | 381003457/0 | Height Adjustment Lever for STIGA brand models To S / N 20BA2WBH073718 |
| 15 | 381003457/1 | Height Adjustment Lever with STIGA Logo Black Knob From S / N 20BA2WBH073719 |
| 16 | 122446192/0 | Spring |
| 17 | 112154510/0 | LOW SELF-LOCKING NUT (M6) |
| 21 | 112521350/0 | WASHER M8 8.4 x 16 x 1.6 |
| 22 | 112155000/0 | LOW SELF-LOCKING NUT M8 |
| Handle, Lower Part Pag.3 | ||
| 1 | 381007537/0 | LOWER HANDLE [YELLOW] |
| 2 | 112819110/0 | CARRIAGE BOLT M8 x 50 |
| 3 | 122671651/0 | WASHER 8.3 x 22 x 2 |
| 4 | 122399900/0 | 3 SPOKE HANDWHEEL [BLACK] |
| 5 | 112293200/0 | SCREW TTDQ M8 x 35 |
| 7 | 112818900/0 | SCREW TTDQ M8 x 35 |
| 9 | 122399900/0 | 3 SPOKE HANDWHEEL [BLACK] |
| 10 | 112293200/0 | Nut |
| 11 | 112155000/0 | Nut |
| 12 | 112521350/0 | WASHER M8 8.4 x 16 x 1.6 |
| 13 | 112369500/0 | SPRING WASHER D=8 |
| 14 | 112760605/0 | SCREW TBEI M8 X 20MM |
| 15 | 381008691/0 | SCREWS ASSEMBLY KIT |
| Handle, Upper Part Pag.4 | ||
| 1 | 381006753/0 | Handle, Yellow Upper Part Yellow without Sponge From 01-September-2013 To 31-August-2017 |
| 1 | 381006753/1 | Handle, Yellow Upper Part Yellow without Sponge From 01-September-2017 |
| 1 | 381006754/0 | Handle, Yellow Upper Part Yellow with Sponge To 31-August-2017 |
| 1 | 381006754/1 | Handle, Yellow Upper Part Yellow with Sponge From 01-September-2017 To 31-August-2018 |
| 1 | 381006754/2 | Handle, Yellow Upper Part Yellow with sponge grip Yellow with Sponge From 01-September-2018 |
| 2 | 122430313/0 | PULL CORD GUIDE |
| 3 | 112521330/0 | WASHER M6 (6.4 x 12 x 1.6) |
| 4 | 112154510/0 | LOW SELF-LOCKING NUT (M6) |
| 5 | 118390020/0 | CABLE CLIP |
| 6 | 181003363/0 | Engine Brake Lever Black Black To 31-August-2010 |
| 6 | 181003363/1 | Black Engine Brake Lever Black From 01-September-2010 |
| 7 | 181030054/0 | Engine Brake Cable SV40 / RV 40 / V35 and WBE140 Engine |
| 8 | 112727783/0 | CROSS-HEAD SCREW M6 x 40 |
| 9 | 112154510/0 | LOW SELF-LOCKING NUT (M6) |
| 12 | 322551640/0 | Cable Fixing Plate To S / N 20AA2WBH066503 |
| 12 | 322551685/0 | Cable Fixing Plate ø22 From S / N 20AA2WBH066504 |
| Wheels And Hub Caps Pag.5 | ||
| 1 | 381007450/1 | Wheel - Long Hub |
| 1 | 381007455/1 | WHEEL ASSEMBLY 180mm |
| 2 | 119216035/0 | BEARING 6001 2RS (12 X 28 X 8) |
| 3 | 322110744/0 | STIGA HUB CAP D180/200 [GREY] |
| 5 | 381007456/1 | WHEEL ASSEMBLY 240mm [CRUISER] To 31-August-2019 |
| 5 | 381007463/1 | Wheel From 01-September-2019 |
| 6 | 119216035/0 | BEARING 6001 2RS (12 X 28 X 8) |
| 9 | 322110745/0 | STIGA HUB CAP D240 [GREY] |
| Blade Pag.6 | ||
| 1 | 112735108/1 | TELF-FORM SCREW 3/8" x 1¼" UNC |
| 2 | 1111-9168-01 | Blade Holder Stiga Packed into 122463012/4 |
| 2 | 122463012/2 | Blade Boss Ø 22.2 To 31-August-2018 |
| 2 | 122463012/3 | Blade Boss Ø 22.2 From 01-September-2018 To 31-December-2018 |
| 2 | 122463012/4 | Blade Boss Ø 22.2 From 01-January-2019 |
| 3 | 1111-9278-01 | Mulching Blade (STIGA Pack) Stiga Packed into 181004460/0 To 31-August-2018 |
| 3 | 1111-9278-02 | Mulching Stiga Packed into 181004460/0 From 01-September-2018 |
| 3 | 181004460/0 | Mulching blade |
| 4 | 122160400/0 | SPRING WASHER 50 x 2 x 10.2 To 31-March-2018 |
| 4 | 322680021/0 | FLAT ZINC WASHER 9.8 x 34 x 3 From 01-April-2018 To 31-August-2019 |
| 4 | 322680021/1 | FLAT ZINC WASHER 9.8 X 34 X 3 From 01-September-2019 |
| 5 | 112508125/0 | SPRING WASHER 28 x 10 x 1.5 From 01-April-2018 To 31-December-2018 |
| 5 | 112508128/0 | SPRING WASHER From 01-January-2019 |
| 5 | 112523080/0 | WASHER M10 11 x 30 x 2.5 To 31-March-2018 |
| 6 | 112735698/0 | HEX-HEAD SCREW 3/8" x 2" |
| 7 | 112139100/0 | WOODRUFF KEY 4 x 6.5 D=16 |
| Grass-Catcher Pag.7 | ||
| 1 | 322785331/0 | DEFLECTOR SUPPORT [BLACK] |
| 2 | 122450464/0 | DEFLECTOR SPRING |
| 3 | 322109556/0 | DEFLECTOR FIXING [YELLOW] |
| 3 | 322109557/0 | DEFLECTOR FIXING [GREY] NCS S8000-N |
| 4 | 112728699/0 | SELF-TAPPING SCREW K60 x 22 |
| 5 | 322600214/1 | DEFLECTOR [YELLOW] |
| 5 | 322600216/1 | Deflector [Grey] |
| 6 | 322393646/0 | GRASSCATCHER HANDLE [YELLOW] |
| 6 | 322393715/0 | GRASSCATCHER HANDLE [GREY] NCS S8000-N |
| 7 | 381486016/0A | Grass Box Upper Part Yellow |
| 7 | 381486029/0 | Grass Box Upper Part Gray |
| 8 | 122608561/0 | Grasscatcher Lower Stiffening |
| 9 | 112728692/0 | SELF-TAP SCREW KA50 x 20 |
| 10 | 322545159/0 | FIXING PLATE |
| 11 | 181102331/0 | HYBRID TEXTILE GRASSCATCHER CR BLACK |
| Engine Carburator Tank Pag.8 | ||
| 1 | 118550941/0 | Engine Assembled |
| 2 | 112292102/0 | Nut |
| 3 | 118550909/0 | Starter Assy |
| 4 | 118551362/0 | Starter handle |
| 5 | 112728706/0 | Screw |
| 6 | 322055538/0 | Top cover stiga additional parts not for all models |
| 7 | 322055539/0 | Engine Ring Cover Wbe140 [Yellow] additional parts not for all models |
| 10 | 118550908/0 | Air Guide |
| 11 | 118550907/0 | Pin |
| 12 | 118550906/0 | Pin |
| 13 | 112791500/0 | Screw |
| 14 | 118550901/0 | Electronic coil |
| 15 | 118550942/0 | Spark plug wire terminal |
| 16 | 9400-0244-00 | Spark Plug [Champion Rc12Yc] |
| 17 | 118550930/0 | Stud Bolt |
| 18 | 118550929/0 | Gasket |
| 19 | 118550928/0 | Insulator, Carburettor |
| 20 | 118550927/0 | Gasket |
| 21 | 118550926/0 | Carburettor |
| 22 | 118550924/0 | Gasket |
| 23 | 118550921/0 | Air Cleaner Assy |
| 24 | 118550923/0 | Air Purge Pump |
| 25 | 118550922/0 | Air Purge Pump Stop |
| 26 | 118550946/0 | Air Filter element |
| 27 | 118550945/0 | Air Filter element |
| 28 | 118550944/0 | Air Filter Cover |
| 29 | 112292102/0 | Nut |
| 30 | 118550919/0 | Fuel Pipe |
| 31 | 118550918/0 | Pipe Clip |
| 32 | 118550314/0 | Fuel Filter |
| 33 | 118550917/1 | Tank |
| 34 | 118550943/0 | Fuel Tank Cap |
| 35 | 112792099/0 | Screw |
| 36 | 118550920/0 | Breather Fule Pipe |
| 37 | 118550933/0 | Arm Governor |
| 38 | 118550931/0 | Plate |
| 39 | 112789000/0 | Screw |
| 40 | 118550932/0 | Spring |
| 41 | 118550805/0 | Screw |
| 42 | 118550806/0 | Nut |
| 43 | 118550925/0 | Governor Link |
| 44 | 118550898/0 | Gasket, Muffler |
| 45 | 118550899/0 | Muffler |
| 46 | 112792425/0 | Screw |
| 47 | 118550900/0 | Muffler Guard |
| 48 | 118551277/0 | Screw |
| Engine Piston Cranckshaft Pag.9 | ||
| 18 | 118550929/0 | Gasket |
| 19 | 118550928/0 | Insulator, Carburettor |
| 20 | 118550927/0 | Gasket |
| 22 | 118550924/0 | Gasket |
| 44 | 118550898/0 | Gasket, Muffler |
| 51 | 118550336/0 | Nut |
| 52 | 118550905/0 | Flywheel Ass'y |
| 53 | 118551277/0 | BOLT,FLANGE M6×14 |
| 54 | 112791500/0 | HEXAG.HEAD SCREW 6x25 |
| 55 | 118550938/0 | Flywheel Brake Stop Switch Assy |
| 56 | 118550911/0 | Spring |
| 57 | 118550300/0 | Oil Seal |
| 58 | 118550897/0 | Cylinder Assy |
| 59 | 112789000/0 | Screw |
| 60 | 118550904/0 | Cover |
| 61 | 118550903/0 | Gasket, Breath Groove |
| 62 | 118550902/0 | Valve |
| 63 | 118550889/0 | Crankshaft |
| 64 | 118550288/0 | Woodruff key |
| 65 | 118550283/0 | Washer |
| 66 | 118550890/0 | Camshaft Assy |
| 68 | 112789000/0 | Screw |
| 69 | 118550888/0 | Speed Governor Assy |
| 70 | 118550936/0 | Shaft, Governor Arm |
| 71 | 118550666/0 | Washer |
| 72 | 118550935/0 | Oil Seal |
| 73 | 118550856/0 | Spring pin |
| 74 | 118550379/0 | Oil Seal |
| 75 | 118551209/0 | Crankcase |
| 76 | 118550887/0 | Tank Cap |
| 77 | 112791500/0 | Screw |
| 78 | 118551276/0 | Screw |
| 79 | 118550891/0 | Cover Comp., Head |
| 80 | 118550892/0 | Packing Head Cover |
| 81 | 118550893/0 | Valve Arm Set |
| 82 | 118550894/0 | Plate |
| 83 | 118550895/0 | Retainer |
| 84 | 118550896/0 | Spring |
| 85 | 118550910/0 | Valve Assy, Intake + Exhaust |
| 86 | 118550291/0 | Valve lifter assy |
| 87 | 118550912/0 | Push Rod |
| 88 | 118551216/0 | Piston Assy |
| 89 | 118550913/0 | Piston Ring Set |
| 90 | 118550915/0 | Piston pin |
| 91 | 118550914/0 | Washer, Piston Pin |
| 92 | 118550916/0 | Connecting rod assy |
| 93 | 118551223/0 | DOWEL PIN(Grain) |
| 95 | 118550940/0 | ENGINE GASKET SET |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
COMBI 48 (2017) 295485048/S16
5 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
