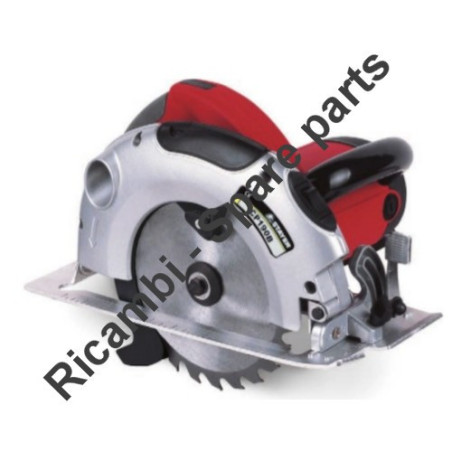

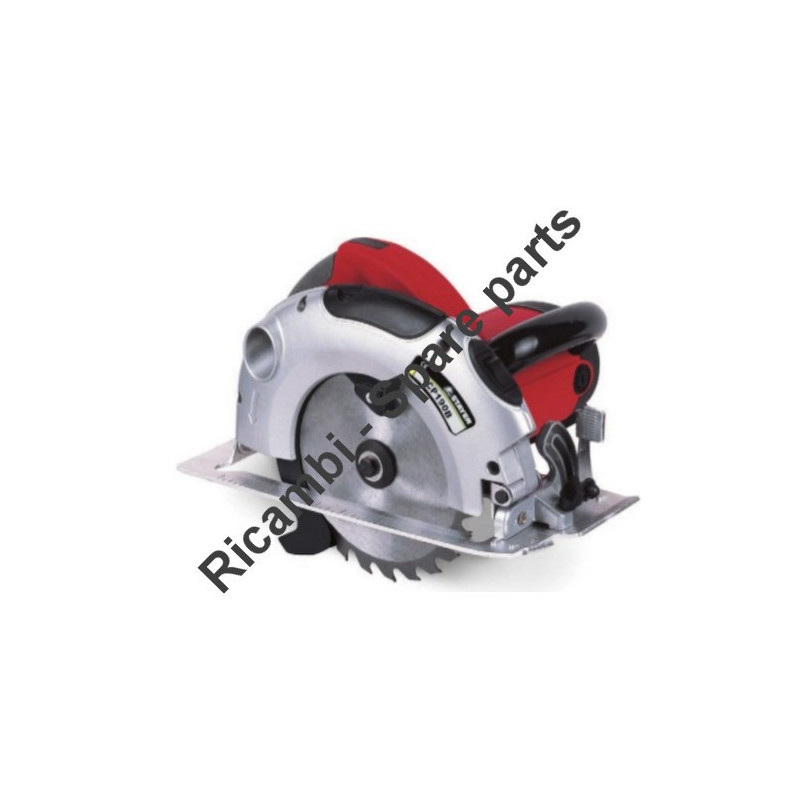

Stayer Spare Parts for Circular Saw CP190B
€3.18
Tax included
Stayer Spare Parts for ;Circular Saw CP190B
STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw CP190B.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Stayer Spare Parts for ;Circular Saw CP190B
STAYER Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw CP190B.In the following table, look for the model of the CIRCULAR SAWS and the respective parts of the code.
| CIRCULAR SAW CP190B | ||
| # | Part Num. | Description |
| 1 | - | CABLE |
| 2 | 5009598 | CABLE ARMOR |
| 3 | 5009599 | HANDLE SUPPORT |
| 4 | 5009600 | SWITCH COVER |
| 5 | 5009601 | TERMINAL BLOCK |
| 6 | 5009602 | NOISE SUPPRESSOR |
| 7 | 5009603 | SWITCH |
| 8 | 5009604 | HANDLE COVER |
| 9 | 5009605 | SCREW |
| 10 | 5009606 | UP SUB HANDLE |
| 11 | 5009607 | SCREW |
| 12 | 5009608 | FLAT WASHER |
| 13 | 5009609 | SCREW |
| 14 | 5009610 | DOWN SUB HANDLE |
| 15 | 5009611 | MOTOR HOUSING |
| 16 | 5009612 | BRUSH HOLDER |
| 17 | 5009613 | CARBON BRUSH |
| 18 | 5009614 | SOFT START |
| 19 | 5009615 | CARBON BRUSH CAP |
| 20 | 5009616 | SCREW |
| 21 | 5009617 | SCREW |
| 22 | 5009618 | CORD CLAMP |
| 23 | 5009619 | BALL BEARING 628 |
| 24 | 5009620 | ARMATURE |
| 25 | 5009621 | BALL BEARING 6001 |
| 26 | 5009622 | RUBBER PIN |
| 27 | 5009623 | MOTOR HOUSING COVER |
| 28 | 5009624 | WASHER |
| 29 | 5009625 | SPRING FOR BEVEL ADJUSTMENT |
| 30 | 5009626 | SPINDLE LOCK BUTTON |
| 31 | 5009627 | SHAFT LOCKING CAP |
| 32 | 5009628 | COTTER |
| 33 | 5009629 | SCREW |
| 34 | 5009630 | KEY |
| 35 | 5009631 | FLANGE BOLT |
| 36 | 5009632 | BEVEL ADJUSTMENT BOLT |
| 37 | 5009633 | C RING |
| 38 | 5009634 | STATOR |
| 39 | 5009635 | DEEPTH ADJUSTMENT FIXATION BOLT |
| 40 | 5009636 | LASER SPRING |
| 41 | 5009637 | BAFFLE FUN |
| 42 | 5009638 | CELL COVER LOCK KNOB |
| 43 | 5009639 | O SEAL RING |
| 44 | 5009640 | BATTERY HOLDER COVER |
| 45 | 5009641 | BATTERY SPRING |
| 46 | 5009642 | COPPER TOUCH SLICE |
| 47 | 5009643 | BATTERY HOLDER |
| 48 | 5009644 | SCREW |
| 49 | 5009645 | UPPER GUARD SUPPORT |
| 50 | 5009646 | DEEPTH ADJUSTMENT SCREW |
| 51 | 5009647 | SWTICH HOLDER |
| 52 | 5009648 | CENTER BEARING BRACKET |
| 53 | 5009649 | LOW GUARD TENSION SPRING |
| 54 | 5009650 | SCREW |
| 55 | 5009651 | SCREW |
| 56 | 5009652 | NEEDLE BEARING HK1010 |
| 57 | 5009653 | ELASTIC COLLAR |
| 58 | 5009654 | OUTPUT GEAR |
| 59 | 5009655 | SPRING BEARING PLATE |
| 60 | 5009656 | OUTPUT SHAFT |
| 61 | 5009657 | LOW GUARD BUTTON |
| 62 | 5009658 | C RING |
| 63 | 5009659 | BALL BEARING 6202 |
| 64 | 5009660 | BEARING SUPPORT |
| 65 | 5009661 | SCREW |
| 66 | 5009662 | ELASTIC COLLAR |
| 67 | 5009663 | LED LAMP |
| 68 | 5009664 | LASER |
| 69 | 5009665 | LASER BRACKET |
| 70 | 5009666 | BUMPER |
| 71 | 5009667 | SCREW |
| 72 | 5009668 | PIN FOR UPPER GUARD |
| 73 | 5009669 | LASER SWITCH |
| 74 | 5009670 | SCREW |
| 75 | 5009671 | LOW GUARD BUSHING |
| 76 | 5009672 | BEVEL ADJUSTMENT FIXATION BOLT |
| 77 | 5009673 | LOW GUARD |
| 78 | 5009674 | WASHER |
| 79 | 5009675 | PARALLEL FENCE FIXATION KNOB |
| 80 | 5009676 | BEVEL SCALE |
| 81 | 5009677 | SCREW |
| 82 | 5009678 | ELASTIC COLLAR |
| 83 | 5009679 | BEVEL ADJUSTMENT BOLT |
| 84 | 5009680 | INNER BLADE WASHER |
| 85 | 5009681 | SCREW FOR BEVEL ADJUSTMENT |
| 86 | 5009682 | RIVET FOR BEVEL ADJUSTMENT |
| 87 | 5009683 | DEEPTH ADJUSTMENT BLOCK |
| 88 | - | SAW BLADE |
| 89 | 5009684 | SCREW |
| 90 | 5009685 | STEEL CUTTING BASE |
| 91 | 5009686 | OUTER BLADE WASHER |
| 92 | 5009687 | WASHER |
| 93 | 5009688 | RIVET FOR DEEPTH ADJUSTMENT |
| 94 | 5009689 | BOLT |
| 95 | 5009690 | UPPER GUARD COVER |
| 96 | 5009691 | RED STEEL PAPER WASHER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
