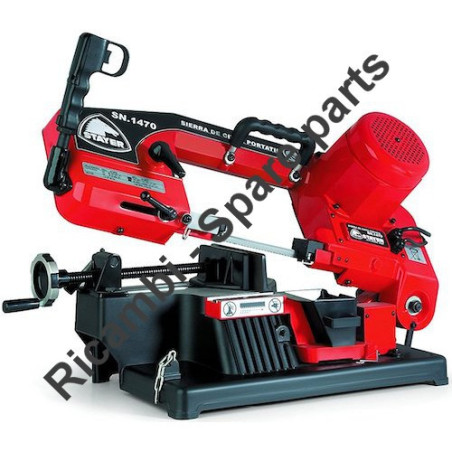

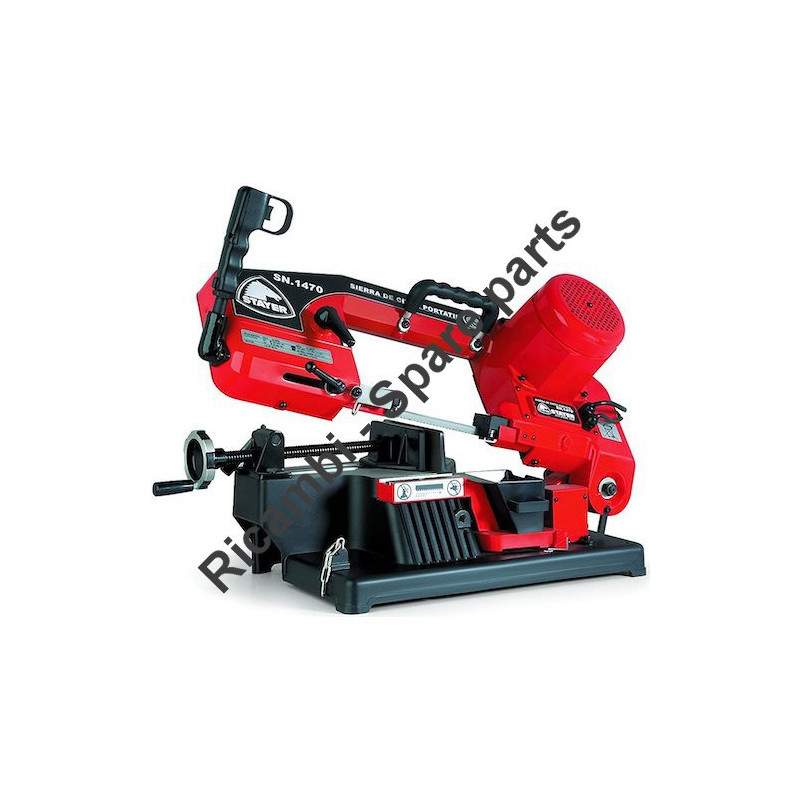

Stayer Spare Parts for Band Saw SN1470

€301.29
Tax included

Stayer Spare Parts for Band Saw SN1470

Stayer original spare parts for replacing engine parts or parts of the frame or repairing damaged and worn components of Band Saw for Metal SN1470.

Single-phase induction motor.
Quick clamp with a maximum opening of 100 mm.
Size from 0o to 45o.
Adjustable saw band guide
Semiautomatic tensioner from the blade
Robust cast iron casting machine
Bimetal saw blade
ITEM CODE: 50011
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Stayer Spare Parts for Band Saw SN1470

Stayer original spare parts for replacing engine parts or parts of the frame or repairing damaged and worn components of Band Saw for Metal SN1470.

In the following table, look for the model of the Band Saw for Metal and the respective parts of the code.
Stayer SN1470

Band Saw SN1470
# Part Num. Description
1 50011 BASE
2 50012 CHAIN
3 50013 WASHER
3-1 50014 WASHER
3-2 50015 NUT
4 50016 SCREW
5 50017 NUT SET
6 50018 SCREW
7 50019 WASHER
8 500110 CYLINDER
9 500111 LIMIT
10 500112 SCREW
11 500113 SCREW
12 500114 SPRING
13 500115 NUT THREAD
14 500116 RATCHER
15 500117 WHEEL
16 500118 ALLEN SCREW
17 500119 SCREW
18 500120 WASHER
19 500121 SUPPORT
20 500122 ALLEN SCREW
21 500123 NUT
22 500124 PIN
23 500125 PIN
24 500126 HALF ROUND PIN
25 500127 THREAD
26 500128 THREAD SUPPORT
27 500129 SCREW
28 500130 NUT
29 500131 SCREW
30 500132 WASHER
31 500133 PLETINE
32 500134 TUBE
33 500135 SCREW
34 500136 SUPPORT
35 500137 SPRING
36 500138 SCREW
47 500139 SPRING
50 500140 SPINDLE
50-1 500141 NUT
51 500142 PIN
52 500143 SCREW
53 500144 SUPPORT
54 500145 SUPPORT
55 500146 SCREW
56 500147 SPRING
57 500148 SCREW
59 500149 NUT
60 500150 SCREW
60-1 500151 SCREW
60-2 500152 NUT
61 500153 WASHER
62 500154 WASHER
63 500155 SCREW
64 500156 SCREW
67-1 500158 WASHER
74 500159 SCREW
74-1 500160 WASHER
75 500161 PLETINE
76-1 500162 SUPPORT
77 500163 SCREW
77-1 500164 SCREW
82 500165 SCREW
83 500166 BEARING 608
84 500167 WASHER
84-1 500168 WASHER
85 500169 SCREW
86 500170 PROTECTOR
87 500171 FRONT BLOCK
88-1 500172 PLACE
88-2 500173 SCREW
88-3 500174 SCREW
88-4 500175 SPRING
88-5 500176 NUT
88-6 500177 THREAD
88-7 500178 NUT
89-1 500179 HANDLE
89-2 500180 PUSHER
89-3 500181 SPRING
89-4 500182 CAP
89-5 500183 SCREW
89-6 500184 SWITCH
89-7 500185 CAP
89-8 500186 SCREW
90 500187 SPINDLE
91 500188 LIMIT
92 500189 SUPPORT
93 500190 NUT
94 500191 SPACER
95 500192 SCREW
96 500193 PLATE
97 500194 SPRING
98 500195 SCREW
99 500196 GUIDE
100 500197 PLETINE SHEET
100-1 500198 SCREW
101 500199 FRONT PULLEY
102 5001100 BEARING
103 5001101 RING
104 5001102 WASHER
105 5001103 WASHER
106 5001104 SCREW
107 5001105 SCREW
108 5001106 SHEET COVER
112 5001107 SCREW
113 5001108 WASHER
114 5001109 WASHER
116 5001111 O-RING
117 5001112 BEARING
118 5001156 RING
119 5001113 MOTOR PULLEY
120 5001114 RING
121 5001115 GEAR
122 5001116 SCREW
123 5001117 COVER
124 5001118 ARC
124-1 5001119 LIMIT
124-2 5001120 SCREW
125 5001121 MOTOR
125-1 5001122 WASHER
125-2 5001123 SWITCH PLETINE
125-3 5001124 SCREW
126 5001125 STATOR
126-1 5001126 MOTOR COVER
126-2 5001127 WASHER
126-3 5001128 SCREW
129 5001129 SCREW
130 5001157 WASHER
131-1 5001159 CAPACITOR
132 5001160 COVER
132-1 5001161 CAP
133 5001162 SCREW
134 5001163 NUT
135 5001164 WASHER
137 5001165 HANDLE
147 5001166 WASHER
142 5001167 PIN
143 5001168 PLETINE
144 5001169 SCREW
145 5001170 WASHER
146 5001172 BACK BLOCK
148 5001130 SCREW
149 5001131 SCREW
150 5001132 WASHER
150-1 5001133 WASHER
151 5001134 BEARING 608
152 5001135 SCREW
153 5001136 PROTECTION
154 5001137 SCREW
155 5001138 SCREW
136 5001139 BEARING
136-1 5001140 PIN
156 5001141 LOCK LEVER
157 5001142 SPACER
158 5001143 WASHER
158-1 5001144 WASHER
159 5001145 SCREW
160 5001146 LEVER
161 5001147 WASHER
162 5001148 CABLE
162-1 5001149 PLETINE
162-2 5001150 PLETINE
162-3 5001151 SCREW
163 5001152 SCALE
167 5001153 CONTAINER
168 5001154 SCREW
169 5001155 PLATE SUPPORT
170 5001331 ARCH SUPPORT
171 5001174 COMPLETE HANDLE
172 5001332 LOCK SET
173 5001333 REAR BLADE GUIDE SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
