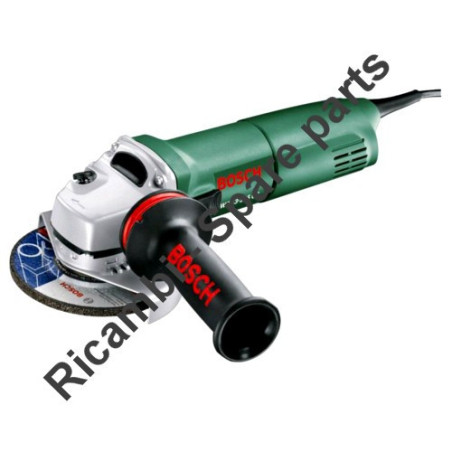

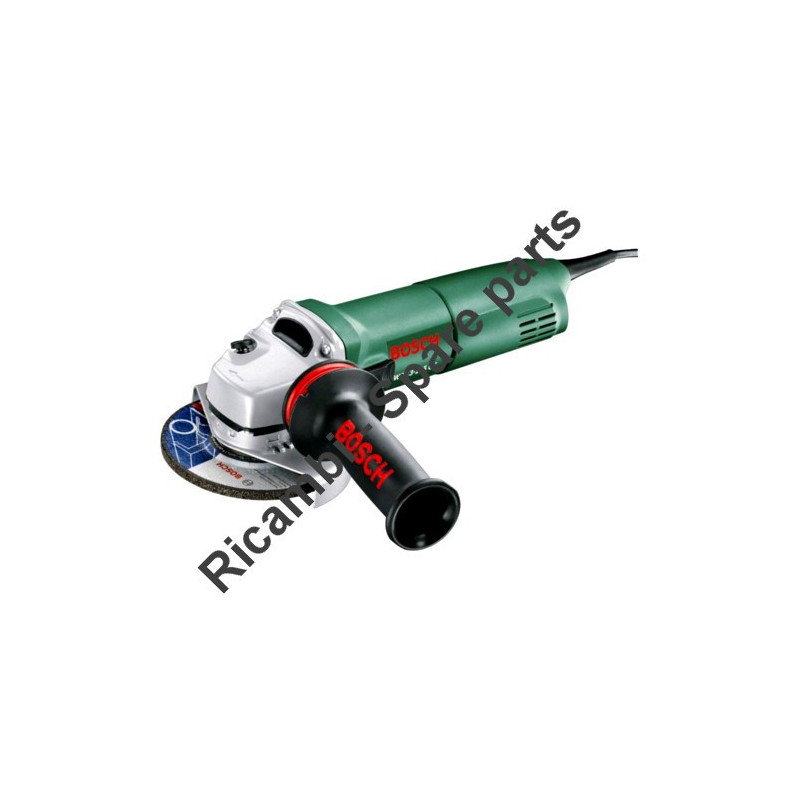

Bosch Spare Parts for Angle Grinder PWS 13-125CE
€2.31
Tax included
Bosch Spare Parts for Angle Grinder PWS 13-125CE
Bosch Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Angle Grinder PWS 13-125 CE - 0603280703.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Angle Grinder PWS 13-125CE
Bosch Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Angle Grinder PWS 13-125 CE - 0603280703.In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder PWS 13-125 CE/0 603 280 703 | ||
| 1 | 1 605 108 169 | Motor Housing GREEN |
| 2 | 1 604 220 284 | Field 220-230V |
| 3/50 | 1 606 610 132 | Fan |
| 6 | 1 600 703 030 | Grommet Ø6,4-Ø7,2x67 MM |
| 7 | 1 601 302 017 | Fastening Clamp |
| 9 | 1 601 110 998 | Manufacturer's nameplate |
| 13 | 2 600 905 032 | Deep-Groove Ball Bearing 7x19x6 |
| 14 | 1 600 905 032 | Deep-Groove Ball Bearing 8x22x7 |
| 17 | 1 604 652 013 | Spiral Spring |
| 18 | 1 602 319 013 | Switch-Pawl BLACK |
| 19 | 1 604 611 024 | Compression Spring |
| 20 | 1 602 319 007 | Shift-Lever Knob BLACK |
| 25 | 1 605 500 179 | Housing Cover GREEN |
| 26 | 1 600 206 036 | Rubber Ring |
| 27 | 1 600 206 025 | Rubber Ring |
| 29 | 1 600 591 013 | Air-Deflector Ring |
| 30 | 1 600 591 014 | Air-Deflector Ring |
| 31 | 1 601 290 007 | Clamping Spring |
| 32 | 1 603 523 110 | Grinding Spindle M14, SW17 |
| 33 | 1 600 210 035 | O-Ring 46,0x1,1 MM |
| 35 | 1 600 136 013 | Shim 0,1 MM THICK |
| 1 600 136 020 | Shim 0,15 MM THICK | |
| 1 600 136 014 | Shim 0,2 MM THICK | |
| 1 600 136 015 | Shim 0,3 MM THICK | |
| 37 | 1 600 290 016 | Rotary shaft lip seal |
| 40 | 1 600 119 011 | Spring retaining ring |
| 41 | 1 600 910 018 | Needle bearing Ø8xØ12x8 MM |
| 45 | 1 603 300 016 | Hex Nut M7, SW10 |
| 47 | 2 912 401 018 | Tapping Screw DIN7981-ST3,9x13-C-Z |
| 49 | 1 603 435 026 | Thread-forming tap. Screw |
| 50 | 1 603 435 037 | Plastic-Cutting Screw |
| 51 | 1 607 233 056 | Speed governor 230V |
| 55 | 2 912 401 022 | Tapping Screw DIN 7981-ST3,9x25-C-Z |
| 56 | 1 603 435 044 | Plastic-Cutting Screw |
| 57 | 1 603 429 002 | Socket head cap screw M3,5x7 MM |
| 80 | 3 600 150 021 | Sealing disk |
| 104 | 1 600 210 044 | O-Ring 4,5x1,0 MM BLUE |
| 650/50/20 | 1 600 210 039 | O-Ring 20,35x1,78 MM |
| 700 | 2 607 001 188 | Parts Set Ø 125 MM |
| 700/10 | 2 605 510 101 | Protective Cover Ø 125MM |
| 700/20 | 1 608 135 004 | Guide Block |
| 700/20/30 | 2 910 281 158 | Round-Head Bolt DIN 603-M 5x16 |
| 700/20/40 | 2 915 191 105 | Wing Nut M 5 DIN 315-G-5 |
| 700/20/50 | 1 604 643 004 | Compression Spring |
| 750/10 | 2 602 025 067 | Auxiliary Handle M10, Ø32,5x105 MM |
| 750/20 | 1 603 340 040 | Clamping Nut M14 |
| 750/30 | 1 607 950 043 | Pin-Type Face-Wrench |
| 750/50 | 1 605 703 099 | Clamping-Flange Ø22,2x42 MM |
| 751 | 2 605 510 104 | Protective Cover Ø 125MM SILVER |
| 752 | 1 603 340 031 | Fast Locking Flange M14 |
| 753 | 1 605 438 089 | Carrying Case |
| 767 | 2 605 510 107 | Suction Hood Ø115-125MM |
| 767/703 | 2 605 730 036 | Brush |
| 803 | 1 604 010 445 | Armature With Fan 220-230V |
| 804 | 1 607 200 115 | Switch |
| 805 | 1 607 000 228 | Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F |
| 808 | 1 601 106 032 | Nameplate 26x52 MM |
| 810 | 1 607 014 147 | Carbon Brush |
| 816 | 1 604 336 031 | Brush Holder |
| 821 | 1 605 806 451 | Gear Housing |
| 821/010 | 1 607 000 253 | Push-Button BLACK |
| 828 | 1 605 805 079 | Bearing Flange BLACK |
| 838 | 1 600 A00 22W | Gear Unit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of
Bosch PWS 13-125 CE - 0603280703
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
