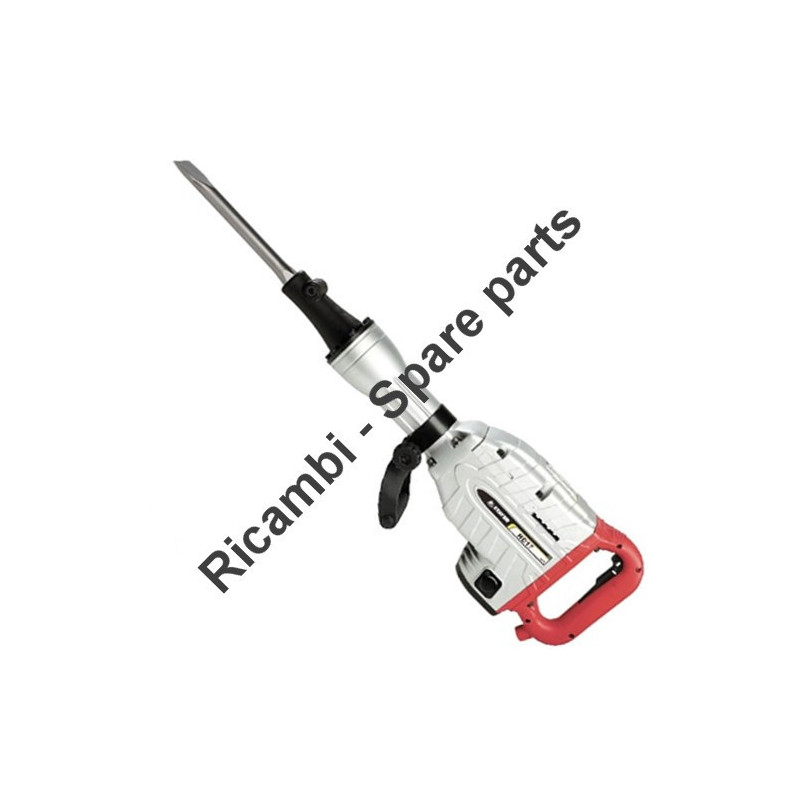

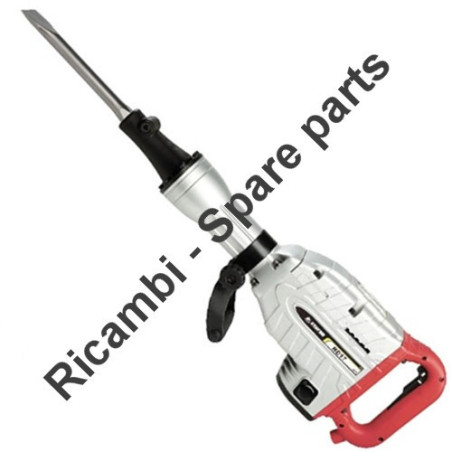

Stayer Spare Parts for Demolition Hammer HD17K
search
  • Stayer Spare Parts for Demolition Hammer HD17K
  • Stayer Spare Parts for Demolition Hammer HD17K

Stayer Spare Parts for Demolition Hammer HD17K

€160.69
Tax included

Stayer Spare Parts for Demolition Hammer HD17K

We have the original Spares STAYER for Demolition Hammer HD17K the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Demolition Hammer HD17K. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
ITEM CODE: 1125200
Quantity
on 10/15 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Stayer Spare Parts for Demolition Hammer HD17K

We have the original Spares STAYER for Demolition Hammer HD17K the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Demolition Hammer HD17K. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the HAMMER and the respective parts of the code.
Stayer HD17K

HAMMER HD17K
# Part Num. Description
1 1125200 HOUSING ASSY
1B 1125201 STATOR ASSY
2 1125202 BRUSH HOLDER
3 1125203 SCREW
4 1125204 STATOR
5 1125205 CAP RUBBER
6 1125206 WASHER
7B 1125207 SCREW
8 1125208 FLAT SCREW
9 1125209 FAN GUIDE
10 1125210 ARMATURE
12 1125211 WASHER
13 1125212 BALL BEARING 62012RS
13A 1125213 BALL BEARING 62012RZ
14 1125214 SCREW
15 1125215 SCREW
17 1125216 SCREW
18 1125217 INNER COVER
19 1125218 BEARING 62032RS
20 1125219 BEARING COVER
22 1125220 BEARING 6001 2RZ
23 1125221 GEAR
24 1125222 WASHER
25 1125223 BEARING 6205 2RS
26 1125383 RING
27 1125224 CRANK CHAFT
27B 1125225 CRANK SHAFT RING
28 1125226 SPACER
29B 1125227 WOODRUFF KEY
30 1125228 FINAL GEAR
31 1125229 BEARING 6202 2Z
31A 1125230 OIL WASHER
32 1125231 PIN
33 1125232 UPPER COVER
34 1125233 FLAT WASHER
35 1125234 SCREW
35A 1125235 SCREW
36A 1125236 CONNECTING ROD ASSY
37 1125237 NEEDLE BEARING 1820
38 1125238 PLETINE
38B 1125239 SCREW
39 1125240 WAHSER
40 1125241 BEARING COVER
41 1125242 SCREW
41B 1125243 WASHER
42 1125244 PISTON
42A 1125245 O-RING
43 1125246 L-RING
44 1125247 PISTON PIN
45 1125248 CYLINDER
46 1125249 ALUMINIUM HEAD
47 1125250 SCREW
48 1125251 RING
49 1125252 WASHER
50 1125253 MOUTH COVER
51 1125254 MOUTH
52 1125255 DUST COVER
53 1125256 WASHER
54 1125257 SPACER
55 1125258 WASHER
56 1125259 STRIKER
57 1125260 WASHER
58 1125261 SEAL OIL
59 1125262 SCREW
62 1125263 OIL COVER
62A 1125264 WASHER
65 1125265 LOCK RING
66 1125266 CARBON BRUSHES
67 1125267 BRUSH COVER
67A 1125268 COVER
68 1125269 SWITCH
69 1125270 WASHER
70 1125271 LOCK LEVER COVER
71 1125272 SPRING
72 1125273 FRONT COVER
73 1125274 LOCK ROD
74 1125275 SCREW
75 1125276 COVER
76 1125277 SCREW
77 1125278 HANDLE
78 1125279 HANDLE COVER
80 1125280 VIBRATION ABS
83 1125281 CABLE ARMOR
85A 1125283 CLAMP
88 1125284 INDUCTANCE
91-96 1125285 AUX HANDLE
97 1125286 RIVET
98 1125287 KEY 4MM
99 1125288 KEY5MM
100 1125289 WRENCH 6MM
101 1125290 DRIVER
102 1125291 OIL KEY
103 1125292 OIL

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Stayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Stayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
