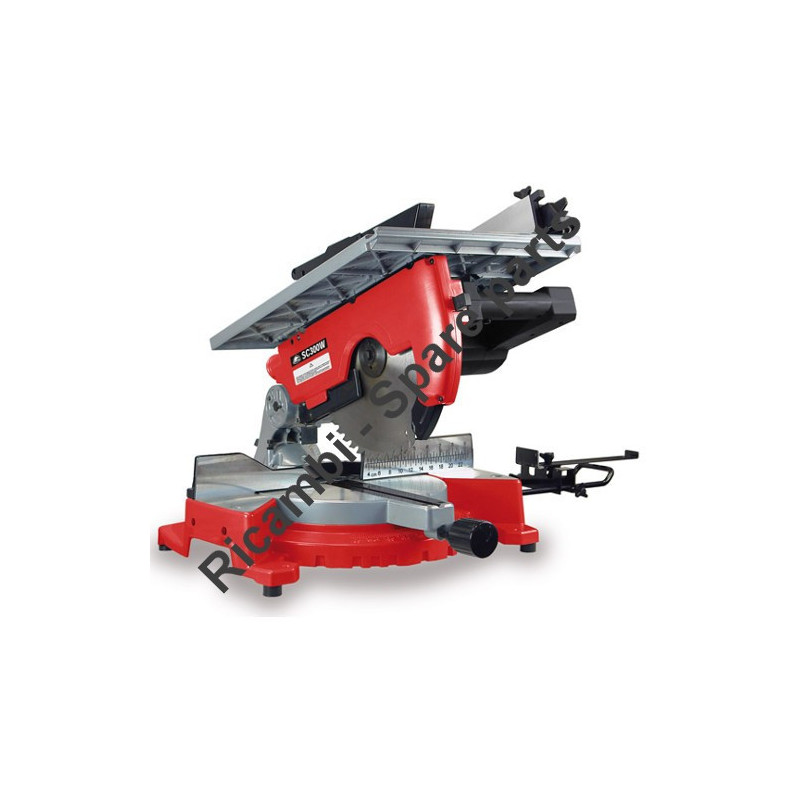

Stayer Spare Parts for Mitre Saw SC300W
€3.18
Tax included
Stayer Spare Parts for Mitre Saw SC300W
STAYER authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Mitre Saw SC300W.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Stayer Spare Parts for Mitre Saw SC300W
STAYER authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Mitre Saw SC300W.In the following table, look for the model of Mitre Saw and the respective parts of the code.
| MITRE SAW SC 300W | ||
| # | Part Num. | Description |
| 1 | 5009920 | SCREW |
| 2 | 5009921 | LOCK SPRING WASHER |
| 3 | 5009922 | LOCK HANDLE COVER |
| 4 | 5009923 | SCREW |
| 5 | 5009924 | LOCK HANDLE |
| 6 | 5009925 | CORRUGATION PAD |
| 7 | 5009926 | SCREW |
| 8 | 5009927 | ORIENTATION SPRING |
| 9 | 5009928 | WASHER |
| 10 | 5009929 | STEEL BALL |
| 11 | 5009930 | SCREW |
| 12 | 5009931 | EXTENDER BAR |
| 13 | 5009932 | ROUND PLATE POINTER |
| 14 | 5009933 | SCREW |
| 15 | 5009934 | ROUND BASE LINING PLATE |
| 16 | 5009935 | SCREW |
| 17 | 5009936 | FASTENING GUARD |
| 18 | 5009937 | ROUND PLATE SCREW |
| 19 | 5009938 | ROUND PLATE |
| 20 | - | FRAME LESS FRICTION WASHER |
| 21 | 5009939 | SCREW |
| 22 | 5009940 | LEFT PREVENT BOARD |
| 23 | 5009941 | ROUND PLATE BOARD |
| 24 | 5009942 | SCREW |
| 25 | 5009943 | FRAME PIN BEARING |
| 26 | 5009944 | SPRING PUSHER |
| 27 | 5009945 | PUSH PIN BEARING |
| 28 | 5009946 | ROCKER |
| 29 | 5009947 | REDUCES FRICTION SLICE |
| 30 | 5009948 | SCREW |
| 31 | 5009949 | SCREW |
| 32 | 5009950 | BASE PLATE |
| 33 | 5009951 | SCREW |
| 34 | 5009952 | RUBBER FEET |
| 35 | 5009953 | BEARING PIN SAHFT |
| 36 | 5009954 | SUPPORT |
| 37 | 5009955 | ROCKER POINTER |
| 38 | 5009956 | SCREW |
| 39 | 5009957 | SCREW |
| 40 | 5009958 | SWITCH BOARD |
| 41 | 5009959 | CORNER LABEL |
| 43 | 5009960 | BINDING POST |
| 44 | 5009961 | FRAME WASHER |
| 45 | 5009962 | SCREW |
| 46 | 5009963 | SWITCH |
| 47 | 5009964 | RIGHT FIXED BOARD |
| 48 | 5009965 | FRAME COVER |
| 49 | 5009966 | SCREW |
| 50 | 5009967 | CLAMPING WASHER |
| 51 | - | SAW BLADE |
| 52 | 5009968 | EXTENSION LOCATING RULER |
| 53 | 5009969 | LOWER FLANGE |
| 54 | 5009970 | SLIDER GUARD |
| 55 | 5009971 | SCREW |
| 56 | 5009972 | LOCATING RULER CLAMPING KNOB |
| 57 | 5009973 | LOCATING RULER |
| 58 | 5009974 | ELASTIC COLLAR |
| 59 | 5009975 | SCREW |
| 60 | 5009976 | BEARING SUPPPORT |
| 61 | 5009977 | COLLAR |
| 62 | 5009978 | BEARING 6004 |
| 63 | 5009979 | HELICAL GEAR |
| 64 | 5009980 | ELASTIC COLLAR |
| 65 | 5009981 | TRANSMISSION SHAFT |
| 66 | 5009982 | FLAT WASHER |
| 67 | 5009983 | PUSH ROD |
| 68 | 5009984 | RELAX & LOCK KNOB |
| 69 | 5009985 | POWER CABLE FLAT |
| 70 | 5009986 | HANGER SPRING |
| 71 | 5009987 | SPRING |
| 72 | 5009988 | FRAME |
| 73 | 5009989 | SCREW |
| 74 | 5009990 | CORRUGATION PAD |
| 75 | 5009991 | WASHER |
| 77 | 5009992 | WASHER |
| 78 | 5009993 | WOOL WASHER |
| 79 | 5009994 | BEARING 6201 |
| 80 | 5009995 | ARMATURE |
| 81 | 5009996 | SCREW |
| 82 | 5009997 | BEARING 629 |
| 83 | 5009998 | CLAMPING SPRING |
| 84 | 5009999 | CLAMPING ROD HANDLE |
| 85 | 50091000 | CLAMPING ROD |
| 86 | 50091001 | SCREW |
| 87 | 50091002 | BREAK WIND RING |
| 88 | 50091003 | SCREW |
| 89 | 50091004 | WASHER |
| 90 | 50091005 | STATOR |
| 91 | 50091006 | UPPER HANDLE |
| 92 | 50091007 | SCREW |
| 93 | 50091008 | ELECTRONIC BOARD |
| 94 | 50091009 | BRUSH HOLDER |
| 95 | 50091010 | COPPER SET |
| 96 | 50091011 | CARBON BRUSH |
| 97 | 50091012 | HOUWING |
| 98 | 50091013 | LOWER HANDLE |
| 99 | 50091014 | SCREW |
| 100 | 50091015 | HOUSING COVER |
| 101 | 50091016 | SCREW |
| 102 | 50091017 | SCREW |
| 103 | 50091018 | UPPER FLANGE |
| 104 | 50091019 | SCREW |
| 105 | 50091020 | BOTTON CONNECT BAR |
| 106 | 50091021 | LEFT TABLE PERVENT GUARD |
| 107 | 50091022 | RETAINING RING |
| 108 | 50091023 | MIDDLE CONNECT BAR |
| 109 | 50091024 | SCREW |
| 110 | 50091025 | UPPER CONNECT BAR |
| 111 | 50091026 | BOTTON CONNECT BAR SCREW |
| 113 | 50091027 | CLAMPING KNOB |
| 114 | 50091028 | EXTENSION ROB SUPPORT |
| 115 | 50091029 | PUSHER |
| 116 | 50091030 | ELASTIC COLLAR |
| 117 | 50091031 | O RING |
| 118 | 50091032 | NEEDLE BEARING HK1210 |
| 119 | 50091033 | HEEL BLOCKS PLATE |
| 120 | 50091034 | SCREW |
| 121 | 50091035 | BLADE FELLOW |
| 122 | 50091036 | HANGER |
| 123 | 50091037 | GUIDE CLAMPING ROD |
| 124 | 50091038 | GUIDE CLAMPING BLOCK |
| 127 | 50091039 | GUIDE CLAMPING ROD |
| 128 | 50091040 | SCREW |
| 129 | 50091041 | SCREW |
| 130 | 50091042 | PUSH PIN HANDLE |
| 131 | 50091043 | LOWER CONNECTION BOX |
| 133 | - | PLUG |
| 134 | 50091044 | INDUCTANCE |
| 135 | 50091045 | SCREW |
| 137 | 50091046 | UPPER CONNECTION BOX |
| 138 | 50091047 | WASHER |
| 139 | 50091048 | SPRING WHASER |
| 140 | 50091049 | SCREW |
| 141 | 50091050 | TABLE BOARD GUIDER |
| 142 | 50091051 | TABLE LABEL |
| 143 | 50091052 | SCREW |
| 144 | 50091053 | GUIDER SPIRNG ROB |
| 145 | 50091054 | GUIDER SPRING |
| 146 | 50091055 | SCREW |
| 147 | 50091056 | SCREW |
| 148 | 50091057 | TABLE BOARD GUIDER |
| 152 | 50091058 | LOCKNUT |
| 153 | 50091059 | TABLE POINTER |
| 154 | 50091060 | TABLE CLAMPING HANDWHEEL |
| 155 | 50091061 | TABLE ORIENTATION PLATE |
| 156 | - | GUIDE FEET SLIDER |
| 157 | 50091062 | TABLE BOARD |
| 158 | 50091063 | TABLE LINING PLATE |
| 159 | 50091064 | SCRWE |
| 160 | 50091065 | GUILD RULER |
| 161 | 50091066 | PUSH ROD |
| 162 | 50091067 | SCREW |
| 163 | 50091068 | RIGHT TABLE PERVENT GUARD |
| 164 | 50091070 | TABLE PERVENT GUARD BOARD |
| 165 | 50091071 | EXTENSION FEET |
| 166 | 50091072 | SPLIT PIN |
| 167 | 50091073 | SPRING |
| 168 | 50091074 | BACK EXTENSIONS SUPPORT BOARD |
| 169 | 50091075 | SCREW |
| 170 | 50091076 | SNAP RING |
| 171 | 50091077 | ROUND PLATE CLAMPING BLOCK |
