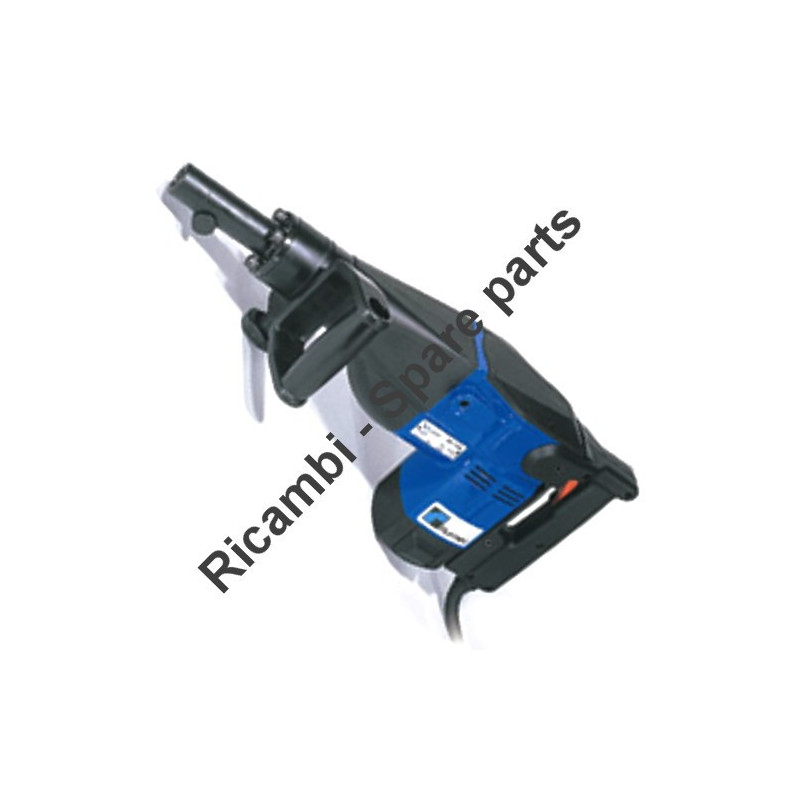

Rurmec Spare Parts for Rotary Hammer DH1500

€42.20
Tax included

Rurmec Spare Parts for Rotary Hammer DH1500

Rurmec original for to replace broken parts for to fix Rotary Hammer DH 1500.

Fix Your Rotary Hammer. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
ITEM CODE: 357001
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Rurmec Spare Parts for Rotary Hammer DH1500

Rurmec original for to replace broken parts for to fix Rotary Hammer DH 1500.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.


Rotary Hammer DH 1500
0 357240 BOX DH 1500-DR 70
1 357001 HANDLE DH 1500-DR70
2 357002 BUSH UPPER DH 1500-DR70
3 357003 SWITCH 220-240 DH1500
4 357004 BRASS WASHER DIN 125 DH1500
5 357005 NUT M8 DIN 963 DH1500-DR70
6 357006 SUPPRESSOR 220-240V
7 357007 SCREW M4X70 DIN 798a DH1500-
8 357008 BUSH LOWER DH1500-DR70
9 357009 SCREW M4x20 DIN 7985A DH1500
10 357010 SCREW M4X10 DIN 7985A DH1500
11 357011 STOPS CABLE DH1500-DR70
12 357012 CABLE DH1500-DR70
13 357013 POWER CABLE 240V DH1500
14 357014 PUNTA retainer DH1500
15 357015 ROD DH1500-DR70
16 357016 PIN DH1500-DR70
17 357017 PISTON DH1500-DR70
18 357018 SEAL PISTON DH1500
19 357019 POKER DH1500-DR70
20 357020 O-RING 3231 DH1500-DR70
21 357021 CAP DH1500
22 357022 SCREW M8X25 DIN 912 DH1500
23 357023 BARREL STEEL DH1500-DR70
24 357024 PIPE PROTECTION DH1500
25 357025 SPRING HANDLE SIDE
26 357026 TOOL HOLDER ESAG 19 mm
28 357028 FLAT WASHER D5 DIN 125A
29 357029 LOCK WASHER D5 DIN127 / B
30 357030 SCREW M5X16 DIN 933 DH1500-DR70
31 357031 DISTANCE DH1500
32 357032 SPRING DH1500-DR70
41 357041 BUMPERS DH1500-DR70
42 357042 RING BUMPERS STEEL
43 357043 STRIKER DH1500-DR70
44 357044 O-RING 2093 DH1500-DR70
45 357045 O-RING 2137 DH1500-DR70
50 357050 LOCK WASHER D8 DIN 7980
51 357051 SCREW M8x55 DIN 912 DH1500
55 357055 COVER DH1500-DR70
57 357057 SCREW M8X25 DIN 933 DH1500-DR70
58 357058 WASHER D8 DIN 125A DH1500
59 357059 FLYER DH1500-DR70
60 357060 HANDLE SIDE DH1500
66 357066 SCREW M4x16 DIN 965A DH1500
68 357068 ROD NUT M10X1 DIN 985
69 357069 WASHER ROD DH1500-DR70
70 357070 BEARING ROLLER NA4900
71 357071 Spacer CUSHION ROD
72 357072 WHEEL GEARS OPRINCIPALE
73 357073 SEEGER The DIN 35 472 DH1500
74 357074 BEARING 6202 2BRS T9H 3C
75 357075 SCREW M5X16 DIN 965A DH1500
76 357076 BEARING 6202-2RS DH1500
77 357077 NUT SPECIAL DH1500-DR70
78 357078 PIVOT ROD DH1500-DR70
79 357079 CARCASS DH1500-DR70
80 357080 FAN DH1500-DR70
81 357081 220-240V AND ARMATURE BY POS80
82 357082 BEARING 62002BRS T9H 3C
83 357083 CASH INSULATING STATOR DH1500
85 357085 STATOR 220-240V WITH POS86-87-83
86 357086 WASHER GEAR INDD5DIN6797
87 357087 SCREW M5X65 DIN 912 DH1500-DR70
89 357089 SCREW M4x20 DIN965A DH1500
90 357090 LITTLE COVER BRUSH DH1500
91 357091 WAVY WASHER D4 DIN137B
92 357092 SCREW M4X10 DIN 7985A DH1500
93 357093 CARBON BRUSHES DH1500-DR70
94 357094 PIPE wiper DH1500
95 357095 SCREW M6x55 DIN 912 DH1500
98 357098 SCREW M6x70 DIN 912 DH1500
99 357099 SCREW M6X85 DIN912 DH1500-DR70
100 357100 NUT M6 DIN936 h4 DH1500-DR70
101 357101 RING ARRESTER DH1500-DR70
102 357102 RINGS DH1500-DR70
104 357104 SHAFT GEAR HOME
105 357105 FELT DH1500-DR70
106 357106 RING DH1500-DR70
109 357109 SEAL DH1500-DR70
110 357110 COVER DH1500-DR70
111 357111 CABLE DH1500-DR70
112 357112 INSULATION PIPE DH1500-DR70
113 357113 COVER BRUSH WITH POS
115 357115 POKER SEAL O-RING 5
200 357115 POKER SEAL O-RING 5
201 357201 Retainer DH1500-DR70
202 357202 BUSH FOR retainer
203 357203 PLUG DH1500-DR70
