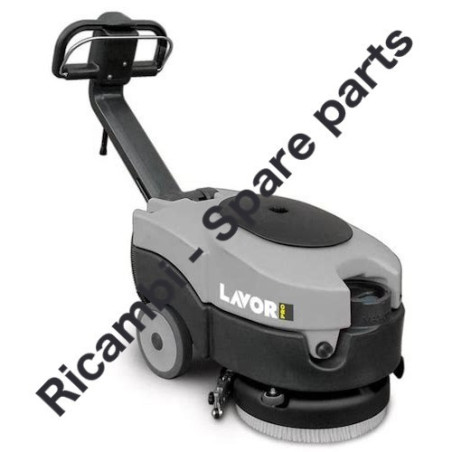

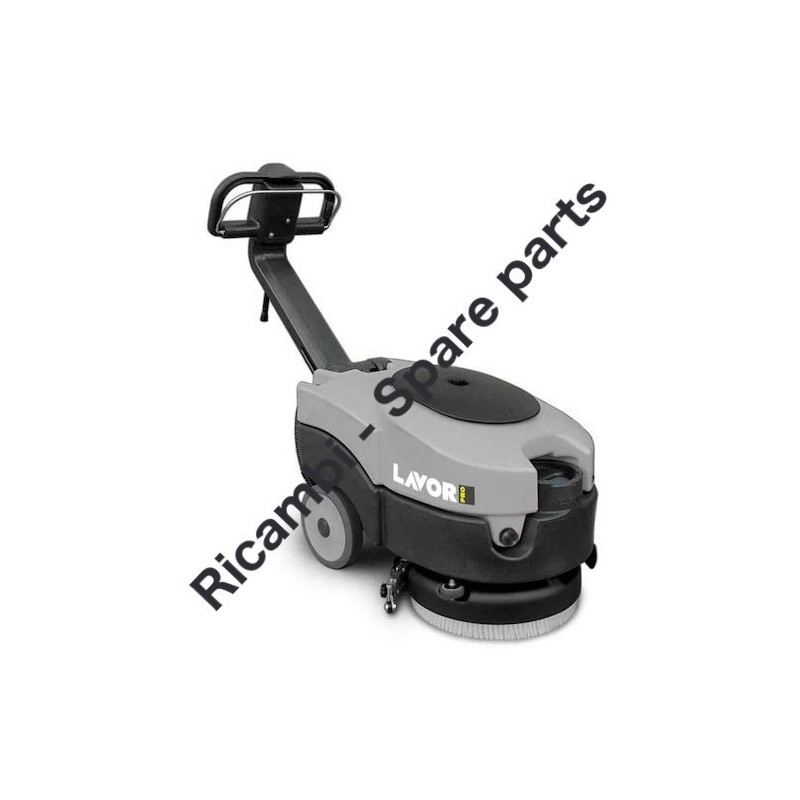

Lavor Pro Original Parts for Floor Scrubber Drier QUICK 36E
Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004.Fix Your Floor Scrubber Drier QUICK 36E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Pro Original Parts for Floor Scrubber Drier QUICK 36E
Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004.
In the following tables, look for the spare part and its respective code.
| QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004 | ||
| Pag.1 | ||
| 0 | 5.509.2172 | FLICK/QUICK SQUEGEE GROUP '16 |
| 0 | 5.509.1447 | FLICK/QUICK RECOVERY GROUP |
| 0 | 5.509.1449 | FLICK/QUICK ELECTRIC CONTROL HANDLE WITH SCHUKO PLUG |
| 0 | 5.509.1445 | FLICK/QUICK ELECTRIC SOLUTION GROUP |
| 0 | 5.509.1451 | FLICK/QUICK ELECTRIC PLATE GROUP |
| 0 | 5.511.2213 | PRESSOR BRUSH ASSEMBLY MOD. PP0.6 D360 |
| 1 | 4.508.1050 | FLICK/QUICK UPPER RECOVERY TANK, CHROME GROUP, RAL 7040 |
| 2 | 4.508.1042 | FLICK/QUICK LOWER SOLUTION TANK, SCREEN GROUP, RAL 7021 |
| 3 | 5.511.2213 | PRESSOR BRUSH ASSEMBLY MOD. PP0.6 D360 |
| 4 | 4.508.0420 | FLP BODYWORK PROTECTION BUSH |
| GR.PIATTO FLICK / QUICK ELETTRICA Pag.2 | ||
| 0 | 5.511.2311 | QUICK Y21B FLAT CUTTER ASSEMBLY |
| 1 | 6.505.0070 | REPLACEMENT KIT FOR QUICK FLAT CUTTER MOTOR WITH CONDENSER |
| 3 | 3.099.1394 | BRUSH BELT |
| 4 | 3.404.0077 | CAPACITATOR 12.5MF 425V 10000H/CL.B - 475V 3000H/CL.C.C/CABLE |
| 5 | 3.404.0076 | START CAPACITOR 40MF +/- 5% 220/240V D. 50X95 |
| ASSIEME SPAZZ.PRESSORI MOD PP0,6 D360 Pag.3 | ||
| 1 | 5.511.2201 | ASSIEME INNESTO SPAZZOLA BIDIREZIONALE CON PRESSORI |
| GRUPPO SQUEGEE FLICK / QUICK '16 Pag.4 | ||
| 1 | 5.513.0313 | SQG REAR BLADE STOP. QUICK |
| 2 | 4.507.1554 | QUICK FRONT BLADE STOP. |
| 3 | 4.508.1101 | REAR SQUEEGEE BLADE (NATURAL RUBBER) |
| 4 | 4.508.1100 | FRONT SQUEEGEE BLADE (NATURAL RUBBER) |
| 5 | 4.508.1039 | INTAKE COLLET |
| 6 | 6.505.0082 | KIT OF 1 WHEEL D.35 SQG. QUICK VERSION '16 / DYNAMIC |
| 7 | 3.099.1226 | BALL JOINT, HOLE D=8, M8 FEMALE SHAFT (STEEL-STEEL) |
| 8 | 5.513.0245 | SQG SWING ARM |
| 9 | 3.200.0212 | OR SEAL 2150 37.82X1.78 NBR SH.90 |
| 10 | 3.099.0477 | M6 THROUGH-N-HANDWHEEL |
| 11 | 4.507.1273 | PIN FOR LIFTING CABLE, SQG |
| 12 | 4.507.1245 | SUPPORT |
| 13 | 3.002.0822 | TT WITH SQG SUPPORT M6x45 UNI5731 STAINLESS STEEL |
| 14 | 3.002.0820 | M6x35 UNI 5732 STAINLESS STEEL ROUND HEAD SCREW WITH SQUARE UNDERHEAD |
| 15 | 4.507.1130 | SQUEGEE BALLAST |
| 16 | 4.508.1557 | QUICK SQUEGEE |
| GRUPPO RECUPERO FLICK/QUICK Pag.5 | ||
| 1 | 7.503.0376 | ENGINE COMPARTMENT STICKER FOR SWIFT B INTAKE |
| 2 | 5.511.1400 | INTAKE COVER ASSEMBLY |
| 3 | 5.511.1401 | QUICK FLOAT ASSEMBLY |
| 4 | 5.511.1511 | FILTER + SPONGE KIT |
| 5 | 5.511.0203 | RECOVERY TANK CAP KIT WITH SEAL |
| 6 | 3.752.0256 | EXHAUST PIPE |
| 7 | 4.208.0274 | DIAM.32mm CAP |
| 8 | 3.200.0077 | 2262 O-RING 64.39X1.78 NBR SH.70 |
| 9 | 4.507.0813 | M6X60 STAINLESS STEEL THREADED ROD |
| 10 | 4.507.1487 | QUICK COVER FIXING SPACER |
| 11 | 4.508.0565 | QUICK INSERT |
| 12 | 4.508.1610 | COVER SEALING RING |
| GR.MANICO COMANDI FLICK/ QUICK ELETTRICA CON SPINA SCHUKO Pag.6 | ||
| 0 | 5.511.1404 | CONTROL HANDLE ASSEMBLY |
| 0 | 3.499.0398 | WIRED DASHBOARD ASSEMBLY (FLICK/QUICK) |
| 1 | 5.511.1404 | CONTROL HANDLE ASSEMBLY |
| 2 | 3.499.0398 | WIRED DASHBOARD ASSEMBLY (FLICK/QUICK) |
| 3 | 3.406.0040 | PG 11 BLACK CABLE GLAND WITH TEAR PROTECTION |
| 4 | 3.499.0394 | H005VV-F CABLE 3X1.5 THICK SCHUKO L=1M WITH BLADE-TYPE CABLE TERMINAL |
| GR.SOLUZIONE FLICK/QUICK ELETTRICHE Pag.7 | ||
| 0 | 5.511.1397 | WHEEL AXLE ASSEMBLY |
| 1 | 4.507.1123 | WATER TAP BRACKET |
| 2 | 5.511.1407 | WHEEL BUMPER ASSEMBLY |
| 3 | 5.511.1397 | WHEEL AXLE ASSEMBLY |
| 5 | 4.513.0375 | FLICK/QUICK BRUSH COVER |
| 6 | 3.401.0175 | 230V 16A TOGGLE MICROSWITCH |
| 7 | 3.499.0395 | SOLENOID VALVE WIRING |
| 8 | 4.507.1251 | SQG LIFTING BRACKET |
| 9 | 4.508.1064 | SWIFT/FLICK DETERGENT TANK FILTER |
| 10 | 4.508.0739 | FILTERING SPONGE |
| 11 | 4.508.0689 | WHEEL FIXING AXLE |
| 12 | 3.401.0176 | IP65 TERMINAL COVER PROTECTION |
| 21 | 3.752.0190 | VAC HOSE |
| 22 | 3.404.0077 | 12.5MF CAPACITOR 425V 10000H/CL.B - 475V 3000H/CL.C.C/CABLE |
| 23 | 3.412.0029 | 2-WAY SOLENOID VALVE 1/4 220-230V 50/60HZ |
| 24 | 3.105.0012 | BALL VALVE TAP 1/4 F 1/4 M |
| 25 | 3.100.0340 | HOLDER FITTING G1/4 D10 |
| 27 | 3.099.1409 | HOSE CLIP D.25 |
| 28 | 3.099.1459 | SQUEEGEE LIFT CABLE COMPLETE |
| 29 | 3.100.0357 | 90 CONNECTOR G1/2 M - G1/2 M |
| 30 | 5.513.0230 | RELEASE PEDAL |
| 32 | 3.102.0020 | WATER FILTER 1/2G D.13 |
| 35 | 3.404.0076 | START CAPACITOR 40MF +/- 5% 220/240V D.50X95 |
| 46 | 5.511.1398 | SUCTION MOTOR ASSEMBLY |
| ASSIEME PIATTO QUICK Y21B Pag.8 | ||
| 1 | 5.513.0244 | FIXED BRUSH SUPPORT |
| 2 | 4.507.1125 | MOBILE BRUSH PLATE SUPPORT |
| 3 | 4.507.1272 | BRUSH PLATE TRACTION SPRING |
| 4 | 4.507.1124 | BELT TENSIONER LEVER |
| 5 | 3.001.0032 | 6002 2RS1 RADIAL BALL BEARING |
| 6 | 5.511.1385 | PULLEY ASSEMBLY |
| 7 | 4.507.1613 | BRUSH COUPLING FOR ATTACHMENT WITH PRESSURES |
| 8 | 4.508.1758 | BRUSH COUPLING CONICAL CENTERING WITH CENTRAL SCREW |
| ASSIEME MANICO COMANDO Pag.9 | ||
| 1 | 6.505.0137 | CONTROL ROD KIT WITH SCREW FOR QUICK |
| 2 | 4.508.1035 | DARK GREY GUIDE HANDLE RAL.7021 |
| 3 | 4.507.1248 | INTERNAL SQUARE CONTROL SUPPORT. EXP. B |
| 4 | 4.507.1269 | SAFETY LOCK SELECTOR |
| 5 | 4.508.1026 | SIDE JOINT PIN |
| 6 | 3.004.0105 | FLAT WASHER D.10X40 THICKNESS 2.5 STAINLESS STEEL UNI6593 |
| 7 | 3.002.0819 | TCEI SCREW M10X150 UNI 5931 STAINLESS STEEL |
| 8 | 4.507.0522 | TRACTION LEVER SPRING |
| 9 | 3.401.0157 | MICROSWITCH WITH LEVER XG02-86-P23 |
| 10 | 3.099.1338 | BLACK TIE ROD L=60 FEMALE M8 |
| 11 | 4.507.1119 | SQUEGEE CONTROL LEVER |
| 12 | 4.507.1247 | SQUARE LEVER SUPPORT |
| ASSIEME CRUSCOTTO CABLATO(FLICK/QUICK) Pag.10 | ||
| 1 | 5.009.0879 | SINGLE SWITCH ASSEMBLY + TRANSPORT PROTECTION 12V (QUICK) |
| 2 | 4.505.0879 | CONTROL PANEL WITHOUT HOUR METER HOUSING |
| 3 | 3.401.0109 | BLACK DOUBLE SWITCH 0-1 WITH TRANSPORT PROTECTION |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
QUICK 36E - 8.518.0004
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
