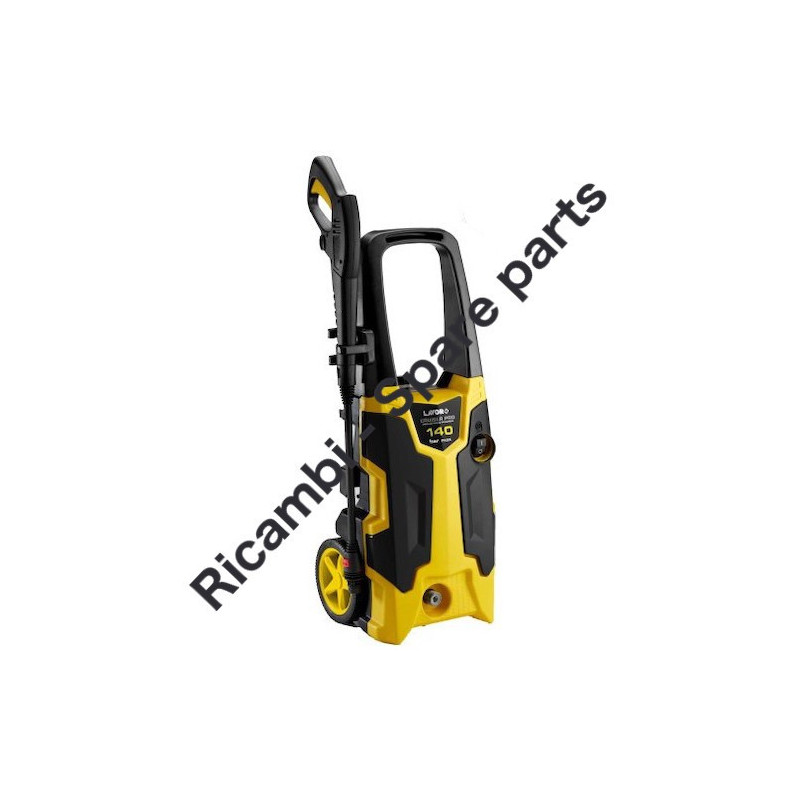

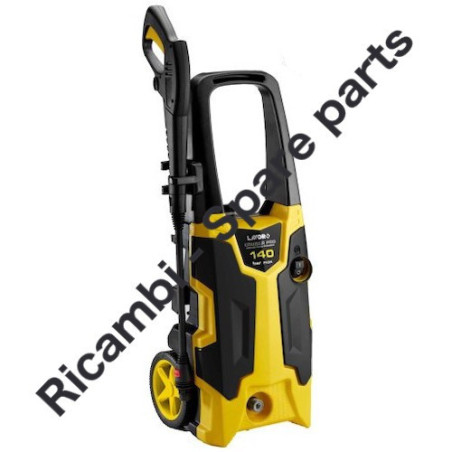

Lavor Pressure Cleaner CRUISER PRO 140 Parts
€272.26
Tax included
Lavor Original Parts for Pressure Cleaner CRUISER PRO 140
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner CRUISER PRO 140 230-240~50-G/N-TS EU - 8.108.0051C.Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner CRUISER PRO 140
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner CRUISER PRO 140 230-240~50-G/N-TS EU - 8.108.0051C.
In the following tables, look for the spare part and its respective code.
| PRESSURE CLEANER CRUISER PRO 140 230-240~50-G/N-TS EU - 8.108.0051C | ||
| Chassis Pag.1 | ||
| # | Part Num | Description |
| 0 | 5.001.0676C | MTP.PT03 110H80 230-240/50 D.12 8GR30 TS V.COMP(VENT.D127,5) |
| 1 | 3.401.0178 | SWITCH 0/1 BLACK PUSH/BUTTON IP55 12/10 |
| 2 | 5.011.0410 | TOGETHER CAREN. CRUISER/STARGATE+SIDE PANELS-G/N- |
| 3 | 4.008.1817 | IKON ELECTRIC BOX -BLACK- |
| 4 | 3.404.0013 | 20MF 450V CAPACITOR D.39X73 F/M |
| 5 | 4.008.1268 | ENGINE CONVEYOR 110H80(D.142) |
| 6 | 4.008.2045 | WHEEL -N/G- COVERED FOR SPACE PANT.108C |
| 7 | 4.008.1795 | SPACE-N HANDLE-(P80.0612) |
| 8 | 4.008.1774 | SPACE REAR ACCESSORY HOLDER BLACK(P80.0612) |
| 9 | 4.013.0763 | IKON REAR FAIRING BLACK(P80.0612) |
| 10 | 4.008.1816 | LEFT ENGINE FIXING COVER IKON-BLACK- |
| 11 | 5.001.0676C | MTP.PT03 110H80 230-240/50 D.12 8GR30 TS V.COMP(VENT.D127,5) |
| 12 | 4.008.1815 | RH ENGINE FIXING COVER IKON-NERO- |
| 13 | 4.012.0149C | CABLE H05VV-F 3X1 MT.5.4 SP.SCHUKO F/F W/ANTISP.COVER |
| 14 | 7.100.2469 | SPECIFIC MANUAL IKON+CE LAVOR 28L A5 24F |
| 15 | 6.001.0076 | S'09 GUN W/INTEGRATED QUICK COUPLING W/LEVER-G-PANT.108C |
| 16 | 4.018.0095 | 1/4 18MPA 6M TUBE ROTARY M22X1.5 D15-QUICK COUPLING FOR S'09 W/SPIR.MANUAL |
| 17 | 6.002.0340 | LANCIA S'12 S/HEAD W/QUICK CONNECTOR-COGETIL |
| 18 | 6.002.0637 | LANCIA S'12 HEAD D.1.00-LIGHT BLUE-W/QUICK CONNECTOR(PIN JET/ |
| 19 | 6.002.0346 | ROTOX LANCIA S'12 HEAD D.1.025 -BLACK- W/QUICK CONNECTOR |
| 20 | 6.002.0259 | UNIFIED FOAM DIFFUSER (D.4) W/TRANSPARENT TANK |
| 21 | 3.100.0510 | 3/4 TRANSPARENT QUICK CONNECTOR+SEAL+FILTER |
| 22 | 3.601.0033 | FIXED HYDRO BRUSH WITH LARGE COGETIL CONNECTOR |
| 23 | 3.601.0119 | FLOOR BRUSH L28D+EXT./TANK-G/N-(D.1.2) |
| Motopompa Pag.2 | ||
| 0 | 5.009.0749C | 09 MOTOR ASS. D110H80 230-240/50 2P W/TER. PT03 +PLATE 8GR30 |
| 0 | 5.009.0673C | GR.W.GUIDE W/TS-V.COMP.-M.13KG S/ASP.+HEAD(PT03) |
| 1 | 5.009.0749C | ASS.MOT.09 D110H80 230-240/50 2P W/TER. PT03 +PLATE8GR30 |
| 2 | 4.007.0328 | BALL THRUST BEARING 35X55X12 FOR PT03 |
| 3 | 5.009.0673C | GR.C.GUIDE W/TS-V.COMP.-M.13KG S/ASP.+HEAD(PT03) |
| Motore Pag.3 | ||
| 1 | 6.005.0619 | FAN KIT+RING FOR MOTOR D.110 |
| 2 | 3.001.0107 | RADIAL BALL BEARING 6202 2RS (15X35X11) |
| 3 | 5.005.0065 | ROTOR FOR 110H80-10 230-240/50 |
| 4 | 4.008.1233 | DRILLED CABLE GLAND PT03-10 |
| 5 | 3.201.0081 | OIL SEAL RING D.20X35X7 |
| 6 | 3.001.0030 | RADIAL BALL BEARING 6303 (17X47X14) |
| 7 | 4.005.0278 | INCLINED PLATE 8GR30 FOR PT03 BALL THRUST BEARINGS |
| 8 | 4.005.0353C | FRONT ENGINE FLANGE D.110-'10 PT03 |
| Corpo Guida Pag.4 | ||
| 1 | 5.007.0192C | C.GUIDE PT03 PIST.D.12 C/ TS-VALV.COMP.S/ASP.-M.13KG |
| 2 | 6.005.0282 | KIT 257 LW ALL.SEAL RINGS + PT SPACERS D.12 |
| 3 | 5.008.0182C | PT'03 D.12 HEAD -C- |
| C.GUIDA PT03 PIST.D.12 C/ TS-VALV.COMP.S/ASP Pag.5 | ||
| 1 | 5.009.0716 | ASS.V.COMP.C/TS PT03 CABLE L=530 SPRING 13KG (WHITE COVER) |
| 2 | 6.005.0281 | KIT 256 LW CHECK VALVE ASSEMBLY W/O SUCTION PT03C |
| 3 | 6.005.0226 | KIT 'O-RING FOR PT03' |
| 4 | 6.005.0079 | KIT 79 LW OIL SEAL RINGS FOR PARTNER D.12/FIBER |
| 5 | 4.005.0234 | W.PISTON GUIDE PT03 W/O SUCTION HOLE DET. |
| 6 | 6.005.0181 | KIT 167 LW 3 PISTONS+SPRINGS PT03 |
| 7 | 4.007.0314 | CYLINDRICAL PIN 3.5X30 ZNT |
| Testata Pag.6 | ||
| 1 | 6.005.0184 | KIT 170 LW VALVE SUCTION/MAND.PT' 03 |
| 2 | 4.005.0210C | '03 PARTNER HEAD |
| 3 | 6.005.0133 | KIT 124 WATER SEAL RINGS PARTNER D.12 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor CRUISER - 8.108.0051C
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
