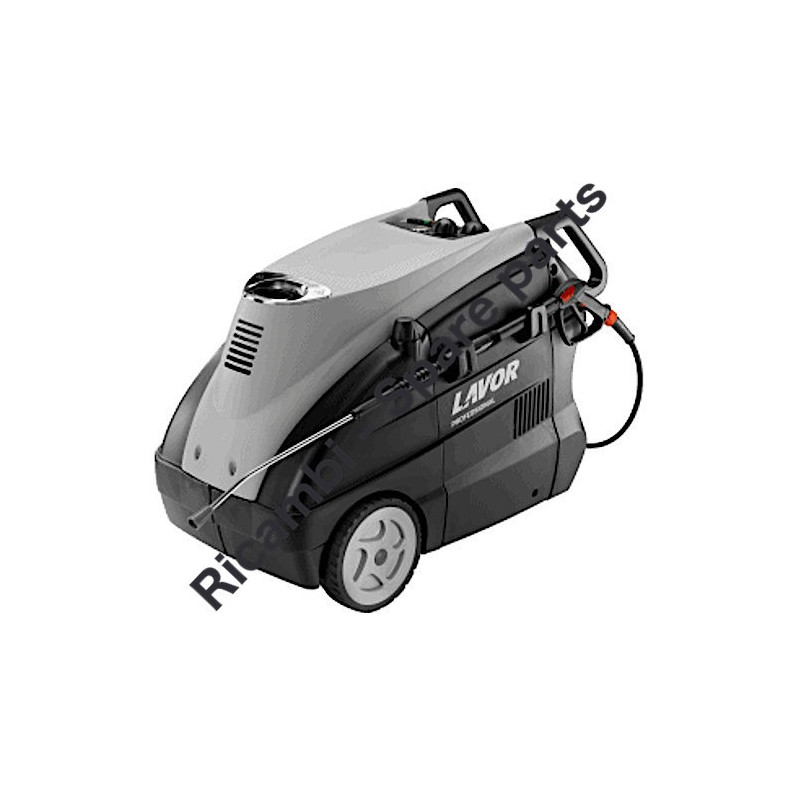

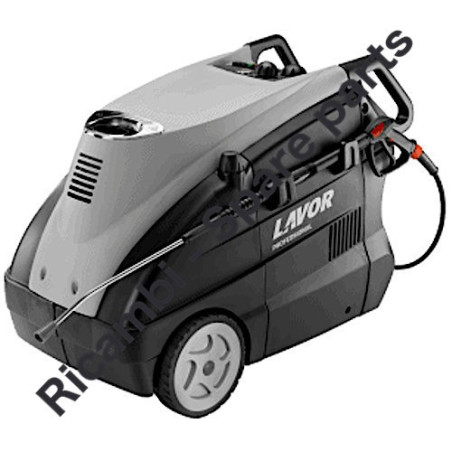

Lavor Pressure Cleaner TEKNA 4 1515 Parts
€1,398.36
Tax included
Lavor Original Parts for Pressure Cleaner TEKNA 4 1515 400-415/50 TSLWS 8.622.0901
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner TEKNA4 1515 400-415/50 TSLWS 8.622.0901
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner TEKNA 4 1515 400-415/50 TSLWS 8.622.0901
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Washer TEKNA4 1515 400-415/50 TSLWS 8.622.0901
In the following tables, look for the spare part and its respective code.
| Pressure Washer TEKNA4 1515 400-415/50 TSLWS 8.622.0901 | ||
| Motor Pump Pag.1 | ||
| # | Part Num. | Description |
| 1 | 5.601.0353 | MTP. R.A. 400/50 4P HP5.5 LW 1515 SX X HOT |
| 2 | 5.606.0108 | LW R.A. 400/50 MOTOR D.152x125 LINE WORK |
| 3 | 3.099.0805 | COMPENSATION RING 61X51X0.4 H.3.5 -62d- |
| 4 | 3.001.0066 | RADIAL BALL BEARING 6305 2RS (25X62X17) |
| 5 | 3.001.0009 | BEARING 6007-2RS 35x62x14 (X ELECTRIC MOTOR) |
| 6 | 4.605.0070 | M22 CABLE GLAND FOR R.A. MOT. EXP.00 |
| 7 | 4.618.0116 | LP TUBE L=205 COIL-PUMP R.A. MOT. LW LINE |
| 8 | 4.618.0126 | LP TUBE L=400 INPUT-COIL R.A. MOT. 3/8 M EXP.01 |
| 9 | 4.605.0072 | FRONT FLANGE MOTOR D.152 FOR PUMP D.61 |
| 10 | 6.605.0071 | KIT OF LOCKS FOR MOTOR PIPE R.A. |
| 12 | 5.699.0033 | PUMP LW 200/15 1450 SX W/DRILLED CAPS |
| 16 | 6.605.0078 | KIT VALVE L3 W/TS W/IN. 2.3 |
| 20 | 3.100.0235 | CONNECTOR 45' 1/2M-PORTAG.3/4 |
| Valve L3 Pag.2 | ||
| 1 | 6.005.0220 | KIT 203 LW GUIDE VALVE-VALV.RIT.PORTAG. LWS18 |
| 2 | 6.005.0200 | KIT 186 LW UNIVERSAL SAFETY VALVE X |
| 3 | 4.606.0192 | BODY VALVE LAVOR L3 EXP.02 |
| 4 | 4.607.0053 | DRILLED CONNECTOR 1/2 ASP. V.L. BLIND AVP ZNT EXP.05 |
| 5 | 3.004.0037 | COPPER WASHER 1/2 21X27 SP.1.5 |
| 6 | 4.607.0052 | FOR. CONNECTOR 3/8 MAND.V.L.BLIND IPESP.01 |
| 7 | 3.004.0036 | COPPER WASHER 3/8 17X22 SP.1.5 |
| 8 | 6.005.0130 | KIT 121 LW COMPLETE BY-PASS LP PUMP X |
| 9 | 6.005.0120 | KIT 111 LW PRESSURE REGULATOR |
| 10 | 4.006.0023 | CLOSING CAP 1/8 OT HEX HEAD EXP.03 |
| 12 | 5.609.0158 | FITTING ASSEMBLY 1/8 G W/PLUG M7 TS |
| 13 | 5.609.0107 | BOX ASSEMBLY + MICRO + CABLE 3X1 CAP |
| 20 | 6.605.0080 | VALVE KIT L3 W/TS S/IN. |
| Pump Pag.3 | ||
| 0 | 5.699.0033 | PUMP LW 200/15 1450 SX W/DRILLED CAPS |
| 1 | 4.605.0059 | OPEN COVER FOR IN-LINE PUMP CASE |
| 2 | 6.605.0050 | O-RING KIT + SHAFT SEAL |
| 4 | 3.099.0510 | 8X7X35 UNI 6604A KEY |
| 5 | 6.605.0029 | 2 BEARINGS KIT LAVOR LINEA |
| 6 | 6.605.0051 | PISTON GUIDE PIN KIT LAVORLINEA |
| 7 | 6.605.0027 | 15LT PUMP SHAFT KIT LAVOR LINEA |
| 8 | 4.605.0057 | IN-LINE PUMP CASE MACHINED EXP.04 |
| 9 | 6.605.0025 | 3 PISTONS KIT D.20 LAVOR LINEA |
| 10 | 6.605.0026 | COMPLETE CONNECTING ROD KIT LAVOR LINEA |
| 11 | 4.605.0058 | REAR COVER FOR IN-LINE PUMP CASE |
| 12 | 3.099.0003 | OIL LEVEL LIGHT SLNS-3/8 HOBBY |
| 13 | 3.002.0004 | SCREW STEI 3/8 G.DIN 906 (OIL CAP) |
| 14 | 4.605.0060 | CLOSED COVER FOR IN-LINE PUMP CASE |
| 15 | 6.605.0041 | KIT 3 COMPLETE SEAL PACKS + BUSHINGS |
| 16 | 6.605.0048 | KIT 3 BUSHINGS FOR SEALS |
| 17 | 6.605.0047 | KIT 3 COMPLETE SEAL PACKS LAVOR LINEA |
| 18 | 4.606.0161 | PLUG G3/8 EXP.00 |
| 22 | 4.606.0149 | PLUG VALVE INLET/OUTLET LAVORLINEA EXP.00 |
| 23 | 3.200.0185 | OR SEAL 20.29X2.62 NBR90 SH |
| 24 | 6.605.0049 | KIT 6 VALVE CAPS |
| 25 | 6.605.0042 | KIT VALVES INLET/OUTLET |
| 26 | 3.099.0978 | OIL LOADING CAP WITH PIPE AND BREATHER (ROD L=66) |
| 27 | 6.605.0031 | KIT 3 LAVORLINEA PISTON ROD GUIDES |
| 31 | 4.606.0162 | HEAD FOR IN-LINE PUMP LAVOR WITHOUT VALVE |
| 33 | 3.699.0042 | ENGINE OIL PRO 15W40 |
| 37 | 6.605.0034 | KIT OF COMPLETE PISTON FIXING SCREWS LAVORLINEA |
| 38 | 6.605.0052 | KIT OF REGISTRATION SHIMS LAVORLINEA |
| 39 | 3.704.0005 | PRESSURE STRAINER PR5 45BAR 1/4 L.750 F.29008065 |
| 40 | 4.606.0167 | PERFORATED VALVE CAP 1/4 ASP/MAND.LAVOR |
| Chassis Pag.4 | ||
| 1 | 5.613.0178 | TEKNA FRAME '04 PAINTED EXP.04 |
| 2 | 4.613.0177 | TEKNA4 FAIRING -G- RAL 1018ESP.01 |
| 3 | 4.608.0170 | LEFT HANDLE NPX'04-GR-RAL.7021ESP.00 |
| 4 | 4.608.0169 | RIGHT HANDLE NPX'04-GR-RAL.7021ESP.00 |
| 5 | 4.608.0171 | WATER TANK FOR TEKNA4 (18lt) EXP.01 |
| 6 | 4.607.0339 | HOSE REEL SUPPORT BRACKET LEFT-RIGHT X |
| 7 | 6.608.0010 | HOSE REEL KIT LWS FOR TEKNA4 |
| 8 | 4.612.0032 | POWER CABLE H05VV-F 4X2.5 L=6000ESP.03 |
| 9 | 4.607.0339 | HOSE REEL SUPPORT BRACKET LEFT-RIGHT X |
| 10 | 3.006.0070 | SWIVEL WHEEL D.150X40 ART.600/RW2ATT. A PLATE |
| 11 | 5.611.0150 | TEKNA4 RH SIDE PANEL - BLACK - W/HOOK |
| 12 | 5.611.0149 | TEKNA4 LH SIDE PANEL - BLACK - W/HOOKS |
| 13 | 4.608.0172 | RH TANK (DET.) FOR TEKNA4 EXP.01 |
| 14 | 4.608.0173 | LEF TANK (DIESEL) FOR TEKNA4 EXP.01 |
| 15 | 5.611.0108 | HINGE FOR TEKNA 4 HOOD COMPL. |
| 16 | 4.607.0270 | TANK JOINT BRACKET TEKNA4 EXP.00 |
| 17 | 4.608.0180 | TANK CAP TEKNA4/RIO EXP.00 |
| 18 | 3.006.0063 | HI300 WHEEL HOLE D.25 BLACK |
| 19 | 6.605.0087 | KIT N.3 HOOKS WITH SCREWS |
| 20 | 3.700.0028 | GUN 300bar 3/8M+S7+M22 |
| 21 | 4.618.0143 | TUBE 5/16 310BAR L=10000 W/QUICK CONNECTOR 1/2 GIR.-3/8 |
| 22 | 3.708.0001 | LANCE M22x1.5-1/8 F L=700 MT6S/WASHER |
| 23 | 3.099.0717 | WHEEL STUD FOR HI300 PAINTED SILVER RAL.9006 |
| 24 | 3.749.0459 | CONNECTOR D.14 M22 W/RING RING-3/8M 26025051 |
| 25 | 3.103.0053 | HIGH PRESSURE NOZZLE 1/8M 15060 |
| 27 | 4.608.0184 | CLOSING CAP FOR WINDING SEAT NPX'04 BLACK |
| 28 | 3.403.0110 | FUEL LEVEL SENSOR P520NESP.03 |
| 29 | 3.002.0532 | KNOB D.20 M5MX15 |
| 30 | 7.701.1787 | STICKER FAIRING HYPER T 409x783C PRESPACE |
| 31 | 7.700.0310 | INSTRUCTION BOOKLET TEKNA4 (TS2) A5124F 12L +COP.4A |
| Boiler Pag.5 | ||
| 2 | 4.608.0332 | DASHBOARD LKX4-TEKNA TS2 BOARD -GR- |
| 3 | 4.608.0164 | THERMOST ADJUSTMENT KNOB PARANA' |
| 4 | 5.611.0161 | THERMOST KNOB BLACK W/INSERT EXP.01 |
| 5 | 3.403.0091 | THERMOSTAT 30/150 BULB D. 6.5 (3 FASTON |
| 7 | 4.608.0168 | ELECTRIC BOX NPX4/LKX4/T4ESP.03 |
| 9 | 3.401.0177 | SWITCH 0/1 PULS. GREEN/RED PUSH/BUTTON |
| 11 | 3.402.0044 | THERMAL RELAY DPER14 7-10A (TELEM.) |
| 12 | 3.402.0050 | CONTROLLER KN12 400/50HZ 5.5KW AC3 |
| 13 | 3.403.0171 | TOTAL STOP BOARD TS2 |
| 14 | 3.403.0172 | LED BOARD TS2 |
| 15 | 3.107.0004 | MANOMETER D.50 0/315 BAR 1/4 POST+BRACKET |
| 16 | 3.105.0003 | DET REG. TAP W/PORTAG. D.7 (DIS.N.6990A 3/4 |
| 22 | 4.614.0004 | PAIR OF PROFESSIONAL STANDARD ELECTRODES W/BRACKET |
| 23 | 3.100.0075 | CONNECTOR M 1/8 CONICAL F D.4 CURVED |
| 24 | 3.099.0015 | CIRCUIT BREAKER D.21 SP1 DIN 472 |
| 25 | 4.608.0002 | GLASS DIAM.20 SP.1.8 |
| 26 | 4.605.0045 | BURNER FLANGE FOR FIXING PHOTORESISTANT |
| 27 | 3.104.0004 | OIL NOZZLE 1.25 60/H |
| 28 | 5.611.0164 | COMPL. BURNER FLANGE 1.25-60A (RILSAN) W/PRED. |
| 29 | 5.611.0099 | HIGH VOLTAGE CABLE L=480 FOR STANDARD ELECTRODES |
| 32 | 5.613.0200 | EXTERNAL BOILER COVER INOXAISI 430BA |
| 33 | 5.610.0104 | DEFLECTOR WITH CONE D.81 WITHOUT HOLES |
| 34 | 5.613.0056 | INTERNAL COVER FOR COMBINATION CAM. CHIMNEY L=149 |
| 35 | 5.611.0107 | EXTERNAL COVER FOR BAND/THICKNESS 3mm |
| 36 | 3.551.0040 | DOUBLE-PIPE OIL PUMP RH 24V 50/60Hz (VERS.'06) |
| 37 | 3.414.0009 | COIL 24V/50Hz X PUMP |
| 38 | 3.099.0012 | PLASTIC JOINT DIESEL PUMP |
| 39 | 3.300.0023 | MOTOR FOR BURNER 100W/230-240/50Hz IP55 WITHOUT FLANGE |
| 40 | 4.608.0186 | BOILER CONVEYOR COMM. MOTOR |
| 41 | 3.099.0722 | FAN 160x60 LEFT.HOLE DM 12.7 |
| 42 | 4.608.0181 | CONVEYOR COVER TEKNA4ESP.00 |
| 43 | 4.604.0022 | LOW COIL H.415 (F.E.35.2) FOR TEKNA '04 |
| 44 | 5.613.0229 | EXTERNAL CASING FOR BOILER COMPL. TEKNA4 |
| 45 | 5.613.0230 | INTERNAL CASING FOR BOILER COMPL. TEKNA4 -PAINTED- |
| 46 | 3.099.0719 | ALZ/330/G8 BAND FIXING COVER |
| 47 | 4.608.0183 | DIRECT GASKET FOR BOILER SNAIL |
| 48 | 4.608.0021 | ADJUSTMENT BUTTERFLY FOR GMV 150 |
| 49 | 4.608.0022 | LEVER FOR ADJUSTMENT BUTTERFLY GMV 150 |
| 50 | 5.609.0119 | COMPLETE ANTI-LIMESCALE ASSEMBLY EXP.00 |
| 51 | 4.608.0210 | RILSAN LKX 4 DIESEL DELIVERY PIPE L=800 |
| 52 | 5.609.0126 | ACCESS. TRANSFER. 220-240V 50/60Hz W/O CAV. |
| 53 | 4.608.0202 | REFRACTORY D.299X20 TEKNA'04ESP.01 |
| 54 | 4.608.0218 | INSULATION THICKNESS FOR TEKNA4 BOILER thk.3 |
| 55 | 4.618.0123 | LP PIPE L=800 TEKNA MOT.-TANK EXP.02 |
| 56 | 3.004.0032 | RUBBER WASHER 24.2X17X2 SUCTION ASS. |
| 57 | 3.749.0458 | FLOAT TAP (SHORT ROD) 3/4 M |
| 58 | 4.618.0095 | LP PIPE 3/4G 90gr-F3/4G L=600 VAS./PUMP |
| 59 | 3.102.0011 | WATER FILTER 3/4F-3/4M 80 micron |
| 70 | 3.004.0015 | FLAT WASHER D.22X39 Sp.3 UNI 6592 ZNT |
| 71 | 4.606.0013 | COOLER FIXING NUT 1/2 OT SPEC. |
| 72 | 4.618.0093 | HP PIPE 1/2G 90gr-3/8G 90gr3/8 R2 400bar TEKNA4 |
| 73 | 4.618.0097 | PIPE 3/8' R2 PUMP/COOLER L=510ESP.01 |
| 74 | 5.611.0136 | DIESEL FILTER GROUP TEKNA 4ESP.00 |
| 75 | 4.606.0087 | THERM. BULB BODY PROFESS.ESP.04 |
| 77 | 3.100.0018 | QUICK CONNECTOR 3/8 M. 08 (465) 26070050 |
| 78 | 3.406.0023 | LOCK NUT FOR PG 16 TEAR-PROOF CABLE GLAND |
| 79 | 3.100.0090 | NIPPLE 3/4 M-3/4 M STEEL |
| 80 | 3.004.0004 | ALUMINUM WASHER 21x30xSP.1.5 |
| 81 | 3.100.0020 | NIPPLE 1/2G-3/8G |
| 82 | 3.406.0022 | PG 16 TEAR-PROOF CABLE GLAND WITHOUT RING |
| 83 | 4.606.0134 | INLET CONNECTOR 3/4F-3/4M EXP.01 |
| 84 | 3.748.0021 | QUICK CONNECTOR 3/4 F WATER INLET 00108210 |
| 85 | 4.607.0006 | STEEL SHEET METAL TANK FIXING BAND 15/10 STAINLESS STEEL |
| 87 | 5.613.0181 | DASHBOARD/TANK SUPPORT SHEET METAL TEKNA4 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TEKNA 4 1515 - 8.622.0901
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
