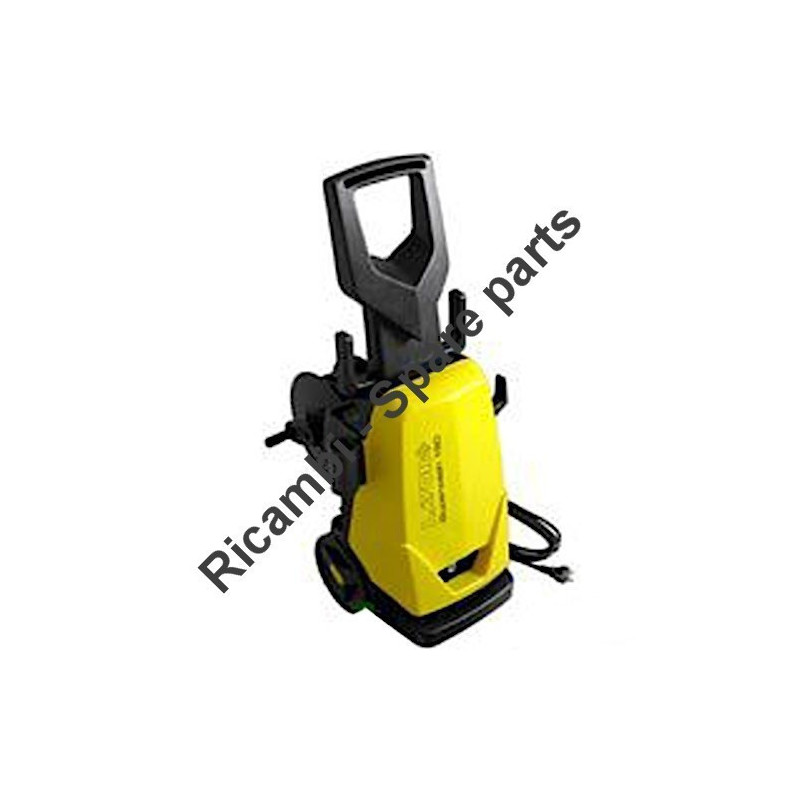

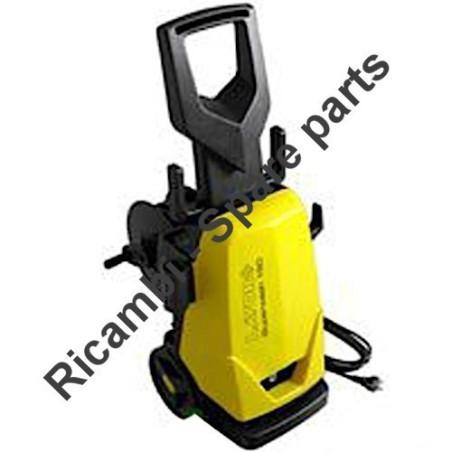

Lavor Original Parts for Pressure Cleaner SUPERWASH 160 - 80620827
€6.67
Tax included
Lavor Original Parts for Pressure Cleaner SUPERWASH 160 - 80620827
We have the original Lavor Original Parts for Pressure Cleaner SUPERWASH 160, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Pressure Cleaner SUPERWASH 160 - 80620827. All Spares are original and can be supplied at Low and discounted prices and Come with a Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner SUPERWASH 160 - 80620827
Fix Your Pressure Cleaner SUPERWASH 160 - 80620827. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Open PDF File in this Page to choose Spare Parts for Pressure Washer Lavor.
| 80620827 - IDRO SUPERWASH 230/50 -G- TS -GR-NL/BE-SF-N- (LIDL) Pag.1 | ||
| # | Part Num. | Description |
| . | R50010558 | MOTOP.PT'02 125h100 230/50 D.1 2 10'37 TS IN.1,7 (MACH) |
| 001 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 002 | 4.008.0785 | ACCESSORIES HOLDER |
| 005 | 4.008.0793 | DETERGENT TANK |
| 006 | 4.008.0821 | HANDLE FOR MACH |
| 007 | 4.008.0986 | BACK COVER MACH FOR WHEELS D.1 80 |
| 008 | 4.008.0583 | MOTOR FAN COVER '96 WITHOUT GRILL |
| 008 | 5.001.0558 | MOTOP.PT'02 125h100 230/50 D.1 2 10'37 TS IN.1,7 (MACH) |
| 009 | 3.404.0016 | CAPACITOR 45mF 450V D.45X90 WITHOUT CABLE FASTON M |
| 011 | 4.012.0150 | CABLE H05VV-F 3X1,5 MT.5,4 F/F SCHUKO PLUG |
| 012 | 4.008.0317 | YELLOW WHEEL COVER |
| 013 | 6.005.0273 | VIPER WHEEL |
| 014 | 4.007.0290 | FIXING AXLE FOR WHEEL |
| 016 | 4.007.0308 | FIXING BAND FOR INDUCTION MOTOR D.125 MACH |
| 017 | 4.013.0473 | YELLOW FRONT CABINET MACH'05 (PANT.108C) |
| 019 | 6.001.0087 | GUN S'01 WITH MANOMETER |
| 021 | 6.002.Z304 | ADJUSTABLE PRESSURE LANCE |
| 022 | 6.002.0223 | ROTOX BRASS LANCE S97 1,10 (YE LLOW) |
| 029 | 3.100.0082 | QUICK COUPLING INLET CONNECTOR (THREAD=11.5) |
| 032 | 3.601.0066 | BLACK/YELLOW ROTATING BRUSH |
| 033 | 6.005.0312 | KIT 284 HOSE REEL SUPERWASH 160 |
| 50010558 - MOTOP.PT'02 125h100 230/50 D.1 2 10'37 TS IN.1,7 (MACH) Pag.2 | ||
| . | R50060182 | MOTORE'99 D.125 H100 230/50 2P 2800W X PARTNER(FILI LUNGHI) |
| . | R50070167 | CORPO GUIDA PIST.D.12 +IN.1,7 S/REG.TS |
| . | R50080160 | TESTATA PARTNER D.12 S/IND. |
| 008 | 3.099.0049 | LOCKING RING D.23 FAN FB80 |
| 009 | 4.008.0092 | FAN FB80 WITH HOLE D.16,5 (PARTNER) |
| 010 | 5.006.0167 | MOTOR'99 D.125 H100 230/50 2P 2800W |
| 017 | 4.005.0007 | INCLINED PLATE G.10.37' DIE CA STED - DISCONTINUED |
| 018 | 3.001.0003 | DISK AS 4565 |
| 019 | 3.001.0025 | NEEDLE-ROLLER CAGE Axk4565 -STTEL- |
| 020 | 4.007.0001 | THRUST SHOE D.65X30X6 (C10PB) FINISHED |
| 022 | 3.200.0014 | O-RING GASKET 85X2,5 NITRILIC |
| 024 | 5.009.0516 | MICRO ASSY+CABLE TS MACH USA/EU |
| 053 | 3.200.0013 | O-RING 11,1X1,78 |
| 055 | 3.002.0094 | SCREW TCEI M6X30 ZNT |
| 064 | 4.008.0657 | OIL SPACER D.12 |
| 065 | 4.006.0251 | PIECE FOR SUPPORT PARTNER D.12 |
| 066 | 4.008.0695 | ANTI-EXTRUSION RING 12x18x1 FOR PARTNER D.12 |
| 083 | 5.007.0167 | PISTON BODY GUIDE D.12+IN.1,8 S/REG.TS |
| 084 | 5.008.0160 | PARTNER HEAD D.12 |
| 50070167 - CORPO GUIDA PIST.D.12 +IN.1,7 S/REG.TS Pag.3 | ||
| 021 | 5.009.0452 | ASSEMBLY RETAINING RING D.29/PISTON D.12 |
| 023 | 4.007.0025 | PISTON RECALL SPRING D.14 - 12 |
| 025 | 4.006.0270 | TS COUPLING |
| 026 | 4.006.0269 | BRASS SPACER FOR SPRING |
| 027 | 4.007.0284 | RECALL SPRING FOR ROD |
| 028 | 3.200.0021 | OR GASKET 6,75x1,78 RIF.106 |
| 029 | 4.008.0782 | CONTROL ROD FOR MICRO |
| 037 | 4.008.0780 | PISTON SEAT AND UNLOADER VALVE FOR NEW COMPENSATED VALVE |
| 038 | 3.200.0118 | OR GASKET 14X1.78 NBR SH.90 |
| 039 | 3.200.0029 | O-RING 18,72X2,62 |
| 042 | 5.009.0503 | RUBBER HOLDER WITH DET. SUCTION M10 WITH ORING |
| 044 | 3.005.0006 | BALL D.5.55 INOX 420 B |
| 045 | 4.007.0014 | DETERG.STOP VALVE SPRING 4X8 ESP.3 |
| 046 | 4.005.0217 | GUIDE BODY D 12 COMPLETE VALVE WITHOUT REGULATOR FINISHED |
| 048 | 5.009.0495 | UNLOADER VALVE ASSEMBLY PLAST. + OR |
| 049 | 4.007.0324 | SPRING FOR CHECK VALVE WIRE D.0.5 |
| 050 | 5.009.0560 | INIECTOR ASSEMBLY D.1,7 |
| 054 | 3.201.0014 | OIL SEAL RING D.12X20X5/7 |
| 50060182 - MOTORE'99 D.125 H100 230/50 2P 2800W X PARTNER(FILI LUNGHI) Pag.4 | ||
| . | R50090395 | FLANGIA ANTERIORE X PARTNER PACCO H110 |
| 001 | 5.002.0134 | MOTOR CASING '96 D125 H100 230/50 2P |
| 002 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 003 | 5.005.0055 | ROTOR SHAFT 125'96 H. 100 230-240/50 |
| 004 | 5.009.0395 | FRONT FLANGE FOR PARTNER PACCO H110 |
| 007 | 3.001.0002 | OBLIQUE SPHERE BEARING 20x52x15 7304 B |
| 50090395 - FLANGIA ANTERIORE X PARTNER PACCO H110 Pag.5 | ||
| 001 | 5.009.0395 | FRONT FLANGE MOTOR D.125 H.110 FOR PARTNER |
| 002 | 3.201.0001 | OIL SEAL 20/35/6/6,5 BABSL |
| 50080160 - TESTATA PARTNER D.12 S/IND. Pag.6 | ||
| 056 | 5.009.0101 | CAP VALVE SUCTION DELIVERY-OR MOUNTED |
| 057 | 5.009.0005 | DELIVERY SUCTION VALVE LAVOR 1 |
| 058 | 3.200.0019 | O-RING 12.4X1.78 SH.90 |
| 059 | 4.006.0109 | TAPERED 1/8 CAP |
| 062 | 3.200.0018 | OR-RING GASKET 9.92X2.62 SHORE 90 |
| 067 | 3.201.0020 | WATER SEAL 12X18X5 |
| 068 | 5.009.0015 | COMPLETE SUCTION VALVE |
| 069 | 4.005.0187 | PARTNER HEAD '01 FOR PISTONS DIAM. 12 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor SUPERWASH 160 80620827
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
