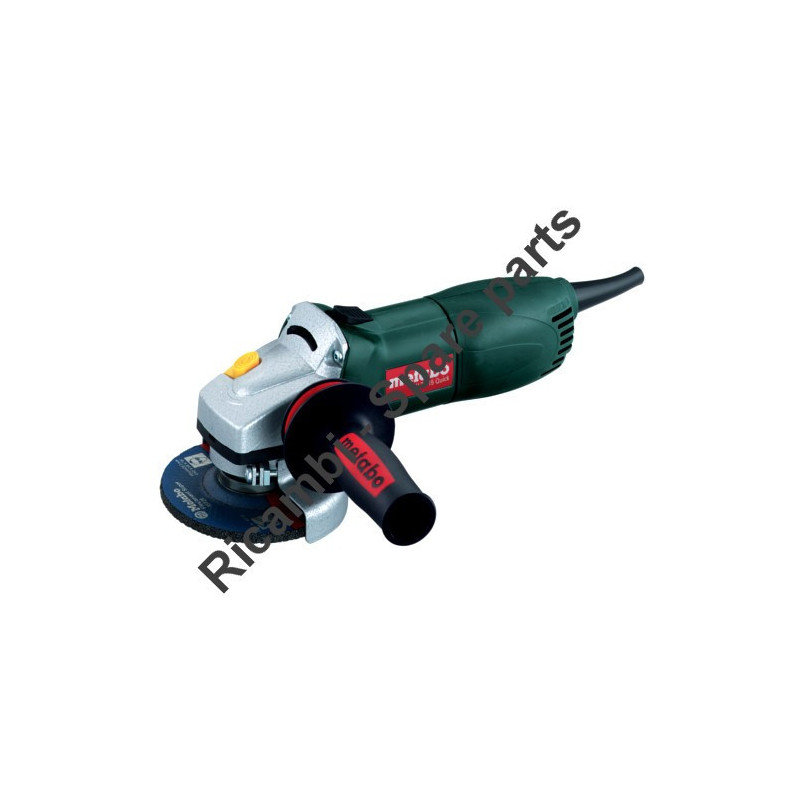

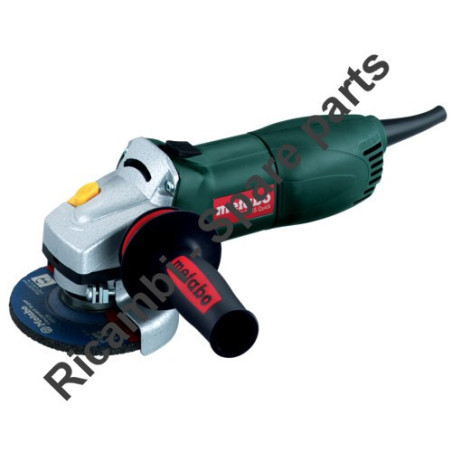

Metabo original spare parts for to make Maintenance or repair electrical or mechanical parts for Angle Grinder W 6-115 - 06111000.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.![]()
| Angle Grinder W 6-115/06111000 | ||
| # | Part Num. | Description |
| 1 | 31400054 | Handle cpl. |
| 2 | 31604061 | Spindle stop compl. |
| 3 | 31603962 | Gear housing cpl. |
| 4 | 34110094 | Hexagon nut w.recess |
| 5 | 31603959 | Bevel gear |
| 6 | 14111046 | Fillister head screw |
| 7 | 14311518 | Ball bearing,8x22x7 |
| 8 | 31520231 | Flange |
| 9 | 34339274 | Sealing washer |
| 10 | 14311504 | Ball bearing, 6x19x6 |
| 11 | 31603960 | Armature w. ball bearing,230V |
| 12 | 34409526 | Rubber bushing |
| 13 | 34339210 | Baffle |
| 14 | 34339207 | Motor cap |
| 15 | 14111602 | Self-tap fill h screw |
| 16 | 34409755 | O-ring 48 x 1 |
| 17 | 34116101 | Spindle |
| 18 | 34100567 | Bush |
| 19 | 31604059 | Flange compl.,M14 |
| 20 | 14112007 | Fill. head screw |
| 21 | 34110690 | Flange nut |
| 22 | 34103116 | Clamping flange |
| 23 | 14112164 | Fill. head screw(DIN 7985) |
| 24 | 31603963 | Wheel guard cpl. |
| 25 | 33804780 | Rating plate |
| 26 | 34339208 | Switch slide |
| 27 | 34339209 | Switch rod |
| 28 | 34336249 | Cable clip |
| 29 | 34170414 | Self-tap. fill. h. screw |
| 31 | 31101046 | Field coil assembly w.field coil, 230V |
| 32 | 33812068 | Indication label 52X22 |
| 33 | 31501316 | Motor housing |
| 34 | 33812216 | M-Label,08 52x22 |
| 35 | 31604063 | Carbon brush,230V |
| 36 | 34300086 | Brush holder |
| 37 | 34325429 | Condenser |
| 39 | 34340826 | Switch |
| 40 | 34409736 | Cable sleeve |
| 41 | 34449842 | Cable with plug |
| 42 | 34416392 | Pin spanner |
| 43 | 33901158 | Insulation |
| 880 | 34413097 | Grease 50Gr 1,8oz |
