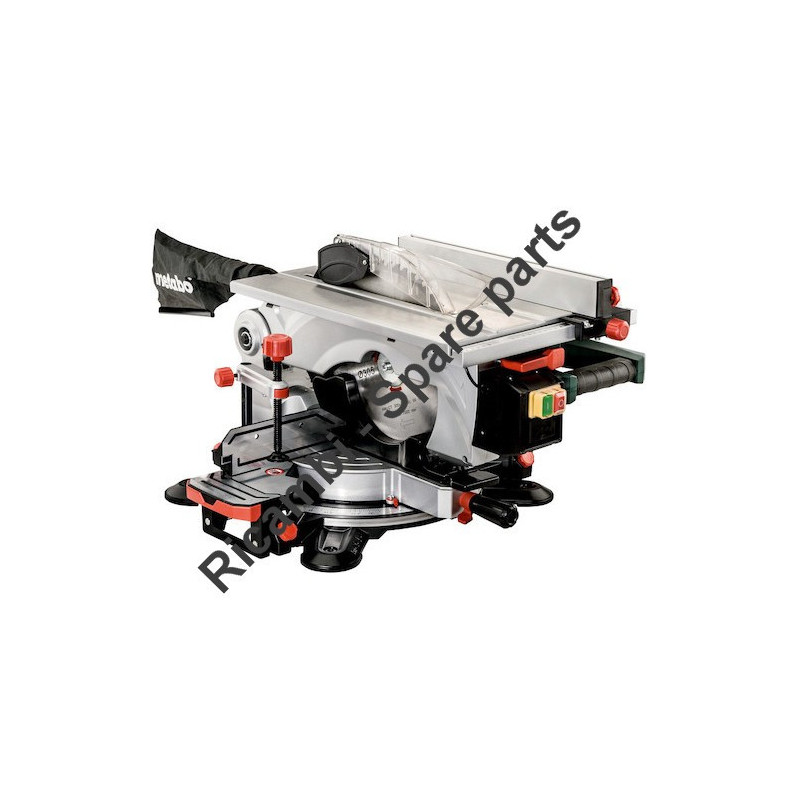

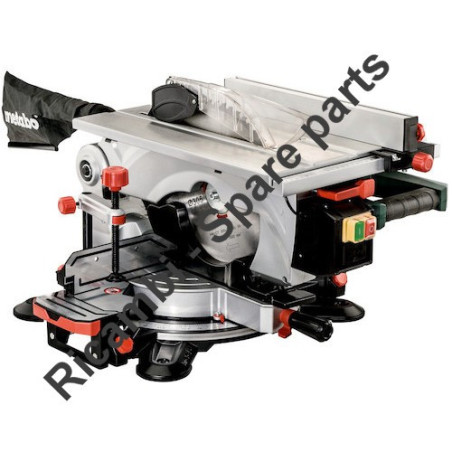

Metabo Spare Parts for Miter Saw KGT 305 M
€1.65
Tax included
Metabo Spare Parts for Miter Saw KGT 305 M
We are Dealers of METABO original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw KGT 305 M/19004000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Miter Saw KGT 305 M
We are Dealers of METABO original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw KGT 305 M/19004000.
In the following table, look for the model of the Miter Saw and the respective parts of the code.
| Miter Saw KGT 305 M | ||
| # | Part Num. | Description |
| 1 | 31609531 | CARBON BRUSH HOLDER COMPL. |
| 2 | 34344346 | MOTOR COVER |
| 3 | 31606064 | FLANGE COMPL. |
| 4 | 31609369 | CARBON BRUSH SET |
| 5 | 34344344 | LED-LAMP |
| 7 | 31001217 | ARMATURE |
| 8 | 31001216 | FIELD 230V - STATOR |
| 9 | 31609534 | GEAR-BOX COMPL. |
| 11 | 31609535 | SWITCH SET |
| 12 | 31609536 | SWITCH COMPL. |
| 13 | 34344443 | POWER SUPPLY |
| 14 | 31609405 | TURNTABLE COMPL. |
| 15 | 31609410 | TABLE COMPL. |
| 16 | 31609416 | MOVING GUARD |
| 17 | 31541909 | FOOT COMPL. |
| 18 | 31609537 | STRESS RELIEVE COMPL. |
| 19 | 31609538 | GUARD SUPPORT COMP. |
| 20 | 31609413 | RELEASE LEVER COMPL. |
| 22 | 31609541 | HANDLE CPL. |
| 24 | 31609412 | PIVOT COMPL. |
| 25 | 31609516 | LOCKING COMPL. |
| 26 | 31609542 | LOCKING COMPL. |
| 27 | 31609404 | CONTROL GRIP COMPL. |
| 28 | 31541853 | TABLE SIDE EXTENSION RIGHT |
| 29 | 31541850 | TABLE SIDE EXTENSION LEFT |
| 31 | 31605668 | WORKPIECE HOLDER COMPL. |
| 32 | 31609407 | CLAMPING LEVER COMPL. |
| 33 | 31609520 | END STOP CPL. |
| 35 | 31609406 | TABLE INSERT ASSEMBLY COMPL. |
| 36 | 34344444 | LASER WITH HOLDER |
| 37 | 31605634 | DUST ETRACTION KIT COMPL. |
| 38 | 34344336 | COVER DUST COLLECTOR |
| 40 | 34343617 | CABLE BRACKET |
| 41 | 31609543 | SPINDLE LOCK COMP. |
| 42 | 31609553 | SAW HEAD LOCK COMP. |
| 50 | 31609557 | MOTOR COMP. |
| 51 | 33914766 | SLIDING SHEET |
| 52 | 31609559 | LOCKING DEVICE CPL. |
| 53 | 34343622 | STAR GRIP SCREW |
| 58 | 31606155 | TOOL HOLDER COL. |
| 61 | 33806708 | RATING PLATE |
| 64 | 34343705 | STAR GRIP SCREW |
| 65 | 14311518 | BALL BEARING,8X22X7 |
| 66 | 14311446 | BALL BEARING |
| 67 | 14113203 | HEX NUT |
| 68 | 14115005 | WASHER |
| 69 | 14115039 | LOCK WASHER |
| 70 | 14111389 | CAP SCREW |
| 71 | 14115013 | WASHER |
| 72 | 14115524 | LOCK WASHER |
| 73 | 14113089 | HEXAGONAL LOCK NUT |
| 74 | 14115620 | WASHER |
| 76 | 14111059 | FILLISTER HEAD SCREW |
| 78 | 14112459 | HEXAGON HEAD SCREW M 10X40 VERZ. |
| 82 | 14115002 | WASHER |
| 83 | 14112384 | COUNTERSUNK SCREW |
| 88 | 14111054 | FILLISTER HEAD SCREW |
| 90 | 14112446 | HEX. SOCKET SET SCREW, FLAT PT |
| 91 | 14113101 | HEXAGONAL NUT |
| 92 | 31609540 | BEVEL CLAMPING COMP. |
| 93 | 31609544 | PROTECTION COVER CPL. |
| 94 | 31609545 | BLADE GUARD CPL. |
| 95 | 31609546 | FITTING FLANGE CPL. |
| 96 | 31609547 | COVER COMPL. |
| 97 | 31609548 | TABLE TOP CPL. |
| 98 | 31609549 | UPPER FENCE HOLDER COMPL. |
| 99 | 31605601 | FENCE COMPL. |
| 101 | 14115035 | LOCK WASHER |
| 102 | 34344342 | POINTER |
| 103 | 31609550 | RIV.KNIFE HOLDER CPL. |
| 104 | 34344345 | CHIP SUCTION PIPE |
| 105 | 34341145 | SWITCH |
| 106 | 34344335 | TRIPPING DEVICE |
| 107 | 31609551 | PROTECTION COVER |
| 108 | 31609414 | CLAMPING LEVER COMPL. |
| 109 | 31609552 | BEVEL CLAMPING COMP. (FRONT) |
| 110 | 34344339 | COVER |
| 111 | 34343318 | PUSH STICK |
| 112 | 31609554 | PROTECTION PLATE COMPL. |
| 113 | 31609556 | LOCKING DEVICE CPL. |
| 114 | 31609558 | UPPER FENCE COMPL. |
| 115 | 14113206 | HEXAGONAL LOCK NUT |
| 116 | 14115674 | WASHER |
| 117 | 14112456 | RAISED CHEESE HEAD SCREW |
| 118 | 14111304 | FILLISTER HEAD SCREW |
| 119 | 14111873 | SELF-TAP. FILL. H. SCREW |
| 120 | 14111596 | FILLISTER HEAD SCREW |
| 121 | 31609539 | COVER CPL. |
