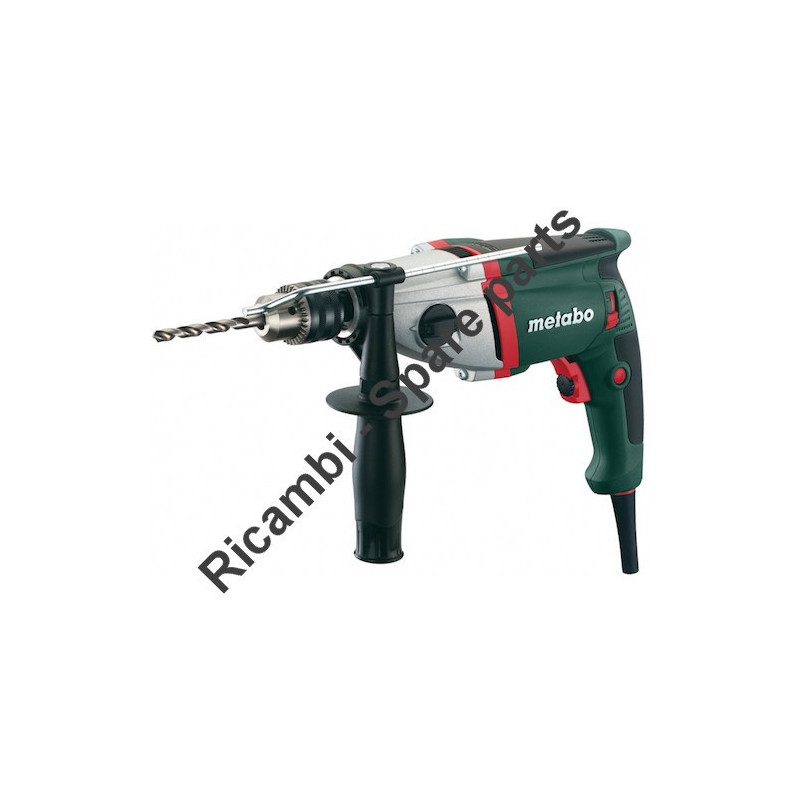

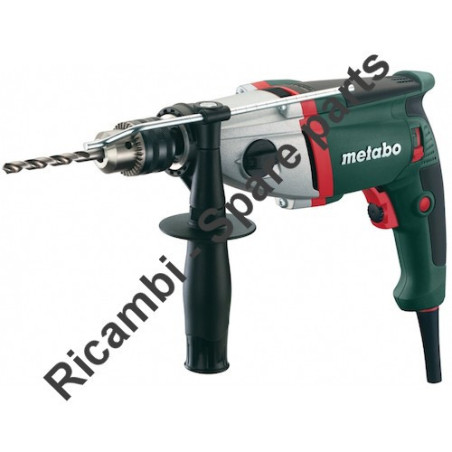

Metabo Spare Parts for Impact Drill SBE 710

€1.92
Tax included

Metabo Spare Parts for Impact Drill SBE 710

Metabo original spare parts for to replace broken parts for to fix Impact Drill SBE 710 - 00862000.

Fix Your Impact Drill. All Spares can be supplied al disconted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Trapano a Percussione SBE 710 - 00862000.
ITEM CODE: 14111602
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Impact Drill SBE 710

Fix Your Impact Drill SBE 710 - 00862000. All Spares can be supplied al disconted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Metabo SBE 710 - 00862000

Impact Drill SBE 710/00862000
# Part Num. Description
2 14118168 Retaining ring
3 33921092 Shaft sealing ring
4 34151163 Depth stop
5 14112361 Self-tap. fill. h. screw
6 31604279 Gear housing compl.
7 34000401 Sliding block
8 31604194 Switch housing compl.
9 31604282 Pinion shaft w.slip-clutch
10 34409793 Seal
11 31604280 Gear flange compl.
12 34160402 Drill spindle
13 14311579 BALL BEARING, 15x32x9
14 34105565 Slotted disc
15 31400128 Side support handle
16 14115581 Ring
17 31604196 Control knob compl.
18 34154001 Guide bolt
19 33913307 Shift fork
20 14111699 Self-tap. fill. h. screw
21 34337604 Sealing ring
22 14311580 Ball bearing, 8x22x7
23 33000182 Fan
24 31000922 Armature compl.,230 V
25 14311581 Ball bearing, 6X 19X 6
26 34339475 Intermediate flange
27 14111826 Self-tap. fill. h. screw
28 31101079 Field coil w.field coil,230 V
29 33805342 Rating plate
30 34339407 Cover w.o. electronic
31 34409592 Rubber buffer
32 14319243 O-ring
33 34152023 Cylindrical pin
36 31604695 Carbon brush set,230 V
37 31605199 Brush holder module,230V - V-El. 850W
38 34340922 Electronic switch with dial
39 14111602 Self-tap fill h screw
40 34339853 Pistol grip 2-part, gummed
41 34409758 Rubber plug
42 14111706 Self-tap. fill. h. screw
43 34336249 Cable clip
44 34339430 Cable sleeve
45 34449318 Cable with plug
880 34413093 Grease 50Gr 1,8oz
882 34413080 Grease FG 126
884 34413056 Grease SF 011 50Gr 1,8oz
886 34413103 Grease 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo SBE 710 - 00862000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS
New

Download

Diagram Metabo SBE 710

Diagram Metabo SBE 710

Download (264.26KB)
