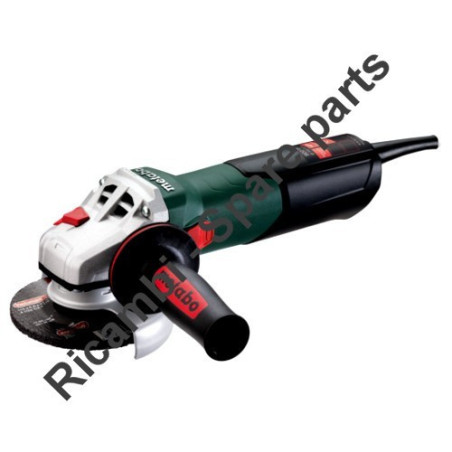

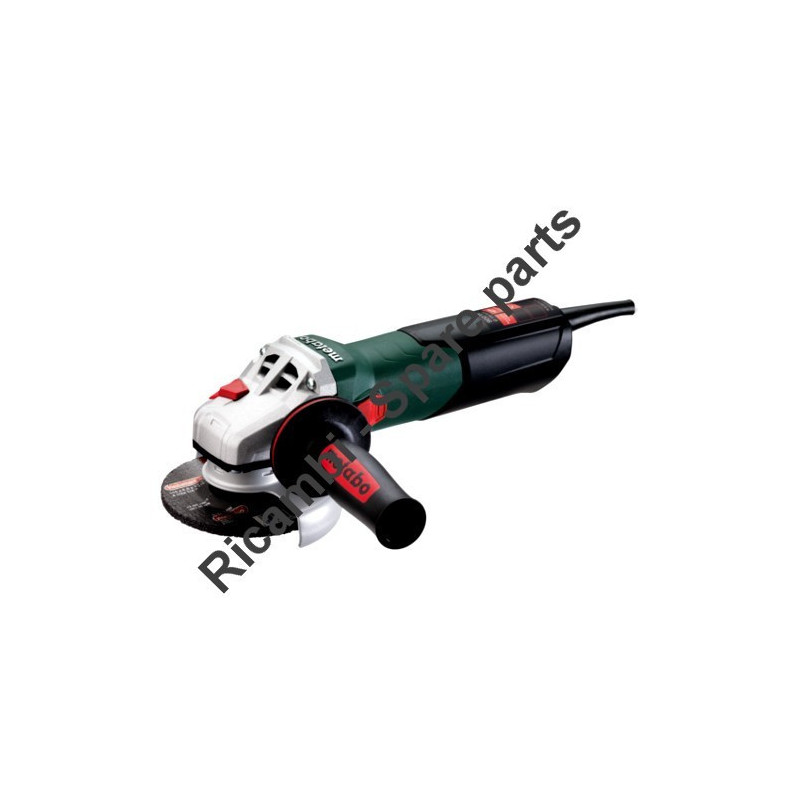

Metabo Spare Parts for Angle Grinder W 9-115 Quick
€1.85
Tax included
Metabo Spare Parts for Angle Grinder W 9-115 Quick
Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder W 9-115 Quick - 00371000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Angle Grinder W 9-115 Quick
Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder W 9-115 Quick - 00371000.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder W 9-115 Quick/00371000 | ||
| # | Part Num. | Description |
| 1 | 31001092 | Armature compl., 230V |
| 2 | 31101256 | Field w.coil,230 V |
| 3 | 34341101 | Switch,EPXe 230 V |
| 4 | 34410097 | Cable sleeve |
| 5 | 34449953 | Cable w.CEE plug |
| 6 | 34336249 | Cable clip |
| 7 | 31501353 | Motor housing |
| 8 | 33915119 | Baffle |
| 9 | 33915120 | Baffle |
| 10 | 34343315 | Cover |
| 11 | 14311517 | Ball bearing,6x19x6 |
| 12 | 34409787 | Rubber bushing |
| 13 | 33913306 | Washer,8,05x17x0,4 |
| 14 | 14311518 | Ball bearing,8x22x7 |
| 15 | 33900639 | Washer,7,05x19,5x0,2 |
| 16 | 34110094 | Hexagon nut w.recess |
| 17 | 34343308 | Switch rod |
| 18 | 34343304 | Cap |
| 19 | 34343311 | koncovka |
| 20 | 34343710 | Switch slide |
| 21 | 34103116 | Clamping flange |
| 23 | 33920449 | Wheel guard,D115 |
| 24 | 31604659 | Side support handle compl. |
| 26 | 34202204 | Spring clip |
| 30 | 33901197 | Gasket |
| 31 | 14112164 | Fill. head screw(DIN 7985) |
| 32 | 14111698 | Self-tap. fill. h. screw |
| 33 | 14111706 | Self-tap. fill. h. screw |
| 34 | 33805976 | Rating plate |
| 40 | 34160442 | Spindle M14 |
| 41 | 31605535 | Clamping nut compl.,M14 |
| 42 | 14115112 | Washer 10,2 X 14,8X 0,2 |
| 43 | 14115230 | Washer 10,2 X 14,8X 0,1 |
| 44 | 14115392 | Washer 10,2 X 14,8X 0,5 |
| 50 | 34343328 | Flange compl. |
| 51 | 34110246 | Nut |
| 52 | 31605496 | Crown gear w. bevel gear |
| 53 | 31605508 | Friction washer set compl. |
| 54 | 31605510 | Gear housing compl. |
| 55 | 31605422 | Safety clutch w.pinion |
| 56 | 31605523 | Brush holder compl. |
| 57 | 31605486 | Fan w. dust guard |
| 58 | 31605519 | Carbon brush set cut-off |
| 59 | 31605511 | Clamping lever compl. |
| 62 | 14319365 | O-ring |
| 63 | 34200339 | Pressure spring |
| 64 | 34343313 | Push button |
| 65 | 34151564 | Bolt |
| 75 | 14319249 | O-ring |
| 92 | 14319564 | O-ring |
| 880 | 34413092 | Grease 100G |
| 885 | 34413056 | Grease SF 011 50Gr 1,8oz |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
