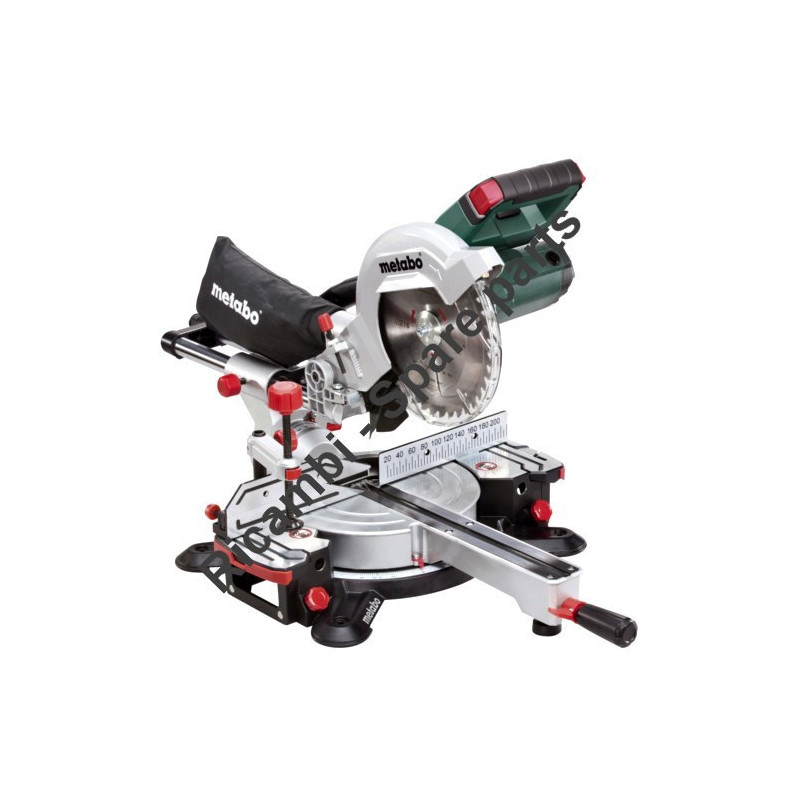

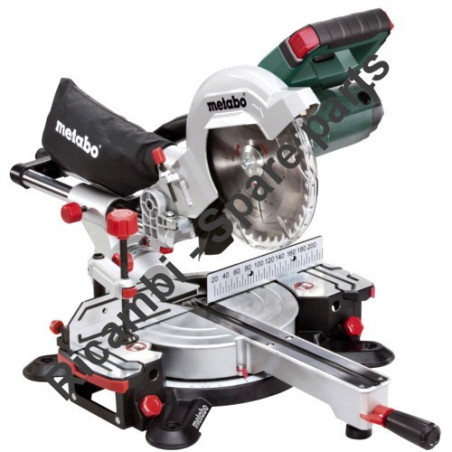

Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
€1.58
Tax included
Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
Metabo original spare parts for to replace broken parts for to fix Mitre Saw KGS 18 LTX 216/19001000.Fix Your Mitre Saw KGS 18 LTX 216. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
Fix Your Mitre Saw KGS 18 LTX 216 - 19001000. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Mitre Saw and the respective parts of the code.
| Mitre Saw KGS 18 LTX 216/19001000 | ||
| # | Part Num. | Description |
| 3 | 31606061 | Flange compl. |
| 4 | 31604758 | Carbon brush set |
| 5 | 34308514 | LED lense |
| 7 | 31101188 | Field coil compl.,2 pol. |
| 8 | 31001155 | Armature compl.,18 V for JFD AKKU KGS |
| 9 | 31606069 | Gear-box compl. |
| 12 | 34344055 | Switch compl. |
| 14 | 31605596 | Turntable compl. |
| 15 | 31605593 | Table compl. |
| 16 | 31609291 | Safety guard compl. |
| 17 | 31606084 | Foot compl. |
| 19 | 31605623 | Wheel guard compl. |
| 22 | 34344053 | Handle compl. |
| 23 | 31605607 | Motor bracket compl. |
| 24 | 31605610 | Pivot compl. |
| 25 | 31605674 | Handle compl. |
| 26 | 31606096 | Detent compl. |
| 27 | 31605679 | Control grip compl. |
| 28 | 31541852 | Table side extension right |
| 29 | 31541849 | Table side extension left |
| 31 | 31605668 | Workpiece holder compl. |
| 32 | 31605676 | Clamping lever compl. |
| 33 | 31605599 | Rip Fence |
| 34 | 31541854 | Rear pivot compl. |
| 35 | 34343602 | Table insert |
| 36 | 34343607 | Laser with holder |
| 37 | 31605634 | Dust etraction kit compl. |
| 38 | 34343578 | Cover dust collector |
| 39 | 34343626 | Extraction funnel |
| 41 | 31609225 | Spindle lock compl. |
| 42 | 31606138 | Transport lock compl. |
| 43 | 31605745 | Depth stop compl. |
| 44 | 31606140 | tipping axis compl. |
| 45 | 34344109 | Cover (cable channel) |
| 46 | 34411303 | Plug in buffer |
| 47 | 33913668 | cover pivot |
| 48 | 31605682 | Set screw compl. |
| 49 | 31606144 | Scale set compl. |
| 51 | 33914765 | Sliding sheet |
| 52 | 31606152 | End stop cpl. |
| 53 | 34343622 | Star grip screw |
| 55 | 34172221 | Stop screw |
| 58 | 31606155 | Tool holder col. |
| 60 | 33806424 | Rating plate |
| 62 | 34343702 | Star grip screw |
| 64 | 34343704 | Star grip screw |
| 66 | 14311573 | Ball bearing |
| 67 | 14113203 | Hex nut |
| 68 | 14115005 | Washer |
| 69 | 14115039 | Lock washer |
| 70 | 14111389 | Cap screw |
| 71 | 14115001 | Washer |
| 72 | 14115524 | Lock washer |
| 73 | 14113089 | Hexagonal lock nut |
| 74 | 14115620 | Washer |
| 75 | 14111384 | Cap screw |
| 76 | 14111059 | Fillister head screw |
| 78 | 14111344 | Hexagon head screw |
| 80 | 14111678 | Fillister head screw |
| 82 | 14115002 | Washer |
| 84 | 14112451 | HEX. SOCKET SET SCREW, FLAT PT M 6X8 VER |
| 90 | 34344052 | Brush cover |
| 91 | 31609222 | clamp kit |
| 92 | 34308440 | Electronic unit |
| 93 | 34308442 | Electronic unit |
| 96 | 14111143 | Fillister head screw |
| 100 | 14111322 | Fillister head screw |
| 101 | 14115035 | Lock washer |
| 110 | 31606010 | Motor housing compl. |
| 111 | 34344051 | Motor cap |
| 112 | 31609223 | Motor compl. |
| 114 | 34409874 | Rubber bushing |
| 115 | 31605321 | Brush holder compl.,18 V |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
KGS18LTX216 - 19001000
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
