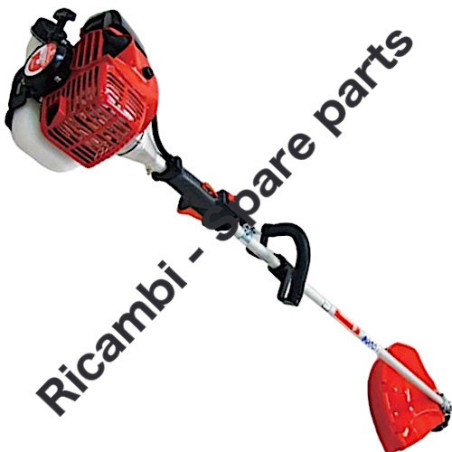

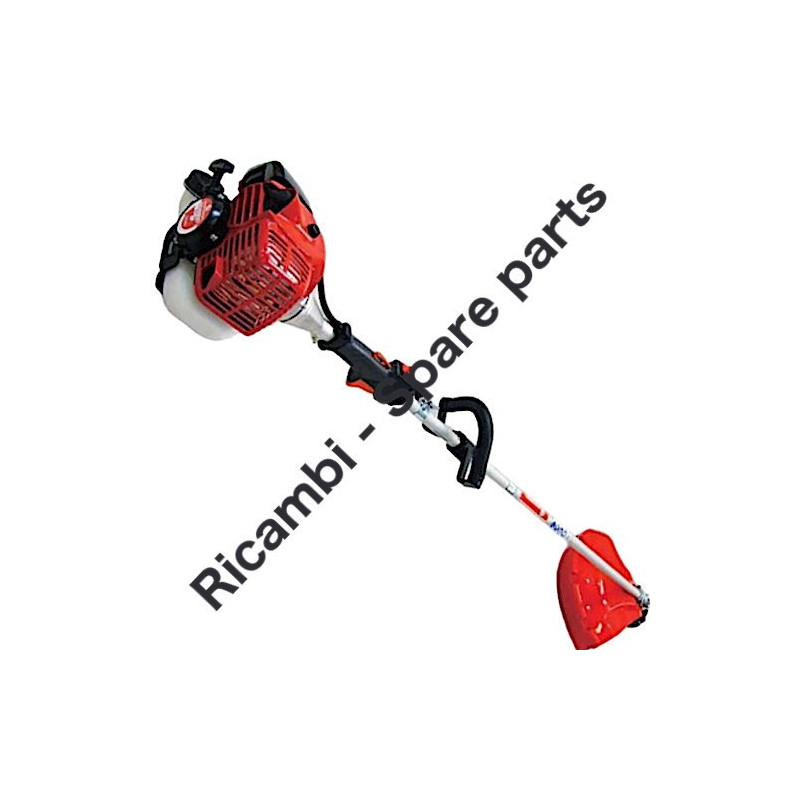

Maruyama Brushcutter BC2321RS-01 Parts
€2.57
Tax included
Maruyama Parts for Brushcutter BC2321RS-01
Maruyama Genuine spare parts or replacement parts for to repair Brushcutter BC2321RS-01.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Brushcutter BC2321RS-01
Maruyama Genuine spare parts or replacement parts for to repair Brushcutter BC2321RS-01.
In the following tables, look for the spare part and its respective code.
| Maruyama Brushcutter BC2321RS-01 Parts | ||
| Main Body Pag.1 | ||
| # | Part Num. | Description |
| 1-1 | 363914 | BC2321RS-01 |
| 1-2 | 261250 | Cap Screw |
| 1-3 | 215512 | Clutch Case Ass'y - Incl 4-10 |
| 1-4 | 214592 | Bearing Case |
| 1-5 | 214161 | Bearing |
| 1-6 | 054676 | Snap Ring |
| 1-7 | 214162 | Buffer |
| 1-8 | 214163 | Washer |
| 1-9 | 092033 | Screw |
| 1-10 | 214593 | Driveshaft Tube Adapter |
| 1-11 | 261246 | Cap Screw |
| 1-12 | 054677 | Clutch Drum |
| 1-13 | 219268 | Driveshaft Ass'y |
| 1-14 | 224122 | Driveshaft Tube |
| 1-15 | 231017 | Throttle Trigger |
| 1-16 | 215533 | Hanging Bracket Ass'y - Incl.17 |
| 1-17 | 261762 | Cap Screw |
| 1-18 | 233325 | Label |
| 1-19 | 223188 | Label |
| 1-20 | 231468 | Label |
| 1-21 | 220533 | Hanging Strap Ass'y - Incl.22 |
| 1-22 | 231657 | Hook |
| 1-23 | 231955 | Loop Handle Ass'y - Incl.24-26 |
| 1-24 | 225699 | Loop Handle |
| 1-25 | 081027 | Nut |
| 1-26 | 215608 | Cap Screw |
| 1-27 | 232086 | Safety Cover Ass'y Incl.28-34 |
| 1-28 | 231252 | Safety Cover Ass'y Incl.29,30 |
| 1-29 | 227819 | Bracket |
| 1-30 | 221580 | Screw |
| 1-31 | 232087 | Bracket Ass'y - Incl.32-34 |
| 1-32 | 227822 | Bracket |
| 1-33 | 220632 | Cap Screw |
| 1-34 | 231704 | Washer |
| 1-35 | 231882 | String Cutter Ass'y - Incl.36-38 |
| 1-36 | 230747 | String Cutter |
| 1-37 | 261250 | Cap Screw |
| 1-38 | 228325 | Nut |
| 1-39 | 230748 | Cover Extention |
| Gear Case Pag.2 | ||
| 2-1 | 231880 | Gearcase Ass'y Incl.2-17 |
| 2-2 | 225960 | Gearcase |
| 2-3 | 234109 | Bolt |
| 2-4 | 227990 | Bearing |
| 2-5 | 228416 | Gear Set |
| 2-6 | 219087 | Cap Screw |
| 2-7 | 227991 | Bearing |
| 2-8 | 055185 | Snap Ring |
| 2-9 | 227992 | Bearing |
| 2-10 | 227993 | Bearing |
| 2-11 | 228477 | Snap Ring |
| 2-12 | 140270 | Snap Ring |
| 2-13 | 261246 | Cap Screw |
| 2-14 | 212986 | Boss Adapter |
| 2-15 | 140275 | Clamping Washer |
| 2-16 | 215547 | Stabilizer |
| 2-17 | 215610 | Bolt |
| Engine Pag.3 | ||
| 3-1 | 858990 | Engine |
| 3-2 | 286309 | Cylinder |
| 3-3 | 286074 | Gasket |
| 3-4 | 261250 | Cap Screw |
| 3-5 | 269144 | Insulator |
| 3-6 | 267049 | Gasket |
| 3-7 | 265924 | Cap Screw |
| 3-8 | 282208 | Muffler Ass'y Incl.9-12 |
| 3-9 | 282209 | Muffler Comp. |
| 3-10 | 267056 | Spark Arrester |
| 3-11 | 268171 | Muffler Tail |
| 3-12 | 265107 | Cap Screw |
| 3-13 | 268461 | Holder |
| 3-14 | 281440 | Gasket |
| 3-15 | 266402 | Cap Screw |
| 3-16 | 281446 | Under Cover |
| 3-17 | 267191 | Cap Screw |
| 3-18 | 288800 | Top Cover Ass'y Incl.19-22 |
| 3-19 | 281444 | Top Cover |
| 3-20 | 286300 | Knob |
| 3-21 | 261020 | Spacer |
| 3-22 | 261734 | Snap Ring |
| 3-23 | 289246 | Crankcase |
| 3-24 | 280488 | Bearing |
| 3-25 | 261492 | Oil Seal |
| 3-26 | 261386 | Oil Seal |
| 3-27 | 055185 | Snap Ring |
| 3-28 | 261612 | Cap Screw |
| 3-29 | 281442 | Screen |
| 3-30 | 268032 | Piston |
| 3-31 | 282177 | Piston Ring |
| 3-32 | 261036 | Piston Pin |
| 3-33 | 263957 | Bearing, Needle |
| 3-34 | 261576 | Clip,Piston |
| 3-35 | 268187 | Crankshaft/Conn.Rod Ass'y |
| 3-36 | 267327 | Clutch Ass'y Incl.37,38 |
| 3-37 | 267342 | Clutch Shoe |
| 3-38 | 267345 | Spring,Clutch |
| 3-39 | 264505 | Bolt |
| 3-40 | 261189 | Washer |
| 3-41 | 261777 | Wave Washer |
| 3-42 | 281443 | Fan Cover |
| 3-43 | 261250 | Cap Screw |
| 3-44 | 286269 | Magneto Ass'y Incl.45-53 |
| 3-45 | 286271 | Rotor/Fan |
| 3-46 | 281705 | Ignition Coil Ass'y Incl.47-53 |
| 3-47 | 281706 | Coil |
| 3-48 | 281707 | Spark Plug Wire Ass'y Incl.49-51 |
| 3-49 | 261074 | Plug Boot |
| 3-50 | 261075 | Connector |
| 3-51 | 281709 | Spark Plug Wire |
| 3-52 | 261072 | Cap |
| 3-53 | 280080 | Insulator |
| 3-54 | 261076 | Woodruff Key |
| 3-55 | 261417 | Nut,Rotor |
| 3-56 | 280381 | Spacer |
| 3-57 | 261256 | Cap Screw |
| 3-58 | 288264 | Spark Plug |
| 3-59 | 263804 | Lead |
| 3-60 | 268044 | Lead |
| 3-61 | 269189 | Grommet |
| 3-62 | 264588 | Clamp |
| 3-63 | 283477 | Recoil Ass'y Incl.64-72 |
| 3-64 | 283504 | Reel |
| 3-65 | 283505 | Cam Plate |
| 3-66 | 283506 | Spring |
| 3-67 | 280931 | Spiral Spring |
| 3-68 | 267213 | Screw |
| 3-69 | 283578 | Stater Rope Ass'y Incl.70-72 |
| 3-70 | 283579 | Stater Rope |
| 3-71 | 261725 | Starter Grip |
| 3-72 | 283511 | Rope Stopper |
| 3-73 | 283575 | Starter Pawl Ass'y |
| 3-74 | 284698 | Adapter Ass'y |
| 3-75 | 283391 | Cap Screw |
| 3-76 | 265726 | Cap Screw |
| 3-77 | 282096 | Cap Screw |
| 3-78 | 288753 | Label |
| 3-79 | 265694 | Label |
| 3-80 | 267561 | Label |
| Carburator - Fuel Tank Pag.4 | ||
| 4-1 | 286898 | Carburetor Ass'y Incl.2-18 New gasket required |
| 4-2 | 264155 | Pump Body |
| 4-3 | 262991 | Purge Body |
| 4-4 | 262992 | Cover Plate |
| 4-5 | 261874 | Primer Bulb |
| 4-6 | 283905 | Diaphragm, Meterring |
| 4-7 | 262993 | Gasket |
| 4-8 | 262994 | Diaphragm,Fuel Pump |
| 4-9 | 282576 | Gasket |
| 4-10 | 281487 | Main Jet |
| 4-11 | 261871 | O-Ring |
| 4-12 | 261876 | E-Ring |
| 4-13 | 261658 | Swivel |
| 4-14 | 261875 | Screw |
| 4-15 | 264677 | Bracket |
| 4-16 | 262996 | Screw |
| 4-17 | 264678 | Washer |
| 4-18 | 261657 | Packing |
| 4-19 | 281447 | Stand |
| 4-20 | 281715 | Cap Screw |
| 4-21 | 261352 | Label |
| 4-22 | 261864 | Gasket |
| 4-23 | 268055 | Air Filter Case Ass'y Incl.24-27 |
| 4-24 | 268056 | Air Filter Case |
| 4-25 | 268057 | Valve |
| 4-26 | 268157 | Sleeve |
| 4-27 | 268412 | Sleeve |
| 4-28 | 263345 | Packing |
| 4-29 | 263942 | Washer |
| 4-30 | 263815 | Stay |
| 4-31 | 264016 | Cap Screw |
| 4-32 | 265026 | Screen |
| 4-33 | 265027 | Foam Element |
| 4-34 | 268058 | Air Filter Cover Ass'y Incl.35-37 |
| 4-35 | 268059 | Air Filter Cover |
| 4-36 | 281438 | Knob |
| 4-37 | 261734 | Snap Ring |
| 4-38 | 286942 | Fuel Tank Ass'y Incl.39-50 |
| 4-39 | 281445 | Fuel Tank |
| 4-40 | 281564 | Fuel Tank Cap Ass'y Incl.41 |
| 4-41 | 269377 | Gasket |
| 4-42 | 282334 | Fuel Pipe Pick-up Ass'y Incl.43-50 |
| 4-43 | 282335 | Fuel Pipe Ass'y Incl.44-48 |
| 4-44 | 268065 | Grommet |
| 4-45 | 282337 | Return Pipe |
| 4-46 | 282501 | Fuel Pipe |
| 4-47 | 261590 | Breather |
| 4-48 | 261117 | Clip |
| 4-49 | 264653 | Filter Ass'y |
| 4-50 | 261117 | Clip |
| 4-51 | 261117 | Clip |
| 4-52 | 281714 | Cap Screw |
| Accessories Pag.5 | ||
| 5-1 | 210418 | Box Spanner |
| 5-2 | 022865 | Double-ended Wrench |
| 5-3 | 210181 | Lever Handle |
| 5-4 | 210179 | Mowing Blade |
| 5-5 | 220534 | Blade Cover |
| 5-6 | 232226 | Semi-Auto Head (L) |
| 5-7 | 219432 | Wrench |
| 5-8 | 219433 | Wrench |
| 5-9 | 233234 | Instruction Manual |
| 5-10 | 233326 | Instruction Manual |
| 5-11 | 523280 | Parts List |
