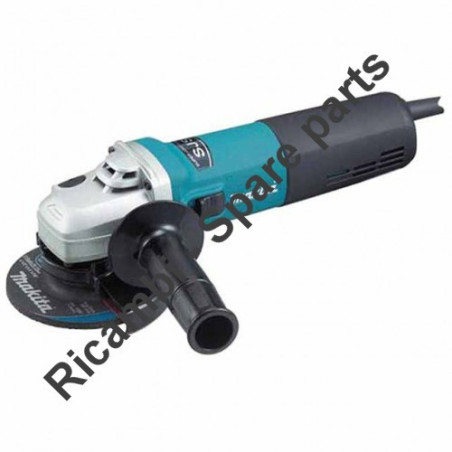

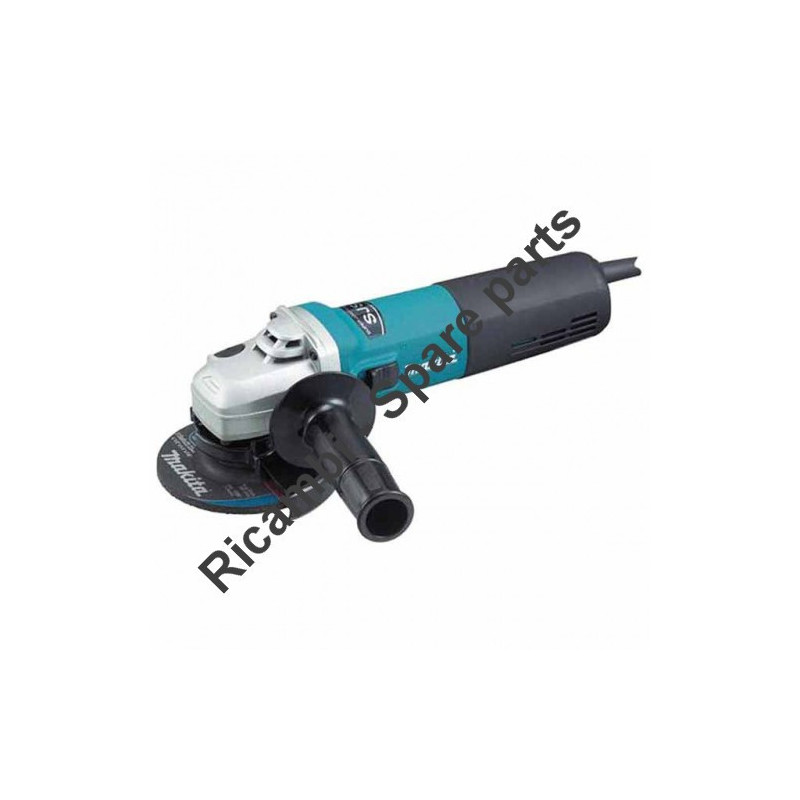

Makita Spare Parts for Angle Grinder 9565H
€1.40
Tax included
Makita Spare Parts for Angle Grinder 9565H
Makita original replacement parts for to replace broken parts for to fix Angle Grinder 9565H.Fix Your Angle Grinder. All Spares can be supplyed at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Angle Grinder 9565H
Makita original replacement parts for to replace broken parts for to fix Angle Grinder 9565H.
Fix Your Angle Grinder. All Spares can be supplyed at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder 9565H | ||
| # | Part Num. | Description |
| 1 | 418067-8 | PLUG PLUG FOR SG1250 |
| 2 | 233072-2 | SPRING COMPRESSION 8 X 9541 |
| 3 | 153488-4 | RECEIVER INPUT. CPL FOR SG1250 |
| 4 | 931303-0 | HEX NUT M6 |
| 5 | 253077-6 | ROND.P. 6 4300 / 01BV |
| 6 | 226794-1 | GEAR 11 X 9561CV |
| 7 | 233901-9 | RING OF ARREST 12 X GD0800C |
| 8 | 961052-5 | RETAINING RING S12 |
| 9 | 211142-7 | BEARING 6001LLB X GD0800C |
| 10 | 253084-9 | ROND.P.12 8419B / 5016NB |
| 11 | 317359-1 | COVER BOX INPUT. X 9561 |
| 12 | 240033-5 | FAN 57 X 9561CV |
| 13 | 515234-7 | ARMATURE 9564 |
| 14 | 681656-4 | INSULATOR X GD0810C |
| 15 | 253823-7 | ROND. FLAT 7 X JS1600 |
| 16 | 210027-4 | BEARING 627DDW X 9561CV |
| 17 | 421738-8 | RING LABYRINTH 22 X 9561CV |
| 21 | 413076-2 | AIR BAFFLE X GD0800C |
| 22 | 266258-3 | SCREW 4 X 70 X 9564 |
| 23 | 344871-8 | RETAINING X GD0800C |
| 24 | 417237-6 | COVER INSULATION X GD0800C |
| 25 | 626564-2 | STATOR FOR 9564H |
| 26 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 27 | 687052-4 | CLAMP ties X 6408 |
| 28 | 632945-0 | LOCK SWITCH X GD0800C |
| 30 | 682559-5 | SAVE CABLE X 6822 |
| 31 | 651418-4 | SWITCH ST115A-40 X 9541 |
| 32 | 687113-0 | COVER X GD0800C |
| 34 | 417183-3 | COVER POST. X 9564 |
| 35 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 37 | 417186-7 | LEVER SWITCH X 9564 |
| 38 | 233071-4 | SPRING COMPRESSION 4 X 9541 |
| 39 | 643760-7 | BRUSH HOLDER X BO6040 |
| 40 | 453276-2 | HOUSING MOTOR |
| 41 | 417813-6 | CONTROL SWITCH X GD0800CP02 |
| 42 | 194074-2 | CARBON BRUSHES CB-325 X 9554NB |
| 43 | 643760-7 | BRUSH HOLDER X BO6040 |
| 44 | 266256-7 | SCREW 3 X 10 X GD0800C |
| 45 | 862753-7 | LABEL MOD. 9565H |
| 46 | 224554-5 | EXTERNAL FLANGE 14-45 X 9541 |
| 47 | 224415-9 | FLANGE INTERNAL 42 GA95010 |
| 48 | 123099-9 | WHEEL GUARD |
| 49 | 265180-1 | SCREW M5X16 |
| 50 | 324035-0 | SPINDLE X 9561CV |
| 51 | 415300-9 | SPACER X 9541 |
| 52 | 265490-6 | SCREW M4 X 16 X 9561CV |
| 53 | 318334-0 | BEARING BOX |
| 54 | 211129-9 | BALL BEARING NSK 6201DD |
| 55 | 285841-7 | RETAINING BEARING X 9566CV |
| 56 | 213673-2 | RING 52 X 9561CV |
| 57 | 227427-1 | GEAR 38 |
| 58 | 256459-1 | PIN X 9561CV |
| 59 | 213048-5 | RING 6 X 9561CV |
| 60 | 266257-5 | SCREW M4 X 28 X 9561CV |
| 61 | 213009-5 | RING 4 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
