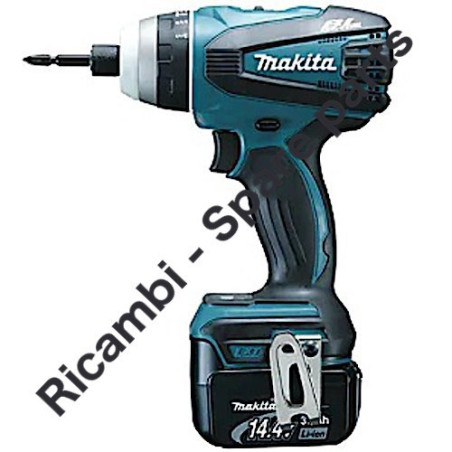

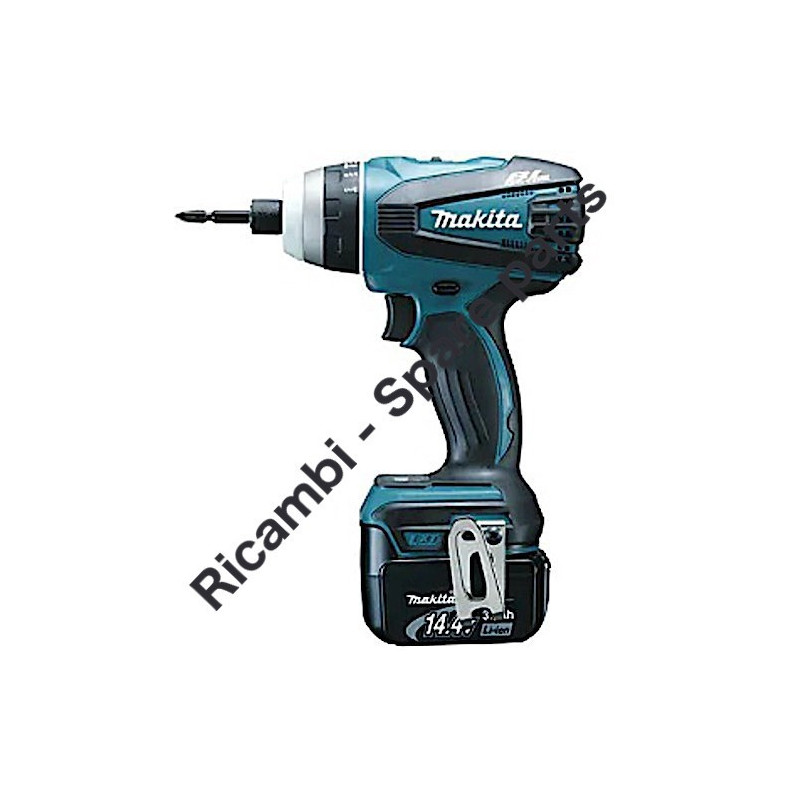

Makita Spare Parts for Cordless Impact Driver BTP131
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for BTP131 Cordless 4 Mode Impact Driver 14,4V.
In the following table, look for the model of Cordless Impact Screwdriver and the respective parts of the code.
| Makita BTP131 Cordless 4 Mode Impact Driver Spare Parts | ||
| # | Part Num. | Description |
| 1 | 187266-0 | HOUSING SET BTP131 |
| 2 | 896495-1 | NAME PLATE BTP131 |
| 3 | 266130-9 | TAPPING SCREW BIND 3 X 16 L14. |
| 4 | 126105-9 | SPEED CHANGE LEVER ASSEMBLY |
| 5 | 419041-9 | F/R CHANGE LEVER BTD043/063/1 |
| 6 | 650673-5 | SWITCH C3JW-1A |
| 7 | 126341-7 | “IMPACT ASSY M BTP131/141 |
| 8 | 638958-9 | SWITCH UNIT |
| 9 | 638959-7 | SWITCH UNIT |
| 10 | 638898-1 | STATOR COMP BTP131 |
| 11 | 619292-6 | ROTOR |
| 12 | 620092-9 | LED CIRCUIT |
| 13 | 643850-6 | TERMINAL DST111/DST121/BCL140 |
| 14 | 141268-0 | SWITCH PLATE COMPLETE |
| 15 | 187266-0 | HOUSING SET BTP131 |
| 18 | 231951-8 | RING SPRING 11 BTD/TD126/TLO64 |
| 19 | 267085-1 | NARROW WASHER 12 TD126/DTD154 |
| 20 | 233005-7 | COMPRESSION SPRING 13 TD126 |
| 21 | 324420-7 | SLEEVE 6916F D-6980FD/TD126 |
| 22 | 424485-0 | BAMPER |
| 23 | 135505-2 | HAMMER CASE ASS’Y |
| 24 | 453321-3 | CHANGE RING |
| 25 | 232272-1 | LEAF SPRING |
| 26 | 257809-3 | SLEEVE 24 |
| 27 | 961085-0 | RETAINING RING WR-15 BTP130/1 |
| 28 | 223175-0 | CAMA |
| 29 | 223176-8 | CAM B |
| 30 | 216019-1 | STEEL BALL 3 HR1840/M8701 |
| 31 | 267839-6 | CUP WASHER |
| 32 | 346560-1 | HAMMER CHANGE PLATE |
| 33 | 313227-6 | HAMMER CHANGE RING |
| 34 | 234231-1 | COMPRESSION SPRING 2 |
| 35 | 453320-5 | CHANGE CASE |
| 36 | 135504-4 | GEAR CASE ASS’Y |
| 37 | 453324-7 | PIN GUIDE |
| 38 | 256537-7 | FLAT FILLISTER HD. PIN 1.2-3.5 |
| 39 | 261130-4 | NYLON WASHER 15 BTP130/140 |
| 40 | 213166-9 | OIL SEAL 12.5 TDO101F/BTP130/ |
| 41 | 216001-0 | STEEL BALL 3.5 BPJ/DTD154/TLO6 |
| 42 | 326126-3 | ANVIL M |
| 43 | 234233-7 | COMPRESSION SPRING 5 |
| 44 | 216011-7 | STEEL BALL 5.6/DTW285 |
| 45 | 256272-7 | PIN 2.5 |
| 46 | 326123-9 | HAMMER |
| 47 | 234234-5 | COMPRESSION SPRING 22 |
| 48 | 331977-1 | CHANGE SLEEVE |
| 49 | 216019-1 | STEEL BALL 3 HR1840/M8701 |
| 50 | 326124-7 | OUTER HAMMER |
| 51 | 216019-1 | STEEL BALL 3 HR1840/M8701 |
| 52 | 267453-8 | FLAT WASHER 14. |
| 53 | 216011-7 | STEEL BALL 5.6/DTW285 |
| 54 | 141250-9 | *SPINDLE COMP BTP131/141 |
| 55 | 211379-6 | BALL BEARING 6805LLB |
| 56 | 453325-5 | BEARING CASE |
| 57 | 227288-9 | *SPUR GEAR 41 BTP131/141 |
| 58 | 227286-3 | *SPUR GEAR 14B BTP131/141 |
| 59 | 268266-0 | FLAT FILLISTER HD. PIN 1.2 |
| 60 | 453323-9 | CHANGE LEVER |
| 61 | 227287-1 | INTERNAL GEAR 41 |
| 62 | 141251-7 | SPUR GEAR 14A COMPLETE |
| 63 | 227284-7 | SPUR GEAR 21 |
| 64 | 135506-0 | MOTOR BRACKET ASS’Y |
| 65 | 211022-7 | BALL BEARING 6072Z HS6100 |
| 1001 | 251314-2 | SPECIAL PAN HD SCREW M4xX12 |
| 1002 | 346317-0 | Price on application |
| 1003 | **DC18RC | Price on application |
| 1004 | 194065-3 | Price on application |
| 1005 | 450128-8 | BATTERY COVER BDG800/DTW251 |
| 1006 | 821550-0 | STACKING CASE TYPE 2 157MM |
| 1006 | 824979-9 | PLASTIC CARRYING CASE |
| 1007 | 890487-2 | BTP131RFE PLASTIC CASE LABEL |
| 1007 | 837670-0 | MAKPAC TRAY TYPE 2 BTD/BTP/DTW DTD152/153 |
| 1008 | 800579-3 | BTP131RF] INDICATION LABEL |
| 1008 | 800581-6 | BTP131Z) INDICATION LABEL |
| 1009 | 800580-8 | BTP131RF] PLASTIC CASE LABEL |
| 1009 | 800582-4 | BTP131Z) PLASTIC CASE LABEL |
