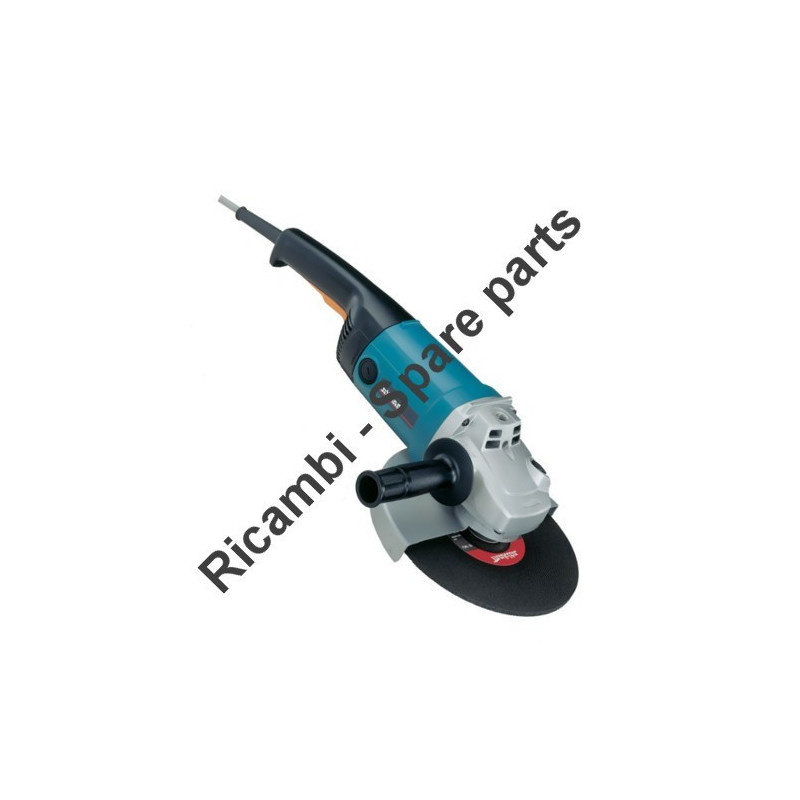

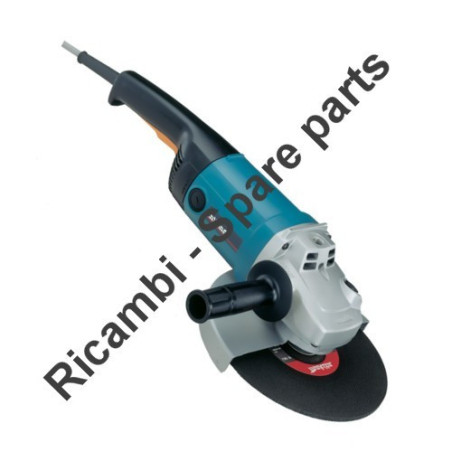

Makita Spare Parts for Angle Grinder 9609NB
€1.47
Tax included
Makita Spare Parts for Angle Grinder 9609NB
We have the original MAKITA parts and tool repair help you need to get your tools running like new again.Fix Your Angle Grinder 9609NB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Angle Grinder 9609NB
Fix Your Angle Grinder 9609NB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| 9609NB - SMERIGLIATRICE 1800W 230 MM | ||
| # | Part Num. | Description |
| 1 | 911263-2 | Pan Hdscrew M5x40 W/cp |
| 2 | 962062-5 | INTERNAL INVERTED RING-12* |
| 3 | 256615-3 | PIN 6 9609HB 9607 / 09GA |
| 4 | 231037-8 | COMPRESSION SPRING 7 9607/09 / GA / 3612BR |
| 5 | 421156-0 | TOOL REST, GA7910 9609NB / HB |
| 7 | 156451-6 | GEAR HOUSING, 9607NB 9609NB / HB / GA |
| 8 | 263005-3 | RUBBER PIN 6 |
| 9 | 961051-7 | RETAINING RING S-11, DP4000 |
| 10 | 257062-1 | RING 11 9609NB / HB / 07HB |
| 11 | 221322-7 | SPIRAL B. GEAR, GA7911 9609NB / HB / GA |
| 12 | 211132-0 | BALL BEARING 6301DD |
| 13 | 341403-2 | PLATE, 9607NB 9609NB / HB / GA |
| 14 | 254001-2 | WOODRUFF KEY 4, HM1810 |
| 16 | 514937-0 | ARMATURE ASSìY 9609NB / HBS / NBS |
| 17 | 681623-9 | INS. WASHER, 2012NB |
| 18 | 211087-9 | BALL BEARING 6200DDW NSK |
| 22 | 911290-9 | P.H. SCREW M5X65, GA7911 |
| 23 | 643650-4 | BRUSH HOLDER CAP, 5007NK |
| 24 | 181044-0 | CARBON BRUSH CB-153 (CB-22)/94 (150/52/54) |
| 25 | 263002-9 | RUBBER PIN 4 |
| 26 | 156452-4 | MOTOR HOUSING, 9607NB 9609NB / HB |
| 27 | 654020-2 | GARTER SPRING 94, 5007NK |
| 28 | 911248-8 | P.H. SCREW M5X28, HM1500 |
| 29 | 181908-8 | HANDLE ASS'Y, 9607GB 9609NB / HB |
| 30 | 651142-9 | SWITCH C3D-15CS |
| 32 | 682506-6 | CORD GUARD 12/90, 6922NB |
| 34 | 687001-1 | STRAIN RELIEF, 6013BR |
| 35 | 911126-2 | P.H. SCREW M4X16, 5402NA |
| 36 | 421279-4 | DUST COVER, 4110C 9609B / NB / HB |
| 37 | 911111-5 | P.H. SCREW M4X10, LS1011 |
| 38 | 911143-2 | P.H. SCREW M4X22, 6211D |
| 39 | 911248-8 | P.H. SCREW M5X28, HM1500 |
| 40 | 911136-9 | P.H. SCREW M4X20, N9501B |
| 41 | 224543-0 | LOCK NUT 14-45 9047F 9049F 9049SF |
| 42 | 224490-5 | INNER FLANGE 42 DGA452 |
| 43 | 164392-2 | WHEEL COVER 9609B / NB / HB / S |
| 44 | 342555-2 | WHEEL COVER HOLDER |
| 45 | 942101-7 | SPRING WASHER 5, 9005B |
| 46 | 911223-4 | P.H. SCREW M5X16, 5007NK |
| 47 | 321218-3 | SPINDLE 9609NB / HB / S / GA |
| 48 | 254001-2 | WOODRUFF KEY 4 |
| 49 | 256047-4 | PIN 6 84DW / 9609B / GA |
| 50 | 911226-8 | P.H. SCREW M5X18, GA7911 |
| 51 | 315003-4 | HOUSING W/O BEARING, 9607NB 9609N / HB / S |
| 52 | 443036-0 | FELT RING 25, GA7001L 9609N / HB |
| 53 | 253772-8 | FLAT WASHER 28, GA7001L |
| 54 | 211490-4 | BALL BEARING 6203LLU X SG150-2 |
| 55 | 962157-4 | RETAINING RING R-40, GA7911 |
| 56 | 221323-5 | SPIRAL B. GEAR 58, GA7001L 9609B / HB / GA |
| 57 | 961057-5 | RETAINING RING S-17, LS1016L |
| 58 | 322465-9 | SHAFT LOCK BUSH, 9000BL 9609B / HBS |
| 59 | 253214-2 | FLAT WASHER 9 |
| 60 | 211092-6 | BALL BEARING 629DD |
| 61 | 273404-1 | SIDE HANDLE 37, 6013BR-T1 |
| 62 | 643556-6 | BRUSH HOLDER , 4301BV |
